Why Header Lift Cylinders Fail to Hold Height Under Load?

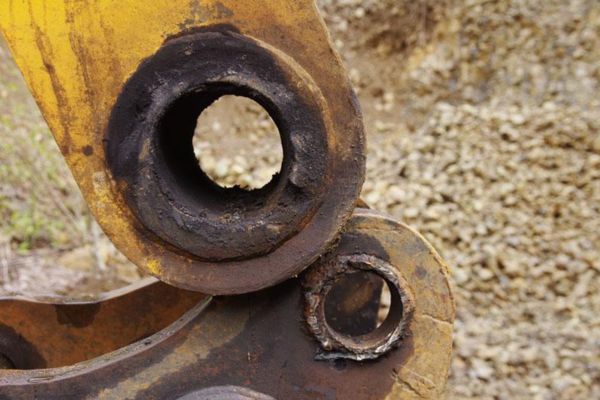

Header lift cylinders lose their holding ability primarily due to internal leakage across the piston seals or a failure in the load-holding valves within the hydraulic circuit. When you are in the middle of a harvest, discovering that your implement is slowly sagging toward the soil can be incredibly frustrating. This unwanted movement not only compromises the precision of your cut but also places immense stress on the mechanical frame and hydraulic pump. If left unaddressed, header lift cylinders fail and lead to catastrophic implement damage or dangerous operational hazards. By understanding the intersection of seal integrity, valve mechanics, and fluid health, you can implement a diagnostic strategy that restores the lifting power and stability of your agricultural machinery.
Why Do Header Lift Cylinders Fail to Maintain Height?
The inability of a cylinder to maintain its set position is usually caused by high-pressure oil bypassing a seal or escaping through a check valve. When header lift cylinders fail, it is often a symptom of an invisible internal leak that equalizes pressure on both sides of the piston. This loss of pressure differentiation makes it impossible for the hydraulic fluid to act as a solid column to support the heavy weight of the harvester implement.
You must differentiate between external leaks and internal bypasses to begin an effective repair. While a visible puddle of oil on the barn floor is an obvious indicator of a rod seal failure, the internal drift that occurs during operation is far more deceptive. Most systems rely on a perfect seal between the cap and rod ends of the barrel to lock the implement in place.
Identifying the Symptoms of Implementation Drift
Implement drift often starts as a slow, almost imperceptible movement. You might notice that you have to frequently adjust the height control lever to maintain a consistent cut. Over time, this drift accelerates as the leaking fluid creates wear tracks on the internal components.
The fluid bypass generates heat as it is forced through microscopic gaps. This heat further thins the oil and degrades the seals, creating a cycle of declining performance. You must catch these signs early to prevent a total hydraulic collapse during peak usage hours.
| Component | Failure Mode | Impact on Height | |
|---|---|---|---|
| Piston Seal | Internal Bypass | Gradual implement sagging | |
| Barrel Wall | Scoring/Scratches | Inconsistent holding ability | |
| Rod Seal | External Leak | Visible oil loss and pressure drop | |
| End Cap | Gasket Failure | Localized external leaking |
How Does Seal Wear Make Header Lift Cylinders Fail?
Seal wear causes the load-bearing fluid to bypass the piston, which is the most frequent reason header lift cylinders fail during heavy-duty agricultural operations. Over thousands of cycles, the friction between the polyurethane or nitrile seals and the cylinder wall creates physical degradation. As the seal profile flattens or cracks, it can no longer maintain the interference fit required to block high-pressure oil flow.
Standard seals are designed to handle specific temperature ranges and pressures. If your equipment operates in extreme heat or carries loads exceeding the original design specifications, the seals will harden and become brittle. Once the seal loses its flexibility, it cannot expand to fill the gaps caused by minor barrel irregularities.
Thermal Degradation of Polyurethane Materials
High operating temperatures are the silent killers of hydraulic integrity. When oil exceeds its recommended thermal limit, it begins to chemically break down the polymer chains within the seal material. This leads to a condition known as “heat set,” where the seal becomes permanently deformed and loses its ability to energize under pressure.
A seal that has undergone thermal hardening will often feel like hard plastic rather than a resilient elastomer. This lack of compliance allows oil to “weep” past the piston even when the system is supposedly locked. Frequent oil changes and cooling system maintenance are vital to extending the life of these critical internal barriers.
Mechanical Abrasion and Friction Cycles
The inner surface of the cylinder barrel must be perfectly honed to provide a smooth path for the piston. If contaminants like metal shavings or dirt enter the system, they act like sandpaper against the seal. This abrasive action creates micro-grooves in both the seal and the barrel wall.
Here is why it happens:
- Ingress of dust through a damaged rod wiper seal.
- Inadequate filtration of the primary hydraulic reservoir.
- Metal-on-metal contact due to side-loading and rod deflection.
- Chemical breakdown of the oil causing additive precipitation.
| Seal Type | Common Material | Failure Symptom | |
|---|---|---|---|
| Piston Seal | Polyurethane | Internal bypass and load drift | |
| Rod Seal | Nitrile/Viton | External oil leaking on the rod | |
| Wiper Seal | Hardened Plastic | Contaminant ingress into barrel | |
| O-Rings | Buna-N | Fluid migration between segments |
Is Internal Leakage Why Header Lift Cylinders Fail?
Internal leakage is the primary culprit because it allows fluid to transition between chambers without being visible to the operator. When header lift cylinders fail, the “invisible” nature of internal leakage often leads to misdiagnosis of the pump or control valves. This phenomenon occurs when the pressure differential required to hold a load is lost within the cylinder itself.
Because the fluid stays within the hydraulic circuit, you will not see any external signs of a problem. Instead, you must rely on performance metrics and diagnostic tools like flow meters or infrared thermometers. Internal leakage effectively turns a double-acting cylinder into a leaky vessel that cannot resist the gravitational pull on the header.
Diagnosing the Bypass Through Temperature Analysis
One of the most effective ways to confirm internal leakage is through thermal imaging. As high-pressure oil is forced through a damaged seal or a narrow scratch, it generates friction at a molecular level. This friction translates into heat that can be detected on the exterior of the cylinder barrel.
A cylinder that is holding a load should remain at a consistent temperature across its length. If you detect a significant temperature spike near the piston’s location while the implement is drifting, you have confirmed an internal bypass. This method allows for non-invasive testing that saves hours of teardown time.
The Impact of Scored Cylinder Bores
The integrity of the internal seal depends entirely on the condition of the cylinder bore. If the bore is scratched or “scored,” no amount of new seals will fix the drift. These scores provide a permanent channel for oil to bypass the piston, regardless of how tight the seal is.
- Deep grooves can be caused by broken piston rings.
- Abrasive particles can become embedded in the seal and “lathe” the bore.
- Lack of lubrication during high-speed cycles causes galling.
- Side-loading from misaligned implements creates uneven bore wear.
| Failure Source | Detection Method | Recommended Action | |
|---|---|---|---|
| Piston Seal | Pressure Decay Test | Replace Seal Kit | |
| Barrel Scuffing | Bore-scope Inspection | Hone or Replace Barrel | |
| Piston Ring | Visual Teardown | Replace Metal Components | |
| Port Gasket | Static Holding Test | Replace Static Seals |
Why Do Many Header Lift Cylinders Fail Under High Loads?
High-load scenarios expose the microscopic weaknesses in a hydraulic system that remain hidden during light-duty work. When header lift cylinders fail, the increased pressure of a heavy implement forces oil through gaps that would normally be sealed by the surface tension of the fluid. The relationship between implement weight and pressure is linear; as the load increases, the force pushing oil past the seals increases accordingly.
Furthermore, heavy loads cause mechanical deflection in the cylinder rod. If the rod bends slightly under extreme stress, it creates an uneven load on the seals and bearings. This misalignment allows fluid to escape more easily and accelerates the wear on one side of the internal components.
Rod Deflection and Side-Loading Effects
A hydraulic cylinder is strongest when the force is perfectly axial. In the real world of farming, uneven terrain and heavy headers often create side-loads. These lateral forces push the piston against the side of the barrel, compressing the seal on one side and creating a gap on the other.
This gap allows high-pressure oil to rush past the piston, resulting in immediate height loss. Over time, persistent side-loading will result in “ovalization” of the cylinder barrel, making it impossible to achieve a perfect seal even with brand-new parts.
The Role of Peak Pressure Spikes
When you drive a harvester across a bumpy field, the implement acts like a giant lever, sending massive pressure spikes back into the lift cylinders. These spikes can exceed the rated cracking pressure of relief valves or the structural limits of the piston seals.
- Operating speed over uneven terrain.
- Total weight of the header including accumulated debris.
- The condition of the nitrogen accumulators in the suspension system.
- The response time of the hydraulic control system.
| Stress Factor | Mechanical Result | Operational Impact | |
|---|---|---|---|
| Excessive Weight | Extreme Internal Pressure | Immediate seal bypass | |
| Side-Loading | Rod Deflection | Uneven seal wear and leaks | |
| Ground Shocks | Pressure Spikes | Blown seals or valve damage | |
| High Cycle Rate | Internal Heat Buildup | Fluid thinning and drift |
Does Hydraulic Drift Cause Your Equipment to Sag?
Hydraulic drift is the term used for the unintentional movement of a cylinder, and it is a clear indicator that header lift cylinders fail to maintain a static seal. This phenomenon is often more pronounced when the oil is warm, as the reduced viscosity allows the fluid to flow more easily through small leaks. Sagging implements are not just an annoyance; they are a sign that the system’s efficiency is dropping.
When drift occurs, the energy that should be holding the implement is instead being converted into heat. This heat further reduces the oil’s ability to provide a thick lubricating film, leading to even more wear. Understanding the speed and consistency of the drift is essential for determining the root cause.
Viscosity Changes and Temperature Effects
As hydraulic oil heats up, it becomes thinner and less capable of sealing microscopic gaps. A system that holds height perfectly when cold may start to sag after two hours of heavy work. This is because the “leak path” remains the same, but the fluid’s resistance to flowing through that path decreases.
If your implement only sags when the machine is hot, you may be using the wrong grade of hydraulic oil or your cooling system may be failing. Upgrading to a high-viscosity index (VI) oil can sometimes mitigate minor drift issues by maintaining a more consistent fluid thickness across different temperatures.
Differentiating Between Creep and Rapid Drop
The rate of descent provides a major clue about where the leak is located. A very slow “creep” usually indicates worn seals or a slightly fouled valve seat. A rapid drop, however, suggests a catastrophic failure of a seal or a valve that has become stuck wide open.
- Creep: Suggests long-term wear and the need for a scheduled overhaul.
- Rapid Drop: Indicates a safety hazard and the need for immediate shutdown.
- Intermittent Sagging: Points to a contamination issue where debris moves in and out of a valve.
- Load-Sensitive Drift: Confirms that the leak is related to the pressure differential.
| Drift Rate | Likely Cause | Priority Level | |
|---|---|---|---|
| < 1 inch per hour | Minor seal wear | Monitor/Scheduled Service | |
| 1-5 inches per hour | Significant seal bypass | High/Repair soon | |
| > 5 inches per hour | Valve failure/Blown seal | Critical/Stop Operation | |
| Sudden Drop | Valve stick/Structural | Emergency/Immediate Repair |
How Can You Troubleshoot Pressure Drops in Lifting Systems?
Troubleshooting a height-loss issue requires a logical process of elimination to identify exactly where the header lift cylinders fail to hold pressure. You should start by isolating the cylinder from the rest of the machine’s hydraulic circuit. By using manual shut-off valves or plugs, you can determine if the pressure is escaping through the cylinder’s internal seals or back through the control valves.
A pressure drop is always the result of fluid moving from a high-energy state to a low-energy state. If you can block all exit paths and the pressure still drops, the leak must be internal to the component you have isolated. This systematic approach saves hours of guesswork and ensures that you only replace the parts that are truly broken.
Utilizing Pressure Gauges for Diagnostics
Installing a pressure gauge in the lift circuit is the most direct way to see what is happening. By monitoring the gauge while the machine is off, you can see the exact rate of pressure decay. This data is much more useful than simply watching the implement move, as it accounts for fluid expansion and mechanical friction.
If the pressure drops rapidly but the implement doesn’t move, you may have air trapped in the system. If the pressure holds but the implement still sags, the problem is likely mechanical, such as a loose pivot point or a bent frame. A gauge provides the objective truth about the hydraulic state of your machine.
The Bypass Test (Cylinder Isolation)
To truly test a cylinder’s internal seals, you must perform a bypass test. This involves extending the cylinder fully, then disconnecting the return line and applying pressure to the extend port. If oil flows out of the open return port, the piston seal is bypassed.
Here are the steps for a bypass test:
- Secure the implement with safety stands.
- Relieve all hydraulic pressure from the system.
- Disconnect the hose from the “retract” side of the cylinder.
- Apply pressure to the “extend” side.
- Observe if any fluid exits the open port.
| Tool | Purpose | Diagnostic Benefit | |
|---|---|---|---|
| Pressure Gauge | Measure decay rate | Quantifies the leak severity | |
| Infrared Camera | Detect heat from bypass | Non-invasive seal check | |
| Flow Meter | Measure bypass volume | Precision leakage analysis | |
| Ultrasonic Probe | Listen for internal flow | Detects valve seat leaks |
What Are the Best Practices for Maintaining Hydraulic Life?
Preventive maintenance is the most effective strategy to ensure header lift cylinders fail less frequently over the lifespan of your agricultural equipment. A well-maintained system operates with lower friction, less heat, and higher precision. By focusing on fluid cleanliness, seal protection, and valve calibration, you can avoid the most common causes of implement height loss.
The goal of a maintenance program is to catch minor issues before they turn into field failures. A simple daily inspection can reveal a torn wiper seal or a weeping fitting that, if left unaddressed, would lead to a major repair during the busiest week of the year. Investing in maintenance today saves thousands of dollars in lost productivity tomorrow.
Daily and Weekly Inspection Checklists
Your daily walk-around is your first line of defense. You should look for any signs of “wetness” on the cylinder rods and check that the hoses are not rubbing against the frame. These small mechanical issues are the precursors to major hydraulic leaks.
- Daily: Check for external leaks and rod surface damage.
- Weekly: Inspect pivot pins and bushings for excessive play.
- Monthly: Verify the nitrogen charge in the accumulators.
- Seasonally: Perform a full hydraulic fluid and filter change.
Consistent inspections allow you to track the “health” of your machine over time. If you notice that a specific cylinder is getting progressively “wetter” or the drift is accelerating, you can schedule the repair during a scheduled downtime period. This proactive management keeps your harvest on track.
The Importance of High-Quality Hydraulic Fluid
Not all hydraulic oils are created equal. In heavy-duty agricultural lifting, you need an oil with a high viscosity index and robust anti-wear additives. These additives create a protective film on the metal surfaces, reducing the friction that leads to seal wear and bore scoring.
Using the manufacturer’s recommended fluid is non-negotiable. Cheap, off-brand oils often lack the shear stability required for high-pressure lift circuits. Over time, these inferior oils break down, leading to sludge buildup and valve sticking. Your oil is the lifeblood of the system; do not compromise on its quality.
| Maintenance Task | Frequency | Expected Result | |
|---|---|---|---|
| Filter Replacement | Every 500 Hours | Removes destructive particles | |
| Rod Wiper Inspection | Daily | Prevents dirt ingress | |
| Fluid Analysis | Annually | Detects internal wear early | |
| Pressure Calibration | Seasonally | Ensures optimal valve timing |
Conclusion
Failure of header lift cylinders to hold height is a multifaceted issue involving seal wear, valve malfunction, and fluid contamination. By applying the diagnostic steps and maintenance protocols outlined in this guide, you can eliminate implement drift and restore the operational precision of your harvester. We are committed to helping you maintain the highest standards of hydraulic performance. For expert guidance on selecting the right components or to discuss custom hydraulic solutions for your specific machinery, contact us today . Together, we can ensure your equipment remains at the peak of productivity through every harvest season, pushing the boundaries of agricultural efficiency.
FAQ
How do I know if my lift cylinder drift is within acceptable limits?
Most manufacturers allow for a very small amount of drift, often measured in millimeters per hour. If the movement is visible to the naked eye over a 5-minute period, it is likely exceeding acceptable tolerances and requires investigation.
Can I fix an internal leak by just changing the hydraulic oil?
No. While fresh oil can slow down a leak by providing better viscosity, it cannot repair a damaged seal or a scored barrel. If an internal bypass is confirmed, the cylinder must be disassembled and resealed.
What’s the best way to prevent dirt from entering my lift cylinders?
The most effective method is to maintain the rod wiper seals. These are the primary barriers that prevent field dust from being pulled into the cylinder during every stroke.
Can I replace just one seal in the cylinder kit?
No. You should always replace the entire seal kit at once. Once the cylinder is open, the labor cost is the same, and other seals in the kit are likely nearing the end of their service life as well.
How do I know if the problem is in the cylinder or the control valve?
The most reliable way is to block the hydraulic lines directly at the cylinder ports. If the implement still sags with the ports blocked, the problem is inside the cylinder; if it holds, the problem is in the valves or hoses.
