Harvester Hydraulic Cylinders Built for Tight Harvest Windows
Slow lifting, oil leakage, and drift usually start with mismatched seals, incorrect rod finish, or the wrong mounting configuration. Match cylinders by function, confirm dimensions, and reduce downtime before peak season begins.
Harvester Hydraulic Cylinders for Dusty, High-Load Field Work
Harvester cylinders face dust intrusion, vibration, and side load. To prevent repeat failures, confirm the seal system, rod surface, mounting style, and port orientation before you place an order.
-
1Header & Reel Control Helps keep cutting height stable. Choose strong wipers and low-leak seals to reduce drift and oil loss.
-
2Unloading Auger Swing & Spout Works with long reach and vibration. Confirm mount strength and anti-corrosion rod finish for outdoor exposure.
-
3Tailgate / Covers / Access Doors Supports fast maintenance and safe opening under load. Verify seal compatibility and leakage control.

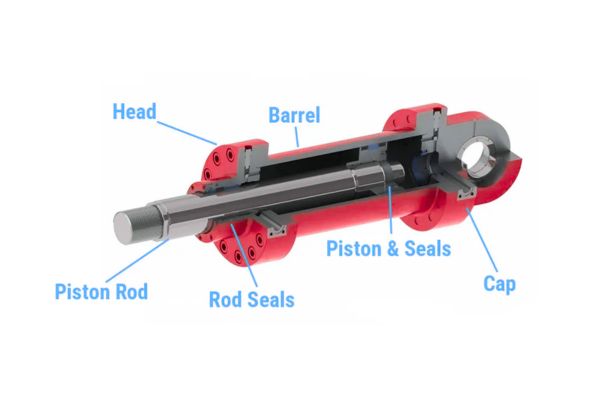

Common Hydraulic Cylinders Used on Harvesters
Different harvester functions need different cylinder structures. Before ordering, confirm where the cylinder is installed, what movement it controls, and whether the bore, stroke, mount, and port layout match your machine.
Header Lift Cylinder
Used to raise and lower the header during field work. This cylinder needs stable lifting force, smooth movement, and good sealing performance so the cutting height stays accurate on uneven ground.

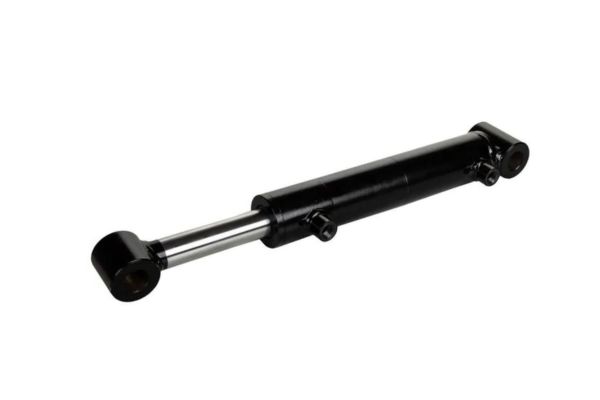

Reel Lift Cylinder
Controls reel height so crops feed into the header more evenly. Buyers usually need to check response speed, stroke length, and drift control, especially when the machine works for long hours in changing field conditions.

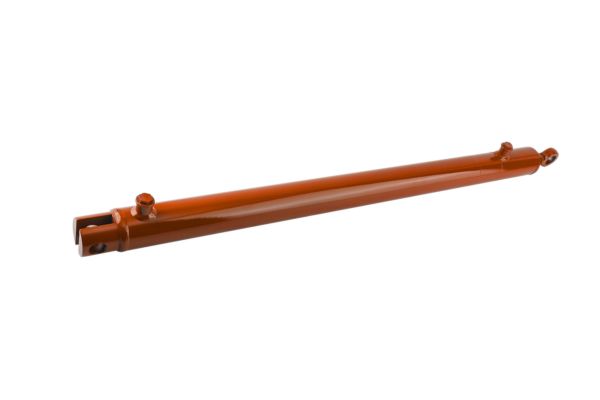

Unloading Auger Swing Cylinder
Used to open, swing, or position the unloading auger during grain discharge. It often works with vibration and outdoor exposure, so mount strength, rod protection, and corrosion resistance matter a lot.

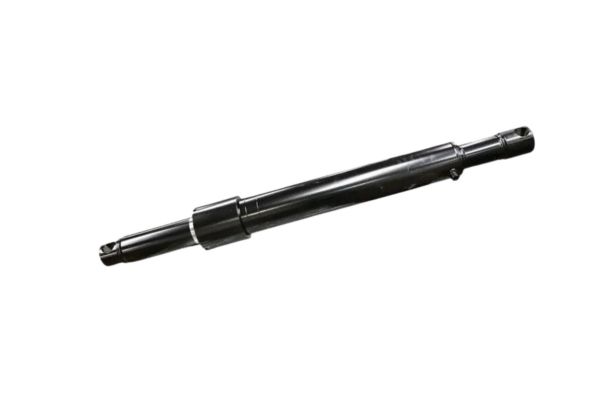

Feeder House Reverse Cylinder
Used on some harvesters to control feeder house reversing or related feeding mechanisms when crop blockage happens. This cylinder needs steady force output, reliable sealing, and a structure that can handle repeated operation.

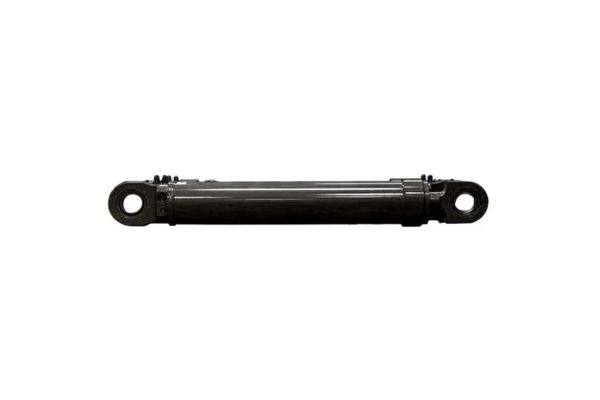

Hydraulic Folding Cylinder
Applied on covers, shields, folding parts, or access structures that need repeated opening and closing. It should have dependable sealing and good wiper protection to handle dust, mud, and weather.
Steering Hydraulic Cylinder
Responsible for steering accuracy and machine control during movement. Internal leakage, mounting position, and matched stroke are key points, because even small errors can affect steering feel and field safety.
Harvester Applications That Commonly Use Hydraulic Cylinders
Harvesters are not “one cylinder fits all”. The right choice depends on the machine type and what the cylinder must do: lift, position, swing, or open/close under dust and vibration. Use the application cards below to quickly identify what to specify.
Grain Combine (Wheat / Barley)
Cylinders frequently control header lift, reel positioning, and access covers. Selection should focus on stable sealing and consistent motion to reduce crop loss from uneven cutting height.
- Confirm installation length and stroke for header lift
- Choose heavy-duty wipers for fine dust
- Check port orientation to avoid hose interference
Corn Combine
Corn harvesting often brings higher shock loads and debris around the header. Choose rod finish and wiper design that prevent scoring, plus mounts that resist side load when the machine hits uneven terrain.
- Verify rod diameter for shock and side load
- Specify stronger mounts if bending is a risk
- Confirm working pressure and seal material

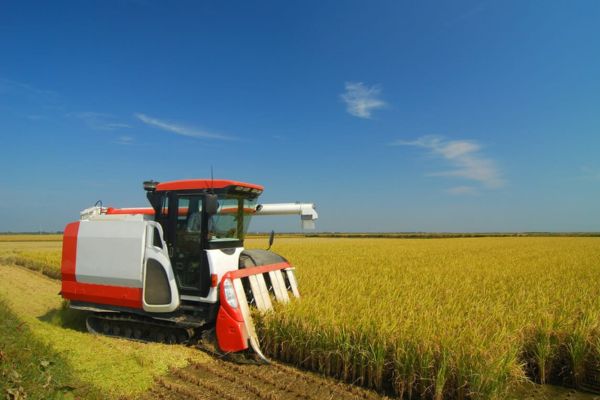

Rice Combine
Wet fields and muddy conditions increase corrosion risk. Select corrosion-resistant rod treatment and seals that stay stable with temperature changes and moisture exposure.
- Choose anti-corrosion rod coating or upgraded material
- Confirm wiper design for mud and grit
- Check end fitting threads to match the machine ports
Forage Harvester (Silage)
Forage handling creates continuous vibration and frequent adjustments. Order cylinders with reliable mount alignment and low internal leakage to keep movements accurate during long operating hours.
- Confirm mount type (clevis / trunnion / pin) and width
- Specify low leakage for consistent positioning
- Match hose routing with correct port location
Sugarcane Harvester
High debris, sticky residue, and heavy loads demand stronger sealing and wiper protection. Choosing the right seal package helps avoid rapid wear and external leakage.
- Prioritize heavy-duty wipers and seal protection
- Check rod diameter and mount strength for heavy load
- Confirm operating temperature and oil compatibility
Compact / Small Farm Harvester
Smaller harvesters often need compact cylinders with tight packaging and specific port angles. Verify installation space, pin-to-pin length, and port direction to avoid interference.
- Measure pin-to-pin length at retracted and extended positions
- Confirm port thread type and swivel needs
- Select compact mounts for limited installation space
Common Hydraulic Cylinder Failures During Harvest Season
Most repeat failures are not “random”. They come from dust intrusion, side load, wrong seal selection, and rod surface damage. Use the quick diagnostics below to identify what to change when you reorder—seal package, rod finish, or mounting strength.
Leakage Around the Rod
- Likely cause: Worn wiper lets dust enter the seal system.
- What to specify: Stronger dust wiper, correct seal material, and clean rod surface finish.
Rod Scoring / Chrome Damage
- Likely cause: Debris + corrosion, or poor lubrication at the rod area.
- What to specify: Improved rod plating/coating, higher surface hardness, and protection if the rod is exposed.
Slow Motion in Cold Mornings
- Likely cause: Cold oil increases friction; seals may be too tight for temperature.
- What to specify: Seal set optimized for temperature, correct oil viscosity, and check internal bypass.
Internal Drift (Won’t Hold Position)
- Likely cause: Piston seal wear or internal leakage across the piston.
- What to specify: Upgrade piston seal, verify bore finish, and test for bypass before installation.
Mount Wear / Pin Play
- Likely cause: Side load + incorrect mount geometry increases pin movement.
- What to specify: Stronger mount design, optional spherical bearing, and correct pin tolerance.
Rod Bending Under Overload
- Likely cause: Excessive side load or undersized rod diameter.
- What to specify: Increase rod diameter, adjust stroke/mount, and consider heavy-duty barrel for stability.
Design Features for Harvester Working Conditions
Dust, vibration, and outdoor exposure shorten cylinder life if seal area, rod surface, and mounts are not specified correctly. These options help reduce leakage, scoring, and pin wear during harvest.
-
ADust Wiper + Seal Package Blocks crop debris and fine dust, reducing rod leakage and extending seal life.
-
BRod Hardness & Surface Treatment Improves wear and corrosion resistance in outdoor storage conditions.
-
CMount Strength & Alignment Reduces bending risk by matching clevis or trunnion style to real load direction.
-
DLeakage Testing Before Shipment Confirms sealing and smooth travel before field installation.
Typical Specification Ranges (Custom Available)
Use this table as a starting reference. For a correct purchase, confirm pin-to-pin length (retracted/extended), stroke, mount type, port orientation, thread standard, and working pressure. If you share photos and dimensions, we can match the cylinder faster.
| Application | Bore | Rod | Stroke | Working Pressure | Mounting | Port / Thread | Notes |
|---|---|---|---|---|---|---|---|
| Header Lift | Ø50–80 mm | Ø28–45 mm | 150–450 mm | 16–25 MPa | Clevis / Pin | BSPP / ORB / Custom | High cycle + dust wiper |
| Reel Lift | Ø40–63 mm | Ø22–36 mm | 120–380 mm | 16–21 MPa | Clevis / Eye | BSPP / NPT / Custom | Low drift preferred |
| Auger Swing | Ø63–100 mm | Ø36–56 mm | 250–650 mm | 16–25 MPa | Trunnion / Clevis | ORB / BSPP / Custom | Side load + outdoor exposure |
| Spout / Deflector | Ø40–63 mm | Ø22–36 mm | 120–350 mm | 14–21 MPa | Eye / Pin | BSPP / NPT / Custom | Compact + smooth travel |
| Tailgate / Cover | Ø50–80 mm | Ø28–45 mm | 150–500 mm | 14–21 MPa | Clevis / Eye | BSPP / ORB / Custom | Seal compatibility check |
| Steering | Ø50–90 mm | Ø28–50 mm | 120–320 mm | 16–25 MPa | Eye / Pin | ORB / BSPP / Custom | Low internal leakage |
Materials & Surface Treatment for Field Conditions
Harvester cylinders face mud, crop debris, fertilizer residue, and weather exposure. If corrosion or dust is high, material choice and surface treatment have a direct impact on seal life, rod wear, and service intervals.
Rod & Barrel
The rod surface is where dust and moisture do the most damage. A better finish reduces scoring and protects the seal system, which lowers leakage risk after long working days.
- Chrome-plated rod options to resist wear and corrosion
- Improved rod surface hardness to reduce scoring from fine debris
- Stable barrel material to keep bore finish consistent and protect piston seals
Seals & Protection
Seal selection should match your oil, temperature, and contamination level. The right wiper and seal package blocks straw dust and grit, helping the cylinder hold position longer and leak less.
- Dust wiper selection to block fine debris and crop dust
- Seal materials matched to temperature range and oil type
- Optional rod boot / protection when debris is heavy or storage is outdoors
Custom Harvester Hydraulic Cylinder in 6 Clear Steps
No OEM number? No problem. We match by installation size and working condition. Share your machine details and we confirm structure, sealing options, and delivery time before production.
Machine & Cylinder Position
Confirm harvester model and function: header lift, reel, auger swing, steering, or tailgate. Different positions require different sealing and rod strength levels.
Installation Dimensions
Provide retracted and extended pin-to-pin length, mount type, mount width, and pin diameter to guarantee direct fitment.
Bore, Rod & Stroke
Confirm bore size for force output, rod diameter for stability, and required stroke range including mechanical stops if needed.
Port & Thread Details
Specify port orientation and thread type (ORB, BSPP, NPT or custom). This avoids hose interference and rework during installation.
Working Conditions
Share operating pressure, dust level, temperature range, corrosion exposure, and cycle frequency. We adjust seal system and rod finish accordingly.
Drawing, Sample or Photos
Send a technical drawing, old sample, or clear photos. We verify specifications, confirm production details, and provide lead time.
Watch How Topa Builds Harvester Hydraulic Cylinders
This video shows real production and inspection steps that matter to buyers: machining accuracy, sealing control, testing, and packaging protection for export shipments.
What This Production Video Shows
This video gives a clear view of how harvester hydraulic cylinders are machined, assembled, and prepared before shipment. You can see bore processing, port threading accuracy, and mounting tolerance control in real production.
It also covers seal installation discipline, pressure testing procedures, and final protective packing. These steps help buyers confirm process stability before placing repeat or bulk orders.
Harvester Hydraulic Cylinder Processing Steps
The main process focuses on machining and structural production. Each step affects dimension accuracy, fitting stability, and the final cylinder performance on harvest equipment.
01 Raw Material Preparation
Cylinder tube, rod steel, and mounting materials are prepared based on the drawing. This step lays the foundation for stable size control in the next machining stages.
02 CNC Machining
Barrels, glands, pistons, and ports are machined to the required dimensions. Accurate CNC work helps the cylinder match the design and improves assembly consistency.
03 Welding
Base ends, mounting brackets, and related structural parts are welded into position. Good welding control helps the cylinder body stay stable under vibration and field load.
04 Grinding
Welded and machined parts are ground to make surfaces smoother and cleaner. This helps improve appearance, fitting accuracy, and the next assembly step.
05 Seal Installation and Assembly
Seals, rods, pistons, and barrels are assembled according to the cylinder structure. Correct assembly helps the cylinder achieve smooth movement and stable sealing performance.
06 Surface Treatment
Rod plating and surface protection are applied to support outdoor use and corrosion resistance. This step helps the cylinder work better in dusty and wet harvest conditions.
Quality Control for Agricultural Use
For harvester hydraulic cylinders, stable quality starts with the right inspection points. Coating quality, dimension accuracy, and pressure performance all affect installation, sealing, and service life.
Check Plating and Surface Protection
- Inspect rod plating finish and surface uniformity
- Check whether the coating is smooth and free from peeling or visible defects
- Confirm corrosion protection for outdoor agricultural use
- Reduce rust risk during storage and field operation
Confirm Fit and Assembly Accuracy
- Measure bore, rod diameter, stroke, and mounting size
- Check thread dimensions and port position against the drawing
- Verify tolerance of pins, mounts, and connection points
- Help avoid installation mismatch and sealing problems
Verify Sealing and Working Performance
- Test the cylinder under working pressure conditions
- Check for external leakage at seals, ports, and welded areas
- Confirm smooth extension and retraction during testing
- Reduce field failure risk during peak harvest season
6 Reasons Buyers Choose Topa for Harvester Cylinders
Procurement is not only about price. It is about response speed, correct matching, stable quality, and reliable delivery. Here is how Topa supports agricultural equipment distributors and repair businesses.
Fast Technical Response
Send photos and dimensions. Our team confirms structure, ports, and mount type before production. This reduces wrong orders and saves your installation time.
Dimension-Based Matching
No OEM number? No problem. We match by installation size, stroke, bore, and working condition. Ideal for aftermarket replacement and repair shops.
Strict Leakage & Pressure Testing
Each cylinder goes through pressure and sealing checks before shipment. This lowers field failure risk during harvest season.
Flexible Customization
Port thread, mount type, rod finish, seal material, packaging—customized according to your market demand. Suitable for distributors and private label buyers.
Stable Production & Lead Time
Organized production flow and inspection system help maintain consistent quality and predictable delivery. Useful for bulk and seasonal orders.
After-Sales Support
If installation issues happen, we assist with structure review and solution advice. Long-term cooperation matters more than one-time orders.
What Buyers Say About Our Harvester Cylinders
Distributors and machinery repair businesses choose stable supply, reliable sealing performance, and consistent dimensions that reduce installation risk during peak harvest season.
Carlos M.
Agricultural Equipment Distributor • South America
Reliable During Harvest Peak
We replaced header lift cylinders for multiple combines before harvest. The sealing performance stayed stable even in heavy dust conditions. No leakage complaints from farmers this season.
Marta K.
Machinery Repair Company • Eastern Europe
Consistent Dimensions, Easy Installation
Mount size and port orientation matched our drawings accurately. Our workshop technicians installed the cylinders without modification. That saved labor time and reduced machine downtime.
Arif S.
Parts Importer • Southeast Asia
Stable Supply for Repeat Orders
We reorder auger swing and steering cylinders every season. Quality stays consistent batch to batch, which helps us plan inventory and avoid emergency sourcing.
FAQs
These questions focus on the cylinder itself—how to match it, what specs matter, and what options reduce leakage and downtime in dusty harvest conditions.
- Pin-to-pin length (retracted and extended)
- Stroke length
- Bore and rod diameter (or photos with a scale)
- Mount type + mount width + pin size
- Port position/orientation + thread type
Ready to order
Get the Right Harvester Hydraulic Cylinder Faster
Send us your harvester model, old cylinder photos, dimensions, or drawings. We will help you confirm the key fitment points before production and provide a clear quotation, so you can order with more confidence and reduce replacement risk in the field.
