Hydraulic Cylinder Stroke Errors: What Happens to Your Harvester?

Hydraulic cylinder stroke errors primarily affect header cutting height by causing the lifting mechanism to lose its set position, resulting in uneven stubble and significant crop loss. When your harvester fails to maintain a consistent distance from the soil, you risk dragging the cutter bar through dirt or leaving valuable grain in the field. These fluctuations create a cascade of operational inefficiencies that can ruin your harvest window and increase equipment wear. Addressing  hydraulic cylinder stroke errors  is essential for any operator looking to maximize their seasonal yield and protect their machinery investment.

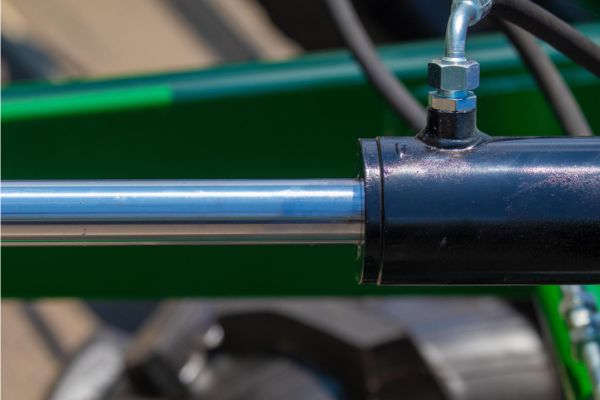

What Are Hydraulic Cylinder Stroke Errors?

In basic terms, hydraulic cylinder stroke errors represent any deviation from the intended linear travel path of a piston during extension or retraction. This lack of precision prevents the agricultural header from locking into the specific vertical coordinates required for clean cutting.

Is It A Mechanical Or Fluid Issue?

Stroke inaccuracy often stems from a combination of fluid dynamics and mechanical wear. Look at this:

• Internal fluid bypasses the piston.

• The cylinder rod stops short of its full extension.

• Mechanical binding restricts smooth travel.

When these factors converge, the actuator cannot provide the consistent force needed to hold the header steady against gravity and ground pressure.

Why Does Linear Motion Precision Matter?

For a header to follow ground contours, the cylinders must respond instantly to control signals. If the linear travel is off by even a few millimeters, the entire cutting angle changes. This results in an uneven harvest that requires more time and fuel to correct.

Operators who recognize these early signs of travel deviation can prevent total system failure during peak harvest times.

	Error Type	Visual Indicator	Likely Source
	Undershoot	Header fails to reach full height	Low pressure or blockage
	Overshoot	Header lifts too high	Faulty control valve
	Inconsistency	Jerky or stuttering lift	Aeration or contamination

Why Does Height Precision Impact Your Yield?

Header height precision is critical because  hydraulic cylinder stroke errors  can lead to the cutter bar dragging through the soil or missing low-hanging pods. Maintaining a razor-thin margin of error is the only way to ensure that the maximum amount of crop enters the machine.

Can Incorrect Height Lead To Major Crop Loss?

Studies show that up to 75% of crop losses occur right at the header when height control is poorly managed. Here is the deal:

1. Low cutting misses the lowest, most nutrient-dense pods.

2. High cutting increases the amount of stubble left behind.

3. Dragging causes soil intake, which damages the threshing drum.

By keeping the cylinders in peak condition, you ensure that the machine harvests exactly what you planted.

Why Is Stubble Consistency Important?

Uniform stubble height is about more than just aesthetics; it affects the field’s health for the next season. Uneven residue can interfere with seeding equipment or harbor pests and diseases. Consistently managed cylinders keep the field surface level and predictable.

Ensuring that your lifting arms stay level prevents the uneven weight distribution that often causes structural cracks in the harvester frame.

	Yield Variable	Impact of Height Error	Financial Consequence
	Harvestable Grain	Decreased volume	Lower seasonal revenue
	Soil Contamination	Increased wear	High repair costs
	Residue Quality	Uneven field prep	Poor future seed bed

How Do Stroke Errors Cause Uneven Harvests?

Inconsistent harvest results occur when hydraulic cylinder stroke errors prevent the header from following the contours of the terrain accurately. If one cylinder extends slightly further than the other, the header tilts, leaving a “stepped” pattern in the field.

Why Does Uneven Cutting Occur?

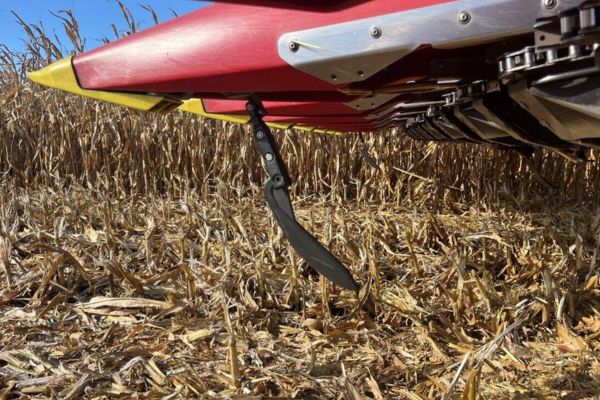

Terrain is rarely perfectly flat, and harvesters must adapt to every dip and mound. Think about it:

• The left cylinder might respond slower than the right.

• Weight shifts cause the weaker cylinder to compress.

• Auto-height sensors receive conflicting data from the tilted frame.

This lack of synchronization creates a wave-like pattern in the stubble, which is a clear indicator of actuator desynchronization.

Is Header Stability Compromised?

A header that bounces or sags creates massive vibrations throughout the combine. This instability forces the operator to slow down, significantly reducing the acres covered per hour. Reliable cylinder performance provides the damping effect needed for high-speed operation.

Monitoring the balance between the left and right lift cylinders allows you to identify uneven wear before it causes a mechanical breakdown.

	Symptom	Field Observation	Required Action
	Tilted Header	One side of stubble is higher	Synchronize cylinders
	Scalping	Dirt mounds in the grain	Inspect stroke limits
	Bouncing	Unsteady cutting height	Bleed air from system

Does Internal Leakage Change Header Height?

Internal leakage often allows the header to sag because  hydraulic cylinder stroke errors  develop when fluid bypasses the piston seal under heavy load. This movement is often invisible to the naked eye until the header has dropped several inches.

What Causes Movement Under Load?

Even if you don’t see oil on the ground, the piston could be losing its grip. Believe it or not:

1. Fluid slips from the high-pressure side to the low-pressure side.

2. The piston “drifts” downward due to the weight of the header.

3. Pressure cannot be maintained without constant pump input.

This drift is particularly dangerous because it happens gradually, often going unnoticed by an exhausted operator.

Why Does The Header Sag Operatively?

When you are in the middle of a row, a sagging header slowly moves into the danger zone. If the cylinders cannot lock their position, the cutting height will never be consistent. This requires constant manual correction, which leads to operator fatigue and more mistakes.

Regularly testing the hold capacity of your cylinders under full load is the best defense against gradual height loss.

	Component	Failure Mode	Effect on Height
	Piston Seal	Fluid bypass	Constant downward drift
	O-Rings	Internal pressure loss	Spongy height control
	Check Valve	Fluid backflow	Immediate header drop

Why Do Pressure Fluctuations Delay Response?

Low system pressure causes sluggish performance and height variations when hydraulic cylinder stroke errors delay the response time of the lifting arms. If the system cannot generate immediate force, the header will “lag” behind the terrain changes detected by the sensors.

Can Pressure Loss Ruin Response Time?

A slow response means you might hit a rock before the header has time to lift. To be honest:

• Delayed extension causes front-end collisions.

• Slow retraction keeps the header too high after a mound.

• Weak pressure prevents the cylinder from completing its full travel.

These delays turn a precision machine into a clumsy obstacle that struggles to perform at higher speeds.

Does Aeration Cause Jerky Motion?

Air trapped in the hydraulic fluid is compressible, unlike oil. This creates a “spongy” feel where the header bounces instead of moving smoothly. This erratic behavior makes it impossible to achieve the fine-tuned height settings required for delicate crops.

Checking your fluid levels and pump efficiency ensures that the cylinders receive the clean, pressurized oil they need for instant action.

	Pressure Status	Cylinder Behavior	Operational Result
	Below Spec	Sluggish and weak	Missed contours
	Fluctuating	Unpredictable movement	Uneven cutting
	Steady	Firm and responsive	Precision harvesting

What Role Do Worn Seals Play In Failures?

Deteriorated internal components often trigger failures because  hydraulic cylinder stroke errors  are frequently the result of worn seals failing to maintain pressure. As seals age, they lose their elasticity and ability to create a perfect barrier against the cylinder wall.

How Do Seals Destroy Precision?

Once a seal begins to fail, the cylinder loses its ability to hold a specific stroke length. Most importantly:

1. Friction increases as the seal disintegrates.

2. Debris from the seal clogs the control valves.

3. The header becomes prone to sudden, uncontrolled drops.

Small pieces of rubber or plastic in the fluid are often the first sign that your cylinder’s internal health is declining.

Can Faulty Valves Cause Erratic Travel?

If the seals are fine but the valves are sticking, the cylinder will receive inconsistent flow. This leads to a header that moves in “steps” rather than a smooth motion. Without smooth travel, your cutting height will vary every time the system tries to adjust.

Replacing seals as part of a scheduled maintenance program prevents the catastrophic loss of header control during the harvest.

	Seal Location	Sign of Wear	Consequence
	Rod Seal	External oil film	Environmental hazard
	Piston Seal	Drifting under load	Inaccurate height
	Wiper Seal	Dirt inside barrel	Internal scoring

How Does Fluid Contamination Block Stroke?

Fluid contamination directly reduces stroke precision because hydraulic cylinder stroke errors often stem from abrasive particles scratching the cylinder walls and seals. Dirt, dust, and metal shavings act like sandpaper inside your hydraulic system.

How Does Debris Damage Walls?

When contaminants enter the cylinder, they create deep gouges known as scoring. You might be wondering:

• Does scoring allow fluid to bypass the piston?

• Can metal shavings jam the control valves?

• Will dirty oil cause the pump to overheat?

The answer to all three is a definitive yes. Once the internal surface is damaged, the cylinder can no longer maintain the pressure needed for accurate height control.

Why Is Clean Oil Vital?

Clean oil ensures that the valves and seals operate without interference. Even microscopic particles can cause a valve to stick open, leading to an immediate loss of header height. Keeping your filters fresh is the simplest way to protect your stroke accuracy.

Implementing a strict fluid analysis program helps you catch contamination before it results in expensive downtime.

	Contaminant	Source	Risk Level
	Dust/Dirt	Damaged wiper seals	High
	Metal Chips	Pump or valve wear	Critical
	Water	Condensation in tank	Moderate

Does Misalignment Lead To Side Load Wear?

Excessive side loading creates mechanical resistance that manifests as hydraulic cylinder stroke errors during the extension phase of operation. When the cylinder is not perfectly aligned with the load, forces are applied at an angle, stressing every component.

Does Misalignment Cause Failure?

If the cylinder rod is pushed sideways, it rubs against the gland and the barrel. As it turns out:

1. The rod develops flat spots and scratches.

2. The seals are crushed on one side and gap on the other.

3. The rod may eventually bend under the uneven stress.

A bent rod will never achieve a full, accurate stroke, permanently ruining your ability to set the header height.

Can Side Loading Be Fixed?

Correcting misalignment usually involves checking the mounting pins and bushings. If these pivot points are worn, they allow the cylinder to twist during operation. Replacing these small parts can save the much more expensive main cylinder.

Ensuring that your cylinder mounts are properly greased and aligned prevents the lateral forces that lead to premature rod failure.

	Stress Factor	Resulting Damage	Early Warning
	Pivot Wear	Cylinder twisting	Unusual clunking noises
	Rod Bending	Restricted stroke	Heat buildup on rod
	Gland Stress	Leaking rod seal	Uneven seal wear

Can Drift Create Inconsistent Stubble?

Hydraulic cylinder drift causes inconsistent stubble height when hydraulic cylinder stroke errors allow the header to move without operator input. This phenomenon is particularly frustrating because the machine appears to be working correctly while slowly failing.

What Are The Symptoms Of Drift?

Drift is a “sneaky” problem that often reveals itself through your harvest data. Best of all:

• You start the day with 4-inch stubble.

• By noon, the stubble has dropped to 2 inches.

• You find yourself constantly pulling the “lift” lever.

If you have to adjust your height every few minutes just to stay level, your cylinders are definitely experiencing internal drift.

How Do You Identify Bypass?

A simple test for drift involves lifting the header and shutting off the machine. If the header touches the ground within an hour, the internal seals or the lock valves are failing. This bypass is the primary reason why automated height systems struggle to stay calibrated.

Catching drift early allows you to schedule a seal replacement before the problem causes significant crop damage.

	Test Phase	Operator Observation	Conclusion
	Static Hold	Header drops slowly	Internal seal leak
	Load Change	Quick sag after hitting bump	Weak relief valve
	Operation	Constant height hunting	Sensor or valve lag

Conclusion

By understanding the root causes of cylinder malfunctions, you can finally eliminate the uneven cutting and crop loss that have plagued your past harvests. We have explored how internal leakage, contamination, and misalignment create the stroke errors that prevent your header from maintaining its ideal height. To regain control, you must prioritize fluid cleanliness, seal integrity, and proper calibration across your entire hydraulic circuit.

At TOPA, we are dedicated to engineering custom hydraulic solutions that provide the uncompromising precision required for the world’s most demanding agricultural environments. Our vision is to power a future where every farmer can rely on zero-defect linear motion to maximize their seasonal yields. If you are ready to upgrade your machinery with heavy-duty cylinders designed for extreme reliability,  contact us today  for a professional consultation.

FAQ

Can I fix a sagging header by just adding more hydraulic oil?

No. Adding oil will only help if the system is low, but if the header is sagging due to internal drift, you likely need to replace the piston seals or repair the control valve.

What’s the best way to tell if my cylinders are out of sync?

It depends. The easiest method is to measure the stubble height on both sides of the machine; if there is a consistent difference, one cylinder is likely extending further or faster than the other.

How do I know if there is air in my hydraulic system?

Usually., the cylinder will exhibit “spongy” or jerky movements, and you may hear a whining or growling noise from the pump as it struggles to move the aerated fluid.

What happens if I ignore a small external leak on the cylinder rod?

It depends. While a small leak might seem minor, it allows contaminants to enter the system and reduces the internal pressure needed for precise stroke control, eventually leading to a total failure.

Can we prevent rod bending by using larger cylinders?

Yes. Selecting a cylinder with a larger rod diameter can help resist side loading, but ensuring proper alignment of the mounting points is the most effective way to prevent mechanical damage.
