Why Header Lift Cylinder Leaks After One Season?
Early failure in header lift systems is usually the result of sub-par seal materials or hidden manufacturing defects that cannot withstand the rigors of harvest. You spend all winter prepping your machinery, only to find a puddle of oil under your machine during the first critical week of the season. This failure leads to costly downtime and hazardous working conditions just when your productivity needs to be at its peak. By switching to high-spec header lift cylinder leaks solutions, you can eliminate these seasonal headaches and keep your equipment running smoothly.
Why Does Your New Cylinder Already Leak?
Initial failures often stem from low-grade seal selection or inconsistent manufacturing tolerances that cause “infant mortality” of the component. If your header lift cylinder leaks shortly after purchase, it is likely that the internal seals were not rated for the specific pressure cycles of your header. Quality components should last for years, not months.
Are The Seals Sub-Standard?
Many generic manufacturers use standard-grade nitrile seals that lack the elasticity required for agricultural applications.
- Low-grade seals crack under moderate pressure.
- Cheap materials harden quickly when exposed to common hydraulic fluids.
- Sub-standard seals often fail to maintain a tight grip on the rod surface.
Choosing premium polyurethane seals ensures your lift system remains airtight through the toughest conditions.
Is Manufacturing Quality To Blame?
Inconsistent machining of the cylinder bore or gland nut can prevent a perfect seal interface, leading to “seepage” that quickly turns into a heavy leak.
- Micro-imperfections in the bore surface tear at seal lips during every stroke.
- Misaligned end caps put uneven pressure on the internal sealing rings.
- Inadequate testing protocols allow defective units to reach the end user.
| Factor | Impact on Leakage | Recommended Fix | |
|---|---|---|---|
| Seal Material | Critical | Upgrade to dual-lip polyurethane | |
| Bore Tolerance | High | Precision CNC machining | |
| Testing Level | Critical | 100% pressure load testing |
Is Dirt Actually Killing Your Seals Early?
Environmental contamination is the primary cause of premature wear on agricultural hydraulic components. Even if your header lift cylinder leaks are small, they often indicate that abrasive dust has already bypassed your wiper seals and entered the system. Field debris acts like sandpaper, grinding down the delicate rubber parts inside.
Why Is Dust So Dangerous?
Fine particles of soil and crop residue adhere to the oil film on the rod and get pulled directly into the seal housing.
- Abrasive particles score the seal lips and the internal bore.
- Contaminants turn hydraulic fluid into a grinding paste that destroys the pump.
- Clogged filters cause pressure to back up, blowing out the weakest seals.
Installing high-performance welded hydraulic cylinders with heavy-duty scrapers provides a robust first line of defense against these field hazards.
Can Better Wipers Stop Leaks?
Upgrading to a high-spec wiper seal or “scraper” at the head of the cylinder can prevent the majority of contamination-related failures.
- Dual-lip scrapers remove both wet mud and dry dust from the rod.
- Hardened scraper materials resist the impact of flying crop debris.
- Tight-fitting wipers keep the internal environment pristine for longer service life.
| Contaminant Type | Damage Level | Solution | |
|---|---|---|---|
| Fine Dust | Medium (Abrasive) | Dual-lip wiper seals | |
| Crop Residue | High (Clogging) | Protective rod boots | |
| Mud/Moisture | High (Corrosive) | Hardened chrome plating |
Could High Heat Be Cooking Internal Components?
Long hours in the sun combined with heavy lifting loads can cause hydraulic oil temperatures to soar, leading to brittle seals. When your header lift cylinder leaks after a hot season, it is often because the rubber components have lost their elasticity. Heat literally “cooks” the seals until they can no longer bridge the gap between the rod and the housing.
How Does Thermal Stress Damage Seals?
Excessive heat changes the chemical structure of standard rubber seals, making them hard and prone to cracking.
- Hardened seals lose their ability to “spring back” against the rod surface.
- Brittle material flakes off and contaminates the entire hydraulic circuit.
- Thin, hot oil escapes through microscopic gaps much easier than cool fluid.
Using high-temperature Viton or specialized polyurethane ensures your system can handle the thermal demands of summer operation.
Is Your Cooling System Sufficient?
If your tractor or harvester cooling system is struggling, the resulting hot oil will destroy your header lift seals in record time.
- Chaff-covered oil coolers are a leading cause of hydraulic overheating.
- Overheated oil loses its lubrication properties, increasing friction and seal wear.
- Consistent high-temp operation can warp internal piston guides.
| Temp Range | Effect on Seals | Action Required | |
|---|---|---|---|
| < 80°C | Ideal Operating Zone | Standard maintenance | |
| 80°C – 110°C | Accelerated Hardening | Switch to high-temp seals | |
| > 110°C | Immediate Failure | Check oil cooler and viscosity |
Are Pressure Spikes Blowing Out Your System?
Header lift systems face violent hydraulic surges when the machine hits bumps or uneven terrain. If you find that your header lift cylinder leaks after working on rough ground, internal pressure spikes likely exceeded the seal’s design limits. These momentary “hammers” of pressure can tear even new seals away from their mounting grooves.
What Causes Hydraulic Shock?
Rapidly lowering a heavy header or hitting a hidden obstacle creates a massive surge of oil that the relief valves may not catch in time.
- Shock loads can be three times higher than standard operating pressure.
- Sudden spikes cause the cylinder tube to momentarily expand, allowing fluid bypass.
- Constant pulsing weakens the seal’s structural integrity over a single season.
Equipping your machine with double acting hydraulic cylinders designed for shock loads can mitigate this damage.
Are Your Relief Valves Functional?
Improperly set or sticking relief valves allow these pressure spikes to hit the cylinder directly rather than being diverted.
- Stiff valves respond too slowly to sudden mechanical impacts.
- Debris in the valve seat prevents the system from venting excess pressure.
- High relief settings put unnecessary strain on every hose and seal in the circuit.
| Spike Cause | Resulting Damage | Prevention Strategy | |
|---|---|---|---|
| Rough Terrain | Seal displacement | Install accumulator tanks | |
| Heavy Headers | Tube expansion | Use heavy-walled barrels | |
| Quick Cycling | Fitting leaks | Smoother operator control |

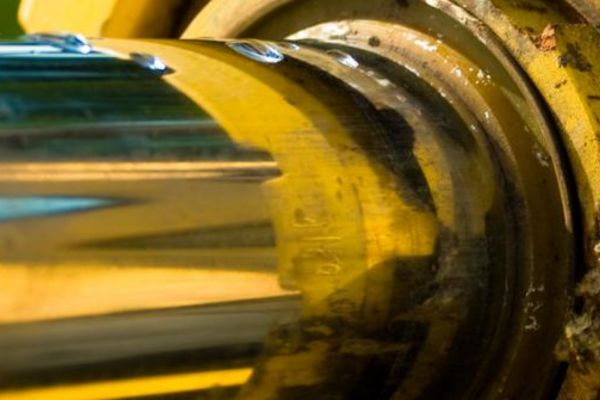

Did Mechanical Damage Ruin The Rod Surface?
Even a tiny scratch or nick on the piston rod acts like a knife, cutting through your seals with every stroke. When header lift cylinder leaks occur, you must inspect the rod surface for physical imperfections. Flying rocks, dropped tools, or crop residue can easily compromise the smooth chrome finish required for a leak-free seal.
How Do Scratches Lead To Leaks?
As the rod retracts, any raised edge on a scratch creates a pathway for pressurized oil to escape to the atmosphere.
- Deep pits from corrosion provide a permanent “leak bridge” for oil.
- “Pockmarks” from flying debris tear at the seal’s delicate lip.
- Bent rods cause the seal to wear unevenly on one side, leading to failure.
Maintaining a perfectly smooth rod surface is the most critical factor in achieving long-term sealing performance.
Can Chrome Quality Be Improved?
Standard chrome plating can flake off under stress, but induction-hardened rods offer much better resistance to physical impact.
- Thicker chrome layers resist the chemical pitting caused by fertilizers.
- Hardened rods are less likely to be nicked by small stones or debris.
- A higher polish reduces the friction that generates seal-destroying heat.
| Rod Condition | Leak Risk | Solution | |
|---|---|---|---|
| Polished/Clean | Zero | Routine cleaning | |
| Minor Scratches | Moderate | Polishing with emery cloth | |
| Deep Nicks/Rust | Critical | Rod replacement or re-chroming |
Is Chemical Corrosion Eating Your Metal Parts?
Fertilizers and agricultural chemicals are highly corrosive and can destroy both the seals and the metal surfaces of your lift system. If your header lift cylinder leaks after a season of spraying or fertilizing, chemical attack is the likely culprit. These substances can eat through chrome plating and cause the rubber seals to swell or dissolve.
Why Are Farm Chemicals So Harsh?
Many common nitrogen-based fertilizers react with moisture to form acids that aggressively attack hydraulic components.
- Chemical residue on the rod causes “flash rust” during short periods of inactivity.
- Acidic compounds penetrate the seal material, causing it to lose its structural strength.
- Corroded rods become abrasive, destroying the seals within a few dozen cycles.
Does Storage Impact Corrosion?
Leaving your rods extended during the off-season exposes them to humidity and chemicals, ensuring they will leak the moment you start them up next year.
- Retracted rods are protected by a constant bath of hydraulic oil.
- Protective boots can shield exposed rods from direct chemical spray.
- Washing the machine after chemical application is the simplest way to prevent rod pitting.
| Chemical Source | Targeted Area | Prevention | |
|---|---|---|---|
| Nitrogen Fertilizer | Rod Surface | Clean after every use | |
| Pesticides | Seal Material | Use chemically-resistant kits | |
| Salt/Moisture | Piston Guides | Keep rods retracted in storage |
Was The Initial Installation Done Correctly?
Sometimes the cause of the leak isn’t the part itself, but errors made during the setup or replacement process. If you notice header lift cylinder leaks immediately after a repair, the seals may have been damaged before they ever saw pressure. Proper installation requires clean tools, the right lubricants, and careful alignment.
Are Your Mounts Perfectly Aligned?
If the mounting pins are even slightly out of parallel, the cylinder will “twist” as it extends, putting massive side-load on the seals.
- Twisted cylinders wear out the rod bearings in a matter of weeks.
- Misalignment forces one side of the seal to gap, allowing fluid to pass.
- Forcing a cylinder into a tight bracket can nick the external paint and seals.
Ensuring your mounting points are square and lubricated is essential for the longevity of any new hydraulic component.
Did You Bleed The System?
Air trapped inside a new cylinder can cause “dieseling,” where air bubbles explode under pressure and scorch the internal seals.
- Trapped air causes jerky header movement that stresses the entire frame.
- High-pressure “micro-explosions” leave carbon deposits on the seal lips.
- Failing to bleed the system can lead to instant seal failure on the first lift.
| Install Step | Potential Error | Consequence | |
|---|---|---|---|
| Mounting | Improper pin alignment | Side-load seal failure | |
| Connection | Dirty fittings | Internal contamination | |
| Commissioning | Skipping air bleeding | Burnt/scorched seals |
Are Side Loads Causing Uneven Wear Patterns?
Hydraulic cylinders are designed for pure linear force, but worn bushings or bent frames can force them to move at an angle. If your header lift cylinder leaks primarily from one side of the gland, side loading is the root cause. This mechanical stress crushes the seal on one side while leaving a gap on the other.
What Causes Side Loading?
A header that is not properly leveled or mounting brackets that have become wallowed out will cause the cylinder to “wobble” under load.
- Side loads put extreme pressure on the internal wear rings and rod guides.
- Once the guides wear down, the rod moves off-center and destroys the main seal.
- Heavy-duty telescopic hydraulic cylinders are particularly sensitive to these lateral forces.
Can Better Bearings Help?
Upgrading to wider internal wear bands or bronze-filled guides can help the cylinder resist minor lateral forces without leaking.
- High-strength wear bands distribute the side-load over a larger surface area.
- Reinforced rod glands prevent the rod from shifting under heavy header weight.
- Proper lubrication of the mounting pins reduces the “binding” that causes side stress.
| Symptom | Probable Cause | Fix | |
|---|---|---|---|
| Oval Wear Pattern | Constant side load | Re-bush mounting points | |
| Polished Spot on Rod | Binding during stroke | Realign header frame | |
| Squeaking Sound | Metal-on-metal contact | Lubricate all pivot pins |
How Can You Prevent Next Season’s Failures?
Breaking the cycle of seasonal leaks requires a move away from “good enough” parts toward premium, application-specific engineering. If you want to stop header lift cylinder leaks for good, you must invest in cylinders designed for the extreme demands of the agriculture industry. Choosing custom hydraulic cylinders allows you to spec the exact seals, rods, and mounts your specific machine needs.
Should You Upgrade Your Seals?
Replacing standard nitrile seals with heavy-duty polyurethane or glass-filled nylon kits can triple the life of your cylinder.
Look:
- Premium seals handle higher pressure spikes without deforming.
- Better materials resist the “set” or flattening that occurs during off-season storage.
- High-spec kits often include extra “buffer” seals to reduce the load on the main seal.
Selecting a manufacturer that uses only top-tier sealing technology is the best way to ensure your machine stays leak-free.
Why Is Preventive Maintenance Key?
A simple 5-minute daily check can catch the small issues—like a nicked rod or a dirty wiper—before they lead to a total seal blowout.
The truth is:
- Keeping rods clean is the cheapest “insurance policy” you can buy.
- Checking for pin wear prevents the side-loading that kills seals.
- Routine oil changes prevent the internal corrosion that ruins bores.
| Preventive Task | Frequency | Benefit | |
|---|---|---|---|
| Rod Cleaning | Daily during harvest | Prevents seal abrasion | |
| Pin Lubrication | Weekly | Eliminates side-load stress | |
| Oil/Filter Change | Annual | Protects internal components |
Conclusion
A leak-free season starts with understanding the hidden causes of failure, from thermal stress to mechanical side-loading. By addressing these factors now, you can avoid the frustration of mid-harvest downtime and ensure your equipment is always ready when the crop is.
Ready to eliminate hydraulic leaks from your operations? Contact us today to find the perfect heavy-duty solution for your machinery. Our mission is to provide agricultural professionals with the most durable, factory-direct cylinders in the industry, backed by expert support that keeps you moving.
FAQ
Can I replace just the seals if the rod is scratched?
No. If you replace seals on a scratched rod, the rough surface will cut the new seals almost immediately, leading to a repeat failure within hours.
What’s the best way to prevent rod corrosion during the winter?
Retract the cylinders fully. By keeping the rods inside the cylinder body, they stay coated in protective oil and are shielded from humidity and corrosive chemicals.
How do I know if my cylinder leak is caused by side-loading?
Look for uneven wear on the rod or the gland. If the seal is crushed or leaking on only one side, or if you see a polished “bright spot” on one side of the rod, side-loading is the culprit.
Can I use any hydraulic oil in my header lift system?
No, you must follow the viscosity requirements. Using oil that is too thin will lead to leaks when hot, while oil that is too thick can cause sluggish performance and seal cavitation.
What’s the best seal material for high-heat agricultural work?
Viton or high-grade Polyurethane. These materials maintain their flexibility at much higher temperatures than standard rubber, preventing the hardening that causes seasonal leaks.
