Hot Sale Construction Machinery Hydraulic Cylinders
These cylinder types cover the machine actions you use most often. You get application-focused options that help you match force, stroke, mounting layout, and service condition faster. That shortens selection time and reduces replacement risk before you place the order.
Excavator Boom Cylinder
Designed for heavy lifting and repeated digging cycles, this cylinder gives you stable boom movement, better load support, and dependable sealing in dirty outdoor environments.

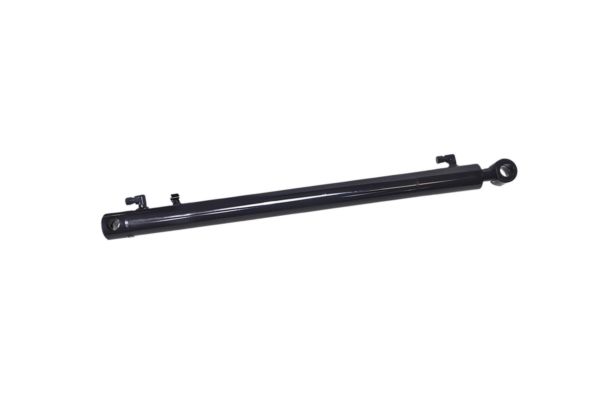

Loader Lift Cylinder
Built for lift arms under impact load, this cylinder helps you keep smooth raising force, stronger rod support, and better reliability during frequent loading and unloading work.
Dump Truck Telescopic Cylinder
Made for long extension with compact closed length, this cylinder lets you gain efficient tipping height, smoother stage movement, and practical installation in limited chassis space.
Crane Outrigger Cylinder
Engineered for support and leveling, this cylinder gives you steadier extension, better load balance, and stronger safety performance for mobile cranes and truck cranes.
Steering Cylinder
Sized for controlled steering response, this cylinder helps you maintain smoother wheel angle movement, better hose routing match, and lower leakage risk after replacement.
Bucket Cylinder
Designed for tilt and breakout force, this cylinder gives you stronger digging motion, better fit for linkage geometry, and longer service life under side load.
Hydraulic Cylinders by Construction Machine Type
Different construction machines need different cylinder structures, sealing methods, and load performance.
Excavators
Used for boom, arm, and bucket motion. These cylinders need strong sealing, stable force output, and reliable service life in mud, dust, vibration, and repeated digging cycles.
View Details
Cranes
Applied in lifting, outriggers, and positioning systems. Cylinder performance here depends on load holding stability, smooth extension, and dependable operation during heavy-duty lifting work.
View Details

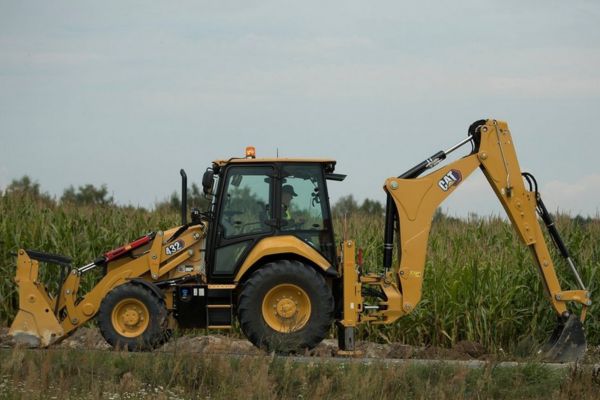

Loaders
Commonly used for lift and tilt functions. These cylinders need smooth movement, good impact resistance, and stable dimensions for frequent loading and unloading cycles.
View Details
Rotary Drilling Rigs
Used for mast adjustment, support, and positioning. This application requires strong structure, steady control, and consistent performance under heavy foundation drilling conditions.
View Details
Concrete Equipment
Applied in boom movement, support, and pumping systems. These cylinders need steady output, reliable sealing, and stable performance during long, high-frequency working cycles.
View Details
Aerial Work Platforms
Used for lifting and leveling at height. Cylinder selection here focuses on smooth control, stable holding performance, and safer movement during elevated operations.
View DetailsCommon Problems That Delay Cylinder Purchasing
A workable supplier should do more than send a price list. Real support starts with fit confirmation, structure review, sealing reliability, and response speed. These are the problems that often lead to downtime, rework, extra service cost, and delayed delivery.
Replacement Cylinder Does Not Fit
A cylinder may look similar, but closed length, stroke, pin size, or mounting width can still be wrong. That creates installation trouble, wasted labor, and machine downtime.
Seal Leakage After Short Use
Early leakage often points to weak sealing quality, poor rod finish, or unstable production control. Once leakage starts, maintenance cost rises fast and field reliability drops.
Rod Bending Under Side Load
Real working conditions are not always straight and steady. When rod design or cylinder structure is too weak, side load leads to bending, unstable motion, and early field failure.
Port Position Does Not Match Hose Layout
Thread size may be correct, while port direction is still wrong. That causes hose interference, difficult routing, leakage risk, and extra assembly time on site.
Poor Weld Quality Leads to Cracking
Heavy-duty equipment depends on stable weld strength. Weak welding control can lead to cracking under shock load, resulting in breakdowns, safety risk, and replacement loss.
Slow Supplier Response Delays Project
When drawing review, fit confirmation, or lead time feedback comes back slowly, purchasing decisions get delayed and project schedules become harder to control.
Topa Solutions to Reduce Cylinder Supply Risk
General promises do not solve fit issues, leakage, or production delay. What matters is clear matching, stable material control, reliable sealing, controlled welding, and testing before shipment. These solutions help reduce common supply problems before the cylinder reaches the machine.
Accurate Replacement Matching
Dimensions, photos, and drawings are reviewed before production starts. This helps confirm pin size, stroke, mount type, and port layout earlier, reducing mismatch, installation trouble, and rework.

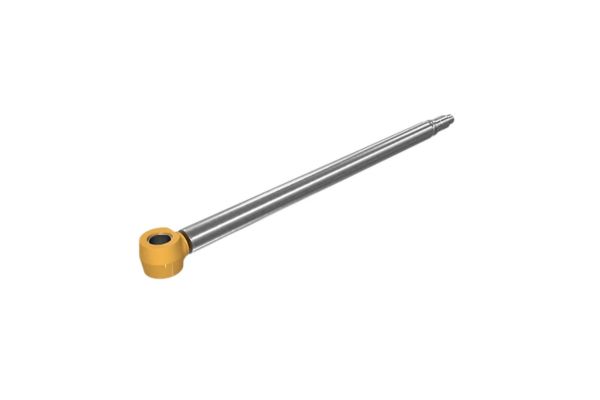

Stronger Rod and Tube Materials
Material selection affects pressure holding, bending resistance, and service life. Stronger rod and tube control supports more stable performance in heavy-load and high-impact construction applications.

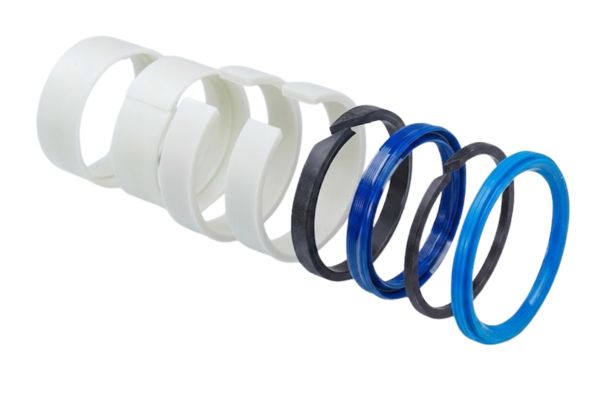

Better Sealing for Dirty Environments
Dust, mud, moisture, and outdoor exposure can shorten cylinder life fast. Improved sealing structure helps lower leakage risk, protect internal parts, and keep field performance more stable.
Controlled Welding Process
Weld quality directly affects structure strength and service safety. Controlled welding helps improve alignment, reduce cracking risk, and support better durability under shock load and repeated duty cycles.
Pressure and Leakage Testing
Testing before shipment helps verify sealing condition, pressure holding, and basic working reliability. That means fewer problems after installation and lower performance risk in the field.
Quick Drawing Confirmation
Faster technical review helps confirm key specifications earlier. This shortens waiting time, improves communication efficiency, and helps projects move forward with less delay.
How to Match a Replacement Cylinder Correctly
Accurate replacement starts with clear data. Confirming key dimensions and structure before production helps avoid mismatch, installation issues, and repeated adjustment. This checklist shows the core parameters required for reliable cylinder matching.
-
Stroke
Defines the extension travel of the rod. Correct stroke length ensures full machine movement without limitation or incomplete operation.
-
Bore Size
Determines force output under pressure. Matching bore size is required to maintain correct lifting, pushing, or holding capacity.
-
Rod Diameter
Affects structural strength and stability. A larger rod improves resistance to bending and supports longer service life under load.
-
Mount Type
Includes clevis, cross tube, flange, and other structures. Correct mounting ensures proper alignment and stable connection with the machine.
-
Port Thread and Position
Covers thread standard, size, and direction. Matching port layout helps avoid hose interference, simplifies routing, and reduces leakage risk.
Mounting Types & Port Options
Mounting structure and port configuration directly affect installation, hose routing, alignment, and working stability. Confirming these details before production helps reduce mismatch, assembly trouble, and field adjustment time.

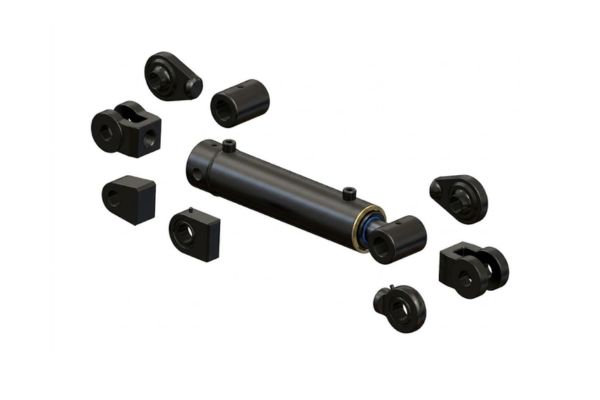

Mounting Types
-
Clevis Mount
Designed for pivoting movement. Suitable for applications that require angular motion and flexible alignment during operation.
-
Cross Tube Mount
Provides stronger load distribution and is widely used in heavy-duty equipment where durability and structural support matter.
-
Trunnion Mount
Supports mid-position installation and controlled movement. Often selected for applications that need balance and stable swing motion.
-
Flange Mount
Offers a rigid connection to the machine frame. This structure helps maintain alignment and reduce movement under vibration.
-
Eye End Mount
Used for simple connection and general-purpose replacement. A practical option where straightforward installation is preferred.
Port Options
-
BSP Thread
Common in many international hydraulic systems. A practical choice when compatibility with existing equipment is required.
-
NPT Thread
Uses tapered thread sealing and is widely found in North American systems. Suitable for applications that follow this thread standard.
-
SAE Thread
Supports standard hydraulic port design and stable sealing performance, especially in higher-pressure working conditions.
-
ORFS Port
Uses an O-ring face seal structure to reduce leakage risk. A good option where vibration control and sealing reliability are priorities.
-
Custom Port Position
Port direction and angle can be adjusted to match hose routing, reduce interference, and make installation more efficient.
Why Topa Helps Reduce Risk in Construction Machinery Cylinder Sourcing
A reliable cylinder supplier should do more than quote a price. Clear fit confirmation, stable production control, custom capability, and pre-shipment testing all matter when the goal is smoother installation, lower service risk, and more dependable repeat orders.
Drawing-Based Confirmation
Drawings, samples, or measured data are reviewed before production. This helps confirm mount size, stroke, and port layout earlier, reducing mismatch risk and installation problems.
Pressure and Leakage Testing
Inspection is carried out before shipment to verify sealing and pressure performance. That means better installation confidence and fewer unexpected problems after the cylinder reaches the machine.
OEM and Custom Support
Bore size, rod diameter, stroke, mounting type, and port position can be adjusted based on the application. This makes matching easier for both OEM projects and replacement programs.
Stable Batch Consistency
Production control helps keep dimensions and assembly more consistent from batch to batch. This supports smoother installation, steadier repeat orders, and lower variation in ongoing supply.
Inside Our Hydraulic Cylinder Factory
Factory visibility helps you judge whether a supplier is equipped for your order. These workshop images show the production environment behind your cylinder project, from machining and welding to inspection and finishing.
Quality Control
Reliable cylinders start with controlled inspection before shipment. These quality checks help reduce common risks such as size mismatch, weld defects, pressure failure, and sealing problems, so installation becomes smoother and field performance stays more stable.
Dimension Inspection
Key sizes such as pin-to-pin length, bore size, rod diameter, stroke, and mounting width are checked before shipment. This helps improve fit accuracy and reduces installation adjustment on the machine.
Weld Inspection
Weld quality and structural alignment are reviewed to support better joint strength. This helps reduce cracking risk and improves durability under vibration, shock load, and repeated duty cycles.
Pressure Test
Pressure holding performance is verified before delivery. This inspection helps confirm that the cylinder can work under the required load and operating conditions with lower failure risk.
Leakage Test
Sealing performance is checked under test conditions before shipment. This helps lower leakage risk after installation and supports longer service life in real working environments.
Packaging and Shipping for Construction Machinery Cylinders
Safe delivery matters as much as production quality. Proper packing protects rod surfaces, seals, and finished paint, while organized export handling helps you receive the right cylinders in better condition and with less delay.
-
✓
Rod and Surface Protection
Protective wrapping and secure positioning help you reduce transport damage on rod surfaces, paint, and sealing areas.
-
✓
Clear Packing Identification
Label control helps you sort cylinders faster after arrival, which supports smoother receiving and warehouse handling.
-
✓
Export-Ready Shipment Handling
Practical export packing and document support help you move orders through shipping channels with fewer avoidable delays.
-
✓
Suitable for Batch Orders
Stable loading and packing methods help you receive multi-piece orders in a more organized, easier-to-check shipment format.
Real Application Cases
You want to know if a supplier has handled similar work before. These cases show how cylinder features turn into real results in replacement projects and batch supply.
Excavator Replacement Cylinder Project
The original cylinder no longer matched the machine after years of use. You needed a replacement that fits without modification. By confirming pin-to-pin length, stroke, and port layout, the new cylinders matched the installation directly and reduced downtime during replacement.
Loader Steering Cylinder Batch Supply
You needed stable batch supply for steering cylinders used in loaders. With controlled dimensions and consistent assembly, the cylinders maintained uniform performance, helping you avoid mismatch issues across multiple machines.
Dump Truck Telescopic Cylinder Order
You required telescopic cylinders for tipping systems with limited installation space. By adjusting stage design and confirming working stroke, the cylinders delivered stable extension and improved tipping efficiency in field operation.
Frequently Asked Questions
These questions focus on the details you usually need to confirm before ordering hydraulic cylinders for construction machinery, including fit, pressure, sealing, structure, and working conditions.
Send Your Cylinder Requirements
Clear project data helps speed up review, improve matching accuracy, and reduce back-and-forth during quotation. Drawings, sample photos, and key dimensions all help confirm fit, structure, and application needs more efficiently.
- Provide bore size, rod diameter, stroke, mounting type, and port details.
- Share machine model, working condition, pressure range, and quantity demand.
- Photos, nameplate details, or old sample data can be used when no drawing is available.
- Suitable for OEM development, replacement matching, and repeat purchasing projects.
