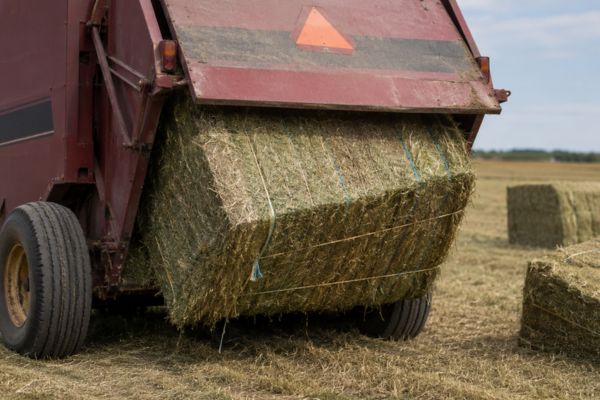

Why Baler Tailgate Hinges Fail from Hydraulic Cylinder Mismatch?
Baler tailgate hinges wear prematurely because a hydraulic cylinder mismatch creates an uneven distribution of force that twists the structural pivot points during operation. You may notice your baler’s tailgate drifting or catching, and hinge pins often show signs of heavy galling despite regular lubrication. This mechanical stress agitates the entire chassis, leading to sheared bolts or hazardous unlatching while the bale is under full compression. By identifying these discrepancies and ensuring balanced hydraulic performance, you can prevent expensive frame failure and restore the longevity of your equipment’s critical pivot components.
What Is Baler Hinge Wear From Hydraulic Cylinder Mismatch?
Baler hinge wear from hydraulic cylinder mismatch describes the accelerated degradation of pivot components caused by asynchronous force application across the tailgate. When you operate a baler where one cylinder extends faster than its counterpart, the rigid tailgate frame acts as a lever, twisting the hinges. This mechanical conflict places extreme pressure on one side of the pin while the other side gaps, leading to severe metal-to-metal friction.
Why Is Synchronization Critical For Heavy Tailgate Operation?
- Prevents structural racking of the rear frame.
- Ensures even seal compression across the tailgate.
- Maintains consistent latch alignment for safety.
- Reduces parasitic torque on the primary pivot pins.
What Happens During Asynchronous Movement?
If one cylinder reaches full extension just a fraction of a second before the other, the entire tailgate must flex to accommodate the difference. This flexing forces the hinge pins to rotate out of their intended axis, scraping away the protective lubricant film. Over time, this repeated twisting grinds down the bushings and deforms the hinge ears.
| Component | Normal Function | Mismatch Impact | |
|---|---|---|---|
| Hinge Pin | Smooth Rotation | Axial Galling | |
| Bushing | Load Distribution | Oval Deformation | |
| Hinge Ear | Structural Support | Stress Cracking |
How Does Hydraulic Cylinder Mismatch Create Uneven Stress?
Uneven stress occurs because a hydraulic cylinder mismatch forces the baler’s structure to bridge the gap between two different force vectors. Instead of the tailgate rising in a smooth, linear motion, it undergoes a diagonal pull that stresses the structural welds and pivot points. You will find that this imbalance focuses the entire weight of the door onto a single hinge point during the initial lift phase.
What Role Does Asymmetric Pressure Play In Hinge Deformation?
- It creates a localized “hot spot” of friction on one hinge.
- It causes the tailgate to twist, leading to side-loading.
- It leads to uneven wear patterns on the latching mechanism.
- It increases the likelihood of pin seizure in the bushing.
Can Unequal Port Sizes Lead To Mechanical Misalignment?
If one cylinder has a more restrictive port, the fluid enters at a different velocity, causing the cylinders to travel at different speeds. Even a few millimeters of lead-time on one side can generate thousands of pounds of unintended torque on the hinge pins. This torque eventually bends the pin, making the tailgate difficult to open or close smoothly.
| Stress Type | Cause | Hinge Result | |
|---|---|---|---|
| Torsional | Speed Variance | Twisted Frame | |
| Lateral | Misalignment | Pin Scoring | |
| Impact | Rapid Latching | Ear Fractures |
What Are The Common Causes Of Hydraulic Cylinder Mismatch?
Internal seal failure or mismatched component specifications are the primary drivers of hydraulic cylinder mismatch in baling equipment. If you use cylinders from different production batches or manufacturers, they may have slight variations in internal friction or bore diameter. These invisible differences manifest as visible wear on your hinges as the system struggles to balance the load.
Why Do Internal Leaks Create Pressure Imbalance Across Hinges?
- Fluid bypasses the piston seal on the weaker side.
- One cylinder loses “holding” power during the bale cycle.
- The tailgate sags on one side, putting weight on the hinge.
- Gravity forces the lagging hinge to absorb the bale’s weight.
Does Trapped Air Contribute To Erratically Applied Forces?
Air is compressible, meaning a cylinder with trapped air will hesitate or “bounce” during the opening cycle. While the non-aerated cylinder pushes steadily, the springy movement of the other side creates a vibrating stress on the hinges. This vibration acts like a hammer on the pins, accelerating the breakdown of grease and metal.
| Cause | Physical Symptom | Hinge Consequence | |
|---|---|---|---|
| Seal Bypass | Tailgate Sag | Sustained Loading | |
| Air Trapped | Jerky Movement | Impact Fatigue | |
| Wrong Bore | Speed Offset | Constant Twisting |
What Symptoms Signal Impending Tailgate Hinge Failure?
Early warning signs include squealing sounds, visible pin movement, and a hydraulic cylinder mismatch that causes the tailgate to close unevenly. You should watch for silver metallic flakes around the hinge area, which indicate that the metal is grinding against itself. If you notice the tailgate latches on one side before the other, the hinges are already under significant stress.
Why Is A Failing Latch A Sign Of Hydraulic Cylinder Mismatch?
- The door no longer sits square in the frame.
- Latch pins must be forced into position by hydraulic power.
- The hinge has likely developed “slop” or excess clearance.
- Uneven latching forces the frame to twist during compression.
How Does Jerky Tailgate Movement Indicate Cylinder Mismatch?
If the tailgate moves in a series of hops or starts and stops, it means the cylinders are fighting each other through the hinge. This lack of fluid synchronization forces the mechanical joints to act as the primary stabilizers, a role they were never designed to handle. Continued operation in this state will inevitably lead to a snapped pin or a cracked structural weld.
| Symptom | Observation | Severity | |
|---|---|---|---|
| Squealing | Lack of Lube/High Friction | Moderate | |
| Uneven Gaps | Frame Misalignment | High | |
| Pin Rotation | Seized Bushings | Critical |
How Do Misaligned Cylinders Induce Side Loading On Hinges?
Misaligned cylinders induce side loading because they push at an angle that is not perfectly perpendicular to the hinge axis, often due to a hydraulic cylinder mismatch in mounting hardware. You must realize that hinges are designed for rotation, not for resisting lateral “shoving” forces. When the cylinder rod pushes slightly outward or inward, it tries to pull the hinge pin out of its seat.
What Are The Effects Of Lateral Stress On Hinge Pins?
- The pin wears heavily on the ends rather than the center.
- The grease is squeezed out of the high-pressure side.
- Mounting ears may begin to bend outward over time.
- Increased friction requires more hydraulic power to move the door.
Why Does Cylinder Rod Drag Accelerate Pivot Point Wear?
If one cylinder rod has more friction due to a damaged wiper or seal, it resists movement more than its partner. This resistance forces the hinge on the opposite side to lead the movement, pulling the entire tailgate diagonally. The resulting “side-drag” wears the bushing into an oval shape, which then prevents the tailgate from sealing correctly.
| Force Type | Direction | Hinge Damage | |
|---|---|---|---|
| Radial | Perpendicular | Normal Wear | |
| Lateral | Parallel to Pin | Bushing Flaring | |
| Axial | Along the Rod | Ear Bending |
Why Does Hydraulic Drift Accelerate Baler Hinge Fatigue?
Hydraulic drift accelerates fatigue by maintaining a constant, uneven load on the hinges even when the baler is not in motion, often triggered by a hydraulic cylinder mismatch in valve performance. If you leave the tailgate in a raised position and one side slowly drops, the hinge on the holding side acts as a fulcrum. This static stress is particularly damaging because it prevents the recovery of the metal’s elasticity.
Can Creeping Cylinders Distort Heavy Tailgate Frames?
- One side of the frame remains under tension.
- The twisting force stays active for hours or days.
- Welds near the hinge begin to develop microscopic cracks.
- The tailgate may eventually become permanently warped.
How Does Uneven Drift Stress One Hinge Over Another?
When one cylinder drifts, the entire weight of the heavy tailgate hangs from the remaining pressurized cylinder and the opposite hinge. This creates a massive cantilever effect that magnifies the load on the pivot pin far beyond its rated capacity. Repeated cycles of this uneven drift will eventually fatigue the steel until the hinge ear snaps off entirely.
| Drift Rate | Time to Impact | Structural Risk | |
|---|---|---|---|
| 1″ per hour | 4 Hours | Frame Stress | |
| 5″ per hour | 30 Minutes | Hinge Fatigue | |
| Rapid Drop | Immediate | Catastrophic |
What Technical Steps Resolve Hydraulic Cylinder Mismatch?
Resolving this issue requires a systematic check of fluid flow, seal integrity, and physical mounting specs to eliminate any hydraulic cylinder mismatch . You should start by ensuring that both cylinders are identical models with the same bore and rod dimensions. Even a slight difference in internal volume will cause one cylinder to fill faster than the other, continuing the cycle of hinge wear.
How Do Operators Verify Flow Rate Consistency Between Units?
- Use a flow meter to check output at the valve.
- Observe cylinder extension times without a load.
- Check for identical hose lengths to ensure equal pressure drop.
- Ensure all fittings are the same size and type.
What Is The Best Procedure For Purging Trapped System Air?
If the lines are clear, why does the mismatch persist? Air trapped in the dead-ends of the cylinder must be purged by cycling the system to full stroke several times under no load. If your cylinders don’t have bleed screws, you may need to loosen the top fitting slightly to allow the air to escape. Once the air is gone, the cylinders will move in unison, relieving the hinges of torsional stress.
| Step | Action | Objective | |
|---|---|---|---|
| Inspect | Match Part Numbers | Equal Volume | |
| Purge | Cycle to Full Stroke | Remove Air | |
| Measure | Check Pin Alignment | Parallel Pull |
What Are The Material Requirements For Robust Tailgate Hinges?
Robust hinges must be constructed from high-tensile steel with hardened pins to survive the forces of a hydraulic cylinder mismatch . If you are replacing worn parts, you should look for pins that have been induction-hardened to resist the scoring caused by uneven loads. The material must be tough enough to absorb impact but hard enough to prevent the “smearing” of metal during high-pressure cycles.
Why Is Surface Hardness Essential For Withstanding Side Loads?
- Prevents deep scoring from metal-on-metal contact.
- Maintains the smooth finish required for lubrication.
- Resists deformation when the pin is twisted in the ear.
- Extends the service life between scheduled pin replacements.
How Do Self-Lubricating Bushings Mitigate Mismatch Effects?
Even if your hydraulics are slightly off, a high-quality bronze or composite bushing can absorb some of the misalignment without seizing. These materials allow the pin to “float” slightly, which distributes the load across a larger surface area and prevents localized heat buildup. While they won’t stop a severe mismatch, they provide a vital safety margin for your equipment’s structural integrity.
| Material | Advantage | Best Use Case | |
|---|---|---|---|
| Hardened Steel | High Strength | Primary Pins | |
| Manganese | Work Hardening | High Impact | |
| Bronze Bushing | Low Friction | Pivot Sleeves |
How Does Hinge Integrity Impact Total Baler Performance?
Hinge integrity is the foundation of bale density and shape, as worn hinges often stem from a chronic hydraulic cylinder mismatch. When your hinges are tight and aligned, the tailgate provides a rigid wall for the plunger to compress material against. If the hinges are loose, the tailgate will “give” during every stroke, resulting in soft, misshapen bales and reduced transport efficiency.
Can Worn Hinges Lead To Lopsided Bale Formation?
- The door pushes outward more on the loose side.
- Density becomes uneven across the width of the bale.
- Twine or wire tension becomes inconsistent and may snap.
- Bales are difficult to stack due to their “wedge” shape.
Why Does Structural Integrity Decrease Compression Efficiency?
Every millimeter of movement in a worn hinge represents lost energy that should have gone into compressing the crop. This means your tractor must work harder and burn more fuel to reach the desired bale weight. By maintaining synchronized hydraulics and solid hinges, you ensure that every pound of pressure is used effectively to create a high-quality product.
| Performance Metric | Worn Hinge | Healthy Hinge | |
|---|---|---|---|
| Bale Shape | Tapered/Uneven | Square/Consistent | |
| Energy Use | High (Friction) | Optimized | |
| Component Life | Short/Failing | Long/Predictable |
How Does Proactive Maintenance Prevent Cylinder Mismatch?
Proactive maintenance involves regular inspections and fluid analysis to ensure no hydraulic cylinder mismatch develops over time. You should check the temperature of your cylinders after a few hours of work; a significant temperature difference between the two usually indicates an internal leak. Regularly cleaning the cylinder rods and checking the wipers will also prevent contaminants from damaging the seals that keep the system synchronized.
What Inspection Frequency Optimizes Hinge Service Life?
- Daily greasing of all primary pivot points.
- Weekly inspection of cylinder mounting pins.
- Monthly check for tailgate alignment and latch speed.
- Annual fluid replacement and system pressure testing.
Why Is Fluid Cleanliness Vital For Synchronized Operation?
Contaminants in the hydraulic oil can clog small orifices or damage the delicate surfaces of the control valves. If the valve that feeds your tailgate cylinders is worn unevenly by dirty oil, it will deliver unequal flow, even if the cylinders themselves are in perfect condition. Keeping your oil clean and your filters fresh is the simplest way to ensure your cylinders stay in perfect sync and your hinges stay in one piece.
| Maintenance Task | Frequency | Expected Outcome | |
|---|---|---|---|
| Greasing Pins | Daily | Reduced Friction | |
| Fluid Analysis | Bi-Annually | Early Leak Detection | |
| Pin Replacement | As Needed | Restored Alignment |
The structural health of your baler depends entirely on the balance between your hydraulic force and mechanical pivot points. By resolving the root causes of cylinder mismatch and implementing a rigorous inspection routine, you can eliminate the destructive twisting that ruins hinges. Our mission is to provide you with the technical knowledge and high-performance components needed to keep your agricultural machinery operating at peak efficiency. If you need assistance in matching your hydraulic units or sourcing hardened pivot hardware, contact us today for expert support and durable solutions.
Frequently Asked Questions
Can I replace just one hydraulic cylinder if the other is working?
No, replacing only one cylinder usually causes a performance gap between the new, tight seals and the old, worn ones. This discrepancy often worsens the hinge wear you are trying to fix.
What’s the best way to test for a cylinder mismatch?
Cycle the tailgate to a half-open position and measure the distance from the frame to the door on both sides. If the measurements differ or if one side drifts faster, you have a synchronization issue.
How do I know if my hinge pins are already damaged?
Look for “slop” or movement in the hinge when the door is partially open, or check for fine metallic dust around the joint. These are definitive signs that the pin or bushing has suffered surface failure.
Is it possible to fix a mismatch just by changing the oil?
No, oil changes won’t fix mechanical seal bypass or mismatched bore sizes, though clean oil prevents future valve damage. You must address the internal cylinder seals or physical specs to stop the mismatch.
Why does my tailgate latch on the left side before the right?
This occurs because the right-side cylinder is likely lagging behind, either due to an internal leak or air in the line. The resulting twist forces the left hinge to bear the full weight of the initial latching force.
