How to Specify Hydraulic Cylinder Force and Stroke
You are in the middle of a critical harvest or a tight construction deadline when your equipment’s hydraulic arm suddenly shudders and fails to lift a full load. You’ve checked the pump and the fluid levels, but the culprit is often a cylinder that wasn’t correctly sized for the real-world forces it encounters. This leads to agonizingly slow cycle times, overheating systems, and eventually, a catastrophic failure that halts your entire operation. By learning to specify hydraulic cylinder force correctly, you ensure your machinery has the “muscle” to handle every payload without compromising speed or safety.
What Is the Direct Relationship Between Bore Size and Force?
Bore diameter is the single most important factor determining the push capacity of your hydraulic cylinder because it defines the surface area the pressurized oil acts upon. To specify hydraulic cylinder force, you must understand that as the bore increases, the force output grows exponentially relative to the diameter.
Why Does Bore Diameter Dictate Your Cylinder’s Push Capacity?
Think of the bore as the “piston’s footprint” inside the cylinder barrel. The standard engineering formula (Force = Pressure* Area) dictates that a larger surface area allows a lower system pressure to move a heavier load. If you are struggling with a loader that won’t raise silage, increasing the bore size is the most direct way to gain the required lifting capacity.
How Do You Calculate Theoretical Force vs. Actual Working Force?
You might calculate a theoretical push of 10,000 lbs based on your pump’s PSI, but in the field, friction and seal drag will eat into that performance. Real-world conditions—such as worn internal seals or rough cylinder walls—can reduce your effective force by 5% to 10%.
Summary of Force and Bore Calculations
| Bore Diameter (Inches) | Piston Area (Sq. In) | Force at 2,500 PSI (Lbs) | Force at 3,000 PSI (Lbs) |
| 2.0″ | 3.14 | 7,850 | 9,420 |
| 3.0″ | 7.07 | 17,675 | 21,210 |
| 4.0″ | 12.57 | 31,425 | 37,710 |
This data confirms that even a 1-inch increase in bore diameter more than doubles the available push force at a constant pressure.
How Does System Pressure (PSI/Bar) Impact Force Output?
Pressure is the energy source that drives the cylinder, and its consistency is vital for maintaining steady force throughout the entire stroke. To specify hydraulic cylinder force accurately, you must verify that your system can maintain its rated PSI under full load.
Is Your Hydraulic Pump Capable of Reaching Peak Operating Pressure?
If your tractor or industrial power unit has a worn pump, it may struggle to reach the relief valve setting, causing your cylinder to feel weak. Before replacing a cylinder, use a pressure gauge to ensure the pump is actually delivering the pressure you’ve used in your force calculations.
What Happens to Force When Pressure Drops Across Long Hose Runs?
Long hydraulic lines and restrictive fittings create “line loss,” which reduces the pressure available at the cylinder port.
- Small-diameter hoses restrict flow and cause heat.
- Numerous elbows and transitions drop pressure incrementally.
- Quick couplers can become bottlenecks if they are undersized for the flow rate.
It’s common to find that you’ve lost 200–500 PSI by the time the oil reaches the implement.
Pressure-to-Force Performance Matrix
| System Pressure (PSI) | Force (2.5″ Bore) | Force (3.5″ Bore) | Force (4.5″ Bore) |
| 2,000 | 9,817 | 19,242 | 31,808 |
| 2,500 | 12,271 | 24,052 | 39,760 |
| 3,000 | 14,726 | 28,863 | 47,712 |
How Do You Accurately Determine Required Stroke Length?
Stroke length determines the “reach” of your equipment, and getting this wrong leads to mechanical interference or a machine that simply can’t complete its intended motion. You must specify hydraulic cylinder force and stroke in tandem to ensure the mechanical advantage remains consistent.
What Are the Physical Limitations of Your Equipment’s Linkage?
Before ordering, you must measure the maximum and minimum distance between your mounting pins. If the cylinder stroke is too long, it may bottom out against the machine frame, potentially cracking welds or bending brackets.
Why Must You Account for Dead Space and Cushioning at Stroke Ends?

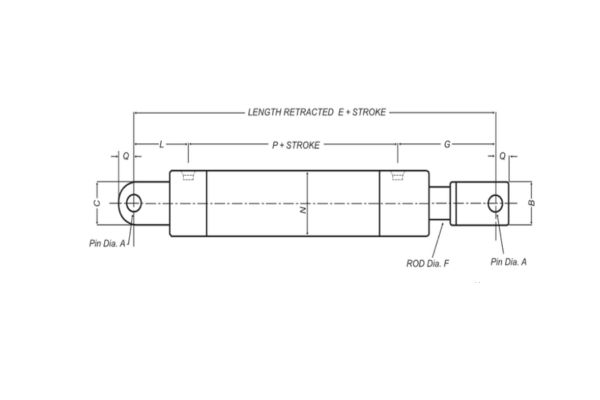

A 20-inch stroke cylinder isn’t just 20 inches long; you have to account for the “closed length” (the distance when fully retracted).
- Cushions add internal length to the head and cap.
- Double-acting cylinders need extra space for the piston width.
- Heavy-duty units often have thicker stop-tubes to prevent buckling at full extension.
If you ignore these dimensions, you might find that the cylinder is physically too long to fit into your existing brackets.
Stroke Specification and Clearance Guidelines
| Application Type | Common Stroke Range | Key Geometry Focus | Critical Measurement |
| Steering | 6″ – 12″ | Center-to-center balance | Full turn clearance |
| Loader Lift | 18″ – 48″ | Parallel lift sync | Max dump height |
| 3-Point Hitch | 8″ – 16″ | Working depth control | Retracted limit |
What Are the Risks of Specifying an Incorrect Rod Diameter?
While the bore determines how much you can push, the rod diameter determines how much load the cylinder can handle without buckling under pressure. To specify hydraulic cylinder force, you must ensure the rod is stout enough for the application’s stroke length.
Can Your Cylinder Rod Withstand Compression Without Bending?
Long-stroke cylinders are particularly vulnerable to rod bending if the rod diameter is too small for the load. If you are pushing a heavy plow or grader blade, the rod acts like a column under a massive weight; if it’s too thin, it will bow and destroy your seals instantly.
How Does Rod Size Affect the Retraction Speed and Pull Force?
A thicker rod displaces more oil inside the cylinder during the retraction cycle.
- More rod volume means faster retraction speed.
- More rod volume means less pull force (less surface area for oil to push against).
- Correct balance is key for tasks like “back-dragging” with a bucket.
You are making a trade-off between speed and strength whenever you change rod sizes.
Rod Selection and Buckling Limit Standards
| Rod Diameter (Inches) | Max Stroke (Standard Load) | Pull Force Reduction | Typical Use Case |
| 1.25″ | Up to 24″ | Minimal | Light Utility / Steering |
| 1.75″ | 24″ – 48″ | Moderate | Loader Lift / Hitch |
| 2.50″ | 48″ + | Significant | Heavy Excavation / Mining |
How Do Mounting Styles Influence Effective Force and Stroke?
The way a cylinder is anchored to your machine significantly impacts how force is transmitted and how much side load the rod must absorb.
Why Does a Clevis Mount Handle Side Loads Differently Than a Trunnion?
Clevis mounts allow for a single plane of movement, making them ideal for simple pivoting arms. However, if your machine has any “twist” or lateral movement, a trunnion or spherical bearing mount is required to prevent the rod from bending under side loads.
How Does Mounting Distance Affect Your Total Reach and Stroke?
Changing from a “cross-tube” to a “clevis” mount will change your pin-to-pin dimensions, even if the stroke remains the same.
- Cross-tubes are compact for tight steering spaces.
- Clevis mounts are versatile for many aftermarket implements.
- Trunnions allow the cylinder to pivot from the middle, reducing the buckling risk.
Mounting Compatibility and Force Alignment Data
| Mounting Style | Typical Load Path | Alignment Sensitivity | Max Pressure Rating |
| Clevis / Pin | Straight Pivot | High | 3,000 PSI |
| Trunnion | Mid-Body Pivot | Moderate | 5,000 PSI |
| Spherical Eye | Multi-Axis | Low | 4,000 PSI |
What Environmental Factors Interfere with Cylinder Specifications?
Hydraulic cylinders don’t operate in a lab; they face mud, corrosive fertilizers, and extreme temperature swings that can degrade performance. To specify hydraulic cylinder force, you must choose materials and seals that can survive your specific work environment.
Will Extreme Temperatures Cause Your Seals to Bypass Internally?
In the dead of winter, standard seals can become brittle, leading to internal leakage. Conversely, high summer heat thins the hydraulic oil, which can cause your 3-point hitch to slowly sink as fluid bypasses the piston seals.
How Does External Contamination Shorten the Effective Service Life?
If you work in silage or manure, the acidic environment can pit your chrome rods in a single season.
- Pitting destroys the “wiper” seal that keeps dirt out.
- Contaminants enter the oil and score the internal barrel.
- Corroded rods lead to a leaky cylinder that cannot hold its rated pressure.
Environmental Impact on Performance Metrics
| Environment | Primary Risk | Recommended Spec | Expected Life Impact |
| Arctic / Winter | Seal Hardening | Low-Temp Urethane | High Risk of Leakage |
| Manure / Fertilizer | Rod Corrosion | 100+ Hour Salt Spray | Rapid Seal Wear |
| High-Cycle Dust | Abrasive Ingress | Double-Lip Wiper | Scored Barrels |
Why Is Cylinder Synchronization Critical for Dual-Lift Systems?
On front-end loaders or wide planters, you often have two cylinders working together to lift a single heavy beam. To specify hydraulic cylinder force for these systems, the cylinders must be perfectly matched to prevent the machine from twisting.
Can You Prevent Uneven Lifting in Loader and Hitch Applications?
If one cylinder has a slight internal leak, it will move slower than its partner. This causes your bucket to tilt or your planter to run deeper on one side, ruining your field’s precision.
How Do You Specify Matched Pairs for Balanced Hydraulic Flow?
When ordering, specify that the cylinders are for a “dual-lift” application.
- Ensure they have identical bore and stroke tolerances.
- Use a flow-divider valve to keep the oil volume equal.
- Replace both cylinders at once if one fails to maintain balance.
Synchronization issues are rarely about the pump; they are almost always caused by cylinder mismatch.
Synchronization and Flow Balance Requirements
| System Type | Sync Tolerance | Recommended Setup | Failure Symptom |
| Loader Lift | +/- 0.125″ | Matched Serial #s | Twisted Boom Arms |
| Wide Planter | +/- 0.050″ | Flow Dividers | Uneven Seed Depth |
| Steering (Dual) | +/- 0.100″ | Tied Linkage | Asymmetric Turning |
How to Account for Dynamic Shock Loads in Your Force Specs?
A cylinder rated for 3,000 PSI static pressure can easily see 6,000 PSI spikes when a tractor hits a hidden rock in the field. To specify hydraulic cylinder force, you must ensure the mechanical structure can survive these sudden impacts.
Is Your Cylinder Designed to Absorb Impact Beyond Rated Pressure?
If your steering cylinder bangs at the end of its stroke, the piston is acting like a hammer against the cylinder head. This “dead-stop” shock can eventually bend the rod or blow out the end caps.
Why Do Welded Mounts Fail During High-Cycle Ag Operations?
Every time you lift and lower a loader, you are stressing the welded ears.
- Poor weld penetration leads to fatigue cracks.
- Thin mount brackets will “oval out” over time.
- High-cycle machines need beefier, reinforced mounts to survive the season.
Don’t just specify the force; specify the structural durability of the mounting points.
Shock Load Resistance and Durability Factors
| Durability Grade | Mount Style | Weld Type | Shock Resistance |
| Standard | Cast Eye | Single Pass | Low (Utility Use) |
| Heavy-Duty | Forged Clevis | Multi-Pass | High (Commercial) |
| Industrial | Integrated Base | Full Penetration | Extreme (Mining) |
What Are the Common Errors When Measuring for Replacements?
Most “wrong part” complaints aren’t due to bad manufacturing but to simple measurement errors during the ordering process. To specify hydraulic cylinder force and fit, you must follow a rigid measurement protocol.
How to Measure Pin-to-Pin Dimensions on a Failed Unit?
You must measure the cylinder while it is fully retracted to find its “dead length.” If the cylinder is bent or broken, you may need to measure the machine’s mounting brackets instead to find the true required dimension.
Why Is Port Orientation the Most Overlooked Fitment Specification?
If you buy a cylinder with the ports facing the wrong way, your hydraulic hoses won’t reach or will be pinched by the equipment’s movement.
- Inline ports follow the line of the cylinder.
- 90-degree ports stick out from the side for better clearance.
- Misaligned ports lead to leaking hoses and fire hazards.
Always specify port orientation as a “clocking” position (e.g., “Ports at 12 o’clock relative to the clevis pin”).
Measurement Accuracy and Port Layout Standards
| Measurement Point | How to Measure | Common Error |
| Bore Size | Internal Diameter of Tube | Measuring Outside OD |
| Pin Size | Diameter of the Mounting Pin | Guessing (needs caliper) |
| Port Size | Thread Type (SAE, NPT, BSPP) | Ignoring thread pitch |
How to Ensure Long-Term Reliability Through Proper Specifying?
The cheapest cylinder is often the most expensive over time when you factor in downtime, oil loss, and repeat labor. To specify hydraulic cylinder force, you must look beyond the initial purchase price and evaluate the Total Cost of Ownership (TCO).
Should You Choose a Standardized Design or a Custom Solution?
Standard “off-the-shelf” welded cylinders are great for common tractors, but if your machine has unique geometry, a custom-engineered solution may be the only way to ensure the correct force-to-stroke ratio.
How to Balance Upfront Purchase Cost with Total Cost of Ownership?
Investing in better plating, higher-grade seals, and reinforced mounts will save you thousands in the long run.
- Better plating prevents rust and seal leaks.
- Higher-grade seals handle heat better during long work shifts.
- Standardizing your fleet allows you to stock fewer spare parts.
A high-quality cylinder should outlast multiple sets of seals before requiring a major rebuild.
Long-term Reliability and TCO Comparison
| Feature | Budget Option | Premium Option | Impact on TCO |
| Rod Plating | Thin Chrome | 100hr+ Induction Hardened | Reduces rust repairs |
| Seal Material | Nitrile (Standard) | Viton / Polyurethane | Handles higher heat |
| Mounting | Standard Welded | Forged / Reinforced | Prevents mount failure |
Conclusion
By accurately calculating your bore-to-pressure ratio, measuring for exact stroke clearance, and specifying structural durability for shock loads, you eliminate the guesswork that leads to costly downtime. We are committed to engineering hydraulic solutions that solve these exact pain points, ensuring your equipment stays in the field where it belongs.
Whether you are retrofitting an older tractor or designing a new industrial system, our team is ready to help you contact us today to find the perfect fit for your operation.
Frequently Asked Questions
Can I increase my tractor’s lifting force by just adding a larger cylinder?
Yes, but with caution. A larger bore will provide more force at the same pressure, but it will also move slower because it requires more oil volume from your pump.
What is the best way to measure stroke if my old cylinder is missing or destroyed?
Measure the “pin-to-pin” distance on your machine’s brackets when the arm is fully retracted, then again when fully extended. The difference between these two numbers is your required stroke.
How do I know if my steering cylinder has internal leakage?
A common sign is “steering drift,” where the tractor veers to one side even though you aren’t turning the wheel. If the oil is bypassing the internal seals, the cylinder cannot maintain its position under load.
Should I choose a tie-rod or a welded cylinder for agricultural use?
Welded cylinders are generally more compact and handle higher pressures (up to 3,000+ PSI), making them ideal for space-constrained loader and steering applications.
Why does my hydraulic rod keep bending under heavy loads?
This is usually caused by “side loading” or specifying a rod diameter that is too thin for the stroke length. Ensure your cylinder is properly aligned and the rod is sized for the push force required.
