How to Control Hydraulic Cylinder Speed in Hydraulic Systems
Hydraulic cylinder speed is controlled by regulating oil flow into the cylinder or adjusting pump displacement. But when your excavator boom starts drifting or moving with a jerky lag, the problem quickly turns from inconvenience into costly downtime. Revving the engine only creates excess heat, relief valve noise, and faster hydraulic wear. Unstable hydraulic cylinder speed often points to issues like clogged flow controls or internal piston bypass. Finding the real cause early helps prevent pump failure, slow cycle times, and lost productivity.
How Does Orifice Size Change Hydraulic Cylinder Speed?
Precision Needle Valve Adjustments
Regulating the orifice size within a flow control valve directly throttles the volume of oil reaching the piston. By restricting the flow, you create a pressure drop that forces excess oil through the system relief valve, effectively slowing the actuator’s extension or retraction.
- Standard needle valves are sensitive to fluid thinning.
- Manual adjustments are prone to “operator drift” over long shifts.
- Clockwise rotation reduces the orifice diameter, increasing backpressure.
Managing Pressure Drops
You have to understand that a simple needle valve is rarely enough for industrial loads because it doesn’t account for pressure fluctuations. If your load changes, the flow across a standard orifice will vary, causing your equipment to jump or crawl unexpectedly.
- Pressure-compensated valves maintain a constant flow regardless of load.
- Uncompensated orifices lead to inconsistent cycle times.
- Excessive restriction at the orifice generates localized heat spikes.
| Adjustment Variable | Impact on Speed | Component Stress | |
|---|---|---|---|
| Clockwise Turn | Decrease | High (Increased Backpressure) | |
| Counter-Clockwise | Increase | Low (Lower Flow Restriction) | |
| Bypass Setting | System Wide | Critical (Relief Valve Heat) |
Why Does Pump Displacement Dictate Hydraulic Cylinder Speed?
Variable Swashplate Mechanics
The flow rate produced by your pump is the primary driver of hydraulic cylinder speed , as the actuator can only move as fast as the volume of oil being pushed into it. In variable displacement systems, the pump adjusts its swashplate angle to deliver exactly the amount of oil needed.
- Swashplate angle determines the piston stroke within the pump.
- Load-sensing lines provide feedback to the pump compensator.
- Reduced flow at idle saves fuel and reduces wear on the rod seals.
Fixed Flow Limitations
If you are running a standard gear pump, your cylinder speed is slave to the engine’s RPM, which is an inefficient way to manage a heavy-duty cycle. When you need to slow down, you end up throttling the engine, which can lead to low torque and engine stalling under heavy load.
- Gear pumps offer zero flow flexibility without external valves.
- High RPM for speed generates massive heat through the relief valve.
- Flow dividers must be used to run multiple cylinders at different speeds.

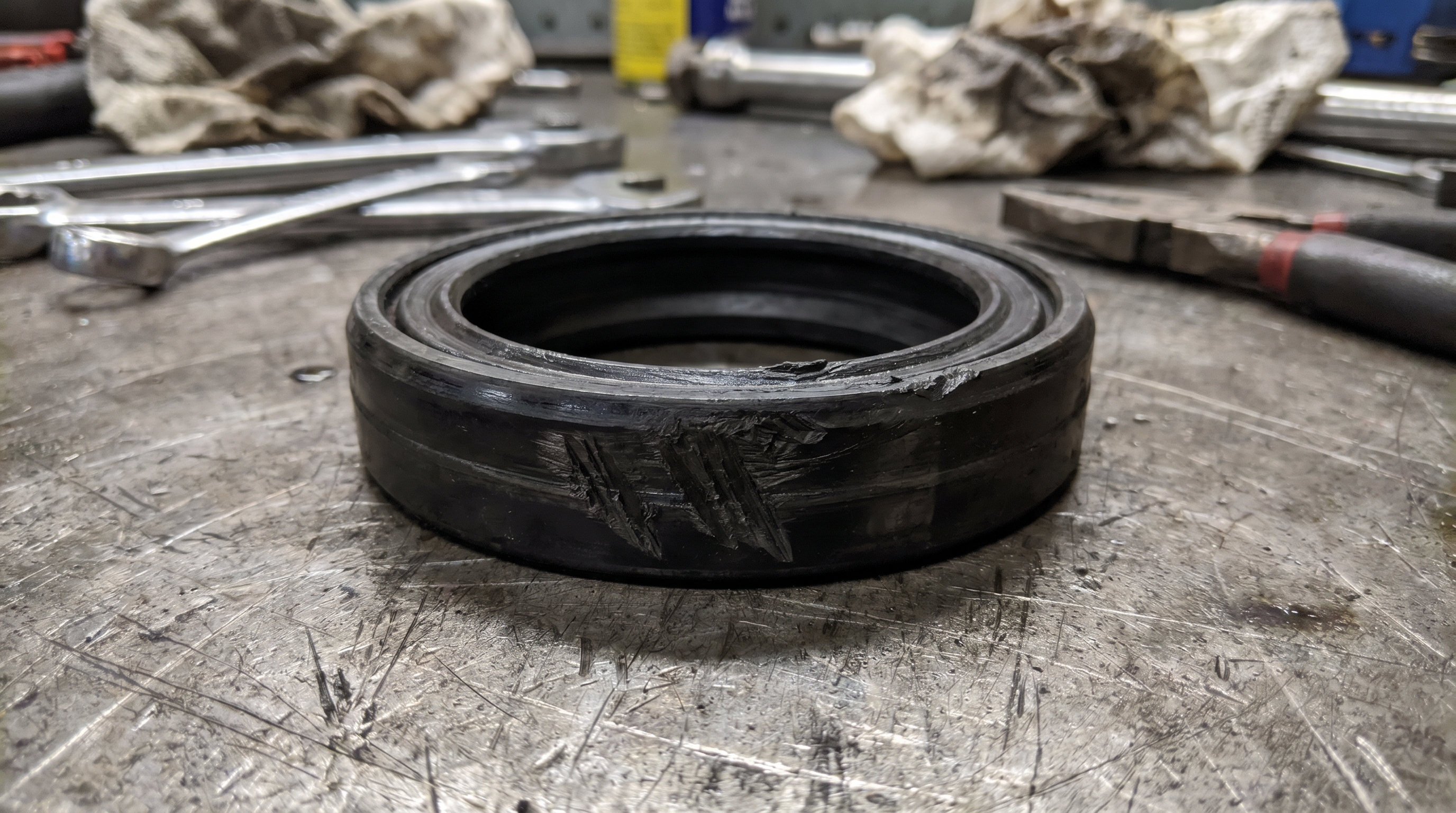

Can Damaged Seals Affect Your Hydraulic Cylinder Speed?
Piston Seal Bypass Issues
Internal leakage, specifically across the piston seals, allows pressurized oil to bypass the piston and return to the tank without doing work. You won’t see a puddle on the ground, but you will see the rod “drift” under load and fail to reach its full rated velocity.
- Scarred barrels allow oil to “jet” past the seal.
- Heat makes the seals brittle and less effective at sealing.
- Contamination is the primary cause of internal bypass.
Volumetric Loss Identification
Measuring the cycle time is the first step in diagnosing if your speed loss is internal. If the pump is putting out 20 GPM but the cylinder is only moving at a rate that matches 15 GPM, you have a 25% volumetric loss that is turning into pure heat.
- Heat at the cylinder body indicates internal leakage.
- Bypass oil causes “spongy” control responses.
- Poorly honed barrels accelerate seal degradation.
| Symptom | Probable Cause | Impact on Speed | |
|---|---|---|---|
| Mid-stroke Lag | Barrel Ballooning | Intermittent Slowing | |
| Constant Slowing | Worn Piston Seals | Continuous Speed Loss | |
| Cylinder Drift | Piston Bypass | Static Failure |
Does Fluid Viscosity Alter Maximum Hydraulic Cylinder Speed?
Thermal Thinning Effects
Fluid viscosity is the measure of the oil’s resistance to flow; therefore, thicker oil moves slower through valves and ports. As the oil heats up, it “thins out,” which can cause the cylinder to move faster than intended, leading to loss of precision.
- Thin oil bypasses seals and valve spools easily.
- Increased internal leakage results in slower net speed at high pressure.
- Overheated oil oxidizes and forms sludge that clogs orifices.
Cold Start Sluggishness
In cold climates, your equipment will move like it’s stuck in molasses until the oil warms up. You are fighting the internal friction of the oil itself, which causes massive pressure drops and can even starve the pump of fluid.
- Cold oil increases the work required to move the rod.
- Thick fluid can trigger “cold start” bypass valves.
- Warm-up cycles are mandatory to prevent seal “tearing.”
| Oil Grade | Typical Temp Range | Speed Stability | |
|---|---|---|---|
| ISO 32 | -10°C to 30°C | High (Cold) | |
| ISO 46 | 10°C to 50°C | Medium (General) | |
| ISO 68 | 20°C to 70°C | High (Heat) |
Using the wrong viscosity index transforms your cylinder speed from a predictable metric into a moving target that frustrates your operators.
How Do Proportional Valves Regulate Hydraulic Cylinder Speed?
Electronic Ramping and Control
Proportional directional control valves allow for infinitely variable hydraulic cylinder speed by adjusting the spool position relative to an electrical signal. Unlike standard “on/off” solenoid valves, proportional valves can ramp up flow slowly for smooth starts.
- Spool “notches” provide fine flow control at small openings.
- Built-in electronics often include ramp-time adjustments.
- Feedback loops can compensate for varying load weights.
Reducing Mechanical Shock
A major cause of cylinder failure is “hydraulic hammer,” where the fluid flow is stopped instantly, sending a shockwave through the system. Proportional valves prevent this by “feathering” the flow, which keeps your hoses from jumping.
- Hard stops at high speed create 4x the pressure spikes.
- Proportional control extends the life of your rod seals.
- It reduces the noise level of the entire hydraulic unit.
| Feature | Proportional Valve | Standard Solenoid | |
|---|---|---|---|
| Speed Control | Variable / Precise | Fixed / Harsh | |
| Cost | Higher | Lower | |
| Maintenance | Electronic Calibrated | Purely Mechanical |

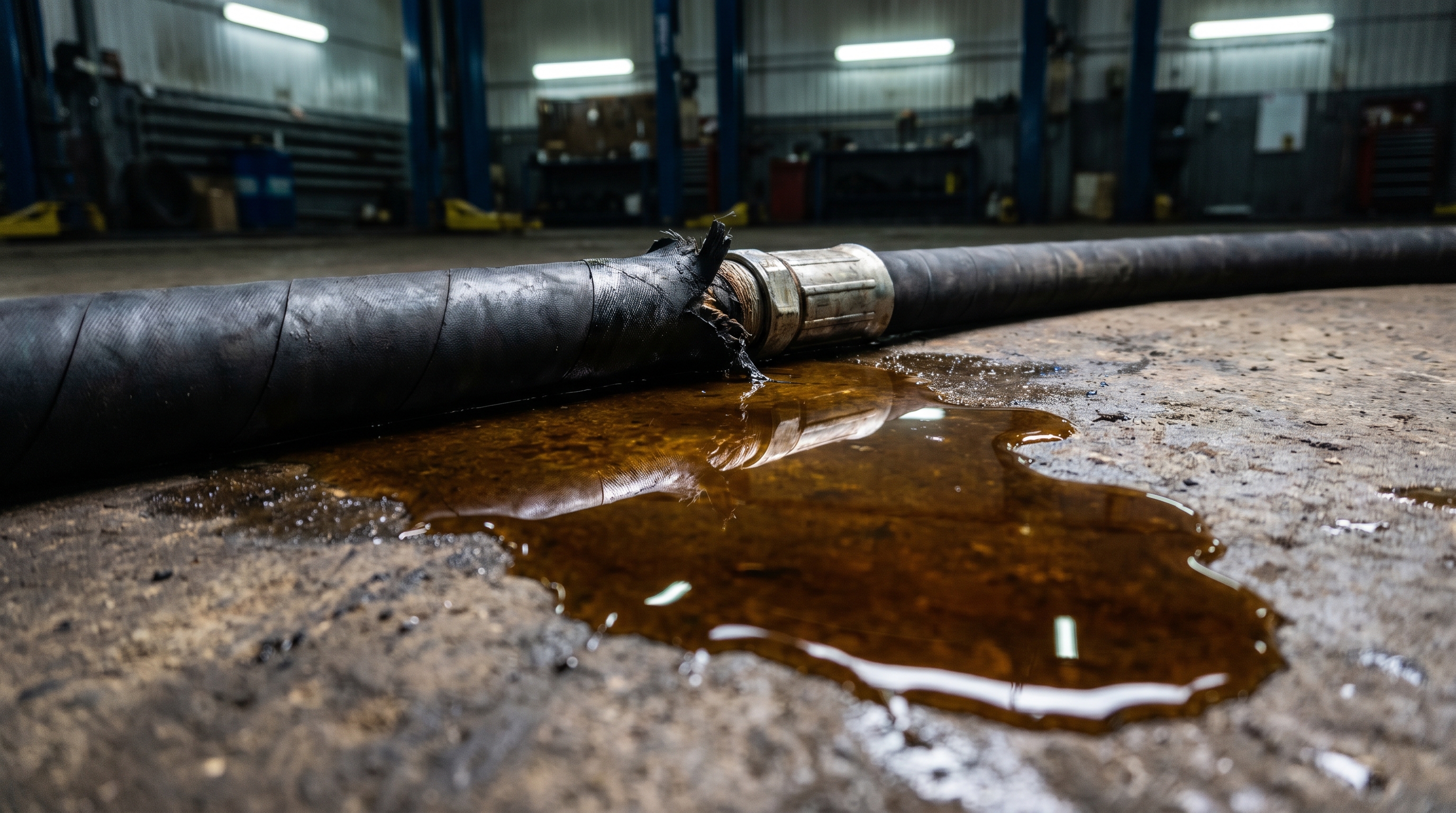

Why Do Undersized Hoses Hinder Hydraulic Cylinder Speed?
Fluid Velocity and Turbulence
If your hoses and fittings have an internal diameter that is too small for the required GPM, they act as a permanent bottleneck. This restriction causes high fluid velocity, which creates turbulence and backpressure, stealing the power that should be moving the rod.
- High velocity leads to a pressure drop at the cylinder.
- Excessive backpressure can blow out rod seals.
- Turbulent flow causes vibration that loosens fittings.
Friction Heat Generation
Friction between the oil and the inner walls of the hose converts your pump’s energy into heat rather than motion. If your hoses are hot to the touch but the cylinder isn’t doing much work, you are likely losing your speed to plumbing restrictions.
- Every 90-degree elbow adds to the pressure drop.
- Undersized fittings are the most common “hidden” bottlenecks.
- Old hoses can collapse internally, blocking flow.
| Hose Dash Size | Internal Diameter | Max Recommended GPM | |
|---|---|---|---|
| -8 | 1/2″ | 12-15 | |
| -12 | 3/4″ | 25-30 | |
| -16 | 1″ | 45-50 |
Can Improper Bore Diameter Impact Hydraulic Cylinder Speed?
Piston Area and Flow Ratios
The hydraulic cylinder speed is inversely proportional to the piston area. If you install a cylinder with a larger bore diameter than the system was designed for, the same GPM will result in a much slower extension speed.
- Velocity = Flow Rate / Area.
- Increasing bore diameter increases force but decreases speed.
- Rod displacement must be considered for retraction speeds.
Rod Displacement Sensitivity
The volume required to fill the rod end is less than the cap end due to the space taken by the rod. You will notice that cylinders retract much faster than they extend, which can be dangerous if the operator isn’t prepared for the speed difference.
- Large rod diameters result in high retraction speeds.
- Regeneration circuits can be used to balance extension speed.
- Improperly sized rods can buckle under high-speed compression.
| Bore Diameter | Piston Area (sq in) | Speed at 10 GPM (in/sec) | |
|---|---|---|---|
| 2.0″ | 3.14 | 12.2 | |
| 3.0″ | 7.06 | 5.4 | |
| 4.0″ | 12.56 | 3.0 |
How Does Measurement Accuracy Improve Hydraulic Cylinder Speed?
Verification of Bore Tolerances

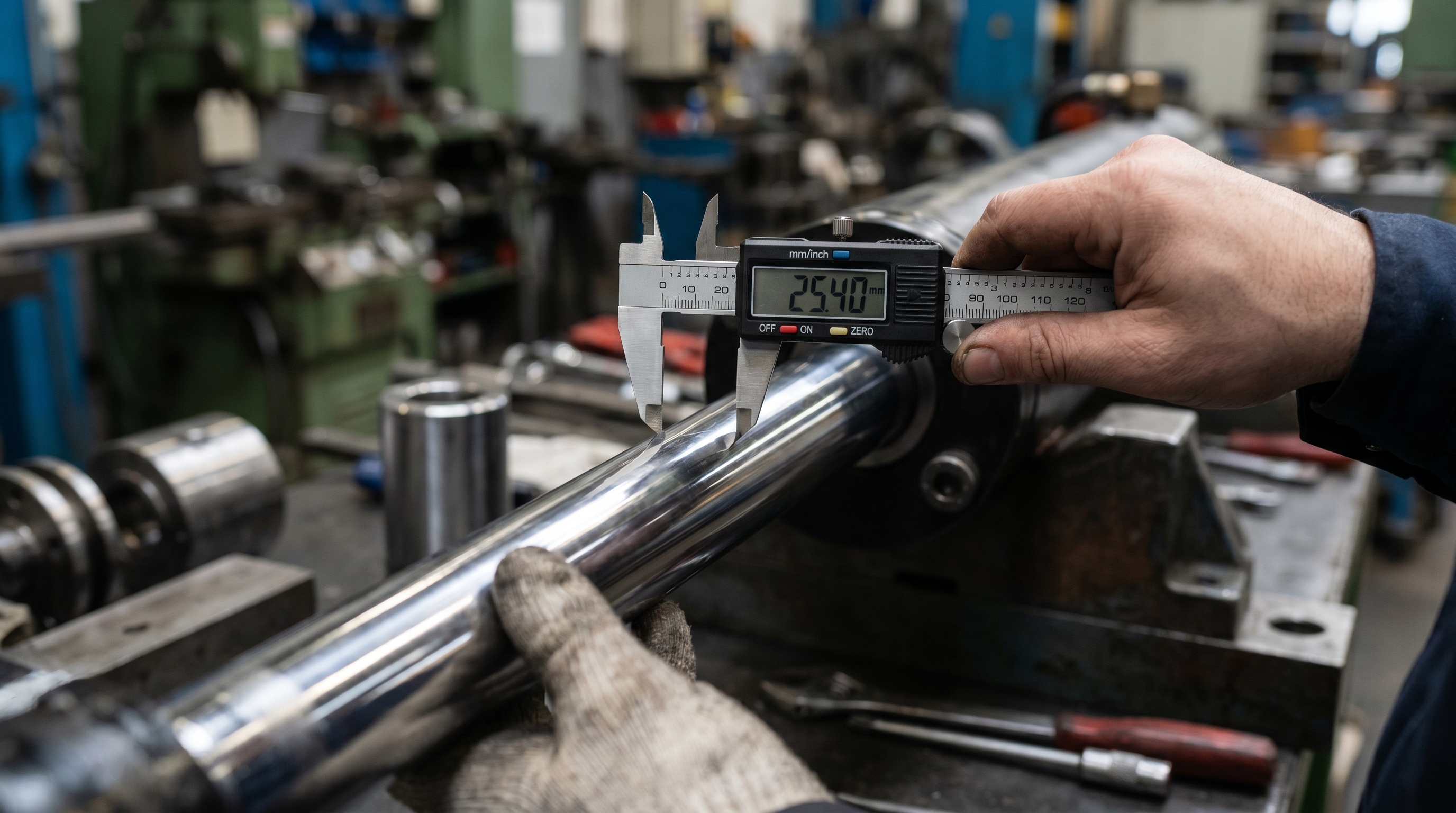

Field engineers must use precision calipers to verify that the cylinder barrel hasn’t “ballooned” or worn unevenly. Even a few thousandths of an inch of wear in the center of the stroke can cause a localized speed drop as oil bypasses the seals.
- Ballooning is often invisible to the naked eye.
- Scoring acts like a bypass channel for pressurized oil.
- Only a bore micrometer can confirm a distorted barrel.
Tuning Cycle Times
Getting the right speed requires a stopwatch and a clear understanding of the machine’s required cycle time. You don’t just “feel” the speed; you measure it against the manufacturer’s specifications to ensure you aren’t cavitating the pump.
- Always adjust valves when the oil is at normal operating temperature.
- Lock out the adjustment knob to prevent unauthorized tampering.
- Document the number of turns from “fully closed” for maintenance.

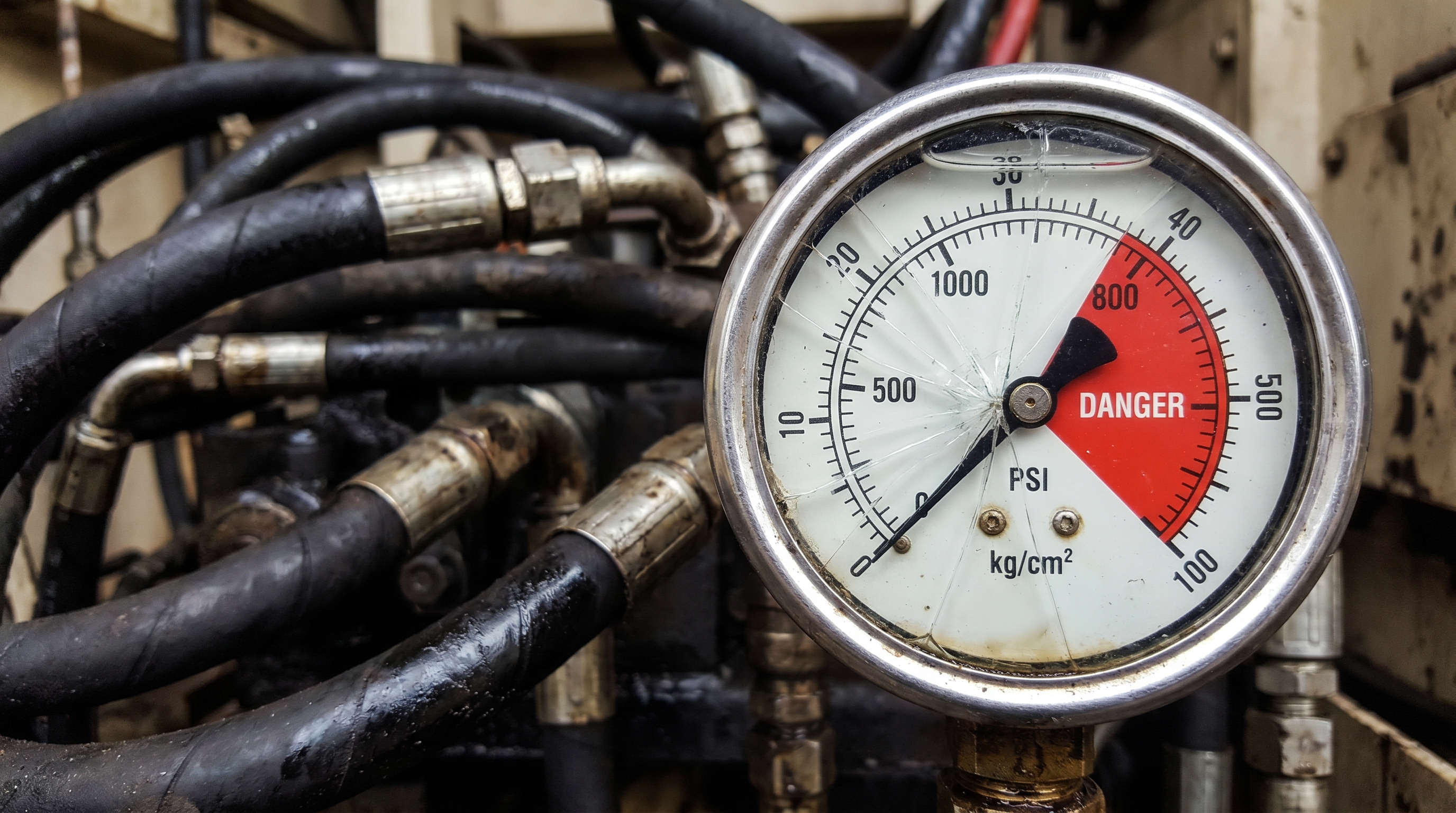

Why Is System Pressure Tied To Hydraulic Cylinder Speed?
Cracking Pressure and Bypass
While flow determines speed, system pressure provides the force required to overcome resistance; if the pressure is too low, the hydraulic cylinder speed will drop to zero as soon as the rod meets a load. If your relief valve is set too low, the oil will bypass to the tank.
- Pressure provides the “muscle” behind the flow.
- A dropping speed under load usually indicates a pressure leak.
- High backpressure on the return line effectively “subtracts” from your speed.
Managing Relief Valve Settings
Every relief valve has a “cracking pressure” where it starts to open slightly before reaching its full limit. If your working pressure is too close to your relief setting, oil will start bypassing the cylinder during the heavy part of the cycle.
- Worn relief springs “shatter” the flow control logic.
- Debris in the relief seat prevents the system from reaching full speed.
- Constant bypassing creates a “heat loop” that kills performance.
| Condition | Speed Behavior | Root Cause | |
|---|---|---|---|
| High Load / Low Speed | Stalling | Relief Valve Bypass | |
| Low Load / High Speed | Normal | Pump Volumetric Efficiency | |
| Any Load / Slow Speed | Constant | Flow Restriction / Internal Leak |
Conclusion
Maintaining precise control over your system’s velocity is the difference between a productive machine and a pile of overheating scrap. You have learned that speed is a factor of flow, but its stability depends on everything from seal friction and hose sizing to the sophisticated logic of proportional valves and load-sensing pumps. By monitoring your internal leakage and ensuring your pressure settings don’t starve your actuators of the “muscle” they need, you can significantly reduce the wear on your rod seals and extend the service life of your pump.
To ensure your fleet stays in the field and out of the repair shop, talk with our team for technical support and the correct components for your next overhaul. Every minute of cycle time you save adds directly to your bottom line, so keep your oil clean and your speeds dialed in for maximum uptime.
FAQ
Can I increase speed by just turning up the relief valve?
No, you cannot. Turning up the relief valve only increases the maximum force the cylinder can exert; it does not change the volume of oil the pump delivers per second.
How do I know if my slow speed is caused by the pump or the cylinder?
Block the cylinder line and check the system pressure at the pump. If the pump can reach full pressure without “laboring” or bypassing, the speed loss is likely an internal leak within the cylinder itself.
Why does my cylinder jump when it starts moving?
This is usually caused by “stiction” in the seals or air trapped in the lines. Bleed the system and check for high-friction seal materials that may need to be replaced with PTFE alternatives.
Does a longer hose always mean a slower cylinder?
Yes, it generally does. A longer hose increases the friction loss (pressure drop), which can lead to higher heat and lower net flow reaching the actuator, especially if the hose ID is marginally sized.
Will higher engine RPM always make my hydraulics faster?
Only if you have a fixed-displacement gear pump. In modern load-sensing systems, the pump will often “destroke” to maintain a specific flow rate regardless of engine speed to save fuel.
