Why Do Replacement Bucket Tilt Cylinders Fail to Fit Correctly?
Replacement bucket tilt cylinders fail to fit correctly because key dimensions, mounting geometry, and port configurations do not match the original design.
You install a new cylinder on your loader, expecting a quick replacement. Instead, the bucket does not roll back fully, the pins do not align, or the hoses twist under pressure. This situation wastes time, delays your work, and increases costs. The root problem is not just the cylinder—it is mismatched specifications and missing verification steps.
What Causes Replacement Bucket Tilt Cylinders To Not Fit Properly?
Replacement bucket tilt cylinders fail to fit properly because their dimensions or mounting types do not match the original equipment.
When selecting replacement bucket tilt cylinders, even a small deviation in size or geometry can prevent proper installation or affect performance. The most common issues come from ignoring detailed specifications during procurement.
Why Do Small Dimensional Differences Matter So Much?
Even a few millimeters can cause misalignment or stress in the system.
- Pin-to-pin length mismatch affects reach and angle
- Stroke differences change bucket movement range
- Mount width mismatch prevents installation
- Rod diameter changes affect force output
What Are The Most Common Fitment Errors?
These errors usually happen during quick replacement decisions.
- Incorrect mounting style (clevis vs cross tube)
- Wrong port orientation causing hose interference
- Mismatched bore size affecting speed and force
| Parameter | Impact On Fitment |
|---|---|
| Pin-To-Pin Length | Alignment And Reach |
| Stroke Length | Movement Range |
| Mount Width | Installation Compatibility |
| Port Position | Hose Routing |
How Does Incorrect Pin-To-Pin Length Affect Installation?
Incorrect pin-to-pin length directly leads to misalignment, uneven force distribution, and binding during operation.
When selecting replacement bucket tilt cylinders, pin-to-pin length is one of the most critical dimensions. It defines how the cylinder integrates with the loader linkage. Even a small deviation can shift the working geometry of the bucket, causing installation difficulty or long-term structural stress.
If the length does not match, the cylinder will either force the mounting points out of alignment or restrict natural movement. Over time, this creates excessive wear on pins, bushings, and the cylinder rod itself. In heavy-duty applications, this can quickly lead to bending or cracking.
What Happens If The Cylinder Is Too Long Or Too Short?
Length differences immediately change the bucket’s working range and mechanical behavior.
- Too long:The bucket may over-rotate and hit the loader frame or linkage. This creates impact stress and increases the risk of structural damage.
- Too short:The bucket cannot achieve full rollback or dumping angles. This reduces loading efficiency and leaves material stuck in the bucket.
In real working conditions, these issues become more obvious under load. A mismatch that seems minor during installation can turn into a major failure during daily operation.es.
Why Does Stroke Length Mismatch Lead To Performance Issues?
Stroke length mismatch directly affects how far your bucket can move, which impacts both efficiency and safety.
When selecting replacement bucket tilt cylinders, stroke length defines the cylinder’s total travel distance. If this value is incorrect, the bucket will either fail to reach its full working range or move beyond safe mechanical limits. This not only reduces performance but also puts additional stress on the entire linkage system.
What Problems Come From Incorrect Stroke?
Incorrect stroke length changes the bucket’s motion range and load behavior.
- Short stroke:
The bucket cannot fully dump materials, leaving residue inside.
Rollback is limited, reducing loading efficiency and control. - Long stroke:
The bucket may travel beyond its designed range.
This can cause contact with the loader frame or linkage, leading to impact damage. - Additional effects:
Uneven load distribution during operation
Increased stress on pins, mounts, and cylinder rod
Reduced precision when handling materials
How Do You Verify Correct Stroke Length?
Accurate stroke verification ensures proper function and prevents costly mistakes.
You should always rely on actual equipment data rather than estimates. Stroke length must match the original design to maintain correct bucket movement.
Follow these steps:
- Measure the full extension travel of the existing cylinder
- Compare with machine specifications or manuals
- Review technical drawings from your supplier
- Confirm compatibility before placing an order
If possible, measure both the old cylinder and the installed geometry to ensure consistency across the system.
| Stroke Condition | Effect |
|---|---|
| Too Short | Reduced Dump Angle |
| Too Long | Structural Risk |
| Correct | Full Functional Range |
Can Mounting Type Differences Cause Fit Failures?
Yes, mounting type differences are one of the most common reasons for fitment failure and long-term damage.
When selecting replacement bucket tilt cylinders, the mounting style determines how the cylinder connects and moves within the loader system. Even if all dimensions match, using the wrong mounting type can prevent proper installation or create forced alignment, leading to stress at connection points.
In real applications, incorrect mounting often results in restricted movement, uneven force distribution, and accelerated wear. Over time, this can damage not only the cylinder but also the surrounding linkage and frame.
What Are The Common Mounting Types?
Each mounting type is designed for a specific movement pattern and load condition.
- Clevis mounts:
Allow pivoting movement and are commonly used where angular flexibility is required. - Cross tube mounts:
Provide strong alignment and are suited for heavy-duty applications with high load demands. - Tang mounts:
Used in compact designs where space is limited and direct connection is needed.
Choosing the correct mounting type ensures the cylinder can move naturally with the machine’s linkage without introducing unwanted stress.
Why Is Mount Alignment Critical?
Proper alignment ensures that forces are transferred evenly through the cylinder and mounting points.
When alignment is off, the cylinder is forced to compensate for structural mismatch, which leads to:
- Side loading on the cylinder rod
- Increased friction and wear on bushings
- Uneven stress distribution across mounts
- Higher risk of rod bending or weld cracking
| Mount Type | Application Area |
|---|---|
| Clevis | Flexible Pivot Systems |
| Cross Tube | Heavy Load Applications |
| Tang | Compact Installations |
How Does Bore Size Affect Fit And Function?
Bore size directly controls the force output and speed of your hydraulic system, making it a key factor in both fit and performance.
When selecting replacement bucket tilt cylinders, the bore determines how much force the cylinder can generate under pressure. If the bore size does not match the original design, the entire balance of the hydraulic system changes. This can lead to inefficient operation, unexpected stress on components, or even system overload.
A mismatch in bore size may not always prevent installation, but it will almost always affect how the machine performs under real working conditions.
What Happens With Wrong Bore Size?
Incorrect bore size alters both force output and movement speed, often in ways that reduce efficiency or increase risk.
- Larger bore:
Produces more force at the same pressure, but movement becomes slower.
This can overload linkage components or exceed the machine’s structural limits. - Smaller bore:
Moves faster due to reduced fluid volume requirements, but generates less force.
This may result in weak bucket rollback or inability to handle heavy loads. - Additional effects:
Imbalance between lifting and tilting functions
Increased strain on pumps and valves
Reduced control precision during operation
These changes become more noticeable in demanding tasks, such as handling dense materials or operating on uneven terrain.
How Do You Confirm The Right Bore?
Accurate bore verification ensures the cylinder performs as intended within the hydraulic system.
You should always confirm bore size using reliable data rather than visual estimation.
- Measure the outer diameter of the cylinder barrel as a reference
- Check original equipment specifications or manuals
- Verify the system pressure rating and required force output
- Confirm compatibility with supplier technical drawings
| Bore Size Change | Effect |
|---|---|
| Larger Bore | Higher Force, Slower Speed |
| Smaller Bore | Lower Force, Faster Speed |
| Correct Bore | Balanced Performance |

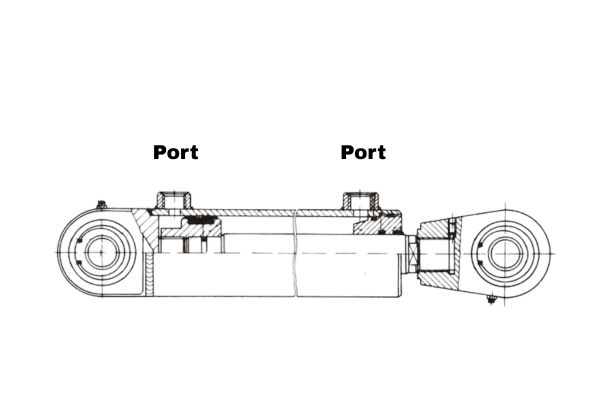

Why Do Port Sizes And Positions Matter?
Port size and position directly affect how hydraulic fluid flows into and out of the cylinder, making them critical for both installation and performance.
When selecting replacement bucket tilt cylinders, the port configuration must match your existing hydraulic system exactly. Even if the cylinder fits mechanically, incorrect ports can create serious issues with hose routing, sealing, and system efficiency. In many cases, port mismatch leads to immediate installation problems or hidden performance losses.
A correct port setup ensures smooth fluid flow, proper sealing, and safe operation under pressure.
What Issues Come From Wrong Port Setup?
Incorrect port configuration disrupts hydraulic flow and creates multiple operational risks.
Hose interference during movement:
Misaligned ports force hoses into tight bends or contact with moving parts. This increases wear and raises the risk of hose failure.
Leakage due to improper sealing:
Using the wrong thread type or size leads to poor sealing surfaces. This results in oil leaks and pressure loss.
Increased pressure drop:
Mismatched port sizes restrict fluid flow. This reduces system efficiency and slows cylinder response.
How Can You Avoid Port Mismatch?
Proper verification of port details is simple but essential before ordering.
You should always confirm port specifications against your existing system to avoid compatibility problems.
- Check the thread type (BSP, NPT, ORFS) to ensure proper sealing
- Confirm the port size matches your hose and flow requirements
- Verify the port angle and direction for correct hose routing
- Compare with existing hose layout to avoid interference
| Port Factor | Impact |
|---|---|
| Thread Type | Sealing Reliability |
| Position | Hose Routing |
| Size | Flow Efficiency |
How Can You Ensure Correct Replacement Cylinder Selection
You ensure correct selection by verifying all critical specifications and confirming compatibility before purchase.
Choosing the right replacement bucket tilt cylinders is not about finding a similar-looking product. It requires a systematic approach based on accurate data and real equipment requirements. Skipping this process often leads to fitment issues, performance loss, and repeated replacement costs.
A well-matched cylinder will install smoothly, operate efficiently, and last longer under real working conditions.
What Data Should You Always Confirm?
Accurate and complete data is the foundation of correct cylinder selection.
You should always verify the following key parameters:
- Pin-to-pin length – ensures proper alignment with mounting points
- Stroke length – defines the working range of the bucket
- Mounting type – determines how the cylinder connects and moves
- Port specifications – ensures correct hose connection and fluid flow
- Bore and rod size – affects force output and system balance
Where Can You Get Reliable Matching Support?
Working with experienced suppliers significantly reduces the risk of errors.
You can improve accuracy and confidence by:
- Providing drawings, photos, or old cylinder samples
- Requesting technical confirmation before production
- Asking for dimension verification or production drawings
Reliable suppliers will help you double-check specifications and ensure the replacement matches your equipment exactly.
| Step | Purpose |
|---|---|
| Measure Old Cylinder | Get Accurate Data |
| Verify Specs | Avoid Mismatch |
| Confirm With Supplier | Ensure Compatibility |
Conclusion
You now know how to identify the right specifications, avoid common mistakes, and select cylinders that match your equipment perfectly. If you want to reduce installation risks and improve long-term performance, it is worth working with a supplier who understands real field conditions and provides accurate matching support.
If you are dealing with repeated fitment issues or planning bulk replacement projects, contact us today to get technical guidance and reliable solutions tailored to your equipment.
FAQ
Can I Use A Cylinder That Looks Similar To The Original?
No, visual similarity is not enough. Even small dimensional differences can cause installation failure or performance issues.
What’s The Best Way To Measure My Old Cylinder?
The best way is to measure pin-to-pin length, stroke, mount width, and port size accurately. These parameters determine compatibility.
How Do I Know If The Bore Size Is Wrong?
If the machine feels too slow or lacks force, the bore size may not match the system requirements.
Can I Adjust Mounting Points To Fit A Different Cylinder?
No, modifying mounting points creates structural risks and may damage your equipment over time.
What’s The Best Way To Avoid Ordering The Wrong Cylinder?
The best approach is to provide drawings, photos, or exact measurements to a supplier for confirmation before production.
