Why Air in Header Lift Cylinders Causes Poor Control?
Header lift cylinder air contamination occurs when atmospheric air is drawn into the hydraulic circuit, causing the fluid to become compressible and the equipment to behave erratically. You are likely in the middle of a high-stakes harvest when your combine header begins to shudder, hesitate, or drop unexpectedly. This jerky behavior isn’t just annoying; it makes precision cutting impossible and forces you to slow down during your most critical window. By identifying how air is invading your system and implementing professional fixes, you can keep your header lift cylinder air contamination issues at bay and maintain peak efficiency.
Is Your Header Bouncing Due To Air Trapped Inside?
Header lift cylinder air contamination is the primary reason agricultural equipment loses its firm, responsive feel during field operations. Because air is highly compressible compared to hydraulic fluid, even a small pocket of trapped gas can cause the entire lift circuit to act like a spring. This results in a “spongy” response where the header bounces over uneven terrain instead of following the ground contour accurately.
Recognizing The Symptoms Of Spongy Cylinder Response
When air enters the system, the hydraulic fluid loses its ability to transmit force instantly. You will notice that the header does not move the moment you engage the controls, creating a dangerous lag.
- Delayed response to terrain sensor inputs.
- Visible bouncing when moving over bumps.
- Spongy or soft feeling in the control lever.
Why Erratic Movement Risks Your Harvest Efficiency
Jerky or stuttering movements, often called “slip-stick,” prevent the header from responding quickly to terrain sensors. This lag can lead to the header digging into the dirt or missing low-hanging crops, directly reducing your yield and potentially damaging the cutter bar.
| Symptom | Primary Cause | Impact on Operation | |
|---|---|---|---|
| Spongy Feel | High Air Compressibility | Delayed Response | |
| Jerky Motion | Erratic Pressure Flow | Uneven Cutting Height | |
| Banging Noise | Aeration/Cavitation | Component Wear |
Where Is The Hidden Air Entering Your Hydraulic System?
Header lift cylinder air contamination often originates on the suction side of the pump where vacuum conditions exist. Even a tiny pinhole or a loose clamp on the intake line can draw in massive amounts of air without ever leaking fluid out. Header lift cylinder air contamination can be drastically reduced by ensuring every suction-side fitting is airtight and properly torqued.
Identifying Leaks In The Pump Intake Lines
The suction side of your pump is a prime entry point for atmospheric gases. Because this part of the system operates under a vacuum, it will suck air in rather than push oil out.
- Loose hose clamps on the pump inlet.
- Hardened or cracked intake hoses.
- Damaged gaskets on the suction strainer housing.
How Porous Fittings And Loose Clamps Invite Trouble
Vibrations from the field can loosen hydraulic joints over time, creating micro-gaps. As the system cools or operates under specific loads, these gaps allow atmospheric air to be “sucked” into the fluid stream, contaminating the entire reservoir.
| Entry Point | Mechanism | Detection Method | |
|---|---|---|---|
| Intake Line | Vacuum Ingestion | Visual Inspection of Clamps | |
| Porous Fittings | Micro-leakage | Pressure Testing |
System vacuum levels should be monitored closely, as even invisible leaks can introduce enough air to destabilize the header.
Suction-side integrity is more critical for preventing air intake than high-pressure side sealing.
Can Faulty Seals Cause Total Cylinder Instability?

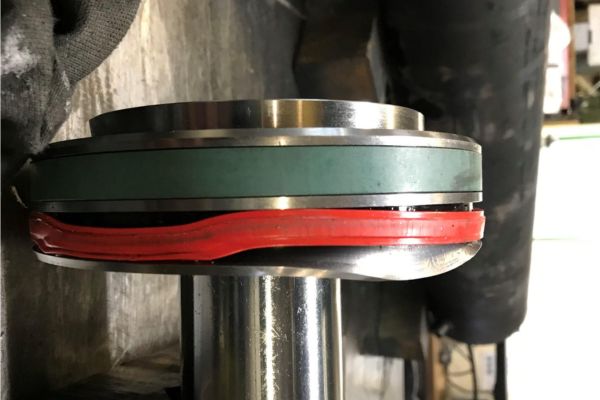

Header lift cylinder air contamination frequently happens through worn rod seals that act as one-way check valves. While these seals may hold pressure during an extension stroke, they can fail to keep air out during the retraction phase. This creates a cycle where every movement of the header introduces more contamination into the lift circuit.
Why Worn Rod Seals Act As One-Way Air Valves
A damaged rod seal may not leak oil when the cylinder is under pressure. However, it can draw air in during the retraction stroke when a temporary internal vacuum is formed.
- Scored cylinder rods that tear seal lips.
- Hardened rubber due to high operating temperatures.
- Worn wiper seals that allow debris to compromise the main seal.
The Danger Of Damaged Pump Shaft Seals
If the pump shaft seal is compromised, air is whipped directly into the oil at the source. This creates foamy, aerated fluid that is impossible for the lift cylinders to translate into smooth mechanical force, leading to total system instability.
| Seal Type | Failure Mode | Resulting Symptom | |
|---|---|---|---|
| Rod Seal | Ingestion on Retraction | Spongy Performance | |
| Shaft Seal | Whipping Air into Oil | Foaming/Aeration | |
| O-Rings | Pressure Loss | Internal Bypassing |
A seal that doesn’t leak oil can still be the primary entry point for air if the lip is damaged in a specific direction.
Regularly inspecting the rod surface for nicks can prevent seal-induced air contamination before it starts.
Why Is Reservoir Design Critical For Preventing Aeration?
Header lift cylinder air contamination is often exacerbated by poor reservoir management and fluid agitation. If your return line drops fluid from a height into the reservoir, it acts like a waterfall, splashing and creating bubbles. High-quality header lift cylinder air contamination prevention relies on a calm fluid environment where air can naturally rise to the surface.
Preventing Fluid Agitation From Return Lines
When return oil splashes into the tank, it traps air bubbles that are then sucked back into the pump. Professional systems utilize drop-pipes that exit below the fluid level to ensure a calm return and eliminate splashing.
- Submerged return lines to prevent splashing.
- Diffusers to slow down the returning fluid velocity.
- Adequate reservoir volume to allow for “rest time.”
The Role Of Baffles In Managing Air Bubbles
Baffles inside the reservoir give air bubbles time to rise to the surface and escape before the oil is sucked back into the pump. A poorly designed tank without baffles keeps air trapped in a constant cycle, never allowing the fluid to de-aerate properly.
| Design Feature | Purpose | Benefit | |
|---|---|---|---|
| Drop-Pipes | Submerged Discharge | Eliminates Splashing | |
| Baffles | Fluid Path Control | Facilitates De-aeration |
Internal tank geometry is just as important as external hose connections for maintaining an air-free system.
Proper fluid residence time in the reservoir is the most effective natural way to remove suspended air.
How Do Malfunctioning Valves Introduce Destructive Air?
Header lift cylinder air contamination can be caused by malfunctioning valves that allow air to bypass into the cylinder chambers. If anti-cavitation valves are misadjusted or stuck open, they create a path for air to enter the lift circuit. Utilizing high-quality header lift cylinder air contamination resistant components ensures that these valves remain sealed under all operating conditions.
Problems With Faulty Anti-Cavitation Valves
These valves are designed to prevent vacuum conditions by allowing fluid to flow where it is needed most. However, if they fail, they can allow air to be pulled into the cylinder, causing the header to “drift” or “drop” suddenly.
- Contaminants holding the valve poppet open.
- Weakened springs that fail to seat the valve.
- Incorrect pressure settings for the specific header weight.
Why Load Control Valves Fail Under Pressure
Load control valves manage the descent of the heavy header. If air is present, the compressibility causes the valve to hunt for a position, resulting in a jerky, vibrating descent that can damage the combine frame and the header itself.
| Valve Type | Failure Mode | Machine Behavior | |
|---|---|---|---|
| Anti-Cavitation | Stuck Open | Cylinder Drift | |
| Load Control | Pressure Hunting | Jerky Descent | |
| Check Valve | Internal Leak | Slow Dropping |
A valve that chatters during descent is often reacting to the erratic pressure spikes caused by trapped air.
Calibrating your valves to match the weight of your specific header is vital for smooth operation.
Is Cavitation Destroying Your Cylinder From The Inside?
Air in header lift cylinders lead directly to cavitation, which is one of the most destructive forces in hydraulics. When aerated oil moves from a low-pressure zone to a high-pressure zone, the air bubbles collapse violently. This creates localized pressure spikes that are strong enough to chip away at the hardened chrome of your cylinder rods.
The Mechanics Of Vapor Bubble Implosion
As air bubbles implode, they send micro-jets of fluid against metal surfaces at supersonic speeds. This process, known as gaseous cavitation, sandblasts the internal metal surfaces of your pumps and cylinders.
- Pitting on the piston face.
- Erosion of the cylinder bore.
- Damage to the internal valve seats.
The Link Between Air Contamination And Overheating
Air is a poor conductor of heat compared to hydraulic oil. When air replaces oil in the system, the fluid can no longer dissipate heat effectively, causing the system to run hot and “burn” the hydraulic oil, leading to oxidation.
| Damage Type | Visual Indicator | Corrective Action | |
|---|---|---|---|
| Cavitation Pitting | Metal Pock-marks | Component Replacement | |
| Oil Oxidation | Dark/Burnt Smell | Fluid Flush | |
| Seal Erosion | Shredded Edges | Seal Kit Replacement |
Cavitation damage is often irreversible and requires the complete replacement of the affected hydraulic components.
If your hydraulic oil smells burnt but isn’t old, suspect air-induced overheating and cavitation.
What Are The Best Ways To Bleed Trapped Air Safely?
Header lift cylinder air contamination must be purged through a methodical bleeding process to restore system stability. Position the cylinder so the bleed screw is at the highest possible point and open it slightly while cycling the header. For those requiring technical guidance on complex systems, header lift cylinder air contamination removal procedures can be found through specialized engineering support.
Step-By-Step Guide To Using Bleed Screws
To effectively bleed the system, you must ensure that the air has a clear path to the highest point of the circuit. Continue the process until the fluid transition goes from milky-white to clear, bubble-free oil.
- Raise the header to its maximum height.
- Slowly open the bleed screw on the cylinder.
- Close the screw before the cylinder begins to retract.
Why Multiple Cycling Is Necessary For Full Recovery
A single cycle rarely removes all air from a complex agricultural lift system. You may need to extend and retract the header 5 to 10 times to ensure that micro-bubbles trapped in the corners of the cylinder are pushed back to the reservoir.
| Method | Best For | Safety Level | |
|---|---|---|---|
| Bleed Screw | Dedicated Outlets | High | |
| Fitting Cracking | Older Equipment | Moderate/Low | |
| Cycling | General Maintenance | High |
Air tends to cling to the walls of hoses and cylinders, requiring high fluid velocity to be dislodged.
Always wear safety goggles when bleeding hydraulic lines to protect against high-pressure fluid injection.
Could Undersized Hoses Be Choking Your Lift System?
Header lift cylinder air contamination can be a secondary effect of using undersized hoses that trigger high-velocity turbulence. If your header lift system has been modified with smaller hoses, the increased fluid velocity can cause pressure drops. These pressure drops pull dissolved air out of the oil, forming bubbles that lead to the same instability as a leak.
How High Flow Velocity Triggers Turbulence
When oil moves too fast through a narrow pipe, it becomes turbulent rather than laminar. This turbulence creates “voids” in the fluid where air can expand and form problematic bubbles.
- Incorrectly sized replacement hoses.
- Restricted fittings that act as orifices.
- Using hoses with a lower flow rating than the pump.
The Role Of Sharp Bends In Creating Air Pockets
Hoses with tight, 90-degree elbows can trap air pockets that never move. These pockets act like springs, constantly absorbing and releasing pressure, which causes the header to “shiver” or “jitter” during operation.
| Hose Feature | Problem | Result | |
|---|---|---|---|
| Small Diameter | High Velocity | Turbulence/Aeration | |
| Sharp Bends | Dead Zones | Trapped Air Pockets |
How Can Regular Maintenance Stop Future Contamination?
Header lift cylinder air contamination is best managed through a proactive maintenance program that targets air entry points before they fail. Do not wait for a visible leak; instead, inspect cylinder rods for scores or nicks that could damage seals over time. Implementing these best practices ensures your machine stays in the field and out of the repair shop.
Implementing A Scheduled Seal Inspection Program
Replacing a seal early is much cheaper than replacing a pump destroyed by air-induced cavitation. Daily inspections during harvest season should focus on the condition of the rod surface and the integrity of the wiper seal.
- Wipe down rods to check for hidden scratches.
- Ensure all suction-side clamps are tight.
- Monitor fluid color for any signs of cloudiness.
Why Quality Filtration Keeps Air Out Of The Loop
Clogged filters cause pressure drops that lead directly to cavitation at the pump inlet. High-efficiency filters capture the microscopic debris that can tear at your seals and open the door for air ingestion and system instability.
| Maintenance Task | Frequency | Main Benefit | |
|---|---|---|---|
| Seal Check | Daily | Prevents Ingestion | |
| Filter Change | Per Manual | Prevents Pressure Drop | |
| Fluid Flush | Annually | Removes Suspended Air |
Conclusion
Restoring stability to your header lift system requires a diligent focus on sealing integrity, reservoir management, and proper bleeding techniques. By addressing these factors, you can eliminate the jerky, unresponsive behavior caused by trapped air and ensure a productive harvest. Our commitment is to provide the agricultural community with the knowledge and high-performance components needed to achieve total hydraulic reliability. If you need expert assistance with your lift circuits or want to upgrade your equipment, contact us today to find the perfect solution for your needs.
FAQ
Can I bleed air from my header lift cylinder without a specific bleed valve?
Yes, you can often remove air by slowly cycling the cylinder through its full range of motion multiple times. If air remains trapped, you may need to carefully loosen the hydraulic fitting at the cylinder’s highest point while the system is under very low pressure to allow the air to hiss out.
What’s the best fluid level to maintain in my header lift reservoir?
The best level is the “Full” mark indicated by your manufacturer, typically checked when all cylinders are fully retracted. Maintaining this level prevents the pump from creating a vortex and sucking in air during high-demand lifts.
Why does my hydraulic oil look milky or foamy after a few hours of work?
Milky or foamy oil is a classic sign of aeration (air mixed into the oil). This is usually caused by a leak in the pump suction line, a faulty shaft seal, or return fluid splashing into the reservoir rather than being discharged below the oil level.
How do I know if my rod seals are letting air in?
Look for “wet” rods or signs of dust sticking to the seal area, which indicates oil film leakage and potential air ingestion points. If the cylinder is spongy but shows no external oil leaks, the seal may be failing only during the vacuum-creating retraction stroke.
What’s the best way to prevent cavitation in my lift cylinders?
The best way is to maintain an airtight suction line and ensure your fluid is clean and at the correct level. Regularly replacing filters prevents the pressure drops that trigger vapor bubble formation and internal pitting.
