Hydraulic Cylinder Mount Wear Cause Header Drift: How to Fix?
Hydraulic cylinder mount wear creates physical gaps at the attachment points, causing the header to drift and lag during critical field adjustments. You likely experience frustration when the equipment fails to maintain a consistent cutting height, resulting in missed crops and uneven stubble. This lack of responsiveness forces you to slow down operations, which increases fuel costs and wastes valuable time during tight harvest windows. By addressing these mechanical tolerances now, you can restore smooth control and prevent the need for expensive structural repairs down the road.
What Is The Primary Cause Of Hydraulic Cylinder Mount Wear?
The primary cause is the relentless cyclical loading and high-pressure friction that occurs between the mounting pins and the cylinder eyes during operation. In these demanding environments, hydraulic cylinder mount wear develops as metal surfaces grind against each other without adequate lubrication or cushioning.
- Constant movement creates microscopic abrasions.
- Heavy loads compress the metal surfaces.
- Dirt particles act as sandpaper between parts.

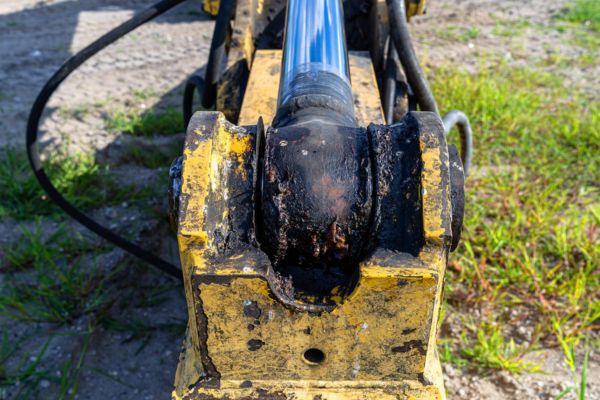

Identifying Excessive Pivot Point Play
You can often spot the beginning of this problem by looking for shiny metal surfaces around the pins. When you observe the cylinder under load, any visible shifting at the base indicates that the internal tolerances have been compromised.
If the pin can move even a fraction of an inch inside the housing, the entire header loses its stability. You must address this early to prevent the hole from becoming oval-shaped.
Understanding Load Distribution Stress
The way your machinery distributes weight puts immense pressure on the mounting hardware. You will find that certain angles of operation increase the side-loading forces, which accelerates the degradation of the metal.
Properly aligned mounts ensure that the force travels directly through the center of the cylinder. When the mounts wear down, the force is applied unevenly, leading to faster component failure.
Regularly inspecting the physical integrity of the pivot points allows you to replace inexpensive bushings before the main structural ears are damaged beyond repair.
How Does Mount Instability Affect Header Position Accuracy?
Mount instability introduces a mechanical delay where the hydraulic cylinder rod moves, but the header remains stationary until the physical slack is taken up. This specific type of hydraulic cylinder mount wear creates a “dead zone” in your controls that makes precision height adjustments nearly impossible.
- The cylinder must travel further to engage the lift.
- Gravity causes the header to drop suddenly when pressure is released.
- Automatic leveling systems become confused by the mechanical lag.
Impact On Cutting Height Precision
You might find that your header dips too low or stays too high despite your manual inputs. This occurs because the mechanical play allows the header to bounce independently of the hydraulic system’s position.
When you are working in short crops, every inch of accuracy matters for your bottom line. You cannot rely on a system that has internal gaps between the power source and the implement.
Why Should Operators Monitor Pin And Bushing Tolerances?
Operators should monitor these tolerances because early detection prevents the permanent deformation of the mounting brackets which are welded to the frame. Catching hydraulic cylinder mount wear early allows you to perform a simple bushing swap rather than a complex machining job.
- Bushings are designed to be the “sacrificial” part.
- Hardened pins protect the softer cylinder eyes.
- Small gaps grow exponentially under heavy vibration.
Measuring Critical Clearance Gaps
You should use a set of calipers or feeler gauges to check the space between the pin and the bushing wall. If you can see light through the gap or feel a “clunk” when the header is raised, the tolerances are likely out of spec.
Many operators wait until they hear a loud noise before checking these points. You can save thousands in repair costs by making this a weekly part of your walk-around inspection.
Preventing Hole Ovalization Issues
When the pin is loose, it begins to hammer against the sides of the mounting hole every time the cylinder changes direction. You will eventually find that the hole is no longer round, which means a new bushing will not fit correctly.
Believe it or not, fixing an oval hole requires specialized line-boring equipment that is often expensive to rent or hire. You can avoid this headache by keeping the mounting hardware tight and secured.
By tracking these measurements over time, you can predict exactly when the components will need replacement and schedule the work during the off-season.
Where Does Friction Impact Hydraulic Cylinder Mount Wear Most?
Friction is most destructive at the bottom of the pivot point where the entire weight of the header rests during transport. As the lubricant film breaks down, hydraulic cylinder mount wear accelerates at this specific contact patch, leading to rapid metal loss.
- The leading edge of the pin takes the most impact.
- Side walls wear down during turning maneuvers.
- Friction heat can actually “weld” parts together if left dry.
Analyzing Pivot Point Stress Zones
You will notice that the bottom half of your bushings usually shows significantly more wear than the top half. This is because the weight of the header is constantly pushing down, even when the machine is not actively lifting.
Every bump in the field translates into a high-impact load on that small surface area. You need to ensure that grease is reaching this high-pressure zone to keep the surfaces separated.
Thermal Effects On Metal Surfaces
High-speed operations can generate significant heat at the mount if the friction is not managed. You might see discolored metal or “bluing,” which indicates that the heat has changed the tempering and strength of the steel.
When the metal softens due to heat, it wears away much faster than it would at normal temperatures. You must use high-temp grease to maintain a protective barrier during long workdays.
Identifying the specific zones where friction is highest helps you direct your lubrication efforts more effectively to extend the life of the machine.
Which Signs Indicate Imminent Failure Of Mounting Hardware?
Imminent failure is usually preceded by visible cracks in the paint around the mount or a header that “creeps” downward when the engine is off. If you ignore hydraulic cylinder mount wear , the metal will eventually reach its fatigue limit and snap under the pressure of a full load.
- Paint flaking indicates the metal is stretching.
- “Ghosting” movements suggest the pins are slipping.
- Unusual vibrations through the floor of the cab.
Recognizing Auditory Warning Signs
You should listen for any popping or cracking sounds when you first engage the lift circuit in the morning. These noises are often the sound of a loose pin shifting violently within a worn-out housing.
If you catch these sounds early, you might only need to tighten a retention bolt or replace a single pin. Waiting too long leads to a catastrophic break that could drop the header on the ground.
Visual Inspection Techniques
You can use a simple flashlight to look for metal shavings or “red dust,” which is actually oxidized iron from the wearing surfaces. These signs are clear evidence that the metal is grinding away and the mount is failing.
Check the alignment of the cylinder rod as it enters the barrel. If the rod appears to be entering at an angle, the mounting points are likely so worn that they are no longer holding the cylinder straight.
Performing a thorough visual and auditory check every day ensures that you are never surprised by a sudden mechanical failure during the harvest.
| Warning Sign | Severity | Estimated Time to Failure | |
|---|---|---|---|
| Metallic Popping | Medium | 40-60 Hours | |
| Red Oxide Dust | High | 10-20 Hours | |
| Visible Cracks | Critical | Immediate | |
| Header Sagging | High | 20-30 Hours |
How Can Regular Lubrication Prevent Excessive Component Wear?
Regular lubrication creates a physical barrier that prevents metal-on-metal contact and flushes out abrasive debris from the internal surfaces. Consistent greasing is the single most effective way to slow down hydraulic cylinder mount wear and maintain your header’s responsiveness.
- Grease fills the gaps to dampen vibration.
- It provides a seal against moisture and rust.
- Fresh grease pushes out old, contaminated lubricant.
Selecting The Right Lubricant Grade
You need to use a high-pressure grease that is designed to stay in place under extreme loads. General-purpose grease might be squeezed out of the pivot point, leaving the metal surfaces unprotected during heavy lifting.
Always check the label for “moly” content or extreme-pressure (EP) additives. These ingredients are specifically formulated to handle the sliding friction found in hydraulic cylinder mounts.
Establishing A Greasing Schedule
You should grease the main cylinder mounts at least once a day during periods of heavy use. In extremely dusty or muddy conditions, greasing twice a day might be necessary to ensure the pivot points stay clean.
A few pumps of grease cost pennies compared to the hundreds of dollars you will spend on new pins and bushings. You should make this task a non-negotiable part of your daily routine.
A disciplined lubrication program ensures that your equipment remains tight and responsive, even after thousands of hours in the field.
| Workload Intensity | Greasing Frequency | Recommended Grease Type | |
|---|---|---|---|
| Light Utility | Weekly | Multi-Purpose Lithium | |
| Standard Field Work | Every 10 Hours | EP2 Lithium Complex | |
| Heavy Construction | Every 4-5 Hours | Molybdenum Disulfide | |
| High-Dust Environments | Twice Daily | Synthetic Water-Resistant |
Why Do Vibrations Accelerate Hydraulic Cylinder Mount Wear?
Vibrations cause high-frequency micro-impacts that fatigue the metal and break down the protective lubricant film faster than steady pressure. When the header vibrates at high speeds, hydraulic cylinder mount wear occurs through a process called fretting, which eats away at the surface.
- Vibrations loosen the retention bolts.
- Micro-movements prevent grease from settling.
- Constant shaking causes structural resonance.
Managing High Frequency Oscillation
You can reduce the impact of vibration by ensuring that the header is properly balanced and the cutting components are sharp. A dull knife or an unbalanced reel creates extra shaking that travels directly into the hydraulic mounting points.
Vibration damage is often invisible until it is too late. You might think the machine is running fine, but the constant shivering is slowly turning your round mounting holes into ovals.
Dampening Structural Vibrations
You should check for loose frame bolts or cracked supports that might be allowing the machine to vibrate more than necessary. Solid mounting for the rest of the machine helps isolate the hydraulic cylinders from unnecessary stress.
Some operators install rubber washers or dampening pads, but these can sometimes make the problem worse by allowing too much movement. You are better off keeping the metal connections tight and the lubrication levels high.
Reducing unnecessary vibration protects the integrity of your mounts and ensures that your hydraulic system doesn’t have to fight against mechanical noise.
| Vibration Source | Frequency | Impact on Mounts | |
|---|---|---|---|
| Engine RPM | Constant | Bolt Loosening | |
| Cutting Knife | High | Surface Fretting | |
| Uneven Terrain | Intermittent | Impact Fatigue | |
| Unbalanced Reel | Variable | Bushing Compression |
What Repair Strategies Restore Precision To Header Controls?
Effective repair strategies involve replacing worn-out bushings, installing oversized pins, or line-boring the mounting ears to restore the original factory dimensions. Addressing hydraulic cylinder mount wear with these professional methods ensures that your controls feel “like new” again.
- Replace bushings before they wear through to the ear.
- Use hardened steel pins to prevent future grooving.
- Line-bore holes that have become severely ovalized.
Line Boring And Bushing Replacement
You may find that a simple bushing swap is no longer enough if the mounting hole itself has been damaged. In this case, you must have the hole bored out to a larger size and a custom-sleeved bushing installed.
This process can often be done on-site by a mobile machinist. You should consider this an investment in the long-term viability of your machine’s frame.
How Does Proactive Maintenance Reduce Long Term Repair Costs?
Proactive maintenance reduces long term costs by allowing you to replace inexpensive wear parts before they cause a chain reaction of damage to more expensive components. Neglecting hydraulic cylinder mount wear can turn a fifty-dollar bushing replacement into a five-thousand-dollar frame repair.
- Small repairs can be done in the shop.
- Major failures usually happen in the field.
- Preventive care extends the total life of the machine.
Calculating The Cost Of Downtime
You must consider that the cost of a repair is not just the price of the parts and labor. It also includes the lost revenue from being unable to work during the best weather of the season.
If your header fails at noon on a clear day, you are losing money every hour the machine sits idle. You can avoid this by spending a few minutes each week checking your hydraulic mounts for signs of trouble.
Budgeting For Preventive Maintenance
You should set aside a small portion of your operating budget specifically for “wear items” like pins, bushings, and seals. This ensures that you have the parts on hand when you find a problem, allowing for a quick turnaround.
A well-maintained machine also holds its resale value much better than one with “sloppy” controls. You are essentially paying yourself back by taking good care of the equipment now.
By treating your mounting hardware as a critical part of your maintenance schedule, you ensure maximum uptime and the lowest possible cost per acre of operation.
| Maintenance Strategy | Annual Cost | Equipment Lifespan | Control Quality | |
|---|---|---|---|---|
| Proactive | Low/Stable | 15+ Years | Excellent | |
| Reactive | High/Unpredictable | 8-10 Years | Poor | |
| Minimal | Very Low (Initially) | 5-7 Years | Dangerous | |
| Professional | Moderate | 20+ Years | Factory Spec |
Conclusion
This article has addressed how physical gaps in your machinery lead to drifting controls, delayed response times, and increased mechanical stress. By identifying the signs of mounting hardware degradation, maintaining strict lubrication schedules, and performing timely repairs, you can eliminate the “dead zones” that plague your harvest efficiency. We can help you maintain peak performance by providing the high-quality components and technical expertise needed to keep your hydraulic systems tight and responsive. Our vision is a future where every operator has total confidence in their machinery’s precision, regardless of the terrain or crop conditions. Please contact us today to discuss how we can support your maintenance goals and protect your equipment investment.
FAQ
Can I use standard bolts as temporary replacement pins?
No. Standard bolts do not have the surface hardness or the precise diameter required to handle hydraulic loads, and using them will cause immediate and severe damage to your bushings.
What’s the best way to check for play without specialized tools?
The best way is to have an assistant operate the lift controls while you safely observe the mounting points from a distance. If the cylinder barrel moves before the header begins to lift, you have confirmed a loose mount.
How do I know if I need to line-bore my mounts?
You know it is necessary when a brand-new, standard-sized bushing still feels loose inside the mounting ear or if you can see that the hole has become an oval shape.

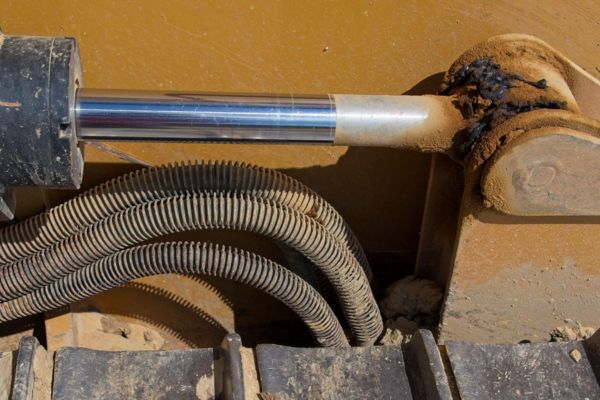

Can I weld a worn-out mounting hole shut and redrill it?
Yes, but it is not recommended as a primary solution. Welding changes the heat treatment of the surrounding metal, which can make the mount brittle and prone to cracking under heavy loads.
What’s the best grease for preventing mount wear in sandy soil?
The best grease is a synthetic, water-resistant variety with a high percentage of molybdenum disulfide. This creates a “dry” lubricating layer that remains effective even if the oil part of the grease is contaminated by grit.
