How to Prevent Costly Hydraulic Cylinder Port Mismatches?

You can prevent costly hydraulic cylinder port mismatches by implementing a strict verification protocol using thread pitch gauges and calipers before final equipment assembly. Imagine a busy field during peak harvest season when a critical tractor front loader hose suddenly bursts, halting all operations. You rush to install a replacement cylinder, but during the high-pressure hookup, the fitting binds, strips the internal housing, and sprays hydraulic fluid across the hot engine bay. This nightmare scenario stems directly from micro-dimensional discrepancies where an international thread is forced into an American port. To save your machinery from catastrophic downtime and expensive structural damage, identifying these unnoticeable thread variations is the ultimate engineering line of defense against unexpected hydraulic cylinder port mismatches.

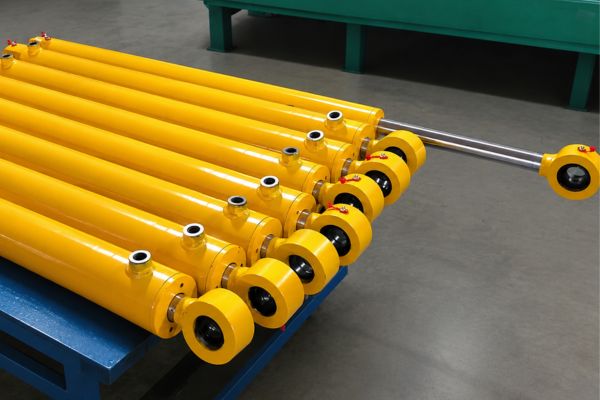

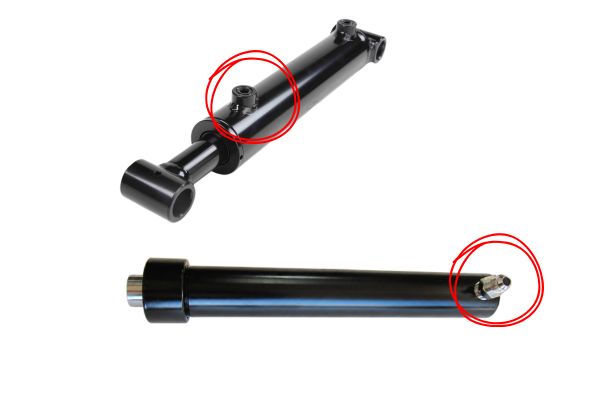

Why Do Port Mismatches Happen In Hydraulics?

Port mismatches happen because global equipment manufacturers utilize diverse international regional engineering standards on a single machine platform. When you source aftermarket attachments or replacement components, you often mix components designed under different regulatory frameworks.

• Regional design philosophies vary between European and American machinery.
• Aftermarket parts providers sometimes use cross-compatible designs that compromise exact tolerances.
• Legacy machines undergo multiple historical modifications with undocumented fittings.

A single oversight during manual part selection can easily introduce a component that looks perfect but fails under real field pressures. This structural variance requires a thorough understanding of supplier engineering histories.

The Role Of Reverse Engineering In Errors

Fabricating replacement components from worn, distorted sample parts without original blueprinted engineering specifications induces cumulative measurement errors. When you measure a deformed port from a failed machine, thread pitch expansion mimics entirely different international thread charts.

• Thread deformation from past overtorquing skew caliper readings.
• Corrosion and rust buildup mask critical chamfer angles and seat configurations.
• Manual thread pitch estimation without specialized gauges introduces human bias.

A minor two-millimeter deviation during reverse engineering can cause a fitting to cross-thread, leading to major leaks down the line. Utilizing original technical documentation remains your safest option.

Port Failure Trigger	Engineering Root Cause	Operational Impact
Mixed Thread Stock	Lack of physical parts segregation	High risk of cross-threading
Distorted Samples	Pitch expansion from elastic deformation	Incorrect replacement ordering
Standard Convergence	Global supply chain diversification	Fitting binding during assembly

What Are The Risks Of Forcing Ill-Fitting Ports?

Forcing an ill-fitting port destroys the structural integrity of the internal threads and compromises the high-pressure sealing boundaries of your hydraulic circuit. If you attempt to tighten a mismatched thread with a heavy impact wrench or extension cheater bar, the harder steel fitting will cleanly shave off the softer internal ports of an aluminum or cast-iron hydraulic cylinder housing.

This structural degradation generates microscopic metal shavings that enter your fluid reservoir, leading to premature pump cavitation, valve spool binding, and systemic actuator wear. Preventing these installation errors protects your entire hydraulic infrastructure from expensive repairs.

How Does Thread Stripping Destroy Components?

Thread stripping occurs when a mismatched pitch profile concentrates all mechanical clamping force onto a single thread ridge instead of distributing the load across the entire engagement length. When you apply hydraulic system pressure, this isolated ridge shears completely off under stress.

• Mechanical load concentration breaks the weakest thread profile.
• Metal particulate contamination flows directly into the main oil lines.
• Cylinder port walls thin out, rendering the housing unrepairable.

A single stripped port can turn a brand-new multi-thousand-dollar custom hydraulic actuator into unusable scrap metal within seconds.

The Hidden Threat Of High Pressure Blowouts

A mismatched port fitting may hold pressure initially during low-load testing, but it creates a ticking time bomb once the machine experiences real operational shock loads. Under peak pressures exceeding 3,000 PSI, the compromised thread engagement fails instantly, causing a catastrophic blowout.

• Sudden pressure drops cause immediate loss of heavy equipment control.
• Aerosolized oil mist poses extreme fire risks near hot exhaust components.
• High-velocity fluid injection hazards threaten nearby maintenance personnel.

BThe environmental cleanup costs and regulatory fines from a massive hydraulic fluid spill can easily dwarf the cost of proper diagnostic tools.

Port Condition	Maximum Pressure Capacity	Structural Safety Margin
Perfectly Matched Thread	6,000 PSI	4:1 Engineering Rating
Mismatched Pitch (Forced)	450 PSI	Zero Margin (Immediate Failure)
Stripped Port Threads	0 PSI	Non-Operational

How Can You Identify Different Hydraulic Threads?

You can identify different hydraulic threads by carefully evaluating the distinct physical characteristics of the sealing seat alongside precise pitch gauge measurements. When encountering unknown hydraulic cylinder port mismatches, you must approach identification through a structured step-by-step diagnostic workflow rather than relying on visual guesses.

• Examine the seat configuration to determine if it uses an elastomeric seal.
• Measure the thread outer diameter with a calibrated digital caliper.
• Verify the thread pitch count using international thread pitch gauge leaves.

Taking a few extra minutes to systematically catalog the dimensional traits of an unlabelled port prevents major assembly failures. This practice safeguards your system’s operational readiness.

Is It An O-Ring Face Seal Or JIC?

O-Ring Face Seal (ORFS) and Joint Industry Council (JIC) fittings serve entirely different mechanical sealing principles despite having similar outer diameters. While ORFS utilizes a flat mating surface with an embedded rubber seal, JIC relies on a 37-degree metal-to-metal flared cone contact.

• ORFS ports feature a flat machined face to compress an elastomeric ring.
• JIC designs use a machined internal cone to seal against a flared tube.
• Mixing these two configurations prevents any thread engagement or sealing contact.

Forcing a JIC fitting into an ORFS port creates an instant leak path because the sealing surfaces never actually touch.

Mastering Visual Thread Inspection Steps

Visual thread inspection requires analyzing the thread profile angle, crest shape, and the overall spacing between individual thread ridges under bright light. If you notice the thread crests appear flat or slightly rounded, you are likely dealing with an international metric or British standard profile.

• Parallel threads maintain a constant diameter across their entire length.
• Tapered threads narrow toward the end to create a wedge seal.
• Thread angle slopes differ between American and European engineering designs.

Recognizing these visual clues helps you select the correct technical reference chart for final tool verification.

Thread Type	Sealing Mechanism	Common Application
SAE O-Ring Boss (ORB)	Straight thread with an elastomeric boss	American Mobile Equipment
JIC 37-Degree Flare	Metal-to-metal mechanical cone contact	Agricultural Implements
O-Ring Face Seal (ORFS)	Flat face contact with a captured seal	High-Vibration Infrastructure

Why Do Metric And American Ports Get Confused?

Metric and American ports get confused because their external thread diameters are often close enough to allow a false initial thread engagement. When you attempt to thread a metric male fitting into an American National Pipe Thread (NPT) or Unified National Fine (UNF) port, the first two turns feel normal before the thread pitches lock up and bind.

This deceptive fitment tricks technicians into believing they are installing the correct part, leading them to use heavy hand tools to force the component home. Understanding why these standards overlap prevents costly cross-threading accidents.

The Danger Of Identical Pitch Appearances

Certain metric threads feature a pitch spacing that looks almost identical to American fractional sizes when inspected with the naked eye. A metric 1.5mm pitch is incredibly close to a standard American 16-threads-per-inch profile, differing by only a fraction of a millimeter.

• Visual similarities trick even experienced mechanics into false identifications.
• Hand-tightening tests can fool you into thinking the match is correct.
• Small pitch differences create cumulative binding as engagement depth increases.

Forcing this combination deforms the internal port walls, permanently destroying the cylinder’s sealing ability.

How To Segregate International Inventory

The best way to prevent international inventory confusion is to implement color-coded storage bins and distinct physical separation zones for foreign and domestic fittings. If your shop mixes American and metric hardware in the same storage drawers, parts will inevitably get mixed up during rush repairs.

• Color-code bins by standard: Blue for American, Red for Metric.
• Apply laser-etched size markings on all custom shop adapter fittings.
• Train your staff to use thread identification posters during part picking.

Implementing a mandatory thread check station near your primary parts inventory ensures no unverified components ever reach the assembly floor.

Thread Standard	Pitch Measurement	Common Visual Trap
American UNF	Threads Per Inch (TPI)	Looks identical to Metric fine threads
International Metric	Millimeters per thread crest	Can loosely start in an American port
British Standard (BSPP)	Imperial TPI with 55-degree angle	Confused with American NPT pipe profiles

How Does Port Orientation Impact Hose Routing?

Port orientation impacts hose routing by defining the exact entry angle, bend radius, and dynamic clearance path of your high-pressure lines through their full range of machine motion. If you install a replacement cylinder with mismatched port angles, the attached hydraulic hoses will twist, kink, or rub against the structural machine frame.

This mechanical interference causes rapid outer cover wear, exposing the inner steel reinforcement braid to environmental rust and eventual catastrophic pressure failures. Proper port alignment ensures your plumbing lines remain stress-free.

Can Bad Alignment Twist Hydraulic Hoses?

When a cylinder port is misaligned even slightly, it forces the attached hose assembly to twist along its longitudinal axis during equipment operation. If a hydraulic hose is twisted by just seven percent, its overall service life drops by over ninety percent under cyclic pressures.

• Longitudinal twisting weakens the internal structural steel reinforcement wire layers.
• Hose couplings pull away from their crimped seats under heavy pressure surges.
• Internal fluid friction increases, generating excess system operating heat.

A properly aligned port keeps the hose bending naturally along a single linear plane, preventing internal wire fatigue.

Designing Clearances For Compact Equipment

Modern compact agricultural and construction machinery leaves almost zero room for error when routing high-pressure plumbing lines through tight engine bays or chassis articulation joints. When dealing with an unexpected hydraulic cylinder port mismatches, the modified fitting profile can easily strike surrounding metal linkages.

• Oversized port adapter blocks reduce critical frame component clearances.
• Hose lines can get pinched between moving lift arms and lift cylinders.
• Vibration rub-points develop where hoses contact sharp structural metal edges.

Keeping your port architecture compact and true to the original OEM geometry prevents expensive hose clipping failures during operation.

Orientation Angle	Hose Strain Level	Risk of Abrasion Failure
0-Degree Alignment (OEM Spec)	Zero Strain	Extremely Low
15-Degree Port Offset	Moderate Longitudinal Strain	Medium (Rubbing on Frame)
30-Degree Port Offset	Severe Structural Twisting	High (Imminent Hose Burst)

What Tools Are Essential For Port Measurement?

What tools are essential for port measurement? Calibrated digital calipers, comprehensive thread pitch gauge sets, and dedicated seat angle gauges are the absolute baseline requirements for any maintenance facility. You can never rely on a standard tape measure or visual guesswork when verifying high-pressure hydraulic sealing boundaries.

• Digital calipers capture the precise outer diameter of male thread pins.
• Thread pitch leaves check the exact distance between thread crests.
• Seat gauges confirm whether a port uses a 37-degree or 45-degree angle.

Investing in quality tools saves you from ordering the wrong replacement parts and protects your system from expensive field failures.

Why Pitch Gauges Beat Visual Guesswork

A specialized thread pitch gauge features precision-stamped metal teeth that lock cleanly into matching thread valleys when aligned perfectly. If the teeth ride on top of the thread crests or rock back and forth, you have caught a thread standard mismatch before assembly.

• Pitch gauges eliminate human error when measuring tiny thread variances.
• Metric and imperial leaves prevent the confusion of look-alike standards.
• They allow you to quickly verify thread details on dirty, oil-soaked parts.

Guessing a thread profile by eye in a busy shop environment is a surefire way to cross-thread an expensive component.

How Do Calipers Confirm Seat Angles?

While calipers cannot directly measure angular degrees, they allow you to accurately map the internal step depths and chamfer diameters that define specific international port shapes. By referencing these dimension points against an engineering thread chart, you can easily deduce the exact port configuration.

• Measure the internal minor diameter of female ports with the caliper’s rear jaws.
• Verify the depth of the O-ring boss sealing counterbore pocket.
• Check the length of the male thread pin to confirm full thread engagement.

Precision measurements remove the guesswork from fleet maintenance, giving you total confidence during assembly.

Measurement Tool	Target Measurement	Precision Level Required
Digital Caliper	Thread Major/Minor Diameters	+/- 0.01 mm
Thread Pitch Gauge	Crest-to-Crest Distance	Exact Profile Match
37/45 Degree Seat Gauge	Internal Cone Sealing Angle	Absolute Degree Match

How Do Worn Threads Emulate Size Mismatches?

Worn threads emulate size mismatches by increasing mechanical play and thread clearance within the joint, making a correctly sized fitting feel like an entirely different part standard. When a hydraulic cylinder undergoes years of high-vibration operation, the thread flanks experience micro-fretting and material loss.

This wear changes the thread profile, allowing a male fitting to wobble inside a female port during manual installation. Recognizing this wear prevents you from misidentifying a worn port as a thread standard mismatch.

The Impact Of High Vibration Fatigue

High-amplitude vibrations from heavy agricultural attachments cause constant micro-movements between mating thread surfaces if the joint is not torqued to exact OEM specifications. This movement slowly grinds down the sharp crests of the thread profile over time.

• Thread flank contact areas thin out, reducing holding strength.
• The fitting feels loose during the first few installation turns.
• Mechanical play allows the joint to back out under hydraulic pressure surges.

This physical wear can trick a technician into thinking they need an oversized or non-standard replacement fitting.

How Overtorquing Alters Thread Profiles

Using massive impact wrenches or long breaker bars stretching beyond factory limits deforms the thread pitch through material stretching. This over-tightening pulls the thread ridges past their elastic limit, permanently altering their original engineering shape.

• Thread pitch elongates, preventing new standard fittings from locking in.
• The internal port walls experience micro-cracking and stress fractures.
• Sealing faces warp, creating a permanent leak path that new seals cannot fix.

Thread Wear State	Flank Thickness Loss	Fitment Sensation
Brand New Profile	0% Material Loss	Snug, Precise Engagement
Moderately Worn Threads	15% Material Loss	Noticeable Wobble (Feels Too Large)
Deformed (Overtorqued)	Structural Pitch Elongation	Cross-Threading Resistance

What Is The Correct Way To Seal Port Joints?

The correct way to seal a hydraulic port joint is to match the specific structural sealing geometry of the fitting to its corresponding port seat without using thread sealants or Teflon tape. Straight threads rely entirely on compressed rubber elastomeric rings to contain high pressures, while tapered pipe threads use a metal-to-metal wedging action.

Applying liquid sealants or tape to straight-thread ports block proper seal seating, deforms the components, and introduces loose debris that destroys fine valve internal tolerances.

Why Elastomeric Seals Trump Metal Contacts

Modern elastomeric sealing designs like O-ring face seals handle extreme pressure spikes and high equipment vibrations far better than legacy metal-to-metal connections. A rubber seal flexes dynamically under pressure changes, maintaining a tight fluid barrier even as components expand and contract.

• Rubber seals absorb dynamic system pressure spikes without weeping.
• They require lower assembly torque, reducing component stress.
• Elastomeric rings are inexpensive and simple to replace during maintenance.

Proper Lubrication Methods For Solid Seals

You must always lubricate elastomeric seals with clean, system-compatible hydraulic oil before installing them into the port housing. Threading a bone-dry rubber seal into a port causes it to twist, pinch, and tear as the metal surfaces tighten down.

• A thin film of hydraulic oil allows the seal to slide smoothly into place.
• Lubrication prevents the seal from bunching up and binding during assembly.
• It protects the delicate rubber material from abrasion during initial torque down.

Sealing Method	Maximum Pressure Rating	Reusability Factor
Elastomeric O-Ring Seal	6,000+ PSI	High (Replace ring only)
Metal-to-Metal Flared Cone	3,500 PSI	Moderate (Deforms after multiple uses)
Tapered Pipe Thread (Wedged)	2,000 PSI	Low (High risk of port cracking)

Summary

This comprehensive analysis demonstrates that avoiding fluid system failures requires absolute precision during component measurement, inventory classification, and assembly line installation. By replacing visual guesswork with calibrated pitch gauges, organizing your shop with color-coded parts storage, and enforcing strict procurement quality standards, you shield your operations from expensive equipment downtime and component cross-threading damage.

Securing exact thread compatibility across your mobile industrial machinery protects your hydraulic systems from high-pressure failures. For top-tier, precision-engineered hydraulic solutions tailored to your exact operational specifications, please contact us today to connect with our senior fluid power engineering team and optimize your equipment infrastructure.

Frequently Asked Questions

Can I install an adapter to resolve port mismatches?

Yes, you can utilize premium hydraulic transition adapters to bridge differing thread standards safely, provided the adapter block matches the exact seat geometry and pressure rating of your system. You must verify that the adapter does not reduce structural clearance or create component interference points.

What’s the best way to clean dirty port threads?

The best approach requires using a dedicated non-marring brass wire brush along with a specialized, fast-evaporating solvent cleaner to remove grease and rust buildup. This thorough cleaning allows your measuring calipers and thread pitch gauges to seat cleanly into the thread valleys for an accurate reading.

How do I know if my cylinder uses metric threads?

You will know instantly by checking the thread pitch distance using a dedicated metric pitch gauge leaf; metric designs display precise millimeter spacing between thread crests rather than an imperial thread count per inch. Metric fittings also feature distinct identification lines or stamps on the hex flats.

Can I use thread sealant tape on straight ports?

No, you must never apply Teflon tape or paste to straight hydraulic thread designs because these profiles rely on rubber elastomeric rings rather than thread binding to contain system pressure. Teflon fragments will shred off during installation, entering your fluid lines and clogging fine internal valve orifices.

How do I measure internal female port sizes accurately?

The correct method requires using the sharp internal measurement jaws of a calibrated digital caliper to capture the true minor diameter of the internal port opening. You must combine this data point with a thread pitch gauge leaf check to confirm the exact standard profile before ordering parts.
