Raw Material & Cutting
Tube / Rod
Verified material grade, then cut to length with traceable batch control.
Replacement Hydraulic Cylinders
OEM-Compatible Replacement Hydraulic Cylinders for Equipment Repair
Send your OEM part number, old cylinder photos, or key dimensions. We help confirm bore, stroke, rod size, mounting type, and port position before production.
OEM-compatible replacement
Bore / stroke / rod confirmation
Small batch support
Fast production lead time
Replacement Hydraulic Cylinders for Aging Construction and Agricultural Equipment
Equipment owners often search for replacement hydraulic cylinders when OEM parts are expensive, dealer stock is limited, or the original cylinder is no longer easy to source. Topa helps repair shops, dealers, and fleet maintenance teams check old cylinders by photos, part numbers, and installation dimensions before production.

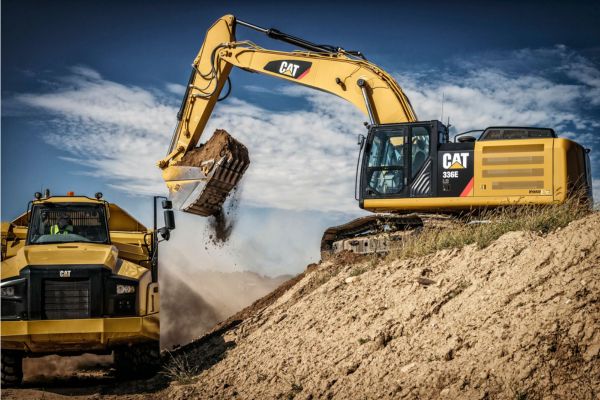

Caterpillar
Heavy-duty repairOlder Caterpillar excavators, loaders, and dozers often need boom, bucket, steering, or lift cylinder replacement after long service in high-load jobsites.
- Check OEM part number or old cylinder photos
- Confirm pin-to-pin length, stroke, and mount width
- Review port position to avoid hose routing problems

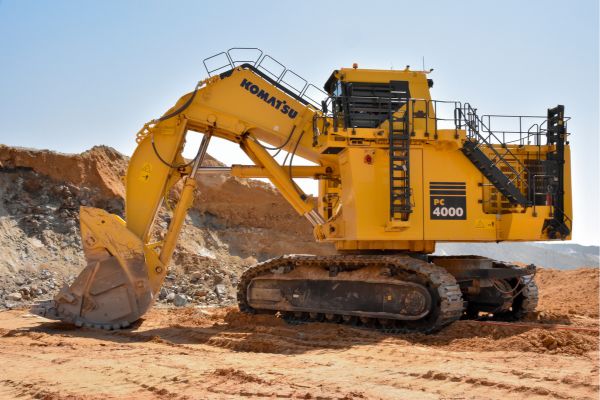

Komatsu
Downtime controlKomatsu replacement cylinders are commonly requested when rod scoring, oil leakage, or mounting wear causes repeated downtime in construction or mining equipment.
- Confirm bore size, rod diameter, and working pressure
- Check mounting alignment and pin bore wear
- Match oil port thread and port angle before production

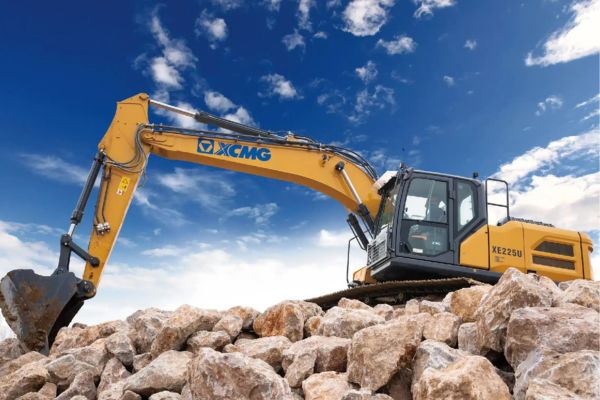

XCMG
Custom buildXCMG equipment used in cranes, loaders, and construction fleets may need replacement cylinders when the original model is hard to source locally.
- Build from sample, drawing, or measured dimensions
- Support small batch replacement for repair projects
- Review installation space before final design

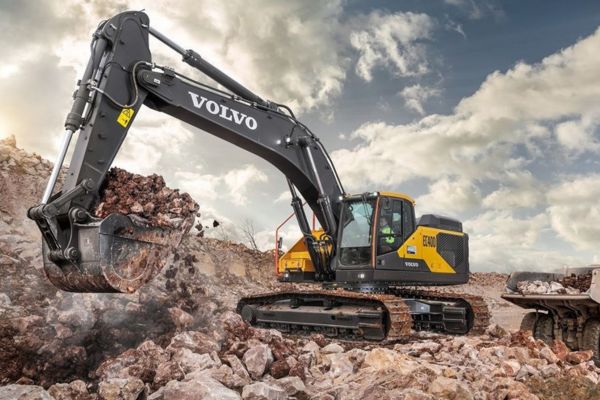

Volvo CE
Space checkVolvo CE replacement cylinders are often used on wheel loaders and excavators where limited installation space and hose routing make port position important.
- Confirm closed length, stroke, and mounting type
- Check hose clearance around the port area
- Review seal and pressure needs for the work environment

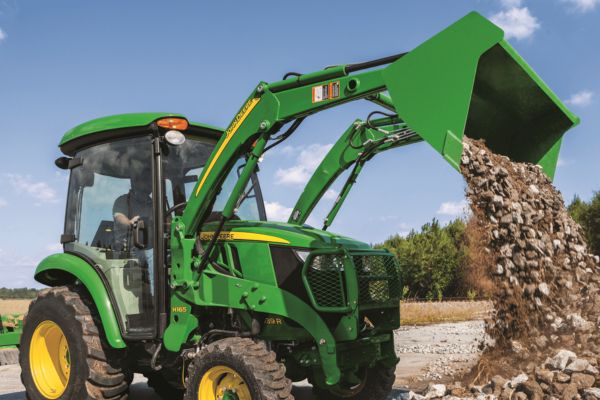

John Deere
Farm season repairJohn Deere tractors, loaders, and harvesters often require lift, steering, or attachment cylinder replacement during peak farming seasons.
- Match cylinder length and stroke before ordering
- Confirm pin size, mount width, and attachment clearance
- Support repair shops and dealers with repeat replacement needs

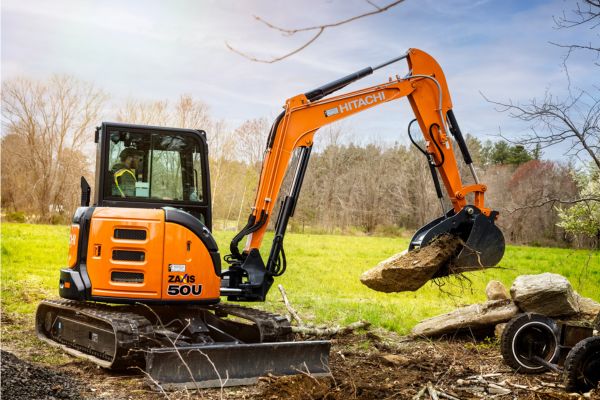

Hitachi
Port matchHitachi excavator cylinders often need careful port direction and hose clearance checks to prevent installation delays after replacement.
- Review port thread, port angle, and hose position
- Check rod condition and seal failure history
- Confirm replacement dimensions before manufacturing

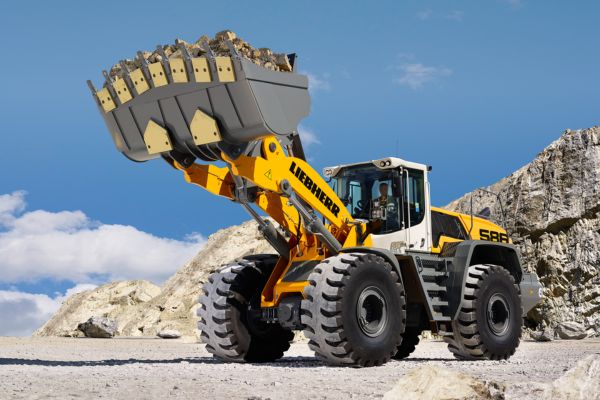

Liebherr
Geometry matchLiebherr replacement cylinders require careful geometry checks because pin spacing, mount width, and working pressure can vary by machine and function.
- Check installation geometry and pin bore dimensions
- Confirm pressure requirement and cylinder function
- Review old samples or drawings before quote

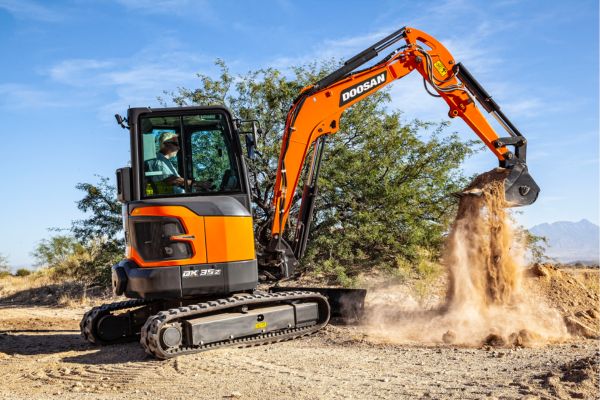

Doosan
Repair quoteDoosan cylinders are often replaced when leaking seals, damaged rods, or unavailable local parts keep excavators and loaders out of service.
- Send OEM number, photos, or cylinder measurements
- Confirm bore, stroke, rod size, and mounting style
- Get a clear quote for repair or repeat stock needs

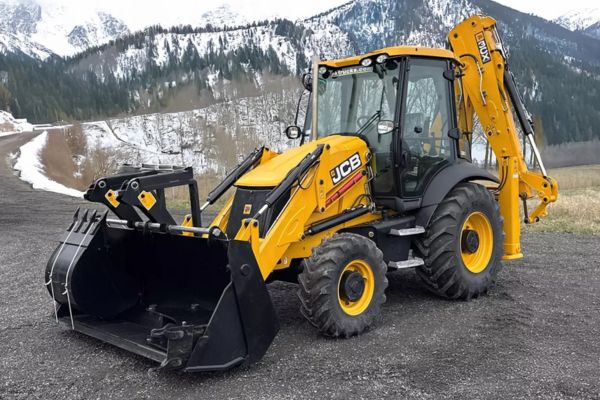

JCB
Install checkJCB backhoe loaders and telehandlers need replacement cylinders that match stroke, closed length, pin size, and port position without field modification.
- Check closed length and stroke before production
- Confirm pin size, mount width, and port position
- Reduce installation risk for repair shops and fleets
Before ordering a replacement hydraulic cylinder, send the OEM part number, old cylinder photos, machine model, bore size, stroke, rod diameter, pin size, mounting width, and port position. These details help reduce wrong-fit risk and shorten the quotation process.
Why You Need Replacement Cylinders
A damaged hydraulic cylinder is not only a product problem. It can stop equipment, delay repair work, increase service costs, and affect customer trust.
Repeated Seal Leakage
When leakage returns after repair, the problem may come from rod wear, barrel damage, pressure issues, or poor cylinder matching.
Bent Piston Rod
A bent rod can damage seals, create uneven movement, and cause the cylinder to fail again even after basic repair.
Cylinder Drift Under Load
If the cylinder cannot hold position, the machine may lose lifting force, create safety risks, or fail during daily operation.
Cracked Barrel
Cracks in the barrel can lead to pressure loss, oil leakage, and sudden equipment failure under heavy working conditions.
Port Damage
Damaged threads or wrong port direction can make hose installation difficult and increase the risk of leakage or rework.
OEM Cylinder Discontinued
When the original cylinder is no longer available, a custom replacement helps keep older equipment in service.
Repair Costs Too High
If repair costs keep rising, replacement can be a better decision for long-term equipment reliability and service planning.
Machine Downtime Too Long
Long downtime affects rental income, repair schedules, field work, and customer delivery. Fast replacement helps reduce loss.
Repair or Replace?
Not every hydraulic cylinder failure requires a full replacement. But when damage keeps returning or affects machine safety, replacing the cylinder can reduce downtime and repeated repair costs.
Repair May Be Enough
Repair can be the better option when the cylinder structure is still stable and the problem is limited to basic wear parts.
- Minor seal leakage
- No rod scoring
- No barrel damage
Replacement Is Safer
Replacement becomes a safer decision when the cylinder has structural damage, repeated leakage, or the machine cannot afford more downtime.
- Bent rod
- Deep chrome damage
- Cracked welds
- Repeated failures
- High downtime cost
If the same cylinder fails again after repair, the problem may not be the seal alone. Rod condition, barrel wear, mounting alignment, pressure shocks, or wrong replacement dimensions should be checked before the next order.
Replacement Hydraulic Cylinder Fit Check Before Production
A replacement hydraulic cylinder should not be selected by appearance only. Small differences in closed length, stroke, pin size, mounting width, or port direction can cause installation problems. Topa checks the key dimensions of your old cylinder before production, so the new cylinder can match your machine, connect with existing hoses, and reduce replacement risk.
Mounting Dimensions
Closed length and pin centers checked
We confirm retracted length, pin-to-pin distance, mounting width, and pin hole size.
This helps avoid bracket cutting, extra welding, or forced installation during cylinder replacement.
Bore, Rod, and Stroke
Movement range matched
Bore size, rod diameter, and stroke length affect lifting force, speed, and end position.
We check these data to help the replacement cylinder keep the same working movement as the old unit.
Mounting Type
Clevis, cross tube, trunnion, or flange
Different mounting styles change how the cylinder carries load.
Topa confirms the mounting type and joint width so the cylinder can fit the original machine structure.
Port Thread and Position
Hose connection reviewed
Port thread, port angle, and port location must match the hose layout.
This helps reduce hose twisting, adapter stacking, and port interference after installation.
What We Need to Match Your Old Cylinder
For replacement hydraulic cylinders, clear size information is more useful than general product descriptions. Send the old cylinder photos, part number, or basic measurements. Our team will review the fit points before quoting.
- Closed Length: pin center to pin center when fully retracted
- Stroke: full travel length of the rod
- Bore Size: inside diameter of the cylinder barrel
- Rod Diameter: chrome rod size for force and seal matching
- Pin Size: pin hole diameter and mounting width
- Port Details: thread type, port size, and port direction
Replacement Cylinder Components Matched to Real Working Conditions
A replacement hydraulic cylinder should match more than size. Seal material, rod surface, tube finish, pressure range, oil temperature, and contamination level all affect service life. Topa reviews these component details before production to help reduce leakage, scoring, internal wear, and repeat replacement.
Sealing System
Seal failure is one of the most common reasons for replacing a hydraulic cylinder. Topa selects the seal structure according to working pressure, oil type, temperature, rod speed, and contamination level.
Seal material selected for pressure, oil temperature, and working environment
Rod seal, piston seal, guide ring, and wiper matched as a complete system
Seal groove dimensions checked to support stable sealing under load

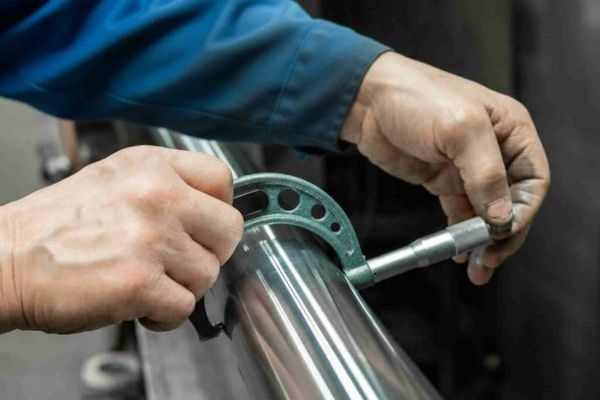

Chrome-Plated Rod
Rod pitting, rust, bending, or surface scoring can quickly damage new seals. For replacement hydraulic cylinders, Topa checks rod diameter, material strength, chrome surface, and working exposure.
Rod diameter matched to the original cylinder force and mounting design
Chrome-plated surface supports smoother seal travel and lower leakage risk
Material and surface treatment selected for outdoor or heavy-duty use
Honed Cylinder Tube
The inner tube finish affects piston seal contact, internal leakage, and cylinder movement. Topa uses honed tubes with controlled bore size and inner surface finish.
Tube bore matched to required working pressure and cylinder size
Honed inner surface supports stable piston seal contact
Clean machining helps reduce internal wear, stick-slip, and pressure loss
How to Identify Your Cylinder Without an OEM Part Number
Measure the points that control fit. Share the numbers and a photo of the mounts and ports. You get a matching option with clear installation confirmation before production starts.
Key Dimensions to Send
Send: retracted length, extended length, bore, rod, pin size,
mount photos, and a clear port thread photo.
5 Quick Measurements
These five points decide fit and travel. They also reduce back-and-forth during confirmation.
01
Retracted Length
Pin-to-pin distance when the cylinder is fully closed.
02
Extended Length
Pin-to-pin distance when the cylinder is fully extended.
03
Bore Diameter
Inside tube diameter. This defines the force output of the cylinder.
04
Rod Diameter
Rod thickness for strength, stability, and seal compatibility.
05
Pin Size & Width
Pin bore and mounting width to confirm bracket compatibility.
Replacement Hydraulic Cylinders by Equipment Type
Different machines need different replacement cylinder checks. Topa matches hydraulic cylinders by equipment type, working function, mounting style, closed length, stroke, pin size, port thread, and working pressure. This helps customers reduce installation errors and keep machines working with less downtime.
Dump Trucks & Dump Trailers
Replacement dump truck cylinders need correct lift height, closed length, mounting points, and pressure capacity. Topa can match welded and telescopic cylinders for dump bodies, hoists, and trailers.
- Common needs: hoist cylinder, dump body cylinder, telescopic cylinder
- Key checks: retracted length, stroke, pin size, stage size, port position
Snow Plows & Municipal Equipment
Snow plow cylinders often work under impact, cold weather, road salt, and fast seasonal repair demand. Topa checks stroke, port thread, rod surface, and seal choice for replacement use.
- Common needs: angle cylinder, lift cylinder, blade control cylinder
- Key checks: cold-weather seals, chrome rod, port direction, pin spacing
Agricultural Tractors
Tractor replacement cylinders must match implement movement, mounting width, stroke, and hydraulic connection. Topa supports replacement cylinders for tractors, loaders, 3-point hitches, and farm attachments.
- Common needs: loader cylinder, top link cylinder, side link cylinder, steering cylinder
- Key checks: pin hole size, stroke, closed length, port thread, rod protection
Loaders & Excavators
Loader and excavator replacement cylinders need correct force, linkage geometry, and port layout. Wrong stroke or mounting size can affect bucket angle, lifting range, and hose routing.
- Common needs: boom cylinder, bucket cylinder, tilt cylinder, arm cylinder
- Key checks: bore size, rod diameter, pin centers, port angle, working pressure
Forklifts & Material Handling
Material handling equipment needs smooth lifting, stable steering, and clean sealing. Topa matches forklift and warehouse equipment cylinders by stroke, seal system, port thread, and installation space.
- Common needs: lift cylinder, tilt cylinder, steering cylinder, side-shift cylinder
- Key checks: stroke, rod surface, seal leakage risk, port clearance, mounting type
Road Maintenance & Paving Equipment
Road equipment cylinders often face vibration, dust, outdoor exposure, and repeated cycles. Topa reviews working pressure, rod surface, sealing system, and mounting geometry before production.
- Common needs: steering cylinder, leveling cylinder, lift cylinder, scraper cylinder
- Key checks: vibration load, port layout, seal protection, pin size, stroke range
Why Choose Topa Replacement Cylinders
Topa provides replacement hydraulic cylinders that match OEM installation dimensions and working performance. Our engineering and manufacturing process focuses on stable sealing, accurate machining, and reliable pressure testing.
Exact Installation Match
Mounting size, pin diameter, stroke length, and port position are verified to match OEM installation dimensions, helping equipment return to work without modification.
Stable Sealing System
Seal combinations are selected according to pressure and working conditions to maintain stable performance and reduce leakage during long-term operation.
Precision CNC Machining
Cylinder tubes, rods, and key components are processed with CNC equipment to keep bore tolerance, surface finish, and assembly accuracy consistent.
Pressure Tested Cylinders
Each cylinder undergoes pressure and leakage testing before shipment to confirm sealing performance and operational safety.
OEM Reverse Engineering
If an original part number or drawing is unavailable, our engineering team can analyze samples or installation dimensions and create matching replacement cylinders.
Consistent Production for Repeat Orders
Stable material supply, standardized machining processes, and controlled inspection procedures help maintain consistent quality across repeated batches.
Modern Production Setup Built for Repeat Orders
After you confirm fit, what matters next is stable output. Equipment, process control, and skilled operators keep batches consistent.
6 Key Processing Steps
Each step is controlled to reduce variation between units, so repeat orders stay consistent.
02
CNC Machining
Ports / Ends
Machining for tube ends, gland, piston, and port features to keep dimensions stable.
03
Honing & Bore Finish
Tube
Controlled surface finish helps sealing stability and reduces early leakage risk.
04
Welding & Fabrication
By Type
Fixture-based welding keeps joint location consistent across batches.
05
Seal Install & Assembly
Clean Area
Standardized assembly steps and checks on critical clearances and seal grooves.
06
Pressure Test & Packing
Final
Leakage and function testing, then protective packing for transit safety.
Tip: If you have factory photos, replace each image URL with your own. Keep the same aspect ratio (16:10) for a clean grid.
Process Checks + 100% Pressure Test Before Shipping
Quality work reduces leakage complaints and fit issues on arrival. Each unit is tested before it leaves the line.
Incoming Material Check
Material verification reduces variation from the start and keeps batches stable.
In-Process Sampling
Key dimensions are checked during machining so issues are caught before assembly.
Surface & Fit Checks
Rod finish and seal groove condition help reduce early leaks and uneven wear.
100% Pressure Test
Every cylinder is tested for leakage and pressure holding before packing.
Reverse Engineering for One-to-One Replacement Builds
If you only have a damaged cylinder or a sketch, we can measure, redraw, and build the match. This helps you keep equipment running even when OEM supply is slow.
3-Step Reverse Engineering Workflow
Fast confirmation with drawings, then stable build and test for direct replacement installs.
Measure & Record
We capture mount points, port position, and travel to lock the fit.
Draw & Confirm
We redraw the cylinder and send the drawing for your approval.
Build & Test
We build to the confirmed spec and test before packing and shipment.
Topa Lead Time Built for Repeat Distributor Orders
Topa supports distributors with stable output, clear batch scheduling, and export-ready packing. Send your OEM part numbers or installation sizes, and we confirm specs before production to keep repeats consistent.
Topa Batch Scheduling
We plan production by batch and destination so your purchase orders stay predictable. For repeat items, we keep the same drawing/spec record to reduce reconfirmation time.
Standard Parts + Custom Ready
Topa supports both standard replacement builds and custom changes (ports, mounts, stroke, seals). Once confirmed, we lock the bill of materials for stable repeat orders and cleaner lead time control.
Export Packing by Topa
Each cylinder is protected to help prevent rod damage and corrosion during transit. We can align labels, carton marks, and packing list format for your warehouse receiving process.
Send your target quantity, destination, and required model list. Topa will reply with lead time, packing method, and a repeat-order plan.
Clear Answers Before You Place an Order
Can you make a one-to-one replacement for my OEM part number?
Yes. Share the OEM brand + part number, cylinder function (lift / tilt / outrigger), and quantity.
We confirm mounting style, stroke, ports, and load rating before production.
If I don’t have a part number, what measurements do you need?
Send retracted length, extended length, stroke, bore, rod diameter, and pin sizes.
Add clear photos of both mounts and the port/thread area to avoid fit mistakes.
What port thread types can you match (SAE, NPT, BSP, metric)?
We can match SAE ORB/SAE flange, NPT, BSPP/BSPT, and common metric threads.
A close-up port photo (or thread callout) helps reduce adapters and hose rework.
What is the MOQ for replacement hydraulic cylinders?
MOQ depends on whether the model is a common build or a special design (mounts, ports, seals).
Send the part number/drawing and your target volume to get a clear MOQ and price tier.
How do you confirm the cylinder will fit my machine?
Fit confirmation is based on OEM part number cross-check or measured mounting points.
We provide a drawing for approval so key installation sizes are locked before production.
What is your lead time for repeat orders and stable batches?
Lead time depends on cylinder type, size, seal/rod spec, and order quantity.
For repeat orders with confirmed drawings, production is faster because the build spec is already fixed.
Do you do 100% pressure testing before shipping?
Yes. Each unit is pressure tested for leakage and holding performance before packing.
If you have a required test pressure or cycle count, include it in your RFQ.
Can you upgrade seals or materials for harsh environments?
Yes. We can match or upgrade seals based on temperature, fluid type, dust/mud, and duty cycle.
Share your working conditions so we recommend the right seal set and surface treatment.
What if the replacement doesn’t match after it arrives?
Share photos, measurement results, and the approved drawing reference.
We support a correction plan based on the confirmed spec (fit points, ports, and stroke).
How can I get the fastest quotation for replacement cylinders?
Fastest path: OEM part number + quantity + destination port/country.
If there’s no part number, send the key measurements plus mount and port photos for quick confirmation.
Get a Confirmed Cylinder Match for Your Equipment
No OEM part number? That’s fine. Send your installation sizes and a few photos of the mounts and ports. Topa will confirm the build and reply with a clear quotation and lead time.
- Match by dimensions: retracted/extended length, bore, rod, pin size, mount width.
- Port confirmation: thread type + port direction to keep hose routing clean.
- Build options: welded / tie-rod / telescopic, seals and pressure level based on application.
- Distributor-friendly: stable batches, repeat specs, packing marks and label format support.
