How To Diagnose Hydraulic Cylinder Function Failures Fast
Your heavy machinery stops cold, costing you by the minute. You suspect the cylinder, but complexity and replacement costs loom. You need clarity now. This guide explains hydraulic cylinder function in plain terms—how it produces force, the major types, and the tell-tale faults—so you can diagnose quickly and get back to work.
Core Hydraulic Cylinder Function Explained
What is the basic principle?
Here’s the deal… a hydraulic cylinder operates on a fundamental law of physics. It allows you to transform a small input into a massive output force.
- Based on Pascal’s Law: pressure in a confined fluid is constant.
- A small force applied to a small area generates a large force over a larger area.
- It converts hydraulic fluid energy into linear mechanical force.
How is force generated?
You might be wondering… how this principle creates movement. The process is a simple yet powerful sequence of actions inside the cylinder’s body.
- Pressurized fluid enters one side of the cylinder barrel.
- This fluid pushes against a piston, causing it to move.
- The piston is attached to a rod, which transmits the force to do work.
A hydraulic cylinder’s core function is to convert fluid pressure into powerful, controlled linear motion, enabling machinery to perform heavy work.
| Principle | Mechanism | Outcome | |
|---|---|---|---|
| Pascal’s Law | Pressurized Fluid Actuation | Force Multiplication | |
| Incompressibility of Fluid | Piston Movement in a Barrel | Linear Motion |
Key Parts & Hydraulic Cylinder Function
What are the main components?
What does this mean for you? Understanding these parts helps you pinpoint potential issues. Each component has a specific job in maintaining pressure and creating movement.
- Cylinder Barrel: The main body holding the pressure.
- Piston: Separates the barrel’s two pressure chambers.
- Piston Rod: Transfers the force from the piston to the load.
- Seals: Prevent fluid leakage and maintain pressure.
Why is the piston rod so crucial?
But wait, there’s more. The piston rod is the part you see moving, and its condition is vital for the cylinder’s entire lifespan.
- It’s typically made of hard, chrome-plated steel for durability.
- It must resist wear, corrosion, and bending forces.
- Proper coatings ensure seals work effectively for a long service life.
Each part, from the robust barrel to the precision seals, is critical for a reliable hydraulic cylinder function; failure in one compromises the whole system.
| Component | Primary Role | Common Material | |
|---|---|---|---|
| Cylinder Barrel | Contains pressure | Seamless Steel Tube | |
| Piston | Transfers fluid force | Steel or Cast Iron | |
| Piston Rod | Transmits linear force | Hard Chrome-Plated Steel | |
| Seals | Prevent leakage | Elastomers/Polyurethane |
The Hydraulic Cylinder Function in Action
How do single-acting cylinders work?
Think about it this way… a single-acting cylinder is a one-way street for force. It pushes but needs help getting back.
- Hydraulic pressure pushes the piston in one direction only (extend).
- Retraction relies on an external force like gravity or a spring.
- Ideal for simple lifting applications like a car jack.
What about double-acting cylinders?
Double-acting cylinders give you complete control. They can push and pull with hydraulic power.
- Hydraulic pressure powers both the extension and retraction strokes.
- This offers precise control in both directions.
- They are used in most industrial and construction equipment.
The choice between single-acting and double-acting types depends entirely on whether the application requires powered force in one direction or two.
| Cylinder Type | Force Direction | Retraction Method | Common Use | |
|---|---|---|---|---|
| Single-Acting | One Way (Extend) | Gravity or Spring | Lifting, Clamping | |
| Double-Acting | Two Ways (Extend & Retract) | Hydraulic Pressure | Pushing, Pulling, Steering |
Types & Hydraulic Cylinder Function
What defines a tie-rod cylinder?
Tie-rod cylinders are designed with maintenance in mind, making them a staple in many industries.
- End caps are held together by threaded steel tie rods.
- They are easy to assemble, disassemble, and service.
- Common in industrial and factory automation.
Why choose a welded body cylinder?
While tie-rod cylinders are easy to service, welded cylinders offer superior durability for tough jobs.
- The barrel is welded directly to the end caps.
- This creates a more compact and durable design.
- Ideal for rugged mobile equipment like excavators.
When is a telescopic cylinder needed?
What’s the bottom line? When you need a long reach from a small space, the telescopic cylinder is the solution.
- It consists of multiple nested tubes (stages).
- It provides a very long stroke from a compact retracted length.
- Perfect for dump trucks and lifting platforms.
Different construction styles like tie-rod, welded, and telescopic directly impact the cylinder’s durability, serviceability, and stroke length for its intended job.
| Cylinder Type | Key Feature | Best Application | |
|---|---|---|---|
| Tie-Rod | Serviceable, held by rods | Industrial Machinery | |
| Welded Body | Durable, compact design | Mobile & Construction Equipment | |
| Telescopic | Long stroke, compact size | Dump Trucks, Lifts |
Specialized Hydraulic Cylinder Function
What is a plunger cylinder?
Isn’t that just a normal cylinder? Not quite. Plunger cylinders are built for one thing: pure pushing force.
- The piston rod has the same diameter as the piston.
- It effectively has no piston, only a ram or “plunger.”
- Used for high-force pushing applications with no pulling required.
How do “smart” cylinders operate?
Let me explain. “Smart” cylinders bring hydraulic power into the digital age, providing critical feedback for automated systems.
- They are integrated with electronic sensors for position feedback.
- They provide real-time data on the piston’s position and velocity.
- This enables high-precision control in automated systems.
Specialized cylinders like plunger and “smart” models provide unique solutions for tasks requiring extremely high force or advanced precision and feedback.
| Specialized Cylinder | Unique Trait | Use Case | |
|---|---|---|---|
| Plunger Cylinder | Rod diameter = Piston diameter | High-Force Pushing (Presses) | |
| Smart Cylinder | Integrated electronic sensors | Automated & Robotic Systems |
Mounts & Hydraulic Cylinder Function
What is side loading?
Here’s a quick rundown. Side loading is a cylinder’s worst enemy. It’s a force that tries to bend the rod instead of pushing it straight.
- Force is applied perpendicular to the piston rod’s intended path.
- It causes the rod to bend and seals to wear unevenly.
- This leads to premature failure and leaks.
How do mounts prevent damage?
The right mount ensures that the force is perfectly in line with the cylinder’s axis of movement.
- Centerline mounts (lugs, flanges) absorb force along the cylinder’s axis.
- Pivot mounts (clevis, trunnion) allow the cylinder to pivot as it works.
- Proper mounting aligns the cylinder with the load to avoid side forces.
The right mounting method is not optional; it is essential for aligning force correctly, preventing side-loading, and ensuring the cylinder’s longevity.
| Mount Type | Strength | Best For | |
|---|---|---|---|
| Centerline Mount | High strength, rigid | Straight line force transfer | |
| Pivot Mount | Allows movement | Loads that travel in an arc |
Industry Hydraulic Cylinder Function
Where are they used in construction?
On any construction site, hydraulic cylinders are doing the heavy lifting, digging, and pushing.
- Excavators: For boom, arm, and bucket movements.
- Bulldozers: To lift and tilt the blade.
- Cranes: For lifting and extending heavy loads.
What about manufacturing and agriculture?
It’s simpler than you think. These industries rely on the precise and powerful force of hydraulics for production and harvesting.
- Manufacturing: In presses, shears, and automated assembly lines.
- Agriculture: On tractors for lifting implements and on harvesters.
From digging foundations to assembling products, the hydraulic cylinder function is the invisible workhorse behind nearly every major industry.
| Industry | Common Application | Machine Example | |
|---|---|---|---|
| Construction | Earthmoving and Lifting | Excavator, Bulldozer | |
| Manufacturing | Forming and Assembly | Stamping Press, Robotic Arm | |
| Agriculture | Implement Control | Tractor, Combine Harvester |
Gains from Hydraulic Cylinder Function
What are the power advantages?
The real magic happens when… you realize how much force can be generated by a relatively small device. This is the key advantage of hydraulics.
- Extremely high power-to-size ratio.
- A small cylinder can generate immense force.
- Unmatched for heavy-duty applications.
Why are they so precise and durable?
That’s not all. Beyond raw power, hydraulic cylinders offer a unique combination of fine control and rugged construction.
- They offer smooth, stable, and precise control over speed and force.
- A simple, robust design ensures a long service life.
- They perform reliably in harsh and demanding environments.
The primary benefits of the hydraulic cylinder function are its immense power density, precise motion control, and rugged durability.
| Advantage | Description | |
|---|---|---|
| Power Density | Delivers massive force from a compact device. | |
| Precise Control | Allows for fine adjustments to speed and position. | |
| Durability | Built to withstand heavy loads and harsh conditions. |

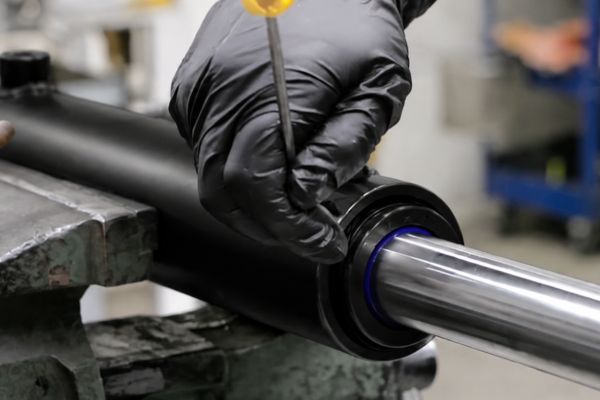

Fixing a Hydraulic Cylinder Function
What are common failure points?
Knowing what to look for can save you from a catastrophic failure. The most common issues are often visible.

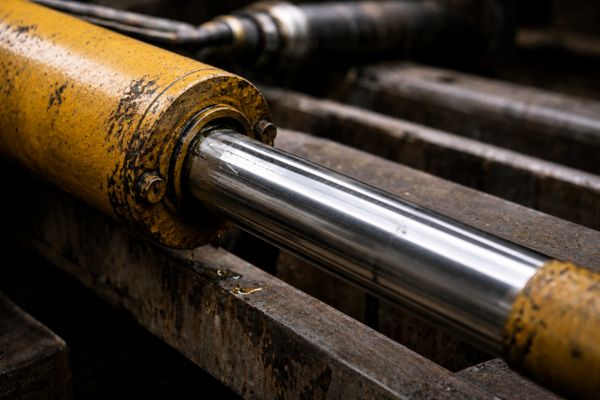

- Seal Leakage: The most common issue, causing loss of pressure.
- Rod Damage: Scratches, dents, or corrosion on the rod can tear seals.
- Internal Wear: Piston or barrel wear reduces efficiency.
When should you seek professional repair?
Don’t wait for a small problem to become a big one. These symptoms are clear signs you need an expert.
- If you notice any external fluid leaks.
- If the cylinder feels weak, slow, or jerky.
- If the piston rod has visible damage.
Recognizing common problems like leaks and rod damage early and seeking professional help can prevent catastrophic failure and costly downtime.
| Problem | Symptom | Common Solution | |
|---|---|---|---|
| Fluid Leakage | Visible oil on cylinder/ground | Seal replacement (resealing) | |
| Rod Damage | Scratches, rust, or bends | Rod polishing or re-chroming | |
| Power Loss | Slow or weak operation | Internal seal replacement, honing |
Future of Hydraulic Cylinder Function
What innovations are emerging?
The hydraulic cylinder isn’t static; it’s evolving to become smarter and more integrated with modern technology.
- Smart Cylinders: Integrated sensors for real-time diagnostics.
- IoT Connectivity: Allows for remote monitoring and predictive maintenance.
- Improved Materials: Lighter, stronger materials and advanced coatings.
How is automation changing things?
As automation becomes more sophisticated, hydraulic cylinders are adapting to meet the demand for greater precision and intelligence.
- Deeper integration with robotic systems for complex tasks.
- Enhanced precision and feedback loops for advanced machinery.
- Self-contained electro-hydraulic actuators with onboard pumps/motors.
The future hydraulic cylinder function is smarter, more connected, and more efficient, driven by the demands of automation and data-driven operations.
| Trend | Impact on Functionality | |
|---|---|---|
| Smart Technology | Enables predictive maintenance and precision control. | |
| Automation Integration | Creates more complex and efficient automated systems. |
Conclusion: Your Partner in Power and Productivity
Understanding the core hydraulic cylinder function is the first step to preventing costly downtime and extending the life of your machinery. From the principles of Pascal’s Law to common failure points, you are now equipped to make smarter maintenance decisions.
Don’t let a faulty cylinder stop your progress. Contact a expert today for a quote and experience a fast, reliable hydraulic repair service!
FAQ
1. Q: Can I repair a hydraulic cylinder myself?
A: It is not recommended. While a simple task might seem easy, improper disassembly, seal installation, or torquing can cause catastrophic failure, safety hazards, and even more expensive damage.
2. Q: Is a leaking cylinder a serious problem?
A: Yes. Any leak, no matter how small, signifies a failure that will only get worse. It reduces efficiency, poses an environmental risk, and is a clear indicator that a more significant failure is imminent.
3. Q: Can you upgrade my existing hydraulic cylinder?
A: Yes, absolutely. In many cases, professionals can upgrade seals to higher-performance materials or apply superior rod coatings during a repair, making the cylinder more durable than it was from the factory.
4. Q: How long does a typical cylinder repair take?
A: This varies with the extent of the damage, but many services pride themselves on fast turnarounds. Ask about expedited service for emergency situations to minimize your downtime as much as possible.
5. Q: Is it better to repair or replace a cylinder?
A: Repair is often the more cost-effective choice. A professional repair or rebuild can restore a cylinder to OEM specifications for a fraction of the cost of a new unit, especially for large, expensive, or long-lead-time cylinders.
