How To Bleed Air If A Single Acting Hydraulic Cylinder Won't Retract

Air trapped in the hydraulic lines or cylinder chamber is the most common reason a single-acting cylinder fails to return to its home position. This occurs because air is compressible, creating a “cushion” that resists the force of the return spring or the weight of the load.

Imagine you are in the middle of a harvest or a critical construction shift, and your equipment’s lift-gate remains stubbornly extended. You’ve checked the pump and the fluid levels, yet the rod won’t budge, leaving your machinery vulnerable and your schedule in ruins. This frustrating deadlock often stems from minor air pockets that disrupt the vacuum or spring-return mechanics required for retraction.

Is Air Trapped In Your Single Acting Cylinder?

Air infiltration is the primary culprit when a single acting hydraulic cylinder won’t retract during normal operation. Unlike fluid, air compressess under pressure, which means the return spring cannot overcome the “spongy” resistance of the trapped gas.

Why Does Air Prevent Gravity Retraction?

Single-acting systems rely on external forces to push the fluid back into the reservoir.

• Trapped air creates an elastic barrier.
• Compressibility absorbs the spring’s return energy.
• Fluid displacement becomes inconsistent.
• Back-pressure builds up in the dead-end of the cylinder.

You might notice that the cylinder moves in “jerks” or shudders during the extension phase. This is a clear indicator that your hydraulic medium is no longer a solid column of oil.

Can You Spot The Signs Of Spongy Movement?

Monitoring the physical behavior of the rod is the fastest way to diagnose air issues.

• Excessive noise or “chattering” during movement.
• The rod “bounces” when it reaches full extension.
• Visible foam or bubbles in the fluid reservoir.
• Unexplained overheating of the cylinder barrel.

How Do Bubbles Damage Internal Seals?

Microscopic air bubbles can cause a phenomenon known as cavitation or aeration damage.

• High pressure causes bubbles to implode against metal.
• Localized heat spikes burn the seal material.
• Pitting occurs on the internal piston surface.
• Seal elasticity is lost over time.

Symptom	Air Trapped	Mechanical Jam
Movement	Bouncy/Spongy	Completely Frozen
Noise	Hissing/Chattering	Grinding/Metallic
Fluid Condition	Foamy/Cloudy	Dark/Contaminated

How Do You Safely Depressurize The System?

Safety is the absolute priority when you realize your single acting hydraulic cylinder won’t retract. Opening a pressurized line without proper precautions can lead to high-velocity fluid injection injuries.

Why Is Pressure Relief Your First Step?

Residual pressure remains in the lines even when the pump is turned off.

• Moving parts can shift unexpectedly.
• Fluid can spray out at thousands of PSI.
• Control valves may be holding “locked” pressure.
• Thermal expansion can increase pressure in static lines.

You should always toggle the control lever several times after the power is cut to vent any stored energy.

Can You Safely Support The Extended Load?

A cylinder that won’t retract is often holding a heavy implement in the air.

• Use jack stands or mechanical locks.
• Never rely on the hydraulic fluid to hold the weight during repair.
• Clear the area of all non-essential personnel.
• Ensure the tractor or power unit is on level ground.

If the rod suddenly decides to move once the air is released, you don’t want to be under the falling load.

Safety Step	Tool/Action	Purpose
Support	Jack Stands	Prevent Load Drop
Vent	Cycle Levers	Relieve Static Pressure
PPE	Safety Goggles	Protect Against Fluid Spray

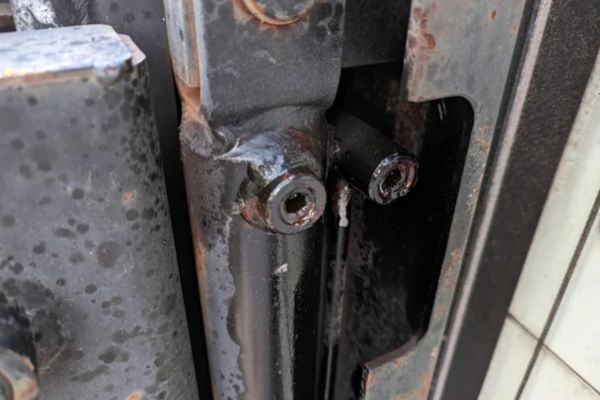

Where Is The Bleeder Valve Located?

Identifying the correct escape point for the air is essential when your single acting hydraulic cylinder won’t retract. Most high-quality cylinders feature a dedicated port specifically for this maintenance task.

Is Your Cylinder Port The Highest Point?

Air naturally migrates to the highest point in a closed hydraulic circuit.

• The bleeder is usually near the gland nut.
• Check the top side of the cylinder barrel.
• Ports are often located 180 degrees from the main inlet.
• Look for a small Allen-head or hex screw.

You should orient the cylinder so the port faces upward to ensure all air pockets are evacuated.

What If Your Cylinder Lacks A Bleeder Screw?

Many standard single-acting cylinders require you to “crack” the main inlet fitting to vent air.

• Loosen the hose connection slightly.
• Wait for fluid to seep through the threads.
• Use a rag to contain the mess.
• Tighten the fitting as soon as the air hissing stops.

It’s worth noting that this method requires a very steady hand to avoid completely disconnecting the pressurized line.

Port Type	Tool Required	Bleeding Method
Bleed Screw	Allen Wrench	Dedicated Venting
JIC Fitting	Wrench Set	Cracking Threads
Breather Plug	Flathead Driver	Atmosphere Venting

What Is The Step By Step Bleeding Process?

Once the system is prepped, the actual bleeding of the single acting hydraulic cylinder won’t retract follows a precise sequence. Consistency is the key to ensuring no air remains trapped in the dead-zones of the barrel.

How Do You Crack The Fitting Safely?

Only open the fitting or bleeder screw a fraction of a turn at first.

• Listen for a high-pitched hissing sound.
• Watch for a mixture of white foam and oil.
• Keep your hands away from the direct line of the port.
• Maintain a firm grip on your wrench.

You are looking for the exact moment the “spitting” stops and a steady stream of clear oil begins to flow.

When Should You Cycle The Pump?

Moving the piston helps push the air toward the exit port you have opened.

• Extend the rod slowly while the bleeder is open.
• Close the bleeder before retracting the rod.
• Repeat the cycle 3 to 5 times.
• Monitor the reservoir level to prevent “sucking air” from the tank.

Does the rod movement feel smoother after each cycle? That is the sign that the air is being replaced by incompressible fluid.

How To Identify Pure Fluid Flow?

Pure hydraulic fluid should look clear and consistent, without any cloudiness.

• Air makes the oil look like a “latte” or milkshake.
• Wait for the bubbles to disappear in the discharge.
• Check for a solid stream of oil without interruption.
• Perform a final “load test” to confirm the repair.

The rod should now retract with its intended force and speed.

Step Number	Action	Duration
1	Open Bleeder Port	30 Seconds
2	Slow Extension Cycle	1 Minute
3	Fluid Observation	2 Minutes

Why Is Gravity Not Helping Your Retraction?

If you have bled the air and the single acting hydraulic cylinder won’t retract, the problem might be an imbalance between the internal spring and the external load. Single-acting cylinders lack the “pull” power of double-acting units.

Is The Load Weight Insufficient For The Spring?

Spring-return cylinders require a specific amount of force to compress the spring back into the barrel.

• Light loads may not provide enough downward pressure.
• Friction in the pivot pins can resist movement.
• The internal spring may be rusted or bound.
• Cold weather can increase the resistance of the return spring.

You might need to apply additional weight to the implement to force the fluid back into the reservoir.

Could A Clogged Breather Vent Be The Culprit?

Single-acting cylinders often have a breather on the non-pressurized side to allow air to move as the piston travels.

• Dust and debris can clog the breather filter.
• A vacuum forms inside the barrel, pulling against the rod.
• Water intrusion can cause the breather to rust shut.
• Insects often build nests in exposed vent holes.

If air cannot get out of the back side of the cylinder, the piston will be held in place by atmospheric pressure.

Component	Common Failure	Result
Return Spring	Fatigue/Rust	Weak Retraction
Breather Vent	Clogging	Vacuum Lock
Pivot Pins	No Grease	Friction Binding

Can A Damaged Rod Prevent Full Retraction?

Mechanical interference on the rod surface is a frequent reason why a single acting hydraulic cylinder won’t retract. Any deformation on the rod will prevent it from passing through the tight tolerances of the gland nut.

Is Your Rod Surface Scored Or Pitted?

Small nicks and rust spots act like a file against the rod seals.

• Rod scoring creates high spots that bind.
• Pitting traps dirt that enters the gland.
• Chrome flaking increases friction significantly.
• Sharp edges can slice through the internal U-cup.

You can often feel these imperfections by running a gloved hand along the length of the extended rod.

How Does A Bent Rod Bind The Gland?

Even a slight bend in the rod will cause it to hit the side of the cylinder head during retraction.

• Misalignment puts excessive side-load on the bearings.
• The rod will jam at the exact point of the bend.
• Oil will leak heavily from the gland during the jam.
• The barrel may show signs of bulging or wear.

If you suspect a bend, use a straight-edge to verify the rod’s geometry.

Damage Type	Visual Sign	Action
Minor Rust	Red/Brown Spots	Polish with Emery
Deep Scoring	Vertical Grooves	Rod Replacement
Bent Rod	Visible Curvature	Full Cylinder Swap

Are Your Hydraulic Seals Swollen Or Blown?

Internal seal failure is a “hidden” cause for when a single acting hydraulic cylinder won’t retract. If the piston seal is deformed, it can create so much friction that the return spring simply cannot move the assembly.

Did Fluid Contamination Cause Internal Binding?

Using the wrong hydraulic fluid or allowing dirt into the system leads to seal degradation.

• Incompatible chemicals cause rubber to swell.
• Particulates get trapped between the seal and the wall.
• The seal “rolls” in its groove, creating a wedge.
• Internal friction increases by 50% or more.

You should always verify that your fluid meets the ISO standards specified for your equipment.

Can High Heat Deform Your Piston Seals?

Operating in extreme temperatures without adequate cooling can melt or harden your seals.

• Hardened seals lose their ability to glide.
• Melted material can stick to the cylinder bore.
• Thermal expansion reduces clearances.
• The seal lip may become “welded” to the barrel during long static periods.

Does the cylinder smell like burnt oil? That is a sure sign that your seals have reached their thermal limit.

Seal Material	Temp Range	Benefit
Nitrile (Buna-N)	-30°C to 100°C	Cost-Effective
Viton (FKM)	-20°C to 200°C	High Heat Resistance
Polyurethane	-40°C to 80°C	Extreme Durability

Is The Return Valve Or Hose Blocked?

Sometimes the problem isn’t in the cylinder at all, but in the path the fluid must take to get home. If your single acting hydraulic cylinder won’t retract, you must inspect the “return” side of the circuit.

Could A Clogged Breather Vent Be The Culprit?

A hydraulic hose can look perfect on the outside while being totally destroyed on the inside.

• Inner liners can peel and create a “one-way” flap.
• Debris can lodge in the quick-coupler.
• Kinked lines restrict the low-pressure return.
• Cold oil becomes too thick to pass through narrow orifices.

You should disconnect the hose and check for a clear path if the cylinder won’t move under gravity.

Is Your Control Valve Spool Centering Correctly?

The directional control valve must open a path to the tank for the cylinder to retract.

• Broken centering springs keep the valve partially closed.
• Linkage wear prevents the lever from reaching the “float” or “return” position.
• Internal spool scoring can bypass fluid, fighting the return.
• Solenoids on electric valves can burn out or stick.

Is the lever feeling loose or “mushy”? The valve may not be fully opening the return port.

Component	Failure Sign	Fix
Hose	Swelling/Kinks	Replace Line
Coupler	Won’t Click/Leaking	Clean or Replace
Valve Spool	Sticking Lever	Rebuild Valve

How To Maintain Fluid For Better Performance?

Prevention is the most effective strategy when your single acting hydraulic cylinder won’t retract. Clean fluid and proper viscosity are the lifeblood of a responsive hydraulic system.

Why Is Viscosity Critical For Retraction Speed?

Viscosity is the measure of a fluid’s resistance to flow.

• Thick oil (high viscosity) moves slowly through valves.
• Thin oil (low viscosity) can’t provide enough lubrication.
• Temperature changes drastically affect these properties.
• Contamination with water or diesel will ruin the oil’s index.

You must select a fluid that matches your operating climate—thinner for winter, thicker for summer.

Can Regular Filtration Prevent Future Air Pockets?

Filters remove the microscopic “seeds” of air bubbles and physical debris.

• Clogged filters cause the pump to cavitate, introducing air.
• Abrasive particles wear down seals and create leaks.
• Water-absorbing filters prevent internal rust.
• Visual indicators on filter heads warn you before failure.

Maintaining a strict filter-change schedule is the cheapest insurance for your hydraulic machinery.

Fluid Grade	Avg Temp Range	Use Case
ISO 32	Cold / Indoor	Precision Control
ISO 46	Moderate Outdoor	General Agriculture
ISO 68	Hot / Heavy Duty	Mining & Construction

When Is It Time To Replace Your Cylinder?

There comes a point where bleeding and cleaning won’t fix why your single acting hydraulic cylinder won’t retract. Recognizing when a cylinder is “beyond economical repair” will save you money in the long run.

Is Rebuilding More Costly Than A New Unit?

Labor costs for a professional rebuild can often approach the price of a brand-new factory unit.

• Custom machining for a new rod is expensive.
• Honing a deeply scored barrel takes significant time.
• Obsolete seal kits may be hard to find and overpriced.
• A new unit comes with a fresh factory warranty.

You should weigh the downtime of a rebuild against the immediate availability of a replacement.

How To Sourcing A Performance Built Replacement?

Choosing a replacement that exceeds the original manufacturer’s specs will prevent a repeat of the failure.

• Look for hard-chromed rods for corrosion resistance.
• Verify the pressure rating matches your power unit.
• Ensure the mounting types (Clevis, Trunnion) are identical.
• Check for high-quality polyurethane seals.

A properly matched cylinder will integrate seamlessly into your system and provide years of trouble-free service.

Option	Cost	Benefit
DIY Seal Kit	Low	Fast, Temporary
Shop Rebuild	Medium	Expert Assembly
New Cylinder	High	Maximum Longevity

Conclusion

In conclusion, a single-acting cylinder that refuses to retract is a manageable problem when approached with the right diagnostic mindset. Whether you are dealing with trapped air that requires a careful bleed, a mechanical jam from a bent rod, or a simple blocked breather vent, the steps outlined here will guide you back to full operational status. Our goal is to provide you with factory-direct precision and the technical support needed to eliminate downtime from your operations. If you need further technical assistance or a high-performance replacement, please contact us today.

Frequently Asked Questions

Can I bleed the cylinder while it is under a heavy load?

No, you should never attempt to bleed a cylinder under load as the fluid can spray out with extreme force, potentially causing serious injury or causing the load to drop uncontrollably. Always support the load mechanically with jack stands before beginning the bleeding process.

What’s the best way to prevent air from entering the lines again?

Keep your hydraulic fluid reservoir filled to the correct level and ensure all fittings are torqued to the manufacturer’s specifications. Regularly inspect hoses for cracks and replace worn seals immediately, as these are common entry points for air infiltration.

How do I know if my return spring is permanently weakened?

If the cylinder retracts partially but stops short of its home position even when the fluid lines are disconnected, the spring likely has lost its tension or is broken. At this stage, the spring must be replaced or the entire cylinder swapped for a new unit.

Can I use a different hydraulic fluid to speed up retraction?

Yes, switching to a lower viscosity fluid (like ISO 32) can sometimes speed up retraction in cold weather. However, you must ensure the new fluid is compatible with your seals and the requirements of your hydraulic pump to avoid causing internal damage.

How do I know if the internal blockage is in the valve or the cylinder?

Disconnect the hydraulic hose at the cylinder port while the load is safely supported; if the cylinder now retracts under gravity or spring force, the blockage is in the hose or the control valve. If it still won’t move, the issue is internal to the cylinder itself.
