Unlike Standard hydraulic cylinders, these customized solutions offer unmatched versatility and precision. Each hydraulic cylinder is engineered to meet particular force, speed, and environmental conditions, making them a crucial component in a wide array of machinery. The bespoke nature ensures that every aspect, from the diameter of the cylinder to the type of seal used, is optimized for its intended application, resulting in improved performance and longevity.
Customizing the right hydraulic cylinder begins with a thorough understanding of the application requirements, including force requirements, space constraints, environmental conditions and expected life cycle. To translate these needs into a workable design, it is critical to work with an experienced engineer. This process includes selecting the right materials, determining the perfect size and type, and incorporating any special features required. Through innovative design, precise engineering and rigorous testing, a hydraulic cylinder is created that meets your specific requirements, ready to increase your efficiency and productivity.
As the heart of a hydraulic system, the hydraulic cylinder converts hydraulic energy into a powerful mechanical force. This conversion occurs when hydraulic fluid is pressurized in the piston chamber to produce linear motion. A hydraulic cylinder consists of several key components: the cylinder barrel, piston and piston rod, which work together to ensure that hydraulic energy is smoothly converted into the force required to drive the machinery. This basic principle allows hydraulic cylinders to achieve powerful, controlled motion in a wide variety of applications, making them indispensable equipment in heavy-duty industrial environments.
Single-acting cylinders exert force in one direction only, using hydraulic pressure to extend the piston and relying on other forces (like gravity) for retraction. They are simpler in design and often used in applications where the return motion doesn’t require significant force.
Double-acting cylinders, on the other hand, use hydraulic power to move in both directions (extend and retract). This dual action is essential in applications requiring precise control over both forward and reverse movements, making them more versatile than their single-acting counterparts.

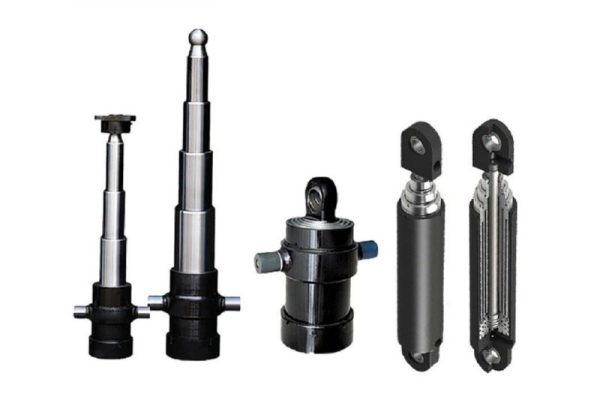

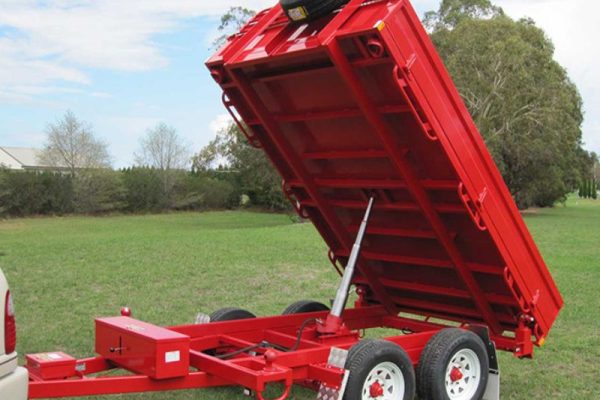

They are designed with multiple stages (sleeves) that extend sequentially, providing a much longer stroke than is possible with a single-stage cylinder. This makes them ideal for applications like dump trucks or lift gates, where a long extension is needed, but space is limited when retracted.
Known for their strength and durability, welded rod cylinders are built to withstand the rigors of heavy-duty applications. The rod and end caps are welded directly to the barrel, providing a robust structure. They are commonly used in rugged environments where reliability is critical.
Tie rod cylinders are easily recognizable by the external rods that connect the end caps to the barrel. This design allows for easy disassembly and maintenance. Their modular construction means they can be easily customized and repaired, providing a flexible and reliable solution for a wide range of applications.
Before diving into the design and construction of a custom hydraulic cylinder, several preliminary considerations need to be thoroughly evaluated to ensure the final product meets the application’s demands efficiently and effectively.
Understanding the specific needs of your application is paramount. This involves a comprehensive assessment of the task the cylinder will perform, the constraints it will operate under, and the ultimate goals you aim to achieve. Consider the following:
Purpose: What is the primary function of the cylinder? Will it be lifting heavy loads, controlling precise movements, or operating under harsh conditions?
Constraints: Are there limitations related to the environment, space, or resources that could impact the design?
Goals: What are the expectations regarding the cylinder’s performance, lifespan, and maintenance needs?
The load that the cylinder must move is a critical factor in its design. Calculating this involves understanding the force needed and the mechanics of the system it will be a part of. Consider:
Force Calculation: Determine the force required by considering the weight of the load and any additional factors like friction or inertia.
Safety Factors: Always incorporate a safety margin beyond the maximum expected load to ensure reliability under unexpected conditions.
Dynamic vs. Static Loads: Understand if the load will be moving (dynamic) or stationary (static), as this impacts the design requirements.
The operating environment can significantly impact the performance and longevity of a hydraulic cylinder. Key environmental factors to consider include:
Temperature: Extremes of heat or cold can affect the viscosity of hydraulic fluid and the integrity of seals and other components.
Moisture: Exposure to water or high humidity can lead to corrosion and other issues.
Chemicals: If the cylinder will be exposed to harsh chemicals, special materials and coatings may be needed to protect it.
Contaminants: Dust, dirt, and other particulates can cause wear and tear if not properly managed.
The physical space the cylinder will occupy is a crucial determinant in its design. Inadequate consideration of space and size can lead to inefficiencies or even system failure. Keep in mind:
Space Constraints: Measure the area where the cylinder will be installed to ensure a proper fit.
Mounting: Consider how and where the cylinder will be mounted, as this affects the required space and the type of cylinder used.
Retracted/Extended Length: Ensure the cylinder can fully retract and extend within the available space.
Embarking on the design process of a custom hydraulic cylinder is a meticulous journey that requires a careful balance between objectives, constraints, and innovation. Here’s how to navigate through this crucial phase:
Begin by clearly defining what the cylinder must achieve and the boundaries within which it must operate. Objectives could range from achieving a certain force or speed to fitting within a specific space or budget. Constraints might include material availability, environmental conditions, or regulatory requirements. Understanding these elements upfront ensures that the design is focused and purpose-driven.

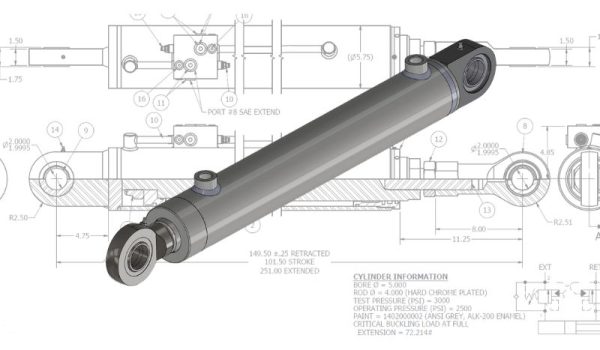

This stage is where creativity meets engineering. Start by drafting rough sketches of the cylinder design, considering different configurations and how they might meet the established objectives. Brainstorm with team members, if applicable, to explore a wide range of solutions. This phase is not about perfection; it’s about visualizing possibilities and laying down a foundation for more detailed design work.
Choosing the right materials is critical for ensuring durability, resistance to environmental conditions, and overall performance. Consider the following:
Cylinder Barrel: Typically made from honed steel tubes for strength and smooth operation.
Piston Rod: Often crafted from hardened steel to resist bending and wear.
Seals and Bearings: Must be selected based on compatibility with hydraulic fluid and the operating environment to prevent leaks and ensure smooth movement.
Coatings: Additional coatings might be necessary for corrosion resistance or to reduce wear.
Precision in dimensions and tolerances is vital for the performance and longevity of the hydraulic cylinder. This includes:
Bore Size: Determines the force output of the cylinder.
Rod Diameter: Impacts the strength and buckling resistance of the piston rod.
Stroke Length: The distance the piston travels, which must fit within the space constraints and achieve the desired movement.
Tolerances: Precise manufacturing tolerances are essential to ensure proper fit and function of all parts.
The way a cylinder is mounted can significantly affect its performance and longevity. Options include:
Pivot Mounts: Allow for movement in one plane and are ideal for applications with misalignment or change in axis.
Flange Mounts: Provide rigid and stable mounting, suitable for high-force applications.
Foot Mounts: Offer versatility but can be less stable than other types.
Trunnion Mounts: Allow the cylinder to pivot in multiple planes and absorb force from different directions.
When designing a custom hydraulic cylinder, it’s not enough to just meet the basic requirements; you must also delve into advanced considerations that ensure optimal performance, longevity, and safety. These considerations are crucial in refining your design to withstand real-world conditions and comply with strict industry standards.
Your hydraulic cylinder will likely face a range of environmental and operational stresses that can affect its performance and lifespan. Conducting a thorough stress analysis is essential to understand and mitigate these factors:
The dynamics of how the cylinder will move are crucial to its design. Optimizing for speed, acceleration, and load variations ensures efficient and reliable operation:
Safety should never be an afterthought when designing hydraulic cylinders. Ensuring your design meets all relevant industry standards and pressure ratings is crucial:
Advancements in technology have paved the way for features that can significantly boost the performance, efficiency, and versatility of hydraulic cylinders. Some of these innovative features include:
Adjustable Cushioning: This feature allows for the smooth deceleration of the piston at the end of each stroke, reducing shock and wear on the cylinder and the machinery it’s a part of. It’s particularly beneficial in high-speed applications where sudden stops can cause damage.
Multi-Stage Telescoping: For applications requiring a long stroke but with limited space, multi-stage telescopic cylinders provide an ideal solution. These cylinders extend much further than their retracted length would suggest, offering versatility and functionality in compact areas.
Integrated Sensors: Incorporating position or load sensors can provide real-time feedback for more precise control and monitoring of the cylinder’s operation. This is especially useful in applications where the exact position of the piston rod needs to be known.
Smart Cylinders: With the advent of IoT and smart technology, cylinders can now be integrated into larger monitoring and control systems, providing predictive maintenance alerts, performance tracking, and more efficient operation.
The final and crucial phase in obtaining your custom hydraulic cylinder involves partnering with the right manufacturer. This relationship is foundational to realizing your well-planned design and ensuring its operational success. Here’s how to navigate this partnership effectively:
Selecting a manufacturer is a decision that significantly influences the quality, reliability, and performance of your hydraulic cylinders. Consider these factors:
Expertise: Look for a manufacturer with extensive experience in producing custom hydraulic cylinders and a deep understanding of different industries.
Reputation: Seek out feedback and reviews from previous customers to gauge the manufacturer’s reliability and the quality of their products.
Capabilities: Ensure the manufacturer has the technological capabilities, machinery, and workforce necessary to produce the specific type of cylinder you need.
Customer Service: A responsive manufacturer who is willing to discuss your needs and provide ongoing support is invaluable.
Effective collaboration between you and the manufacturer is key to the successful realization of your custom cylinder. Here’s how to facilitate this:
Clear Specifications: Provide detailed and precise specifications to avoid misunderstandings and ensure the product meets your expectations.
Regular Updates: Stay informed about the progress of your order and be available to answer any questions that might arise.
Feedback Loop: Be open to suggestions from the manufacturer; their experience could provide insights that improve your design.
Quality should never be compromised. Ensure your chosen manufacturer has robust quality control and assurance processes in place:
Certifications: Look for manufacturers with certifications like ISO 9001, which indicates a commitment to quality management practices.
Testing Procedures: Ensure they have comprehensive testing procedures to catch any defects or issues before the cylinder leaves the factory.
Warranty and Support: A manufacturer confident in their product will offer after-sales support.
For those seeking customized solutions that meet stringent quality and performance standards, Topa is your manufacturer of choice. With our expertise in custom hydraulic cylinders, commitment to innovation, and strict quality control, we ensure that every cylinder meets your specific needs and operational challenges. When you partner with Topa, we prioritize the performance and efficiency of your machine. Choose Topa for a partnership that will take your custom hydraulic cylinder from concept to reality and realize your ideal design!
The design of custom hydraulic cylinders is a complex process that combines engineering and innovative design. By understanding the basics and considering your unique needs, you can design a hydraulic cylinder that meets your exact requirements. Embark on a customized journey and take your operational success to new heights!
