Single & Double Acting Cylinders
Bore size, stroke, mounting type, and working pressure can be adapted for your exact equipment, including agriculture, construction, and industrial machinery.
Hydraulic Cylinder Manufacturer in China
Custom Hydraulic Cylinders
Built for Real Working Conditions
Whether you need a replacement cylinder or a full OEM batch, we engineer durable, precise, and well-tested cylinders for excavators, trailers, presses, farm machines, and industrial systems.
Supported Cylinder Types
We customize cylinders for both standard and demanding applications across industrial, agricultural, and mobile machinery.
Double Acting
Moves under pressure in both directions for precise control and stable output.
Single Acting
Operates in one direction with pressure, ideal for lifting or pushing tasks.
Telescopic
Multi-stage extended stroke cylinders for dump trucks, trailers, and lifting units.
Tie Rod
Strong, repairable structure widely used in industrial and manufacturing equipment.
Welded
Compact, durable design with welded heads—ideal for mobile machinery.
Heavy Duty
Reinforced structures for harsh pressure cycles in mining and construction.
Steering Cylinders
Built for accurate steering control in tractors, loaders, and mobile equipment.
Special Purpose Cylinders
Custom-built for unique machine layouts, extreme temperature, or special loads.
What You Can Customize
Design hydraulic cylinders that match your machine and working conditions. Adjust size, pressure level, mounting style, and protection so each cylinder fits your project both mechanically and economically.
Size
Bore & Rod Diameter
Choose bore and rod sizes to match your load and speed. We machine barrels and rods to tight tolerances for smooth motion and stable force output.

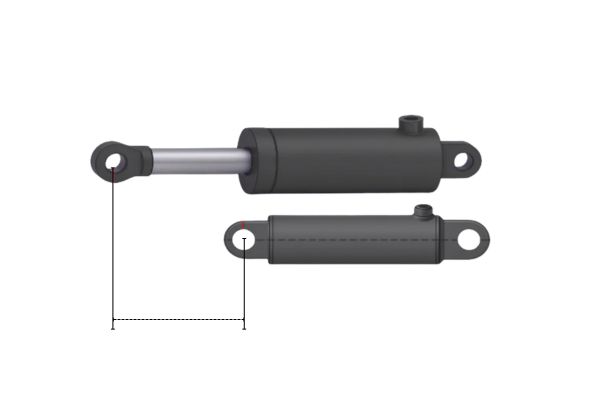

Travel
Stroke Length
Set the exact stroke you need for lifting, pushing, steering, or clamping. Short, medium, and long strokes are available for different machine layouts.
Mounting
Mounting Types
Front flange, rear flange, clevis, trunnion, spherical bearings, foot mounts and other custom options to match your existing brackets and pins.
Pressure
Working Pressure
Configure cylinders for low, medium, or high-pressure systems. Wall thickness, material grade, and seal selection are matched to your pressure range.

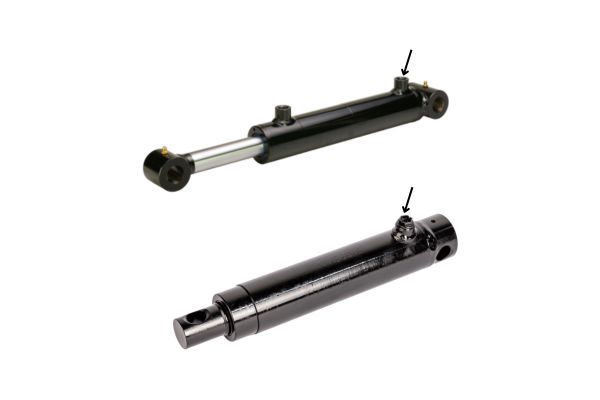

Connection
Ports & Thread Types
Pick BSP, NPT, SAE or custom port styles to match your hoses and fittings. Port size, position, and orientation are set according to your manifold or piping layout.
Protection
Coatings & Colors
Select painting systems, primers, and colors that match your brand and working environment, from standard industrial paint to stronger anti-corrosion layers.
Hydraulic Cylinder Highlights
We focus on stable quality rather than fancy marketing. Every cylinder is built for daily work: heavy loads, dusty yards, long transport, and demanding customers who cannot afford machine downtime.
Telescopic and Custom Stroke
Multi-stage designs for dump trucks, tipping trailers, lifting platforms, and narrow installation spaces where long stroke is needed but space is limited.
Durable Rod and Sealing System
Chrome or induction hardened rods, quality seals, and proper surface treatment help your cylinder keep working even under dusty, muddy, or salty conditions.
Flexible Mounting and Ports
Clevis, trunnion, flange, eye, or custom mounting; port styles matched with your local hose and fitting standards to make installation easier.
Tell us your cylinder size, working pressure, and application so we can match a proper cylinder design for you.

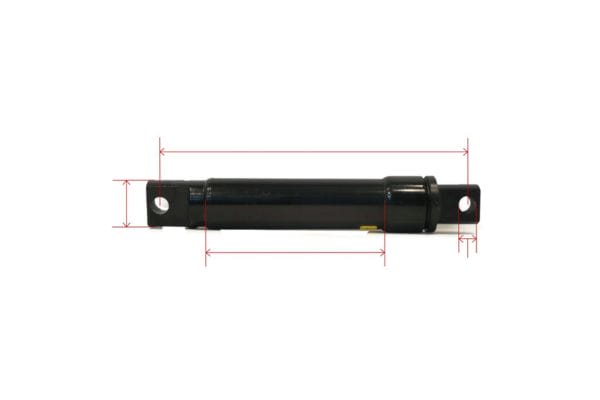

Typical Cylinder Technical Outline
Below is an example of a working range for a general-purpose double-acting cylinder. We adapt the parameters to your machine.
Bore diameter40–250 mm
Rod diameter20–140 mm
StrokeUp to 3000 mm (or more on request)
Working pressureUp to 250 bar (higher case by case)
MountingClevis, trunnion, flange, eye, custom
MediumHydraulic oil or other fluid on request
Surface treatmentPainting, galvanizing, or special coating
We will not force you to adopt a fixed catalog model, but rather adjust key parameters based on your equipment and actual market requirements. When you send us your drawings, we will manufacture the most satisfactory product according to your specifications.
Share your current cylinder parameters so we can confirm if they match your working pressure and load.
Industries We Serve
Whether you run a small farm, a repair workshop, or a machine manufacturing company, cylinders from Topa can be adapted to your working environment and duty cycle.
Agriculture Equipment
Cylinders for tractors, loaders, seeders, sprayers, and attachments where reliability during the farming season is critical.
Construction & Earthmoving
Boom, arm, bucket, and stabilizer cylinders for excavators, cranes, and lifting machines working in rough, dusty sites.
Mining & Industrial
High-pressure cylinders for presses, handling systems, and continuous-working industrial equipment.
Trailers & Transport
Telescopic or tie-rod cylinders for tipping trucks, container handling, and space-limited special trailers.
Let us know which industry you are in so we can share similar cases and cylinder designs we made for others.
Compare Cylinder Options
Different projects need different cylinder concepts. This table gives a simple view of what you can expect.
| Type | Best For | Main Advantages | Things to Note |
|---|---|---|---|
| Single Acting | Simple lifting, gravity return | Lower cost, simpler plumbing | Not suitable where controlled retraction is needed |
| Double Acting | Most mobile and industrial equipment | Controlled movement in both directions | Requires two lines and proper valve choice |
| Telescopic | Dump trucks, tipping trailers | Long stroke with compact retracted length | Higher technical requirements and careful use |
| Tie-Rod | Industrial presses, factory equipment | Easy to service, standard interfaces | Not always suitable for very harsh outdoor use |
Tell us how your machine works and we will recommend a suitable cylinder type.
Engineering Capability
Our engineering team connects real working conditions with practical cylinder designs. From drawings to mass production, each cylinder is reviewed so it fits your loads, pressure, and duty cycle.
20+ Years Engineering Team
Senior engineers with long-term cylinder design and application experience help you size, select, and optimize cylinders for your machines.
CNC Machining
CNC lathes and machining centers keep bore, rod, and mounting dimensions within tight tolerances for smooth motion and easy installation.
Honing Machines
Cylinder tubes are honed to consistent surface roughness, improving seal life and reducing internal leakage over long working cycles.
Automatic Welding
Automatic and semi-automatic welding equipment helps achieve stable weld quality on cylinder heads, bases, ports, and mounting parts.
Seal Systems
Different seal brands and profiles are selected based on pressure, speed, temperature, and oil type to match your real operating environment.
Material Options
Tube, rod, and mounting materials can be upgraded for corrosion resistance, impact resistance, or specific standards required by your market.
Global Shipping Experience
Cylinders are already working in Asia, Europe, the Middle East, Africa, North America, and South America. We are familiar with export packing, marks, and paperwork.
- EURegular shipments to Germany, Italy, Spain, Poland, and other EU countries with pallet or wooden case packing.
- AUCylinders for farm machines, attachments, and trailers working in Australia and New Zealand.
- USCooperation with distributors and OEMs in the United States, Canada, and Latin America.
- MECylinders supplied for equipment in the Middle East and African markets with attention to high temperature and dusty sites.
Tell us your destination port, and we will suggest packing method, shipping term, and approximate delivery time.
How We Ensure Compatibility
Each cylinder is checked against your machine details so ports, mounting, stroke, and pressure range match your real working conditions.
Replace Original Cylinder
We cross-check your photos, samples, and drawings so the new cylinder can directly replace the original unit on your machine.
Build New Design
For new machines, our engineers design cylinders based on your structure, stroke, load, and duty cycle targets.
Match Ports & Mounting
Port threads, locations, and mounting styles are aligned with your hoses, brackets, pins, and frames to avoid rework on site.
Confirm Working Pressure
We verify system pressure, safety margin, and cylinder wall thickness so the design stays safe in real operation.
Sample Checking
Sample cylinders can be tested on your machine first, and any feedback is used to fine-tune the next batch.
Dimensional Verification
Key dimensions such as pin size, stroke, retracted length, and mounting distances are measured and recorded before shipment.
Factory & Production View
You and your clients care about where cylinders come from. These real workshop photos show machining, welding, assembly, and packing to build trust.
CNC machining for barrel, rod, and components
Welding, assembly, and function test bench
Finished cylinders with export packing for shipment
If you need factory photos or video to show your own clients, let us know and we will prepare a package for you.
Custom Hydraulic Cylinder Service
You may have only rough dimensions, a sample cylinder, or a machine photo. Our team can still work with you and propose a suitable cylinder design.
- Send drawing, photo, or key parameters such as bore, stroke, pressure, mounting, and environment.
- Engineers review details and may clarify a few points to avoid issues in real operation.
- We provide a technical drawing and quote with a clear lead time for your decision-making.
- After confirmation, cylinders enter machining, welding, testing, and final inspection before shipment.
• Bore and rod size matching your pressure and load
• Stroke and retracted length matched to machine space
• Mounting type and pin size for easy installation
• Port type, size, and orientation for your hose standard
• Paint color, logo, and packing labels for your brand
• Special requirements such as cushions or special seals
Service Process with Topa
Simple, transparent steps from first message to delivered cylinders.
1
Inquiry & Application Understanding
You send us drawings, photos, or key data and explain briefly how and where the cylinders are used.
2
Engineering Review & Quotation
Engineers review your details, adjust parameters if needed, and we issue drawing, price, and lead time.
3
Order Confirmation & Production
After confirmation, materials are prepared, cylinders are machined, welded, assembled, and pressure tested.
4
Packing, Shipment & Support
Cylinders are packed for export, shipped to your destination, and supported by our team if you need any help.
Tell us which step you are in now, and we will guide you from there.
Frequently Asked Questions
Questions most buyers ask before ordering custom hydraulic cylinders.
What details do you need to design a cylinder? +
Bore, rod, stroke, pressure, mounting type, working environment, and photos of your machine help us design the correct model.
Can you copy my old or damaged cylinder? +
Yes. Send photos with measurements or send the sample directly to us. We re-measure and produce drawings for confirmation.
Do you provide drawings before production? +
We offer a detailed drawing for your approval, including stroke, pressures, tolerances, port size, and mounting dimensions.
What if I only know rough dimensions? +
Rough size, photos, or a sketch is enough to start. Our engineers will fill in missing details and propose a safe design.
How do you check if the cylinder fits my machine? +
We check pin size, retracted length, stroke, mounting points, pressure range, and port orientation to match your equipment.
Can you customize special requirements? +
Yes. Cushioning, high-temperature seals, anti-corrosion materials, and special coatings are available upon request.
What is the usual lead time for custom cylinders? +
Most orders take a few weeks depending on quantity and type. We provide an accurate timeline after reviewing your details.
How do you ensure quality for custom cylinders? +
Cylinders undergo machining inspection, welding checks, pressure testing, and final QC before export packing.
Send Your Cylinder Details
You do not need perfect drawings. A simple sketch, basic dimensions, or photos already help us a lot.
- 1Bore size, rod diameter, stroke, and working pressure.
- 2Mounting type and installation position on your machine.
- 3Photos or drawings of your existing cylinder or machine.
- 4Working environment and usage conditions (dust, salt, cold, mining, continuous duty).
- 5Quantity required, destination port, and preferred delivery time.
- 6Any special requirements: cushion, double rod, position sensor, port angle, color, or logo.
