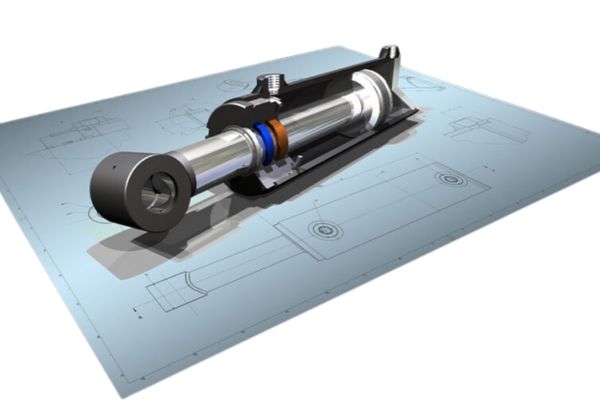

How to Design Hydraulic Cylinder for Your Application
To design hydraulic cylinder units that last, you must first identify the precise force requirements and environmental constraints of your operation. Integrating a custom-engineered cylinder ensures that every component—from the piston to the mounting style—is optimized for the actual work being performed. This approach prevents the costly “make-it-fit” errors common with generic hardware.
Is Your Chosen Cylinder Design Built For Longevity?
The design of your cylinder determines its structural integrity under high-cycle operations. While many rely on basic configurations, choosing between a welded or tie-rod architecture affects how the unit handles internal pressure and external vibration.
Is there a specific reason to choose one over the other? You might find that the space-saving benefits of a welded design outweigh the modularity of other types.
- Space-efficient profiles for tight equipment integration
- Higher pressure ratings for heavy-duty lifting
- Increased durability in high-vibration environments
| Design Type | Best For | Typical Pressure |
| Welded Body | Mobile Equipment | 3,000 – 5,000 PSI |
| Tie-Rod | Industrial Plant | 2,500 – 3,000 PSI |
| Telescopic | Long Stroke/Small Space | Variable |
Choosing the right base architecture is the foundation of any successful engineering project.
How Do You Choose Between Single and Double Acting?
The design hydraulic cylinder process requires a clear understanding of your load’s return path. Single-acting cylinders are efficient for simple lifting where gravity or springs handle the retraction, reducing hydraulic complexity.
However, if your application demands powered movement in both directions, a double-acting system is non-negotiable for precision control.
- Simplified plumbing for single-direction force
- Positive control for both extension and retraction
- Reduced fluid requirements in gravity-return setups
| Action Type | Oil Flow | Common Application |
| Single Acting | One Port | Dump Trucks |
| Double Acting | Two Ports | Excavators |
Think about whether your machine can rely on external forces to bring the rod back home.
What Is the Actual Working Load Your System Faces?
Calculating the working load is the most critical step in determining the required bore size and operating pressure. To design hydraulic cylinder components correctly, you must account for both static weight and the dynamic resistance encountered during movement.
If you ignore the friction coefficient of the sliding surface, you risk underpowering the entire hydraulic circuit.
- Vertical lifting requires 1:1 force to weight ratio
- Horizontal sliding requires force to overcome friction
- Safety factors usually range from 1.5x to 2x the load
| Load Direction | Force Calculation | Impact on Bore |
| Vertical | Mass x Gravity | Maximum Bore Required |
| Horizontal | Mass x Friction | Moderate Bore Required |
Determining the peak load ensures your power unit doesn’t stall at the most critical moment.
How Does Bore Size Impact Your Total Force Output?
The bore size is the engine of your hydraulic cylinder, directly translating pressure into mechanical force. When you design hydraulic cylinder specifications, the internal surface area of the piston determines how much work can be done at a specific PSI.
A larger bore provides more lifting power but requires more oil volume, which could slow down your cycle times.
- Increases extension force at constant pressure
- Determines the volume of oil required per stroke
- Affects the overall outer diameter of the assembly
| Bore Diameter | Force at 3,000 PSI | Flow Required |
| 2 Inches | 9,425 lbs | Low |
| 4 Inches | 37,699 lbs | Medium |
| 6 Inches | 84,823 lbs | High |
Balancing force requirements with available pump flow is a delicate part of the engineering phase.
Why Does Geometry of Motion Alter Force Requirements?
Many engineers fail to account for the “lost force” when a cylinder operates at an angle rather than a direct line. To design hydraulic cylinder mounts properly, you must use trigonometric calculations to ensure the cylinder can handle the peak side-loading.
As the angle of operation changes during a stroke, the effective force can drop significantly, potentially stalling the machine.
- Side-loading causes premature wear on the rod bearings
- Angular motion requires larger rod diameters for stability
- Pivot points must be aligned to minimize parasitic friction
| Pivot Angle | Effective Force | Stress Level |
| 0 Degrees | 100% | Low |
| 45 Degrees | ~70% | Medium |
| 60 Degrees | ~50% | High |
Ensuring the cylinder is positioned for maximum leverage will save your seals from unnecessary stress.
Can Your Rod Size Withstand Maximum Stroke Extension?
Stroke length dictates the reach of your equipment, but it also introduces the risk of rod buckling. When you design hydraulic cylinder rods for long-reach applications, the diameter must be thick enough to resist bending under full compression.
Standard cylinders often have rods that are too thin for custom long-stroke tasks, leading to catastrophic failure.
- Prevents rod deflection during full extension
- Reduces internal bearing wear on long-stroke units
- Supports the weight of the rod itself when horizontal
| Stroke Length | Minimum Rod OD | Buckling Risk |
| 12 Inches | 1.25″ | Very Low |
| 48 Inches | 2.50″ | Moderate |
| 90+ Inches | 4.00″+ | High |
Checking the Euler buckling charts is a standard procedure for any long-reach hydraulic project.
How Does Duty Cycle Affect Component Selection?
The frequency of your cylinder’s operation determines the grade of seals and the type of finish required on the rod. To design hydraulic cylinder systems for 24/7 industrial use, you need heavy-duty ports and fatigue-resistant welds.
If your cylinder cycles every 30 seconds, a standard agricultural-grade unit will likely fail within months.
- High-cycle apps require premium polyurethane seals
- Hard-chrome plating prevents rod scoring over time
- Induction-hardened rods resist impact in rough environments
| Usage Frequency | Seal Grade | Expected Life |
| Intermittent | Standard Nitrile | 2-3 Years |
| Constant (24/7) | Viton / Poly | 5+ Years |
Matching the component quality to the work frequency prevents unplanned downtime during peak production.
Will Your Operating Environment Corrode the Assembly?
Environmental factors like salt spray, extreme heat, or abrasive dust can destroy a cylinder from the outside in. When you design hydraulic cylinder protection, you must choose coatings like ceramic or stainless steel for harsh conditions.
You wouldn’t use a standard steel cylinder on an offshore oil rig without expecting rust within weeks.
- Stainless steel rods for marine and food-grade use
- Bellows or rod boots to keep grit out of the seals
- Special low-temperature seals for arctic operations
| Environment | Material Choice | Protection Level |
| Marine | 316 Stainless / Ceramic | Extreme |
| Mining | Hardened Rods / Boots | High |
| Indoor Plant | Standard Painted Steel | Normal |
Protecting the external surfaces is just as important as the internal hydraulic performance.
Which Mounting Style Provides the Best Stability?
The way a cylinder is attached to the machine determines how well it handles stress and misalignment. To design hydraulic cylinder mounts like clevis, trunnion, or flange, you must evaluate the direction of the load.
A flange mount is excellent for direct force, but it provides zero tolerance for any angular misalignment.
- Clevis mounts allow for movement in one plane
- Trunnion mounts reduce the effective length of the rod
- Spherical bearings handle minor multi-axis misalignment
| Mount Type | Best Load Path | Misalignment |
| Flange | Straight Line | None |
| Clevis | Arc / Pivot | Medium |
| Spherical | Complex Motion | High |
Selecting a mount that allows for natural machine movement will extend the life of your bushings.
How Do Integrated Valves Enhance Safety and Control?
Modern hydraulic systems often require more than just movement; they require precision holding and safety checks. To design hydraulic cylinder units with integrated valves, you eliminate the need for external plumbing that can leak or break.
Imagine a load-holding valve that prevents a boom from dropping even if a hose bursts—this is a critical safety feature.
- Counterbalance valves for smooth load lowering
- Pilot-operated checks for drift-free holding
- Thermal relief valves to prevent over-pressurization
| Valve Type | Primary Function | Benefit |
| Counterbalance | Load Control | No Chattering |
| Check Valve | Static Holding | Safety |
| Relief Valve | Pressure Limit | Protection |
Integrating these features directly into the cylinder head creates a cleaner and safer machine.
Conclusion
By following these engineering steps, you ensure that every component is tailored to the specific demands of your equipment. This purpose-built approach reduces maintenance costs and increases the operational safety of your hydraulic systems. We are committed to providing the technical expertise required to solve your most complex fluid power challenges. If you are ready to optimize your machinery, feel free to contact us today.
Frequently Asked Questions
Can I use a standard cylinder for a high-cycle application?
It is generally not recommended. Standard cylinders lack the specialized seals and hardened surfaces needed to resist the heat and wear of constant cycling, leading to early leaks.
What’s the best way to prevent rod buckling?
Increasing the rod diameter or using a “stop tube” inside the cylinder are the most effective methods. These additions provide the lateral stability required when the rod is fully extended under load.
How do I know if I need a custom cylinder?
If you find yourself modifying your machine to fit a catalog cylinder, or if you are replacing seals more than once a year, a custom-engineered solution is likely necessary.
Can I integrate position sensors into the design?
Absolutely. Smart cylinders can be designed with internal linear transducers that provide real-time feedback to your control system for automated operations.
What’s the best material for highly corrosive environments?
For marine or chemical environments, using a 316 stainless steel rod with a ceramic coating or specialized nitro-carburizing provides the best resistance to pitting and rust.
