How to Choose the Right Hydraulic and Pneumatic Cylinder
Choosing between a hydraulic cylinder and a pneumatic cylinder requires evaluating your specific application’s load, speed, and precision demands. Imagine standing on a loud factory floor, watching a critical actuator stall under an unexpected load spike while team production targets vanish. This article resolves this exact engineering bottleneck by comparing the mechanical limits, infrastructure costs, and environmental tolerances of fluid power systems. Selecting the correct hydraulic cylinder and pneumatic cylinder option for your machinery prevents structural failures and optimizes long-term floor efficiency.
Why Does Fluid Power Matter in Industrial Automation?
Fluid power matters because it dictates the raw force capacity, response times, and overall mechanical reliability of your automated production machinery. Selecting the proper transmission medium directly impacts energy efficiency when your engineers build or overhaul automated assemblies. You must balance the structural stiffness of oil-driven units against the fast cycling characteristics of compressed air components.

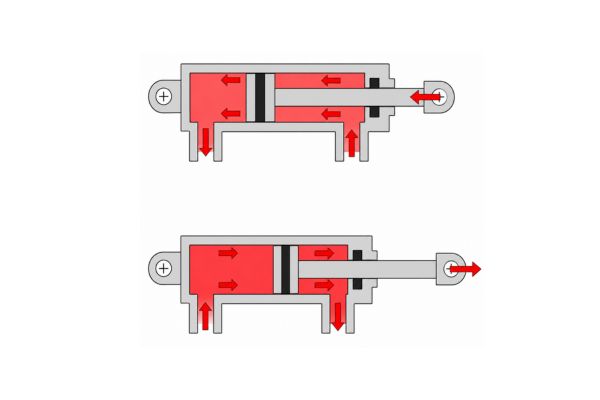

Defining the Core Mechanics
Fluid power utilizes pressurized liquids or gases to generate linear motion across production environments. Here is the truth: hydraulic machinery relies on incompressible oil to move extreme structural weights smoothly without losing speed. Pneumatic systems harness clean, compressed air to drive rapid, repetitive strokes that keep automated assembly lines running smoothly.
- Hydraulic fluid acts as a solid link providing rigid control under heavy loads.
- Compressed air cushions impacts but offers lower structural holding resistance.
Evaluating these basic parameters protects your machinery from choosing the wrong medium.
Evaluating Your Current Force Demand
Your choice depends entirely on the physical resistance your actuators must overcome during peak operational hours. You know the problem: heavy-duty manufacturing setups demand deep power densities that compressed air lines cannot physically deliver. If your project requires shifting loads under 2,000 pounds at high speeds, air systems offer the cleanest path forward.
- High force demands require heavy-walled cylinders with reinforced seals.
- Low force configurations use lightweight aluminum bodies to reduce inertia.
| System Component | Primary Medium | Max Typical Force | Best Feature |
|---|---|---|---|
| Hydraulic Setup | Mineral Base Oil | Up to 4,000 PSI | Rigid Force Control |
| Pneumatic Setup | Compressed Air | Up to 150 PSI | Rapid Cycle Speeds |
When Should You Deploy High Pressure Hydraulic Force?
You should deploy high-pressure hydraulic force when your application demands heavy lifting capacity, rigid structural positioning, and constant force output. Heavy industrial environments cannot afford the structural flexing or drifting common with compressible air systems. The robust construction of a high-pressure hydraulic cylinder and pneumatic cylinder setup ensures stable holding power even during peak load variations. You gain predictable performance under extreme mechanical duress.
Handling Massive Structural Loads
Massive structural loads require the high energy density provided exclusively by specialized high-pressure oil systems. When stamping presses or heavy industrial doors encounter resistance, the fluid medium must remain completely incompressible. Using oil allows the system to hold precise intermediate positions without slipping or creeping under changing weights.
- Heavy steel mills use thick forged rods to prevent bucking under stress.
- Earthmoving machinery relies on integrated checks to maintain structural locks.
Monitoring these high loads protects your workers from unexpected mechanical shifts during heavy processing tasks.
Managing Heavy Manufacturing Systems
Managing heavy systems requires constant pressure management across every single connected line in your facility. Trying to scale air systems to manage these massive manufacturing loads results in oversized, inefficient components. Hydraulic lines distribute immense force while keeping the physical actuator footprint remarkably small.
- Rigid iron casings endure high internal shock pressures without risking explosive wall failure.
- High-pressure pumps maintain smooth linear movement across custom machinery.
| Actuator Attribute | Hydraulic Cylinder Performance | Target Industrial Application |
|---|---|---|
| Operating Pressure | 3,000 to 5,000 PSI | Heavy Forging and Stamping |
| Material Strength | High-Tensile Carbon Steel | Deep Mining and Excavation |
How Do Pneumatic Systems Excel in High Speed Tasks?
Pneumatic systems excel in high-speed tasks because compressed air moves swiftly through lines and exhausts instantly to allow rapid cycling. When your facility runs continuous packaging, sorting, or pick-and-place lines, cycle time is your primary performance metric.
Accelerating Factory Pick and Place Lines
Factory pick-and-place lines achieve maximum productivity when component weight is minimal and actuator stroke speed is optimized. Look at the numbers: compressed air quickly fills small bore chambers to shift light components across conveyor tracks within milliseconds. These lightweight systems minimize transit delays and maximize hourly part throughput across your entire facility.
- Aluminum body construction reduces the total moving mass of the pick-and-place head.
- Quick exhaust valves dump air instantly to permit immediate directional reversals.
Optimizing transit velocity allows you to keep up with aggressive daily volume targets comfortably.
Simplifying Cleanroom Component Movement
Cleanroom environments demand contamination-free operation that oil-based systems cannot guarantee due to seal weeping. Pneumatic components use pre-lubricated seals and dry air, eliminating the risk of messy fluid spills on delicate electronics. If an air line experiences a minor seal leak, it releases harmless atmospheric gas instead of toxic chemicals.
- Oil-free air filtration systems preserve pristine sterile environments during medical assembly.
- Corrosion-resistant composite housings prevent particle shedding near sensitive semiconductor wafers.
| Metric Parameter | Pneumatics Performance Metric | Production Benefit |
|---|---|---|
| Linear Velocity | Exceeds 40 Inches Per Second | Shorter Part Cycle Times |
| Environment Grade | Class 100 Cleanroom Compatible | Zero Risk of Fluid Smearing |
What Are the True Lifecycle Cost Differences?
The true lifecycle cost differences include the high upfront capital needed for hydraulic power units versus the hidden long-term energy costs of running pneumatic compressors. You must evaluate the total financial impact of an actuator system beyond its initial purchase price sticker.
Calculating the Initial Capital Expense
Initial capital expenses for oil-based setups are significantly higher due to the need for dedicated fluid infrastructure. You must purchase expensive hydraulic pumps, filtration arrays, reservoirs, and complex directional control valves. Pneumatic actuators connect directly to existing shop air lines, reducing your initial installation costs to a fraction of hydraulic alternatives.
- Air systems utilize simple filter-regulator-lubricator units at each local machine drop.
- Oil systems require heavy steel piping networks capable of withstanding massive pressure spikes.
Tracking your hardware expenses helps keep your infrastructure project within initial constraints.
Measuring Long Term Utility Consumption
Long-term utility consumption represents a hidden operational drain where compressed air systems prove highly inefficient. The truth is clear: converting electrical energy into compressed air suffers from massive thermodynamic losses and regular line leakage. Hydraulic power units operate at much higher overall thermal and mechanical efficiency levels during heavy cycles.
- Compressed air leaks account for significant power waste in older manufacturing plants.
- Closed-loop hydraulic oil circuits retain energy efficiently without constant atmospheric venting.
| Expense Category | Hydraulic System Lifecycle | Pneumatic System Lifecycle |
|---|---|---|
| Initial Procurement | High Investment Cost | Low Hardware Expense |
| Operating Efficiency | 70% to 80% Energy Retained | 10% to 20% System Efficiency |
Which System Prevents Catastrophic Fluid Contamination?
Pneumatic systems prevent catastrophic fluid contamination because they exhaust pure air, whereas hydraulic systems carry the inherent risk of high-pressure oil leaks. If your production line handles food, pharmaceuticals, or high-end textiles, a single oil mist rupture can ruin entire batches.
Analyzing Oil Leak Impacts in Food Plants
Oil leaks in food production facilities present severe health hazards and lead to immediate regulatory shutdowns. Standard hydraulic fluids can migrate past worn rod seals and drip directly onto processing conveyor belts. Even food-grade synthetic oils require expensive monitoring and frequent replacement to maintain compliance.
- Food lines prefer air cylinders to completely remove hydrocarbon risks from the area.
- Stainless steel pneumatic housings withstand aggressive chemical washdown routines without degrading.
Securing clean running hardware prevents batch failures and shields your operations from compliance fines.
Monitoring Exhaust Air Quality in Workshops
Workshop air quality demands proper filtration to ensure that pneumatic exhaust lines do not atomize trace lubricants into the room. Implementing coalescing filters ensures that the air released into your factory remains completely breathable. Sintered bronze mufflers reduce exhausting air noise while trapping microscopic oil particles.
- Oil-free air compressors eliminate the source of line contamination from the start.
- Point-of-Use exhaust filters maintain clean ambient breathing conditions for technicians.
| Contamination Risk | Hydraulic Mitigation Plan | Pneumatic Mitigation Plan |
|---|---|---|
| Fluid Leakage | Secondary Containment Pans | Point-of-Use Exhaust Filters |
| Product Spoilage | High Risk / Requires Food-Grade Oil | Zero Risk / Clean Atmospheric Release |
Why Does Environmental Temperature Dictate Seal Lifespan?
Environmental temperature dictates seal lifespan because extreme heat degrades soft rubber compounds, while severe cold causes seals to harden and crack. Your actuators must maintain a perfect seal to prevent pressure loss and internal bypassing during operation.
Shielding Components From Scorching Foundry Heat
Scorching foundry heat demands specialized fluorocarbon seals that resist thermal degradation and maintain elasticity at elevated temperatures. Standard polyurethane seals quickly soften, reshape, and fail when exposed to hot radiant metal surfaces. Hydraulic systems often use water-glycol fluids in hot zones to provide fire resistance alongside reliable lubrication.
- Viton seals endure continuous operating temperatures exceeding 400 degrees Fahrenheit.
- External heat shields protect exposed cylinder rods from flying slag and debris.
Upgrading seal heat ratings prevents frequent maintenance shut-downs in casting factories.
Preventing Freezing in Outdoor Arctic Operations
Outdoor winter operations require low-temperature seals and dry air lines to prevent ice crystals from locking up your actuators. When ambient temperatures drop below freezing, trace moisture in pneumatic lines can freeze valves shut instantly. Low-temperature nitrile seals retain flexibility down to minus 40 degrees.
- Hydraulic oils must maintain proper viscosity profiles to prevent cold pump cavitation.
- Desiccant air dryers strip moisture from pneumatic lines before it can freeze.
| Temperature Extreme | Recommended Seal Material | Critical Fluid Treatment |
|---|---|---|
| High Heat (Foundries) | Fluorocarbon (Viton) Compounds | Water-Glycol Fire Resistant Fluid |
| Extreme Cold (Arctic) | Low-Temperature Nitrile Rubber | Heated Enclosures / Desiccant Drying |
What Control Precision Accuracy Does Your Project Need?
Your project needs sub-millimeter control precision for machining or simple end-to-end travel for basic sorting and pushing tasks. Choosing an inappropriate system can lead to component rejection due to poor tolerances or over-engineering a simple application. Testing your hydraulic cylinder and pneumatic cylinder precision limits ensures you deploy the exact technology your tolerances demand. This balance optimizes both machine cost and performance.
Achieving Sub Millimeter Hydraulic Positioning
Sub-millimeter positioning requires the rigid, incompressible nature of hydraulic oil combined with electronic linear transducers. Because oil does not compress, a closed servo valve locks the cylinder rod in place with absolute rigidity. When CNC machinery or heavy aerospace fixtures shift, they must hold their exact position under changing cutting forces.
- Integrated magnetostrictive sensors feed real-time rod positions back to the controller.
- Proportional valves meter oil flow precisely to achieve smooth acceleration curves.
Implementing electronic linear sensors enables high feedback control during rapid material handling.
Managing Bang Bang Pneumatic Stroke Limits
Pneumatic systems excel at simple bang-bang control, where the cylinder moves quickly between fixed mechanical stops. Attempting to hold intermediate positions with compressed air is difficult because air compresses under varying external loads. For intermediate positioning, you must use specialized locking brakes or external multi-position cylinder configurations.
- Magnetic reed switches track when the piston reaches the end of its stroke.
- Shock absorbers cushion high-speed impacts at the end of travel.
| Precision Metric | Hydraulic Servo Control | Standard Pneumatic Line |
|---|---|---|
| Position Tolerance | Within +/- 0.001 Inches | Typically Limited to Hard Stops |
| Load Stiffness | Exceptionally High / No Deflection | Moderate / Prone to Deflection Spikes |
Which Actuator Fits Your Specific Industry Application?
The actuator that fits your industry depends on whether you run heavy construction equipment or high-speed automated consumer packaging lines. Matching the mechanical system to your specific market sector ensures long-term reliability and compliance with industry standards. Deploying the right hydraulic cylinder and pneumatic cylinder components keeps your operations competitive and highly efficient. Let’s look at real-world applications.
Upgrading Heavy Duty Construction Fleet Cylinders
Construction fleets operate in brutal environments that require the rugged force of heavy-duty welded oil cylinders. High-pressure hydraulics deliver the massive breakout forces required to cut through compacted earth and heavy rock layers day after day. Excavators, dump trucks, and bulldozers face constant shock loads and abrasive rock dust that would destroy an air cylinder instantly.
- Induction-hardened chrome rods resist rock impacts and prevent pitting corrosion.
- Heavy-duty wiper seals scrape away mud and grit before they can damage internal parts.
Choosing reinforced metal plating preserves long-term vehicle tracking capability in remote quarry fields.
Automating High Speed Packaging Line Workflows
Packaging lines require rapid cycles and clean operation, making lightweight pneumatic cylinders the ideal choice for these workflows. Cartoning machines, sorting gates, and sealing jaws rely on clean air to run thousands of cycles every hour without fail. The low moving mass of aluminum air cylinders prevents machine vibration and reduces wear on structural framing.
- Corrosion-resistant composite bodies withstand regular washdowns on food packaging lines.
- Compact tie-rod air configurations mount easily inside standard safety enclosures.
| Industry Sector | Recommended Actuator Type | Key Selection Factor |
|---|---|---|
| Infrastructure & Mining | Welded Steel Hydraulic | High Breakout Force Capacity |
| Consumer Goods Packaging | Mini Aluminum Pneumatic | Rapid Cycling / Zero Contamination |
Conclusion
Choosing between a hydraulic cylinder and a pneumatic cylinder determines your production line’s ultimate force capacity, operation speed, and maintenance cost. This detailed guide has resolved your core engineering dilemma by breaking down pressure limits, contamination risks, and structural positioning accuracies. Whether your plant requires the high-pressure holding power of oil-driven units or the rapid cycling of clean air actuators, making the correct selection prevents expensive breakdowns. If you need expert guidance to optimize your system design, contact us today for a complete engineering consultation that keeps global manufacturing moving forward.
Frequently Asked Questions
Can I Convert a Hydraulic System to Pneumatic?
No, you cannot convert it directly because hydraulic components are designed for higher pressures and lack the sealing geometry required for low-viscosity air. Trying to run compressed air through hydraulic valves results in massive leakage and poor control.
What Is the Best Way to Stop a Pneumatic Cylinder Mid Stroke?
The best way is to install a three-position directional control valve with a closed center configuration or an external mechanical brake. This setup traps compressed air on both sides of the piston to minimize position drift under load.
How Do I Know if My Rod Seals Are Failing?
You can identify seal failure by looking for external fluid weeping on the rod or listening for audible air hissing during strokes. A soft or drifting stroke under a constant load also indicates internal pressure bypassing.
What Is the Maximum Speed of a Hydraulic Cylinder?
The maximum speed is typically around 40 inches per second, restricted by fluid friction and pump flow limits. Exceeding this speed requires specialized large-scale plumbing and high-flow proportional valves to prevent severe system cavitation.
How Do I Choose the Right Bore Size?
You must calculate the total force required and divide it by your system’s operating pressure while factoring in a safety margin. Always account for friction losses and potential pressure drops across long piping networks.
