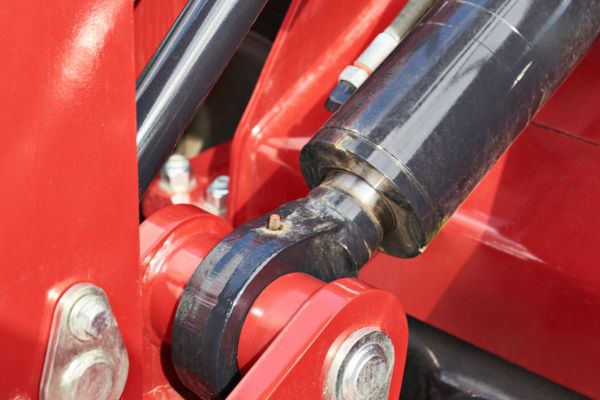

Why Does Hydraulic Top Link Cylinder Fail to Hold Angles?
Hydraulic top link cylinder angles fail to stay set primarily because of internal fluid bypass across piston seals, trapped air within the lines, or malfunctioning pilot-operated check valves. When you are managing heavy agricultural or construction implements, even a slight shift in the hydraulic top link angle can lead to poor equipment performance and safety risks. This drift often results in frustrating downtime and constant manual readjustments that eat into your operational efficiency. By identifying the root causes of cylinder drift and implementing systematic maintenance, you can ensure your machinery maintains a rock-solid position throughout the workday.
Is A Leaky Seal Causing Drift?
Internal and external seal failures are the most common reasons why a hydraulic top link angle will not hold its position during operation. If the internal piston seal is compromised, high-pressure fluid leaks into the low-pressure side of the cylinder, allowing the rod to retract or extend under load. This phenomenon, known as “drifting,” can happen even if no visible oil is leaking onto the ground.
You need to look closer.
Identifying External Hydraulic Fluid Leaks
External leaks are generally the easiest to diagnose because they leave a visible trail of hydraulic oil on the cylinder rod or housing. A damaged rod seal or wiper seal allows fluid to escape every time the cylinder cycles, eventually leading to a loss of system pressure. You should regularly inspect the following areas:
- The rod gland where the chrome rod exits the cylinder body.
- Connection points between the hoses and the cylinder ports.
- The surface of the rod for nicks or scratches that might tear new seals.
Detecting Internal Bypass In Piston Seals
Internal bypass is more deceptive because the cylinder appears perfectly dry on the outside while failing to hold a load. When the piston seal wears out, oil bypasses the piston head inside the barrel, equalizing pressure and causing the implement to sag. To test for this, you can extend the cylinder fully, disconnect the return hose, and see if oil continues to flow out while the valve is held in the extend position.
Effective seal management ensures that your implement remains at the precise angle required for specialized tasks like grading or plowing.
| Issue Type | Symptom | Primary Solution | |
|---|---|---|---|
| External Leak | Visible oil on rod | Replace rod seals/wipers | |
| Internal Bypass | Gradual drift under load | Replace piston seals | |
| Scored Barrel | Frequent seal failure | Replace or hone the cylinder |
Does Air Contamination Affect Positioning?
Trapped air in your hydraulic system creates a “spongy” effect that makes it impossible to maintain a consistent hydraulic top link angle. Because air is compressible and hydraulic fluid is not, any air pockets within the cylinder will compress under the weight of the implement. This results in a bouncy or shifting angle that refuses to stay locked in place regardless of valve position.
How Trapped Air Sponginess Destroys Accuracy
When air enters the system, it acts like a spring between the hydraulic pump and the cylinder piston. As the weight of your implement shifts during travel, the air compresses and expands, causing the cylinder rod to move without any operator input. This lack of rigidity is especially dangerous when using heavy attachments like flail mowers or heavy-duty box blades.
Proper Bleeding Procedures For Stability
To restore precision, you must purge all air from the cylinder and the supply lines. This is typically done by cycling the cylinder through its full stroke multiple times without a load attached.
- Fully extend and retract the cylinder at least five times.
- Ensure the hydraulic reservoir is full so the pump doesn’t suck in more air.
- Check that all hose fittings are airtight to prevent re-entry of oxygen.
Purging the system eliminates the “bounce” and provides the rigid hydraulic lock required for precision work.
| Component | State | Impact on Angle | |
|---|---|---|---|
| Hydraulic Fluid | Incompressible | Rigid, stable setting | |
| Trapped Air | Compressible | Spongy, drifting setting | |
| Reservoir Level | Low | Constant air ingestion |
Eliminating air from the lines is a cost-effective way to immediately improve the responsiveness of your hydraulic links.
Is Your Hydraulic Fluid Viscosity Incorrect?
Using the wrong grade of oil directly impacts how well a hydraulic top link angle holds, particularly as operating temperatures fluctuate. If the fluid is too thin, it bypasses internal components more easily; if it is too thick, it can cause sluggish response and pressure spikes. Consistency in fluid viscosity is essential for maintaining the tight tolerances required by high-quality double-acting cylinders.
Impact Of Temperature On Fluid Performance
As hydraulic systems work, the oil heats up and its viscosity naturally decreases, making it more prone to leaking past seals. In high-temperature environments, a standard fluid may become so thin that it fails to provide the necessary “hold” within the control valves. This is why you might notice your implement sagging more in the afternoon than it does during a cold morning start.
Selecting The Right Grade For Precision
Choosing the correct ISO grade of hydraulic oil ensures that the fluid maintains enough body to seal internal clearances effectively. For most agricultural and industrial applications, an ISO 46 or 68 fluid provides the best balance of flow and sealing capability.
- Check the manufacturer’s recommendations for your specific tractor or power unit.
- Use high-quality anti-wear (AW) additives to protect internal valve surfaces.
- Monitor for fluid oxidation, which can permanently change viscosity levels.
Selecting a fluid with a high viscosity index will ensure your settings remain stable from the first lift to the last.
| Viscosity Level | High Temperature | Low Temperature | |
|---|---|---|---|
| Too Thin | Increased drift/leakage | Rapid movement | |
| Too Thick | Poor lubrication | Sluggish/jerky response | |
| Optimized | Stable positioning | Consistent performance |
Is The Cylinder Overloaded Beyond Capacity?
Exceeding the rated lifting or holding capacity of your equipment will force the hydraulic top link angle to change as the structural limits of the system are tested. Every cylinder has a maximum load rating, and pushing past this can cause fluid to blow past the seals or even cause the cylinder barrel to deform. When the weight is too high, the pressure inside the cylinder exceeds the setting of the bypass or relief valves.
Calculating Mechanical Leverage And Stress
You must consider the length of the implement, as the “leverage” or moment arm greatly increases the force applied to the top link. A heavy mower extended far behind the tractor exerts much more force on the top link than a compact weight box.
- Measure the total weight of the implement including any debris or material inside.
- Consider the “shock load” when driving over uneven terrain, which can double the effective weight.
- Ensure the cylinder bore size is sufficient for the pressure required to hold the load.
Structural Fatigue From Excessive Weight
Repeatedly overloading a cylinder leads to structural fatigue that might not be visible until a catastrophic failure occurs. This fatigue can cause the cylinder barrel to expand slightly under pressure, allowing the piston seal to lose its tight fit and cause drift.
- Look for bulging in the cylinder barrel.
- Check for bent rods which indicate the cylinder was used to push or pull beyond its design.
- Inspect the mounting eyes for ovaling or cracks in the welds.
Matching the cylinder’s capacity to your heaviest implement is vital for long-term operational safety.
| Load Factor | Effect on Cylinder | Risk Level | |
|---|---|---|---|
| Within Capacity | Stable, long seal life | Low | |
| At Limit | Increased heat, minor drift | Moderate | |
| Overloaded | Blown seals, bent rods | High |
Could Mechanical Wear Impact Stability?
Even if the hydraulics are perfect, mechanical wear in the mounting hardware can simulate a shifting hydraulic top link angle. If there is “slop” or play in the pins, bushings, or attachment points, the implement will move physically even if the cylinder rod remains stationary. This mechanical movement is often confused with hydraulic drift but requires an entirely different set of repairs.
Worn Pins And Bushing Clearances
The pins that connect your top link to the tractor and the implement are subject to extreme friction and shear forces. Once the pins or the holes they sit in become worn, the implement can “jostle” several degrees.
- Use a pry bar to check for movement at the mounting eyes.
- Replace any pins that show significant grooving or reduction in diameter.
- Install bushings if the mounting holes on the tractor or implement have become “egged” out.
Scored Cylinder Walls and Rod Damage
Damage to the internal or external surfaces of the cylinder can prevent the seals from doing their job properly. A scored barrel allows fluid to “track” past the piston, while a nicked rod will tear through rod seals in a matter of hours.
- Inspect the chrome rod for any pits, rust, or physical dents.
- If you replace seals and they fail again quickly, the barrel is likely scratched.
- Ensure the rod is always kept clean and lubricated to prevent abrasive wear.
Tightening up the mechanical connections is just as important as maintaining the hydraulic pressure.
| Wear Point | Impact | Repair Method | |
|---|---|---|---|
| Mounting Pins | Implement “slop” | Replace pins | |
| Linkage Eyes | Excess movement | Install bushings/Weld-fill | |
| Chrome Rod | Seal destruction | Re-chrome or replace rod |
Do Environmental Factors Change Settings?
External temperatures and weather conditions can cause a hydraulic top link angle to change even when the tractor is turned off. Through the process of thermal expansion and contraction, the volume of the oil inside the cylinder changes as it heats up or cools down. This can lead to a “drooping” implement overnight or an implement that tightens up as the sun hits the hydraulic lines.
Thermal Expansion Of Hydraulic Fluid
Hydraulic oil expands significantly when it gets hot. If you set your top link angle in the cool morning and then work the tractor hard, the oil inside the cylinder will expand, potentially increasing the cylinder’s length and changing your setting. Conversely, if you leave an implement raised overnight, the cooling oil will shrink in volume, causing the implement to lower slightly by morning.
Managing External Corrosion And Rust
In regions with high humidity or road salt usage, corrosion on the cylinder rod can become a major issue. Rust on the rod acts like sandpaper, destroying the rod seals every time the cylinder is retracted.
- Store implements with the cylinder rods fully retracted to protect them from the elements.
- Apply a thin layer of grease to any exposed chrome if the equipment will sit for long periods.
- Inspect the breather ports on single-acting cylinders for clogs caused by insect nests or dirt.
Environmental awareness helps you distinguish between a mechanical failure and a natural physical reaction.
| Environmental Factor | Physical Impact | Mitigation | |
|---|---|---|---|
| Cold Temperatures | Oil contraction/Sluggishness | Warm up system before use | |
| High Heat | Oil expansion/Thinning | Use high-VI fluid | |
| Salt/Moisture | Rod corrosion | Store retracted/Greased |
Is Irregular Cylinder Movement The Root?
If your hydraulic top link angle moves in a jerky or irregular fashion, the root cause is often “stick-slip” friction or severe fluid contamination. This makes it nearly impossible to set a precise angle, as the cylinder “jumps” past the desired point every time you try to adjust it. This lack of control is a precursor to total cylinder failure and should be addressed immediately to avoid damaging your implements.
Dealing With Jerky Stick-Slip Friction
Stick-slip occurs when the internal friction of the seals against the barrel is too high, usually due to poor lubrication or the wrong seal material. The cylinder remains stuck until enough pressure builds up to “break” it loose, at which point it lunges forward.
- Ensure you are using the correct hydraulic fluid with friction-reducing additives.
- Check for a bent rod that might be binding against the gland.
- Inspect for air pockets, which are the most common cause of “jerky” movement.
Implementing Regular Maintenance Schedules
The best way to ensure your hydraulic top link stays set is to follow a strict maintenance regimen. Small problems caught early—like a weeping seal or a slightly dirty filter—are much cheaper to fix than a ruined pump or a bent cylinder.
- Check fluid levels and clarity weekly.
- Grease all pivot points and mounting pins every 10–20 hours of use.
- Inspect hoses for cracks, bulges, or abrasions that could lead to failure.
A well-maintained system provides the precision and reliability that professional operators demand.
| Maintenance Task | Frequency | Benefit | |
|---|---|---|---|
| Fluid Check | Weekly | Prevents pump damage | |
| Greasing | 10–20 Hours | Reduces mechanical slop | |
| Seal Inspection | Monthly | Prevents implementation drift |
Concluison
Maintaining a precise hydraulic top link angle is not just a matter of convenience; it is a fundamental requirement for operational safety and equipment longevity. By systematically addressing seal integrity, fluid quality, and mechanical wear, you can eliminate the drift that hampers your productivity. Whether you are dealing with thermal expansion or valve bypass, understanding the “why” behind the shift allows you to implement a permanent “how” for the fix.
At Topa, we are committed to providing the heavy-duty hydraulic solutions that keep your machinery locked in position, no matter how demanding the task. If you are ready to upgrade your equipment with cylinders designed to hold their ground, contact us today to discuss your custom B2B requirements and experience the Topa difference in precision engineering.
FAQ
How do I know if my cylinder drift is internal or external?
It depends on where the fluid is going. If you see oil on the rod or the ground, it is an external leak; if the cylinder is dry but the implement still sags, the piston seals are leaking internally.
What’s the best way to stop my hydraulic top link from sagging overnight?
Yes, you should install a pilot-operated check valve (POCV) directly onto the cylinder ports. This creates a physical lock that prevents fluid from moving unless the tractor is actively sending pressure to the cylinder.
Can I repair a scratched cylinder rod?
No, most scratches cannot be safely “polished out” without reducing the diameter of the rod, which will cause the seals to leak. If the rod is scored or pitted, the best practice is to replace it to protect your new seals.
What’s the best hydraulic fluid for hot climates?
It depends on your tractor’s specifications, but generally, an ISO 68 weight fluid is better for high-heat environments. It maintains a higher viscosity than ISO 32 or 46, providing better sealing and holding power when the temperature rises.
How do I know if there is air in my hydraulic lines?
It depends on the “feel” of the implement. If the top link feels bouncy, spongy, or moves in a jerky fashion when you operate the lever, you likely have trapped air that needs to be bled out.
