Hydraulic lift cylinder is a device that converts the hydraulic energy of a pressurized fluid into linear motion. This motion is the driving force behind the lifting, pushing and pulling of various machines and equipment. The principle of hydraulics utilizes Pascal’s Law, which states that when pressure is applied to a confined fluid, a pressure change occurs throughout the fluid. This article will expand your knowledge by detailing various aspects of hydraulic lift cylinders.
A hydraulic lift cylinder is a mechanical device designed to apply force in a linear direction using a fluid, typically oil. The basic principle behind its operation is the conversion of hydraulic energy—energy derived from the pressure of a fluid—into mechanical energy, which manifests as linear motion. This process hinges on Pascal’s law, which posits that pressure applied to any part of a confined fluid transmits equally in all directions throughout the fluid. In the context of a hydraulic lift cylinder, when fluid pressure is introduced into the cylinder, it pushes against the piston, causing it to move and generate force. This force can then be harnessed to perform work, such as lifting heavy loads or pushing or pulling objects.
Cylinder Barrel: The main body of the cylinder that houses the piston and the fluid. It is designed to withstand internal pressures and is typically made from durable materials like steel.
Piston: A disc or short cylinder fitting closely within the barrel that divides the cylinder into compartments. The movement of the piston under fluid pressure results in the linear force output of the cylinder.
Piston Rod: Attached to the piston and extends out of the cylinder barrel, transferring the motion and force generated by the piston to the machinery or load.
Seals: Essential for maintaining the hydraulic system’s integrity, seals prevent fluid from leaking out of the cylinder and contaminants from entering it. They ensure that the pressure is effectively converted into linear motion without loss.
Rod Gland: Located at the end of the cylinder where the piston rod exits, the rod gland contains seals and wipers to prevent leakage and contamination.
Ports: Entry and exit points for the hydraulic fluid, typically located on the cylinder barrel. These ports allow fluid to flow into and out of the cylinder chamber, facilitating the piston’s movement.
Hydraulic lift cylinders play a crucial role across a broad spectrum of industries, underpinning the operations and efficiency of many sectors. In construction, these cylinders are the force behind the movement and lifting capabilities of equipment such as bulldozers, excavators, and cranes. They enable these machines to lift heavy loads, dig, and move materials with precision and ease. In the manufacturing sector, hydraulic lift cylinders are integral to the production lines, facilitating the assembly of products by providing the necessary motion and force for machinery. Automotive applications include vehicle lifts in repair shops, allowing for easy access to a car’s underside for maintenance and repair. Additionally, the agricultural industry relies on hydraulic cylinders for machinery like tractors and harvesters, enhancing productivity and efficiency in food production.
One of the most recognizable applications of hydraulic lift cylinders is in construction machinery. For example, an excavator uses hydraulic cylinders for multiple functions, including the movement of its arm, the rotation of the cab, and the extension of the boom. These cylinders allow for precise control and powerful lifting capabilities, essential for digging and moving materials. In the automotive industry, car jacks are a common tool that utilizes a hydraulic lift cylinder to elevate the vehicle with minimal effort, simplifying tire changes and undercarriage access. Another example is the use of hydraulic cylinders in manufacturing automation, where they can be found in robotic arms and assembly machines, moving components along the production line and performing tasks with high levels of accuracy and consistency.
The operation of hydraulic lift cylinders is a fascinating application of fluid mechanics, particularly the principles of hydraulic pressure and force multiplication. Here’s a breakdown of how these principles work together to enable the cylinder’s operation:
Hydraulic Pressure: At its core, a hydraulic lift cylinder operates on the principle that a fluid, usually oil, cannot be compressed. When pressure is applied to the fluid via a pump within a closed system, that pressure is transmitted uniformly in all directions throughout the fluid. This is in accordance with Pascal’s Law, which states that pressure applied to a confined fluid is transmitted undiminished throughout the fluid.
Force Multiplication: The essence of hydraulic lift cylinders lies in their ability to multiply force. This is achieved by using two cylinders of different sizes connected by a pipe and filled with fluid. When a small force is applied to the smaller cylinder, it creates a pressure in the fluid. Because the fluid’s pressure is consistent throughout the system, this same pressure acts on the larger cylinder. Since the larger cylinder has a greater area, the force that is exerted by the fluid against the larger piston is greater. This allows a relatively small force applied at one point to generate a much larger force at another point, enabling heavy loads to be lifted with less effort.
Operation Cycle: In a typical single-acting hydraulic lift cylinder, the pump pushes hydraulic fluid into the cylinder barrel through one of the ports. This fluid then pushes against the piston, causing it to move and extend the piston rod out of the cylinder. The force exerted by the piston moves the load attached to the piston rod. To retract the piston rod, the fluid is allowed to flow back to the reservoir, often under the weight of the load or via a spring mechanism in the case of single-acting cylinders. In double-acting cylinders, fluid can enter or leave from either side of the piston, allowing for more precise control of the extension and retraction of the piston rod.

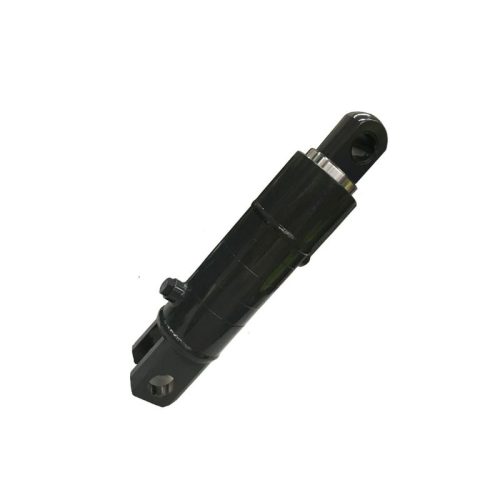

Single-acting hydraulic lift cylinders apply hydraulic pressure in only one direction. They have one port through which the hydraulic fluid enters to push the piston rod in one direction (usually outwards). A spring or gravity is then used to return the piston to its original position.
Advantages: Simplicity and cost-effectiveness are the primary benefits of single-acting cylinders. They have fewer seals and parts, which reduces the chances of leakage and failure, making them easier and cheaper to manufacture and maintain.
Disadvantages: The major limitation is the reliance on external forces for the return stroke, which can limit control and speed, especially in vertical applications where gravity cannot assist in the retraction.
Typical Applications: They are commonly used in applications where the work only needs to be done in one direction, such as in car jacks and certain types of lifting equipment.
Double-acting cylinders have two ports for hydraulic fluid to enter and exit, allowing for control of the piston in both directions (extension and retraction). This design enables more precise control of the movement.
Advantages: Greater control and versatility are the main advantages. They can be used in more complex systems where precise movement in both directions is required. The ability to apply hydraulic pressure for both strokes allows for faster operation and more control over the speed and position of the piston rod.
Disadvantages: They are more complex and expensive than single-acting cylinders due to the additional port and seals. This complexity also increases the potential for leaks and maintenance requirements.
Typical Applications: Double-acting cylinders are used in applications requiring controlled movement in both directions, such as in construction equipment, manufacturing machinery, and hydraulic presses.
Telescopic cylinders, also known as multi-stage cylinders, consist of a series of cylinders (stages) nested within each other. This design allows for a much longer stroke than would be feasible with a single-stage cylinder of the same closed length.
Unique Features: The primary feature is the ability to provide a long extension while maintaining a compact retracted size, making them ideal for applications with limited space.
Typical Applications: They are often used in applications requiring a long reach, such as dump truck lifting mechanisms and aerial work platforms.
Rotary Actuators: These cylinders convert hydraulic energy into rotational motion and are used in applications requiring rotational force, such as steering mechanisms.
Plunger Cylinders: Designed with a plunger instead of a piston, these cylinders are used where a pushing force is required, and the cylinder does not have to retract under load.
Cushioned Cylinders: Equipped with special cushioning at the ends to slow down the piston’s motion before it reaches the end of the stroke, minimizing impact and wear.
The foremost consideration is the maximum load the cylinder must support. This capacity should match or exceed the heaviest load anticipated in its application to ensure safety and prevent mechanical failure.
Stroke length is the distance the piston rod can extend from the cylinder. The required stroke length depends on the application’s specific movement needs. It’s crucial to select a cylinder whose stroke length adequately meets the range of motion required for the task.
The mounting style affects the cylinder’s stability and alignment. Common types include flange, clevis, and foot mounting. The choice depends on the application’s space constraints and the directions of the forces involved.
Cylinders are rated for specific operating pressures. Select a cylinder that can handle the hydraulic system’s maximum pressure without risking overpressure conditions or premature failure.
Consider the environmental conditions, such as temperature extremes, corrosive substances, or potential for physical damage. Specialized cylinders with appropriate materials and seals are available for harsh environments.
The speed at which the cylinder extends and retracts can be critical, especially in time-sensitive applications. Cylinder speed is influenced by the flow rate of the hydraulic fluid and the cylinder’s design.
Some applications may require customized cylinders. Check if the manufacturer offers custom solutions and whether they have the capability to design cylinders that meet specific requirements.
Safety First: Before installation, ensure all system power sources are shut off to prevent unintended operation. Use appropriate personal protective equipment (PPE).
Inspect Components: Check the hydraulic lift cylinder and all associated hardware for any damage or defects. Confirm that all parts are correct and accounted for.
Positioning: Align the cylinder carefully with its mountings. Misalignment can cause stress on the cylinder and lead to premature failure.
Mounting: Secure the cylinder to its mounting points. The type of mounting will depend on the application but ensure that all fasteners are tightened to the manufacturer’s specifications to avoid loosening over time.
Hydraulic Connections: Connect the hydraulic hoses or pipes to the cylinder’s ports. Ensure that the connections are tight and leak-free but avoid over-tightening, which can damage the threads or fittings.
Bleeding Air: After installation, it’s crucial to bleed air from the system to prevent erratic cylinder operation. This can usually be done by cycling the cylinder through its full range of motion several times while the system is at low pressure.
System Check: Before full operation, test the hydraulic system at low pressure to check for leaks or other issues. Gradually increase to operating pressure while monitoring system performance.
Regular Inspections: Perform routine inspections of the hydraulic lift cylinder and associated hydraulic system. Look for signs of wear, leaks, or damage to the cylinder, seals, and hoses.
Lubrication: Keep all moving parts and seals properly lubricated according to the manufacturer’s recommendations. Proper lubrication reduces friction and wear, extending the cylinder’s lifespan.
Cleanliness: Maintain cleanliness in the hydraulic system to prevent contamination. Contaminants can cause damage to the cylinder’s interior surfaces and seals, leading to leaks and failure.
Seal Replacement: Seals and o-rings should be replaced at signs of wear or according to maintenance schedules. Worn seals are a common cause of leaks and loss of efficiency.
Avoid Overloading: Ensure the hydraulic lift cylinder is not subjected to loads beyond its rated capacity. Overloading can cause structural damage and affect the cylinder’s performance.
Temperature Monitoring: Be aware of the operating temperature range for the hydraulic fluid and cylinder. Extreme temperatures can degrade seals and fluid, affecting performance and lifespan.
We reveal the mechanics behind hydraulic lift cylinders and shed light on the versatility and adaptability of these devices. Additionally, only by understanding the key factors in selecting the right hydraulic lift cylinders and following installation and maintenance best practices can you ensure that these systems operate at their best.
