The speed of a hydraulic cylinder is a key factor in determining the efficiency and effectiveness of various applications. Hydraulic cylinders play a pivotal role in propelling mechanical movements. But what exactly determines the speed at which a hydraulic cylinder operates? In this guide, we delve into the many factors that influence the speed of hydraulic cylinders, unraveling the complexities of fluid dynamics, mechanical design and system configuration. Whether you’re troubleshooting a slow-moving excavator arm or fine-tuning your production line, understanding these determinants is key to realizing the full potential of your hydraulic equipment.
Hydraulic cylinders, the workhorses of the industrial world, operate on a simple yet powerful principle. At their core, these devices convert the energy of hydraulic fluid under pressure into mechanical force, enabling a wide range of machinery to perform tasks with great precision and power.
A hydraulic cylinder consists primarily of a cylindrical barrel, a piston, and a piston rod. The piston, which divides the interior of the barrel into two chambers, moves back and forth under the force exerted by the hydraulic fluid. This fluid is typically oil, chosen for its lubricating properties and relative incompressibility. The movement of the piston rod, which is connected to the piston, translates into mechanical work, capable of lifting heavy loads or performing repetitive tasks with consistent force.
The operation begins when hydraulic fluid is pumped into one of the cylinder’s chambers. This creates a pressure difference, forcing the piston to move. The direction of the piston’s movement depends on which chamber the fluid is pumped into. When the fluid enters the chamber on one side of the piston, it pushes the piston, causing the rod to extend out of the cylinder. Conversely, when the fluid is directed to the other chamber, the piston retracts, pulling the rod back into the cylinder.
The principles of hydraulic fluid dynamics play a crucial role in this process. Hydraulic systems operate on the principle that fluid under pressure will move to equalize pressure differences. The flow of the fluid and its pressure are controlled by pumps and valves, allowing precise control of the piston’s movement. The speed of the piston – and thus the cylinder – is determined by several factors, including the rate at which fluid is pumped into the chambers, the size of the cylinder and the piston, and the load the cylinder is moving.
In the field of hydraulics, the speed of a hydraulic cylinder is not just a matter of raw power; it is also a fine-tuning of physics and engineering. The speed of a hydraulic cylinder is influenced by a variety of factors, each of which plays a significant role in the efficiency and effectiveness of the cylinder.

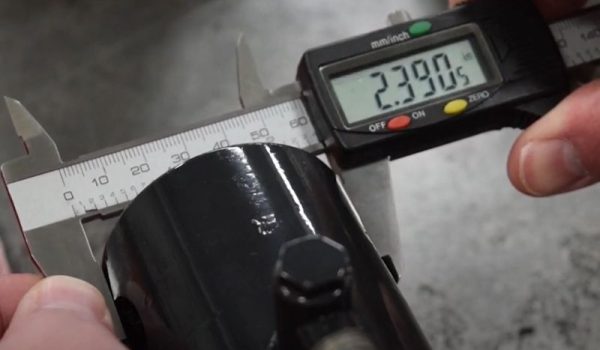

When delving deeper into the dynamics of bore size and piston speed in hydraulic cylinders, it’s essential to understand the principles of hydraulics and mechanics at play. The bore size, essentially the diameter of the cylinder’s barrel, is a pivotal factor in determining the overall performance and efficiency of a hydraulic cylinder.
A larger bore size equates to a larger surface area on the piston. When hydraulic fluid is pumped into the cylinder, it exerts force over this surface area. In a cylinder with a larger bore, this area is more extensive, necessitating a greater volume of fluid to exert the same amount of pressure as in a smaller bore cylinder. This increased fluid requirement impacts the time it takes for the cylinder to complete its action – the more fluid that needs to be moved, the slower the piston will travel.
It’s also important to consider the implications of Pascal’s Law in this context. According to this principle, a change in pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of its container. This means that for a larger bore cylinder, achieving the same pressure throughout requires more fluid, hence impacting the speed.
However, the relationship between bore size and speed isn’t just a matter of fluid volume. Larger bore cylinders, typically designed to handle higher loads due to their larger surface area, often come with increased mass. The heavier piston and rod assembly in larger bore cylinders contribute to a slower response and movement speed due to inertia. When the system is activated, it takes more energy and time to move this larger mass compared to a smaller, lighter piston in a smaller bore cylinder.
On the flip side, a smaller bore cylinder has a smaller piston surface area. This design requires less hydraulic fluid to fill the chamber and create the necessary pressure to move the piston. As a result, the action of extending or retracting the piston can occur more swiftly. The smaller mass of the piston and rod assembly also means less inertia, allowing for quicker response times and higher speeds.
Viscosity, fundamentally, is a measure of a fluid’s thickness or resistance to flow. It plays a critical role in the operation of hydraulic systems. When dealing with hydraulic cylinders, the viscosity of the fluid determines how easily it can move through the system. Fluids with high viscosity, being thicker, flow more slowly and require more force to move, whereas fluids with low viscosity flow more easily.
In hydraulic systems, striking the right balance in fluid viscosity is key. High viscosity fluids can slow down the system due to their resistance to flow. This can be particularly noticeable in colder temperatures, where even fluids with medium viscosity can thicken and hamper the performance of the cylinder. On the other hand, fluids with too low viscosity may not provide adequate lubrication. They can lead to increased wear and tear on the hydraulic components, and in severe cases, result in leaks due to their inability to maintain a proper seal within the system.
The viscosity of hydraulic fluid is not a constant value; it changes with temperature. As temperature increases, viscosity decreases, making the fluid thinner. This decrease in viscosity can lead to faster cylinder movement as the fluid flows more freely. However, it also reduces the fluid’s ability to lubricate components effectively, potentially increasing the risk of wear and damage. Conversely, in colder conditions, the viscosity increases, leading to thicker fluid and slower cylinder action.
The Viscosity Index (VI) of a hydraulic fluid is a measure of how much its viscosity changes with temperature. Fluids with a high VI have less change in viscosity with temperature fluctuations, making them suitable for environments with varying temperatures. A high VI fluid ensures more consistent performance of the hydraulic cylinder across different operating conditions.
Using hydraulic fluid with incorrect viscosity can have several implications. Too thick a fluid can strain the pump, leading to increased energy consumption and wear. It can also reduce the responsiveness and speed of the cylinder.
Too thin a fluid, while potentially increasing the speed of the cylinder, can lead to inadequate lubrication, increased wear, and the risk of leaks.
The stroke length of a hydraulic cylinder is a crucial parameter, referring to the total distance the piston travels from its fully retracted to its fully extended position within the cylinder barrel. This distance plays a pivotal role in determining the functional capabilities of the cylinder in various applications.
The relationship between stroke length and cylinder speed is fairly straightforward but critical. A longer stroke length means the piston must cover a greater distance within the cylinder. This increases the time taken for the piston to move from one end to the other, potentially reducing the speed at which the cylinder can operate. Conversely, a shorter stroke length allows for a quicker piston movement, as the distance traveled is less, leading to a faster operational speed of the cylinder.
Choosing the right stroke length for a hydraulic cylinder is about finding a balance between the required speed of operation and the specific demands of the application. For instance, in applications where rapid movement is crucial, a shorter stroke length may be preferred. However, this comes at the cost of reduced range of motion. In contrast, applications requiring a wide range of motion may necessitate longer stroke lengths, though this may decrease the operational speed.
The stroke length also influences the volume of hydraulic fluid required to move the piston. A longer stroke requires a greater volume of fluid to be displaced, which can affect the fluid dynamics within the system, including the time it takes to fill and empty the chamber and the pressure needed to move the piston.
Hydraulic systems rely on various types of pumps to move fluid into the cylinder, each with its unique characteristics and operational principles. The three primary types are gear pumps, vane pumps, and piston pumps.
Gear Pumps: These are among the most common and are known for their durability and simplicity. Gear pumps use interlocking gears to pump fluid. They generally operate at a constant flow rate and are best suited for applications requiring a steady, unvarying hydraulic pressure.
Vane Pumps: Vane pumps offer more flexibility in terms of pressure and flow rate. They use a rotor with extending vanes that trap fluid between the rotor and the pump casing. This design allows for variable flow rates and is more efficient in managing higher-pressure operations.
Piston Pumps: These are typically used in high-pressure applications. Piston pumps use a series of cylinders (pistons) in a circular array and can be either axial or radial. They offer the advantage of variable flow and high pressure, making them suitable for more complex and demanding hydraulic systems.
The flow rate of a pump, essentially how much fluid it can move per unit of time, directly impacts the speed of a hydraulic cylinder. A higher flow rate means that more hydraulic fluid is pushed into the cylinder in a given period, which can lead to faster extension or retraction of the piston. This is particularly important in applications where rapid movement is crucial.
High Flow Rates: Pumps with high flow rates can fill the cylinder more quickly, resulting in faster piston movement. This is advantageous in situations where speed is critical, such as in manufacturing processes or heavy machinery operation.
Low Flow Rates: Conversely, a pump with a lower flow rate will fill the cylinder more slowly, leading to a slower piston movement. While this might be seen as a drawback in terms of speed, it offers greater precision and control, which is essential in applications requiring meticulous movement.
The load that a hydraulic cylinder is required to move or lift plays a significant role in determining its operational speed. Essentially, the heavier the load, the greater the force needed to move it. This increased force requirement directly translates into a need for higher hydraulic pressure within the system.
Heavy Loads and Speed: When dealing with heavy loads, the hydraulic system must work harder to maintain the desired speed. This is because the amount of force needed to overcome the inertia and resistance of a heavy load is substantially greater compared to a lighter load.
Lighter Loads and Efficiency: Conversely, when the load is lighter, less hydraulic pressure is required to achieve the same movement speed. This often results in a more efficient operation, as the system doesn’t need to exert as much force, thus consuming less energy.
Temperature plays a crucial role in determining the viscosity of hydraulic fluids, which in turn significantly impacts the performance of hydraulic cylinders. The viscosity, or the fluid’s resistance to flow, is highly sensitive to changes in temperature.
Effect of Increased Temperature: When the operating temperature rises, the viscosity of the hydraulic fluid tends to decrease. This reduction in viscosity means the fluid becomes thinner and flows more easily, potentially increasing the flow rate within the hydraulic system. A faster flow rate can translate into quicker movement of the hydraulic cylinder, enhancing its speed.
Excessive Heat Risks: However, there’s a caveat. If the temperature increases too much, the fluid can become too thin. This excessive thinning compromises the fluid’s lubricating properties, increasing the risk of wear and tear on the cylinder’s internal components, such as seals and bearings. Moreover, thinner fluid may lead to leakage problems, affecting the efficiency of the system.
In the realm of hydraulic systems, optimizing the speed of hydraulic cylinders is not just about managing basic parameters like fluid viscosity or pump types. Advanced considerations in cylinder design, seal selection, flow control mechanisms, and overall hydraulic circuit design play pivotal roles. Delving into these elements can unveil opportunities for enhancing speed while maintaining system efficiency and reliability.
The design of a hydraulic cylinder can significantly influence its speed. Variations in design cater to different speed requirements and operational demands.

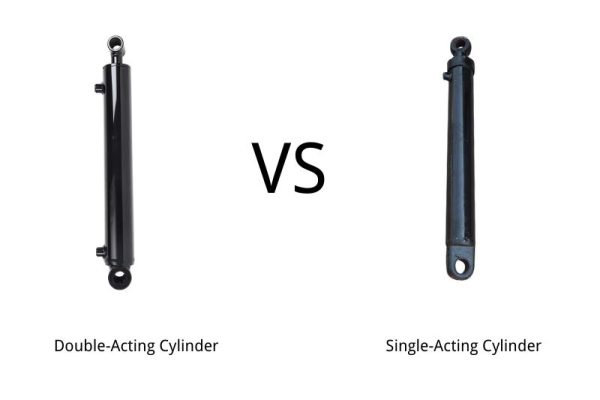

Double-Acting vs Single-Acting Cylinders: Double-acting cylinders, which allow for controlled movement in both extension and retraction, often have different speeds for each direction, influenced by the differential area on either side of the piston. Single-acting cylinders, on the other hand, rely on an external force, like gravity, for retraction, which can affect their speed of operation.
Telescopic Cylinders: These are used where a long stroke is needed in a compact form. The extension and retraction speed can vary significantly based on the number of stages and the flow rate of the hydraulic fluid to each stage.
Flow control valves are instrumental in regulating the speed of hydraulic cylinders. By adjusting the flow rate of the hydraulic fluid, these valves provide precise control over the cylinder’s movement.
Variable Flow Valves: These allow for the adjustment of flow rate, enabling the operator to fine-tune the cylinder’s speed according to the requirements of the task.
Pressure-Compensated Flow Control Valves: These maintain a constant flow rate despite variations in pressure, ensuring consistent cylinder speed even under changing load conditions.
The overall design of the hydraulic circuit can either enhance or restrict the cylinder’s speed. Efficient circuit design involves the strategic arrangement of components like pumps, valves, and conduits to optimize flow and pressure.
Parallel vs. Series Configurations: In a parallel configuration, multiple cylinders can operate independently at potentially different speeds. In contrast, a series configuration can limit the speed, as the same flow passes through multiple cylinders.
Accumulators and Pressure Storage: The inclusion of accumulators in the circuit can provide a rapid burst of fluid when needed, enhancing the speed of cylinder operation for specific actions.
As technology continues to advance, the realm of hydraulics will undoubtedly see innovations that further enhance the ability to control and optimize cylinder speed. Staying informed and adaptable to these changes is crucial for anyone working with hydraulic systems. In the end, the mastery of these elements forms the cornerstone of effective hydraulic system design and operation, driving progress in countless industries where these systems are the lifeline.
