When it comes to hydraulic systems, the way a cylinder is mounted is more than a mere attachment; it’s a strategic decision that can define the success of your machinery’s operation. Proper mounting ensures that a hydraulic cylinder operates at its peak efficiency, maintaining safety and reliability regardless of the conditions. This critical aspect is often overlooked, yet it holds the key to optimizing system performance. When a hydraulic cylinder is mounted appropriately, it harmoniously integrates with the machinery, leading to a seamless operation that stands the test of time.
The choice of mount significantly influences a hydraulic cylinder’s ability to bear loads and handle stress. Different mounting types redistribute forces in varying ways, impacting the cylinder’s operation under load. For instance, a side-mounted cylinder may handle lateral loads effectively, while a trunnion mount might be better suited for applications where pivoting action is required. Understanding the nuances of how each mount type interacts with loads and stresses is crucial for ensuring that the cylinder operates within its optimal parameters, thus extending its service life and maintaining its efficiency.
Alignment in hydraulic cylinder mounting isn’t just a matter of precision; it’s a cornerstone of cylinder performance and longevity. Proper alignment ensures that forces are evenly distributed across the cylinder, minimizing the risk of uneven wear or strain on the components. Misalignment, even in small degrees, can lead to significant issues such as increased friction, seal wear, and ultimately, cylinder failure. Maintaining correct alignment is thus not just about immediate performance, but about sustaining the cylinder’s efficiency and longevity over time.
Selecting the right mount for your hydraulic cylinder involves a careful consideration of several factors. The direction of the load plays a crucial role – whether it’s linear, radial, or a combination of forces. The geometry of the application, such as space constraints and the angle of force application, also dictates the suitability of different mounts. Additionally, environmental conditions like temperature, exposure to corrosive substances, and vibration levels can influence the choice of mount. By carefully evaluating these aspects, you can ensure that the selected mount not only fits your current needs but also stands up to future challenges and demands.
Identifying the need for a hydraulic cylinder rebuild is crucial in preventing machinery failure and ensuring operational efficiency. Common signs of cylinder failure include unusual noises, decreased force or speed, and visible leaks of hydraulic fluid. These symptoms can indicate issues such as worn seals, damaged piston rods, or corroded cylinders, each impacting the cylinder’s ability to function effectively.
An initial inspection is your first line of defense in diagnosing these problems. Start by visually inspecting the cylinder for any external signs of wear or damage, like scratches or dents on the rod, which can compromise the seal and lead to leaks. Check for fluid around the seals, a clear indicator that they may be failing. Observe the cylinder’s operation; a cylinder that’s slower or less powerful than usual can suggest internal issues.
Next, measure the pressure within the system using a pressure gauge. Abnormal readings could point to internal leaks or blockages. It’s also wise to check the condition of the hydraulic fluid. Contaminated fluid, full of particles or water, can cause significant damage over time.
Remember, correctly identifying the need for a rebuild is not just about fixing immediate problems; it’s about preemptive maintenance. By recognizing and addressing these early signs, you can avoid more severe damage, reduce downtime, and save on costly repairs or replacements.
Side-mounted hydraulic cylinders are characterized by their mounting style, where the cylinder is attached at its sides, typically through a series of bolts or pins. This mounting style is prevalent in a variety of applications due to its straightforward design and ease of installation. Side-mounted cylinders are commonly found in industrial machinery such as presses, plastic molding machines, and in some cases, mobile equipment like excavators and loaders. Their design is particularly suited for situations where vertical space is ample, allowing for the cylinder to be mounted horizontally.
One of the primary advantages of side-mounted hydraulic cylinders is their ease of installation and maintenance. Due to the accessible mounting points on the sides, these cylinders can be easily installed, adjusted, or replaced without the need for significant disassembly of the machinery. Additionally, side-mounted cylinders can offer a high degree of stability, especially in applications where the load is consistently aligned with the cylinder’s axis.
However, there are limitations to this mounting type. Side-mounted cylinders are not well-suited to handle significant side loads or off-axis forces, as these can lead to misalignment and increased wear on the cylinder. This can result in reduced efficiency and a shorter lifespan for the cylinder. Also, in applications where space is limited, especially horizontally, side-mounted cylinders may not be the best choice due to their design requirements.
Clevis mounted hydraulic cylinders are distinguished by their unique clevis end, where the cylinder attaches to the machinery via a clevis, a U-shaped or forked end. This clevis can be connected to the machine through a pivot pin, allowing the cylinder to swing or pivot during operation. This mounting style is engineered to accommodate angular motion, making it ideal for applications that require the cylinder to adjust its angle in relation to the load.
The design of clevis mounts is inherently flexible, which aids in absorbing small misalignments that might occur due to load shifts or movements in the machinery. This flexibility helps in reducing the strain on the cylinder, thereby extending its operational life.
Clevis mounts are particularly beneficial in applications where the cylinder needs to move in an arc or where angular movements are frequent, such as in agricultural equipment (like tractors and harvesters), construction machinery, and certain types of industrial automation systems. They are also advantageous in applications where end-of-stroke cushioning is needed to absorb shock loads, as the clevis mount can provide a degree of natural cushioning due to its design.
In addition to their flexibility, clevis mounted cylinders are appreciated for their ability to maintain alignment, which is critical in applications where precision movement is necessary. This alignment ensures consistent force application, leading to more accurate and efficient operation of the machinery.
When installing clevis mounted hydraulic cylinders, it’s crucial to ensure that the pivot pin is properly sized and secured to avoid excess play or movement, which could lead to premature wear. It’s also important to align the cylinder correctly with the pivot points to prevent binding or undue stress on the cylinder. Regular inspection and maintenance of the clevis, pivot pin, and mounting points are essential to ensure long-term reliability and performance.
Moreover, considering the potential for angular movement, it’s important to select a cylinder with the appropriate bore size and stroke length that matches the specific demands of the application. This ensures that the cylinder can handle the required load and movement without overextension or underperformance.
Flange mounted hydraulic cylinders are characterized by a flange, typically located at the head or base of the cylinder, which is used to attach it to the machinery. This flange is a robust, flat piece that can be bolted directly onto a surface, providing a secure and stable connection. Flange mounts are particularly known for their strength and ability to handle heavy loads. They are well-suited for industrial applications where the cylinder must withstand significant force or weight, such as in presses, cranes, and heavy-duty machinery.
One of the unique characteristics of flange mounting is its ability to withstand high force in the axial direction while maintaining stability. This is due to the direct and rigid mounting surface, which minimizes movement and vibration during operation.
Compared to other mounting styles like side or clevis mounts, flange mounts offer superior stability and load capacity. This is because the rigid, direct connection to the machine frame allows the flange mount to handle higher axial loads without risking misalignment or instability. In contrast, side mounts, while offering ease of installation, may not be suitable for very high-load applications due to potential side-loading issues. Clevis mounts provide flexibility for angular movement but may not offer the same level of direct force handling as flange mounts.

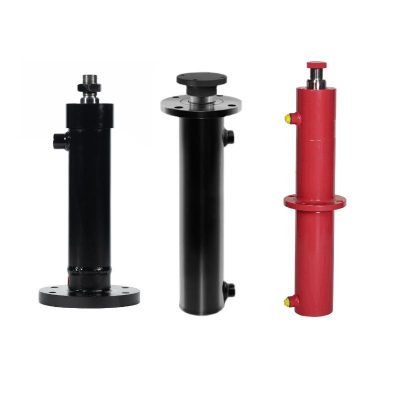

Flange-mounted hydraulic cylinders come in various types, each designed to meet specific application requirements and operational needs. Understanding these types can help in selecting the right cylinder for your project. Here are some of the common types of flange-mounted hydraulic cylinders:
Head Flange Mounted Cylinders: These cylinders have a flange at the head end and are often used in applications where the cylinder must resist strong longitudinal forces. The head flange mount provides a sturdy and stable connection, making it ideal for heavy-duty industrial applications.
Cap Flange Mounted Cylinders: In this configuration, the flange is located on the cap or base end of the cylinder. This type is beneficial when the cylinder needs to be mounted at the end of its stroke, offering a secure attachment point and good resistance to forces applied along the axis of the cylinder.
Intermediate Fixed Flange Mounted Cylinders: These cylinders feature a flange mounted at an intermediate point along the cylinder body, rather than at the ends. This type is used in specific applications where the mounting needs to be positioned at a particular point along the cylinder for optimal force application and balance.
Double Flange Mounted Cylinders: Double flange cylinders have flanges at both the head and cap ends, providing extremely strong and stable mounting. They are ideal for applications involving high loads and where the cylinder needs to be firmly anchored in place.

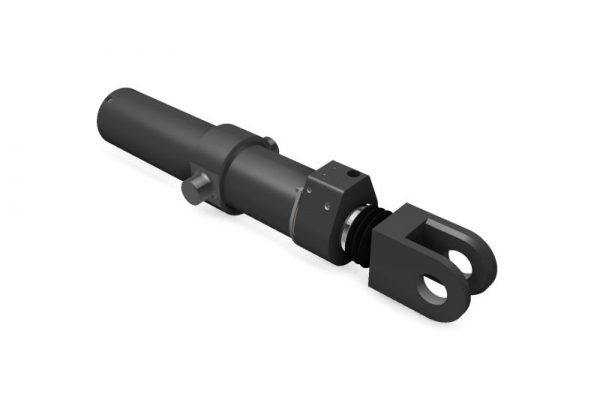

Trunnion mounted hydraulic cylinders are distinctive in their design, featuring trunnions – protruding cylindrical mounts – located on either side of the cylinder body or on the cylinder cap and base. This design allows the cylinder to be mounted in a pivot-like manner, enabling it to swing or oscillate along the axis of the trunnions. The trunnion mount effectively absorbs forces from multiple directions, primarily those perpendicular to the piston rod. This unique configuration is particularly useful in applications where the cylinder needs to accommodate significant changes in angle throughout its operation.
Trunnion mounts are exceptionally versatile, making them suitable for a wide range of operating conditions. They are ideal for applications where the machinery requires the cylinder to follow a curved path, such as in excavators, hydraulic presses, or rock crushers. This flexibility in movement also makes trunnion mounts a good choice for applications that experience significant shifts in load direction, as they can pivot and adjust to these changes, thus reducing the stress on the cylinder.
Moreover, trunnion mounted cylinders are often used in situations where space is constrained, as they do not require additional space for the mounting structure at the cylinder ends. This space-saving aspect makes them an attractive option for compact machine designs.
The maintenance of trunnion mounted hydraulic cylinders is crucial for ensuring their longevity and optimal performance. Regular inspection of the trunnions and pivot points is necessary to check for wear, corrosion, or damage. It’s important to ensure that the trunnions are lubricated properly to reduce friction and prevent seizing.
Additionally, because trunnion mounts allow the cylinder to move, it’s vital to regularly check the alignment and ensure that the cylinder has not shifted from its optimal operating position. Misalignment can lead to uneven wear and increased strain on the cylinder.
In terms of longevity, choosing the right materials and coatings for the trunnions and pivot points is essential, especially in harsh operating environments. This can significantly extend the life of the cylinder by protecting it from the elements and reducing wear.
Foot-mounted hydraulic cylinders are characterized by their mounting style, where a ‘foot’ or base is provided at the bottom of the cylinder for mounting purposes. This foot is typically a flat, extended part of the cylinder’s outer casing, allowing the cylinder to be bolted directly onto a flat surface. Foot mounting is a versatile and straightforward method, ideal for applications where the cylinder can be supported along its length, thereby reducing the risk of bending under load.
This type of mounting is particularly advantageous in applications where the cylinder needs to be mounted horizontally and supported along its length. It is a common choice for applications like presses, material handling equipment, lifting devices, and in some types of manufacturing machinery where the cylinder does not experience significant lateral forces.
Foot-mounted cylinders have a significant impact on both the operation of the cylinder and the overall design of the machine. One of the key benefits of foot mounting is the distribution of force along the length of the cylinder, which helps in reducing stress and potential bending. This is especially important in applications involving long strokes or high forces.
In terms of machine design, the choice of foot mounting often leads to simpler designs, as it doesn’t require complex structures or additional space for mounting brackets. However, the design must ensure that the cylinder is adequately supported and aligned to prevent misalignment, which can cause uneven wear and reduced efficiency.
Testing and troubleshooting are crucial final steps in the hydraulic cylinder rebuild process. Proper testing ensures the cylinder operates safely and efficiently, while effective troubleshooting can address any issues before the cylinder is put back into regular service.

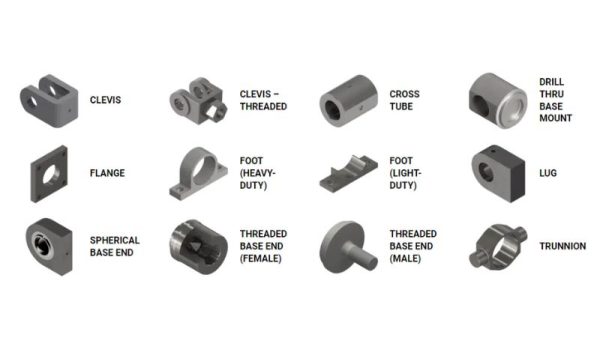

Selecting the correct mounting type for a hydraulic cylinder is crucial for ensuring optimal performance and longevity. Key factors to consider include:
Load: The direction and magnitude of the load are pivotal in determining the suitable mount. For example, heavy axial loads may require robust mounts like flange or foot mounts, while lateral or multi-directional loads might be better suited to trunnion or sphere mounts.
Alignment: Proper alignment is crucial to prevent undue stress and wear. Mounts like the clevis or rod eye provide flexibility in alignment, which can be beneficial in applications where perfect alignment is challenging.
Space: The available space for the cylinder and mount can significantly influence the choice. Compact applications may benefit from nose or universal mounts, whereas more spacious setups can accommodate larger mounts like flange or foot mounts.
Motion: The type of motion required (linear, oscillating, rotating) dictates the mount type. Pivotal movements call for trunnion or rod eye mounts, while linear motion might be best served by side or clevis mounts.
Different industries have varying requirements that influence the choice of hydraulic cylinder mounts:
Construction and Earth Moving: Durability and robustness are key, favoring mounts like lug or flange mounts that can handle heavy loads and harsh conditions.
Manufacturing and Automation: Precision and flexibility are crucial, often necessitating mounts like clevis or rod eye that offer alignment forgiveness and adaptability.
Agricultural Machinery: These applications often require mounts that can handle variable loads and angles, making trunnion or pivot mounts a common choice due to their ability to accommodate angular movements and shifting loads.
Material Handling and Logistics: Stability and reliability are paramount, with foot or tierod mounts often being selected for their ability to provide a stable base and easy maintenance.
Choosing the right type of hydraulic cylinder mounting is not only a technical decision, but also a strategic one. From rugged, heavy-duty flange mounts to flexible, versatile collet mounts, each type has its own unique purpose and can be tailored to meet specific operational needs. As technology has evolved, so have hydraulic cylinder mounting solutions, providing more efficient, reliable and tailored options for a variety of industrial applications. If you have any doubts, please feel free to contact us!
