Front Flange Mount
Front Flange Mount Hydraulic Cylinder
Standard front flange cylinder for rigid machine frames, offering accurate axial alignment and stable mounting for industrial and mobile equipment.
Flange-Mounted Hydraulic Cylinders · Factory Direct
Heavy-Duty Flange Hydraulic Cylinders Built for OEM Equipment
Designed for presses, lifting systems, industrial machinery and automated production lines. Topa provides custom flange-mounted cylinders with stable performance, precise alignment, and long service life for demanding working environments.
- ✓ Front & rear flange options for rigid mounting
- ✓ Custom bore, stroke, ports and rod ends
- ✓ 100% pressure and leakage testing before shipment
Flange Hydraulic Cylinder Categories
Choose the right flange hydraulic cylinder type for your machine. Topa supports OEM projects with custom bore, stroke, mounting style and working pressure to match real-world applications.
Front Flange Mount
Lifter Use
Front Flange Hydraulic Cylinder for Lifter
Optimized for lifting tables, docks and platforms where smooth stroke, vertical stability and long service life are required under frequent cycling.
HSG Series
HSG Series Flange Hydraulic Cylinder
Proven HSG flange cylinder series with robust construction, suitable for presses, hydraulic power units and general industrial applications.
Middle Flange
Middle Flange Hydraulic Cylinder
Middle flange design for compact installations where the cylinder needs to be supported near the center of the barrel to balance forces and reduce bending.
Welded Rear Flange
Welded Rear Flange Hydraulic Cylinder
Welded rear flange cylinder for compact OEM machines, combining strong mounting with reduced overall length and fewer potential leak points.
Press / Packer
Press Packer Flange Hydraulic Cylinder
Heavy-duty flange cylinders for balers, compactors and press machines, engineered to handle repeated high-pressure cycles and shock loads.
FLANGE MOUNT REAL-WORLD ISSUES
Are Flange Mount Failures Creating Rework and Downtime?
Flange mount hydraulic cylinders are selected for rigid, heavy-load installation. But when flange type, bolt pattern, mounting face, and alignment are not engineered to your equipment, downtime shows up as leaks, vibration loosening, and early wear.
Bolt Pattern Mismatch & Mounting Rework
Wrong flange hole spacing, pilot diameter, or bolt-grade requirements force drilling, shimming, or adapter plates—delaying installs and creating long-term reliability risk.
Typical cause: PCD / pilot / bolt spec not confirmed before production.
Flange Face Errors Causing Binding
If flange face flatness or perpendicularity is off, the rod runs under constant stress. You get uneven seal wear, stick-slip motion, and reduced cylinder life—especially on rigid fixed mounts.
Typical symptom: smooth no-load, but jerky under load with repeat seal issues.
Side Loads Overwhelming the Flange Mount
Flange mounts hold position rigidly. If your application creates lateral forces (misalignment, deflection), load transfers to rod bearings and seals—driving scoring, bending risk, and early leakage.
High risk: loaders, presses, compactors, and fixed frames with poor alignment control.
Vibration Loosening & Position Drift
Vibration cycles can loosen flange bolts when torque spec, locking method, bolt class, and flange thickness are not matched—causing drift, leaks, and unsafe mounting movement.
Buyer miss: bolt preload design + locking method is part of the cylinder solution.
Share your flange type (front / rear), bolt pattern, load direction, and space limits — we’ll recommend the right flange cylinder structure to reduce leaks and rework.
OUR SERVICES
Flange Cylinder Solutions, Not Just a Part
Flange mount hydraulic cylinders perform best when the mounting interface, load direction, and sealing system are engineered together. Our services focus on solving fixed-mount problems at the root cause.
Fixed Mounting Scheme Design
We confirm installation direction, support points, and space constraints so the flange cylinder runs smoothly without binding or repeated shimming.
Flange Size & Bolt Pattern Matching
We verify PCD, pilot diameter, flange thickness, and bolt grade requirements to prevent installation rework and looseness under vibration.
Side Load & Bearing Support Recommendation
For rigid flange mounting, we assess lateral force risk and recommend rod bearing length and guidance to reduce scoring, seal wear, and bending.
Seal System & Material Advice by Duty Cycle
Based on pressure, temperature, speed, and contamination level, we recommend seal configuration and materials to improve leakage control and service life.
Port Position & Hose Routing Optimization
We help plan port orientation and fitting clearance to avoid hose stress that can cause micro-movement, fitting loosening, and recurring leaks on fixed mounts.
Drawing Confirmation & Prototype Support
We provide clear drawings for confirmation before production and can support prototypes to verify flange fit, stroke, and performance before repeat orders.
Engineering Involvement From Day One
Share your flange drawing (PCD / pilot / thickness), load direction, working pressure, stroke, and space limits. Our engineers will review and recommend the right flange mount cylinder structure to reduce downtime.
Flange Hydraulic Cylinder Overview
What Is a Flange Hydraulic Cylinder?
A flange hydraulic cylinder is a cylinder with a flat mounting plate (flange) welded or bolted to the barrel. The flange fixes the cylinder firmly to the machine frame, keeps the axis aligned, and carries the pushing or pulling force during each stroke.
Core structure of a flange cylinder
- Flange mounting plate: round or square plate with bolt holes that secure the cylinder to the machine.
- Cylinder barrel: honed tube that guides the piston and holds working pressure.
- Piston & rod: convert oil pressure into linear motion for pushing and pulling.
- End caps & seals: control internal oil flow and keep the system tight with low leakage.
- Ports & threads: connect the cylinder to the hydraulic hose, manifold, or valve block.
Where flange cylinders are most suitable
- Equipment with rigid frames that need precise, repeatable alignment.
- High-load systems where the mounting face carries large push or pull forces.
- Compact machines with limited space for clevis or trunnion mounts.
- Industrial presses, factory automation, lifting tables, and material handling units.

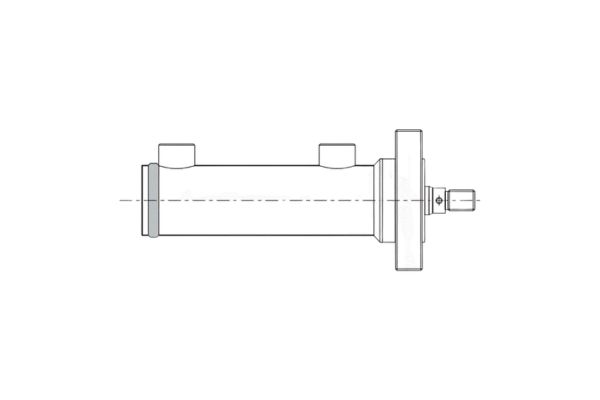

Flange Cylinder Structure
Front / Rear Flange
Heavy-Duty Barrel
Piston & Rod
Ports & Seals
Flange Hydraulic Cylinder Working Principle
How Does a Flange Hydraulic Cylinder Work?
Working Principle Diagram
Pressure Oil In
Piston Movement
Rod Extension / Retraction
Fixed Flange Mount
A flange hydraulic cylinder converts hydraulic pressure into straight-line force. Oil flows into the cylinder chamber, pushes on the piston area, and the piston rod moves in or out while the flange keeps the cylinder body fixed to the machine frame.
Basic working principle
- Oil in, force out: When pressurized oil enters one port, it fills the chamber and pushes on the piston surface.
- Piston & rod movement: The piston slides inside the barrel and drives the rod forward or backward in a straight line.
- Return by reverse flow: When the valve switches, oil is sent to the opposite chamber and the rod returns in the other direction.
- Seals keep pressure: O-rings and lip seals around the piston and rod keep oil in place and maintain working pressure.
- Controlled by valves: Directional and flow-control valves decide when the cylinder extends, retracts and how fast it moves.
Role of the flange during operation
- The flange bolts the cylinder firmly to the machine so only the rod is free to move.
- It keeps the cylinder axis aligned with the load, reducing side load on the rod and seals.
- The flange face spreads pushing and pulling forces over a large contact area.
- Front, rear or middle flange positions are chosen to match the structure of your frame.
Flange Mounting Styles
Mounting Options for Flange Cylinders
Different flange positions give you different ways to bolt the cylinder to your frame. The right mounting style keeps the cylinder axis straight and lets it handle high loads safely.
A flange cylinder is fixed to the machine by bolting the flange face to a plate, wall or bracket. By changing the flange position, the same cylinder design adapts to different machine layouts.
- Front flange: ideal for presses, frames and fixed bases.
- Rear flange: used for lifters, compact equipment and guided loads.
- Corner flange: reinforced corners for vibration and side-load resistance.
- Square flange: easy four-bolt alignment on flat plates and brackets.
Front Flange
Bolted on the cap end of the cylinder. Often used on presses, forming lines and fixed frames where the cylinder base must stay in one position.
Rear Flange
Located on the rod side of the cylinder. A compact choice for lifters, platforms and OEM machines with limited space behind the cylinder.
Corner Flange
Flange ears in the corners provide more rigidity and better resistance to bending and side loads, useful in heavy-duty packers and balers.
Square Flange
A four-bolt square pattern that is easy to center and align on machine plates, manifolds or welded boxes for industrial automation.
If you share your frame drawing or 3D model, Topa can recommend the most suitable flange mounting style and bolt pattern for your flange cylinders.
Why Choose Flange Mount?
Flange-mounted cylinders give your machines a rigid, well-aligned mounting surface. This helps carry high forces safely, keeps the cylinder axis straight, and simplifies installation on frames, plates and welded structures.
Stable & Rigid Mounting
The flange plate bolts directly to the machine frame, so push and pull forces go through a large contact surface instead of small pins or brackets.
- Large flat mounting face
- Better load distribution
- Less movement under heavy load
Accurate Cylinder Alignment
A fixed flange keeps the cylinder axis in one position, so the rod runs straight. This helps reduce side load on seals and guides, and helps the cylinder last longer.
- Good match with guided loads
- Less side load on rod and seals
- Better stroke repeatability
Compact & OEM-Friendly Design
Flange mounts fit well on plates, machine walls and welded boxes. They are easy to integrate into OEM designs and help keep overall machine length under control.
- Easy to bolt to plates and frames
- Good choice for presses and packers
- Simple to position in 3D layouts
Applications
Flange-mounted hydraulic cylinders are widely used in presses, lifters and packers. The rigid flange interface keeps the cylinder stable, even under high pressure and frequent cycling.
Press Machines
Industrial Presses & Forming Lines
Flange cylinders provide a compact way to generate high pressing forces on stamping, forming, bending and punching lines, with precise stroke control and stable alignment.
- Front or square flange mounting to press frames
- High-pressure designs for heavy-duty cycles
Lifting Systems
Lifting Tables & Platforms
For scissor lifts, dock levelers and fixed platforms, flange-mounted cylinders deliver smooth raising and lowering while keeping the structure compact.
- Front flange cylinders for vertical loads
- Custom stroke and port positions for OEM designs
Balers & Packers
Balers, Compactors & Packers
Heavy-duty flange cylinders drive the compression force in waste balers, compactors and packers, designed for repeated shock loads in dusty environments.
- Rear or middle flange welded to the machine body
- Reinforced seals and rods for harsh conditions
Global Flange Cylinder Supply
20+
Years in Hydraulic Manufacturing
30+
Export Countries Served
500+
Flange Cylinder Models Developed
Main Markets for Flange Mount Cylinders
Europe: OEM trailer builders, agricultural machinery brands and repair shops.
North & South America: Hydraulic distributors serving waste trucks, construction and farm equipment.
Southeast Asia & Middle East: Engineering companies, rental fleets and local assembly factories.
Want a flange mount hydraulic cylinder supplier experienced with your country’s shipping and documentation?
Flange Cylinder Factory Overview
Many buyers worry about hidden workshops. Here is how your flange mount hydraulic cylinder supplier actually produces and controls each cylinder.
Controlled Steps from Tube to Finished Flange Cylinder
• Raw steel tubes, chrome rods and flange plates are inspected for dimensions, hardness and surface straightness before machining.
• CNC centers machine bolt patterns, ports and flange faces in one setup for perfect fit and repeatability.
• Precision welders follow stable WPS procedures to weld the flange to the barrel, preventing deformation and ensuring full penetration strength.
• After assembly, each cylinder is pressure-tested for internal leakage, external leakage, and smooth motion before painting.
• Final steps include rust-proof coating, custom color painting, marking, packaging and palletizing to match your country’s import requirements.
Factory Video
Flange Cylinder Production Video
See How Topa Builds Flange Cylinders
The factory video takes your team directly onto the production floor, showing each step from raw material to finished flange-mounted hydraulic cylinders ready for export.
What you can see in the video
- Raw tube cutting, honing and chrome rod preparation for flange cylinders.
- CNC machining of flanges, ports, bolt patterns and rod ends.
- Automatic and manual welding of flanges to the cylinder barrel.
- Assembly, pressure testing and final painting before packing.
Why Choose Topa?
Flange-mounted hydraulic cylinders require precise machining and stable manufacturing control. Here’s why many distributors and OEMs rely on TOPA for long-term cooperation.
Real Factory & Stable Supply
With stable partner factories and strict process control, every flange cylinder is produced under consistent machining and welding standards.
Fast Customization
Custom bore, stroke, flange size, port location, rod ends and special coatings delivered with quick drawings and short lead time.
Accurate Machining
CNC machining for flanges, ports, bolt patterns and rod threads ensures perfect alignment and long service life under real working loads.
Reliable Welding Quality
Flange-to-barrel welds follow stable WPS procedures, delivering strength and durability for press, baler and lifter equipment.
100% Pressure Testing
Every flange cylinder is pressure-tested for internal & external leakage, smooth movement and sealing performance before painting.
Flexible MOQ & Fast Response
Support for small-volume OEM projects and distributor stocking. Fast quotation and customer service within 12–24 hours.
Flange Cylinder Purchasing Guide
Avoid costly specification mistakes on flange mount hydraulic cylinders. Use these selection checkpoints to prevent rework, leaks, and premature wear after installation.
Flange Dimension & Bolt Pattern Matching
Common Mistake
Ordering a flange mount hydraulic cylinder by bore/stroke only, without confirming PCD, pilot diameter, hole quantity, thread type, and flange thickness—ending in mounting incompatibility and on-site rework.
Correct Approach
Provide the mounting surface drawing (PCD, pilot, hole size/thread, thickness, face dimensions). We match the flange to your machine frame before production.
Alignment, Perpendicularity & Concentricity
Common Mistake
Assuming any flange will run smoothly on a rigid mount. Small alignment errors create side loads, causing stick-slip motion, uneven seal wear, and early leakage.
Correct Approach
Define alignment requirements (flange face flatness, perpendicularity, and bore-to-flange concentricity). For precision fixed mounts, typical targets are 0.05–0.10 mm depending on duty cycle.
Fastener Grade, Torque & Anti-Loosening
Common Mistake
Using standard-grade bolts on high-pressure or high-vibration flange cylinder applications. This leads to fatigue cracking, loosening, hole elongation, and unsafe mounting movement.
Correct Approach
Match bolt grade (8.8 / 10.9 / 12.9) to load and vibration. Use correct torque, locking method, and verify flange thickness supports proper bolt preload.
Need help confirming flange type, bolt pattern, and alignment requirements for your cylinder?
TRUST & QUALITY
Certifications and Customer Feedback
For flange mount hydraulic cylinders, stable quality is not a promise—it’s verified by process control, testing, and consistent performance in customer applications.
Certifications
ISO 9001
Quality management for stable production and repeatability.
100% Pressure Test
Each cylinder is tested to verify sealing and performance.
Dimensional Inspection
Flange face, PCD, pilot, and stroke checked before packing.
Batch Traceability
Material and production records for consistent repeat orders.
Tip: If you have a flange drawing or sample, share it with us. We confirm bolt pattern, pilot diameter,
thickness, and alignment requirements before production.
Customer Feedback
“The flange mount fit was accurate with zero rework. The cylinder runs smooth under load and the leakage issue is gone.”
“We provided our bolt pattern and working pressure. Their engineer confirmed the flange thickness and bolt grade—no loosening after long vibration cycles.”
“Lead time was stable and packaging protected the rod and flange face. Installation was straightforward, no damage during shipping.”
Want verified flange fit and stable performance? Send your drawing or photos with key dimensions.
Fast Delivery for Flange Cylinders
1
Drawing & Confirmation
Within 1–3 working days after receiving your data we confirm specs and quotation.
2
Sample or First Batch
Sample flange cylinders or first batch normally finish in 30 days depending on complexity.
3
Regular Orders
Once the model is fixed, regular orders ship faster because fixtures and tools are already prepared.
Flange Mount Cylinder FAQ
What information do you need to quote a flange-mounted hydraulic cylinder?
+
Bore size, rod size, stroke, working pressure, flange type (front, rear, middle, square),
port thread, mounting direction and quantity.
A drawing or photos help us match your design faster.
Can you reproduce an existing flange cylinder sample?
+
Yes. Send a sample to our factory and we will reverse-measure all sizes, create drawings,
and build a trial batch for testing.
Which flange mounting type is best for my equipment?
+
Front flange is for fixed bases, rear flange for compact frames,
middle flange for balanced mounting,
and square flange for easy alignment.
Send your frame drawing and we’ll recommend the right type.
Do you test flange cylinders before shipment?
+
Yes. Every cylinder is pressure-tested for internal leakage, external leakage,
smooth movement and load holding before painting.
What is the usual lead time for flange hydraulic cylinders?
+
First batches take 30 days depending on complexity.
Repeat orders ship faster because tooling and fixtures are ready.
Can you customize ports, rod ends, coatings, and seals?
+
Yes. Topa supports custom port locations, special coatings,
high-temperature seals, food-grade seals,
and custom rod-end machining for OEM applications.
Tell Topa About Your Flange Cylinder Project
Share your flange-mounted hydraulic cylinder requirements and let Topa turn them into a stable, repeatable solution. Our engineers check bore, stroke, pressure, flange type and port positions against your real working conditions, then give clear drawings, quotations and delivery time, so you can promise reliable lead times to your own customers.
- Dedicated support for front, rear, middle and square flange cylinders
- Custom bore, stroke, ports and coatings for your OEM machines
- 100% pressure-tested flange cylinders with material traceability
- Support for both small trial orders and long-term repeat batches
- Fast response within 24 hours on drawings, quotes and delivery dates
