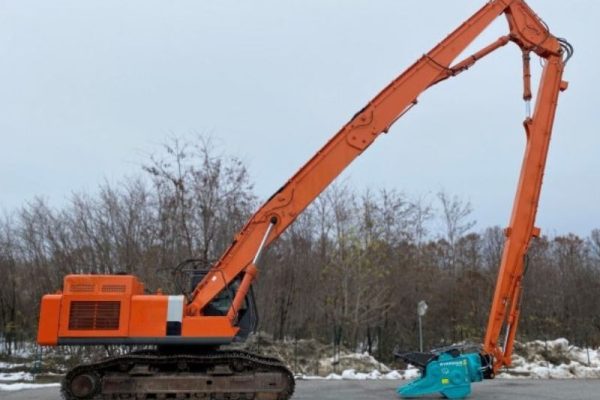

Hydraulic cylinders are everywhere, from heavy-duty robotic arms in excavators to precision control systems in aerospace applications. But have you ever wondered what lies beneath the rugged exterior of these hydraulic powerhouses? What materials are tasked with holding and managing high-pressure fluids while ensuring consistent performance and reliability? This article will delve into the heart of hydraulic cylinders and reveal the materials that make up these industrial marvels.
In the realm of hydraulic cylinders, the choice of material plays a pivotal role in determining the cylinder’s overall performance and durability. Among the myriad of materials available, certain ones stand out due to their unique properties and suitability for hydraulic applications. Steel, specifically carbon steel and stainless steel, aluminum, and composite materials are the frontrunners in this regard.
Steel, particularly carbon steel and stainless steel, is the go-to material for many hydraulic cylinder components. Carbon steel is renowned for its high strength and durability, making it an ideal choice for the cylinder barrel and rod. It can withstand high pressure and stress, which are commonplace in hydraulic systems. However, carbon steel is susceptible to corrosion, which can be mitigated through protective coatings and treatments.
Stainless steel, on the other hand, includes chromium which gives it a significant advantage in terms of corrosion resistance. This property makes stainless steel an excellent material for hydraulic cylinders used in corrosive environments, such as marine applications or chemical processing plants. Although stainless steel is generally more expensive than carbon steel, its resistance to corrosion can lead to longer service life and reduced maintenance costs, making it a cost-effective choice in the long run.
Aluminum stands out in hydraulic cylinder construction due to its lightweight nature and impressive strength-to-weight ratio. This material is particularly advantageous in applications where weight is a critical factor, such as in aerospace or mobile equipment. Aluminum’s natural resistance to corrosion further enhances its appeal, as it reduces the need for additional protective coatings. This resistance makes it suitable for use in environments where corrosion is a concern but where the maximum strength of steel isn’t required.
The world of hydraulic cylinders is witnessing a gradual shift towards the use of composite materials. These materials, made from two or more constituent materials with significantly different physical or chemical properties, offer unique advantages. Composites can be engineered to provide a combination of strength, low weight, and corrosion resistance that traditional materials cannot match.
For instance, carbon fiber composites are being increasingly used in hydraulic cylinder rods for their exceptional strength and lightweight properties. These materials are particularly beneficial in applications where weight reduction is crucial, such as in mobile hydraulics or in sectors where energy efficiency is paramount. Moreover, composite materials are not prone to corrosion like metals, which extends the life of the cylinder and reduces maintenance costs.
The trend towards composite materials in hydraulic cylinders points to a future where these components are not only lighter and stronger but also more adaptable to a variety of demanding environments. With continued research and development, composite materials have the potential to revolutionize hydraulic cylinder construction, offering enhanced performance while meeting the diverse needs of various industries.
Hydraulic cylinders, the driving force behind a myriad of mechanical systems, are composed of several key components, each crafted from materials meticulously chosen for their specific properties and contributions to the cylinder’s overall functionality.

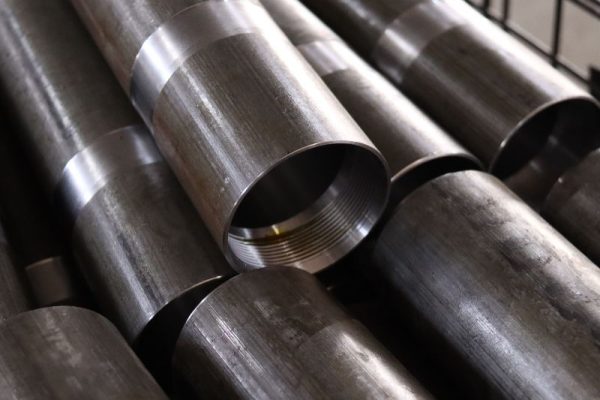

The cylinder barrel is the backbone of the hydraulic cylinder, a crucial component that not only forms the main body but also encases the piston and hydraulic fluid. This component’s material selection is paramount for ensuring the entire assembly operates effectively under various conditions.
Carbon steel is a popular choice for cylinder barrels due to its impressive strength and durability. This material can handle high pressure and stress, making it an ideal choice for heavy-duty applications like construction machinery, manufacturing equipment, and agricultural machinery. Its high tensile strength ensures that the barrel can withstand the mechanical forces and pressures exerted during the hydraulic cylinder’s operation without deformation or failure.
Carbon steel barrels are particularly valued in applications where the cylinder is subject to high loads or impacts.
For example, in earth-moving equipment, these barrels can endure the rigorous stress of digging, lifting, and moving heavy materials. In manufacturing settings, they provide the necessary robustness for pressing, lifting, or assembling heavy components.
Stainless steel stands out for its exceptional corrosion resistance, a vital attribute in harsh working environments. This material is especially beneficial for hydraulic cylinders used in maritime applications, chemical processing plants, or any setting where the equipment is exposed to corrosive substances, moisture, or extreme weather conditions.
The corrosion-resistant nature of stainless steel extends the life of the hydraulic cylinder by preventing rust and other forms of corrosion that can weaken the barrel and cause leaks. This feature is crucial for maintaining the integrity and safety of the hydraulic system. For instance, in the marine industry, stainless steel barrels are used in equipment like cranes and hoists, ensuring reliability and safety in the corrosive sea-air environment.
In some applications, manufacturers may choose to combine the strengths of both materials. For instance, a carbon steel barrel may be coated with a layer of stainless steel or another protective coating to enhance its corrosion resistance while maintaining its inherent strength and durability.
In hydraulic cylinders, pistons and rods are the dynamic duo working in tandem to convert hydraulic energy into mechanical power. The choice of materials for these components is a study in precision engineering, as they must withstand considerable stress, wear, and environmental factors.
Pistons, the heart of the hydraulic cylinder, are typically fashioned from robust metals like steel and aluminum. The choice between these materials hinges on the specific demands of the application.
Rods, the visible extension of the hydraulic cylinder, bear the responsibility of transmitting the force generated by the piston to the intended application. These components are predominantly made from high-grade steel, valued for its high tensile strength and resistance to bending.
Protective Coatings: To enhance their performance and longevity, rods are often coated with materials like chrome or nickel. Chrome plating is widely used for its dual benefits of increasing surface hardness and providing corrosion resistance. This coating is particularly important in environments where the rod is exposed to harsh conditions, such as outdoor construction sites or maritime applications. Nickel coatings, on the other hand, offer superior protection in highly corrosive environments, such as chemical processing plants.
The selection of materials for pistons and rods involves a careful consideration of several factors:

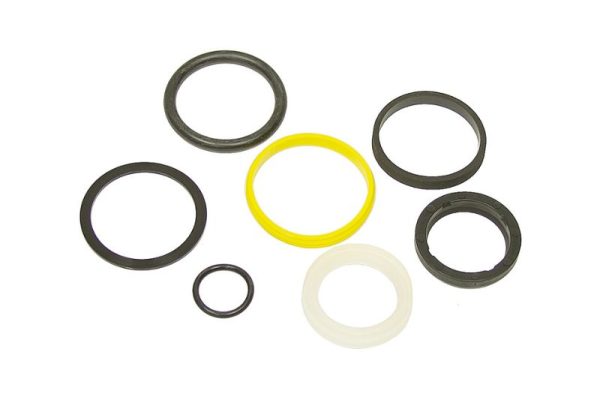

The integrity and efficiency of hydraulic cylinders heavily depend on the quality and suitability of seals and coatings. These components play a crucial role in ensuring the longevity and optimal performance of the cylinder by preventing fluid leakage and protecting against wear and environmental damage.

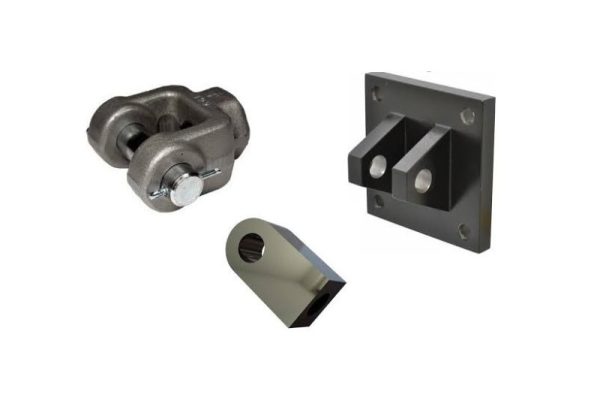

Mount options are a critical component in hydraulic cylinder design, directly affecting the installation, operation, and overall effectiveness of the cylinder in its intended application. The choice of mount not only influences how the cylinder will be integrated into a system but also its stability, alignment, and ability to handle loads.
The design of the mount is as important as the material choice. Different mount designs are suited to different applications, and selecting the right one is crucial for the effective operation of the hydraulic cylinder. Some common mount types include:
The design and material of the mount must be compatible with the cylinder’s application to ensure optimal performance. Factors such as the direction of the load, the need for pivot, and the environmental conditions all influence the choice of mount type and material. Proper alignment is essential to avoid undue stress on the cylinder and to ensure efficient operation. A misaligned mount can lead to increased wear and tear, reduced performance, and a higher risk of failure.
Hydraulic fluid is the lifeblood of any hydraulic system, and its role in the operation of hydraulic cylinders cannot be overstated. Serving as the medium for power transmission, the type of hydraulic fluid used is pivotal for the system’s efficiency, reliability, and longevity.
The compatibility of hydraulic fluid with the materials used in hydraulic cylinder components is a crucial consideration. The fluid must not only effectively transmit power but also maintain the integrity of the cylinder’s materials over time.
Selecting the appropriate materials for hydraulic cylinders is a complex process, influenced by various factors that determine their efficiency, durability, and overall performance. Understanding these influencing factors is crucial for manufacturers and engineers to make informed decisions that align with the specific requirements of their applications.
Operational Environment’s Temperature and Pressure: The environment in which a hydraulic cylinder operates greatly influences the material choice. For high-temperature applications, materials that can withstand thermal expansion and maintain their strength are crucial. Similarly, in colder climates, materials that resist brittleness are essential. The pressure under which the cylinder will operate also dictates material strength requirements. High-pressure applications demand materials with high tensile strength to avoid deformation or failure.
Exposure to Corrosive Substances: In environments where exposure to corrosive substances is likely, such as in marine or chemical processing applications, corrosion-resistant materials like stainless steel or specific coatings are necessary to prevent degradation and prolong the life of the cylinder.
Wear Resistance: The material’s ability to resist wear is vital, especially for components like piston rods, which are in constant motion and contact with seals. Materials with high wear resistance reduce the need for frequent replacements and maintenance, enhancing the cylinder’s lifespan.
Ease of Maintenance: Materials that are easier to maintain and repair can significantly reduce downtime and maintenance costs. For example, using common steel grades might make it easier to find replacement parts or perform repairs, as opposed to specialized or exotic materials.
Balancing Cost and Quality: While high-quality materials may offer better performance and longevity, they also tend to be more expensive. Manufacturers must balance the cost with the expected performance gains. In some cases, investing in higher-quality materials can be more cost-effective in the long run due to reduced maintenance costs and longer service life.
Lifecycle Cost Analysis: A comprehensive analysis of the total lifecycle cost, including initial purchase, maintenance, and potential downtime costs, is crucial. Sometimes, a higher initial investment in better-quality materials can lead to lower overall costs when considering the entire lifespan of the cylinder.
Studies of materials used in hydraulic cylinders have shown a complex interplay between engineering requirements, operational needs and economic factors. From the robust carbon steel or stainless steel used in hydraulic cylinder barrels to the innovative composite materials used in emerging designs, each material is selected for its unique properties and suitability for a particular application. If you still have questions about material selection for hydraulic cylinders, feel free to ask Topa!
