Maintaining hydraulic cylinders is a critical component of ensuring their longevity and optimal performance. However, even the most experienced technicians can fall prey to common mistakes when it comes to greasing these essential components. In this comprehensive guide, we will delve into the top 10 mistakes made during the greasing process of hydraulic cylinders. From using the incorrect type of grease to neglecting the manufacturer’s recommendations, each error can have significant implications on the functionality and lifespan of your hydraulic equipment. By highlighting these common pitfalls, our goal is to provide you with valuable insights and practical tips to enhance your maintenance routine, ensuring your hydraulic cylinders operate at their best.
General Purpose Grease: While versatile, general purpose grease may not provide adequate protection for hydraulic cylinders in high-stress environments. Its properties might not be sufficient to withstand the specific pressures and temperatures these systems often encounter.
High-Pressure Grease: Specially formulated to handle intense loads, high-pressure grease can significantly reduce wear and tear in demanding operational conditions. Its robust nature helps in maintaining cylinder efficiency even under extreme pressure.
Synthetic Grease: Known for its superior performance in a wide range of temperatures, synthetic grease is ideal for hydraulic cylinders operating in environments with fluctuating or extreme temperatures. Its synthetic base offers enhanced stability and protection compared to conventional greases.
Biodegradable Grease: While an environmentally friendly option, especially in ecologically sensitive areas, biodegradable grease may break down more quickly. This necessitates more frequent reapplication to ensure consistent lubrication and protection of the hydraulic cylinder components.
Incompatibility with Cylinder Materials: The use of inappropriate grease types can lead to chemical reactions with the materials inside the hydraulic cylinder, such as seals and O-rings. This can cause deterioration and early failure of these components, compromising the cylinder’s integrity and leading to potential leaks or malfunctions.
Temperature Tolerance: Greases not designed for the specific temperature range of the hydraulic system can lose their lubricating properties, either becoming too fluid at high temperatures or too stiff at low temperatures. This can result in inefficient operation and increased friction, accelerating wear and potential damage to the cylinder.
Pressure Resistance: The pressure within a hydraulic system can be immense, and using a grease not formulated to withstand these pressures can lead to breakdown or displacement of the grease. This can result in metal-on-metal contact, increased wear, and the possibility of catastrophic cylinder failure.
Consistency and Stability: The consistency of the grease is key to its performance. Greases that are not stable over time can become either too thick or too runny, leading to either inadequate coverage or leakage. Both scenarios can result in insufficient lubrication of the hydraulic cylinder, increasing the risk of wear and the potential for system failure.
Increased Pressure and Seal Damage: Over-greasing creates an internal pressure surge in the hydraulic system. This heightened pressure can strain and eventually rupture the seals, leading to leaks and compromised system integrity.
Attraction of Contaminants: Grease excess acts like a magnet for dirt, dust, and particulates. These contaminants, when mixed with the grease, form an abrasive paste that can accelerate the wear of internal components, reducing the cylinder’s lifespan.
Efficiency Reduction: An overflow of grease can lead to increased resistance in the cylinder’s movement. This resistance manifests as sluggish responses and a decline in the overall performance of the machinery, making operations less efficient and more energy-consuming.
Adherence to Manufacturer Guidelines: The manufacturer’s instructions are based on thorough testing and understanding of the equipment’s requirements. Adhering to these guidelines ensures that the greasing is optimal for the specific hydraulic system.
Performance-Based Monitoring: Observing the functioning of the cylinder can provide clues about the adequacy of greasing. A cylinder that operates without noise, leakage, or resistance usually indicates a proper lubrication level.
Precision in Application: Utilizing a grease gun equipped with a gauge enables precise measurement and application of grease, reducing the risk of over-greasing. Consistent application ensures that each greasing session delivers just the right amount of lubricant.
Proactive Inspection Routines: Regularly checking for signs of over-lubrication, such as visible grease build-up or leaks around seals, can help in timely identification and correction of over-greasing issues.
Adjustment for Operating Conditions: Factors like temperature, humidity, and operational frequency can impact lubrication needs. Modifying the greasing volume to suit these varying conditions ensures that the cylinder receives adequate lubrication without the risk of overdoing it.
Increased Friction and Wear: Under-greasing leads to a lack of lubrication between critical moving parts, which increases metal-to-metal contact. This accelerates the wear and reduces the lifespan of cylinder components, leading to more frequent replacements or repairs.
Higher Risk of Corrosion: Insufficient lubrication leaves cylinder parts exposed to environmental elements, especially moisture. This exposure accelerates the rusting and corrosion process, potentially compromising the structural integrity and functionality of the cylinder.
Potential for Overheating: Reduced grease levels increase friction, which in turn generates more heat. Prolonged exposure to this heat can weaken cylinder components and increase the risk of mechanical failures.
Reduced System Efficiency: A lack of proper lubrication can cause hydraulic cylinders to operate with more resistance, leading to inefficient system performance. This inefficiency can manifest as slower response times and increased energy consumption.
Regular Maintenance Schedule: Establishing a regular greasing schedule is critical. This schedule should be based on the operational intensity and frequency of use. For instance, cylinders in constant use may require more frequent greasing than those used intermittently.
Manufacturer’s Recommendations: These guidelines are essential for understanding the specific needs of each hydraulic cylinder. They typically include the type of grease recommended, the quantity to be used, and the frequency of application. Adhering to these recommendations ensures that the cylinder receives the appropriate level of care.

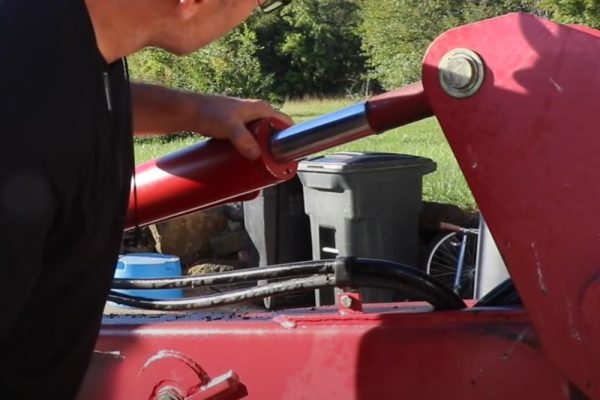

Visual Inspections: Regular inspections are crucial for identifying signs of under-greasing. These signs can include unusual noises, such as creaking or grinding, or visible signs of wear on moving parts.
Environmental Considerations: The greasing requirements can vary significantly based on environmental factors. For example, cylinders operating in a humid or salty environment might require more frequent greasing to prevent corrosion.
Use of Proper Equipment: Utilizing the right tools, like a calibrated grease gun, ensures accurate and effective application of grease. This helps in applying the correct amount of grease, thereby avoiding both under- and over-greasing.
Ensures Consistent Performance: Regular greasing helps maintain optimal performance of hydraulic cylinders.
Prevents Wear and Tear: Consistent lubrication minimizes friction and wear on moving parts.
Detects Issues Early: Regular maintenance allows for early detection of potential issues, preventing costly repairs.
Assess Usage and Conditions: Determine the greasing frequency based on the cylinder’s usage intensity and environmental conditions.
Follow Manufacturer’s Guidelines: Use the manufacturer’s recommended schedule as a baseline for greasing intervals.
Document and Track Maintenance: Keep a maintenance log to track greasing and other servicing activities.
Adjust as Needed: Be prepared to modify the schedule based on changes in usage patterns or operational conditions.
Tailored Advice: Manufacturers provide guidelines based on extensive testing specific to their equipment, ensuring optimal performance and longevity.
Material Compatibility: Recommendations often include information about grease types best suited for the materials used in the hydraulic cylinder.
Case Examples of Issues Arising from Non-Compliance
Seal Degradation: Ignoring guidelines on grease compatibility can lead to premature seal degradation due to chemical incompatibility.
System Failure: Using the wrong type or amount of grease contrary to manufacturer’s recommendations can result in system inefficiencies or failures, leading to costly downtime and repairs.
Seal Degradation: Ignoring guidelines on grease compatibility can lead to premature seal degradation due to chemical incompatibility.
System Failure: Using the wrong type or amount of grease contrary to manufacturer’s recommendations can result in system inefficiencies or failures, leading to costly downtime and repairs.
Removes Contaminants: Cleaning removes dirt, debris, and old grease that can hinder the effectiveness of new grease.
Prevents Damage: Dirt particles can act as abrasives; cleaning them away protects the cylinder’s interior surfaces.
Ensures Effective Lubrication: A clean surface allows for better adherence and distribution of the new grease.
Depressurize the System: Ensure the hydraulic system is turned off and depressurized before starting.
Wipe External Surfaces: Use a clean cloth to wipe down the cylinder, removing surface dirt and grime.
Clean Around Seals: Carefully clean around seals and fittings to prevent contaminants from entering the cylinder during greasing.
Use Appropriate Cleaners: Apply a mild, non-corrosive cleaner if necessary, particularly for stubborn grime or grease residues.
Rinse and Dry: After cleaning, rinse any cleaner residue with water (if appropriate) and thoroughly dry the cylinder.
Inspect for Damage: After cleaning, inspect for any signs of wear or damage that might need attention before greasing.
Contaminated grease can introduce abrasive particles and chemicals into the hydraulic system, leading to increased wear and tear on components, reduced efficiency, and potential system failures. It can compromise seal integrity and reduce the lubricating properties of the grease, accelerating degradation of the cylinder.

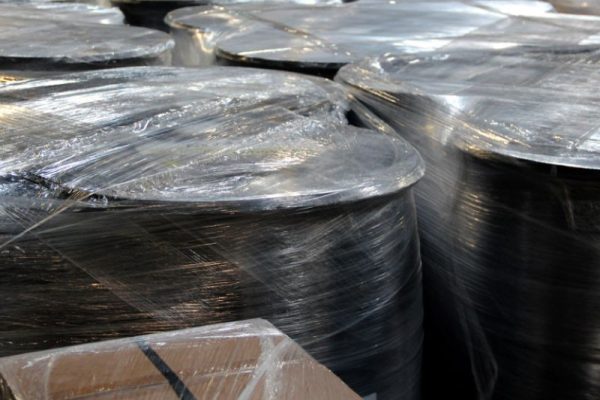

Temperature-Controlled Environment: Store grease in a controlled environment to maintain its consistency and efficacy.
Labeling: Clearly label containers with the type of grease and the date of storage to monitor shelf life and prevent use of expired materials.
Regular Maintenance: Implement a routine for cleaning dispensing tools to remove residual grease and prevent buildup.
Dedicated Cleaning Area: Establish a specific area for cleaning tools to minimize the risk of environmental contaminants.
Color-Coded Tools: Utilize color-coded dispensing tools for different grease types to easily distinguish between them and prevent mixing.
Training Staff: Educate maintenance personnel on the importance of using the correct tools for each grease type.
Quality Checks: Conduct periodic quality checks on stored grease for any signs of separation or unusual textures.
Disposal of Degraded Grease: Properly dispose of any grease that shows signs of degradation to prevent accidental use.
Temperature Variations: The viscosity of grease is highly sensitive to temperature changes. Extreme cold can thicken grease, hindering its flow and effectiveness, while extreme heat can thin it, reducing its lubricating properties. This variability necessitates a tailored approach to grease selection, where the product must match the ambient temperature range of the operating environment to maintain its protective and lubricating qualities.
Presence of Contaminants: In environments rife with dust, dirt, or moisture, hydraulic systems face increased risks of contamination. Such particles can infiltrate components, causing abrasion and corrosion. In these conditions, a more aggressive greasing routine is not just beneficial but essential for creating a barrier that keeps contaminants at bay and protects the system’s integrity.
Operational Conditions: The demands placed on hydraulic systems can vary widely, with some facing high-load or high-speed conditions that can accelerate the degradation of grease. These demanding operational scenarios require not just any grease but one that can withstand the stress and continue to provide effective lubrication without breaking down prematurely.
Temperature-Appropriate Grease: The selection of grease formulated for specific temperature ranges cannot be overstated. Manufacturers offer products designed to retain their consistency and lubricating properties across a wide spectrum of temperatures. For instance, low-temperature greases ensure flowability in cold climates, while high-temperature variants resist thinning in hot conditions, ensuring the hydraulic system remains well-lubricated and operational.
Increased Protection in Contaminated Areas: In settings where contamination is a significant risk, the frequency of greasing should be increased. This proactive approach forms a continuous protective layer that helps to expel contaminants from bearing surfaces and seals, safeguarding against the ingress of harmful particles that can lead to wear and system degradation.
Customized Maintenance Schedules: The one-size-fits-all approach to maintenance schedules is a recipe for failure in diverse operational environments. Tailoring greasing intervals to the specific needs of a hydraulic system—taking into account its operational intensity, environmental exposure, and manufacturer’s recommendations—ensures that lubrication is performed optimally. This customization not only prolongs the life of the system but also enhances efficiency and reliability.
Proper training in greasing techniques ensures that maintenance personnel apply the correct amount and type of grease efficiently, preventing both under-greasing and over-greasing. Understanding the mechanics of hydraulic cylinders and the role of lubrication can significantly extend equipment lifespan and enhance performance.
Manufacturer Workshops: Many equipment manufacturers offer training sessions focused on maintenance and greasing.
Online Courses: Platforms like Coursera and Youtube provide courses on equipment maintenance.
Technical Manuals: Detailed guides from grease and equipment manufacturers often include sections on proper greasing techniques.
Industry Seminars: Trade associations and professional bodies frequently host seminars on best practices in equipment maintenance.
Proactive maintenance in hydraulic systems is crucial for ensuring their longevity and efficiency. By recognizing and addressing early warning signs, operators can prevent minor issues from escalating into major, costly failures. Below, we delve into specific problems that these warning signs may indicate, offering insights into their potential causes and the proactive steps needed to mitigate them.
Cavitation: This phenomenon occurs when the hydraulic fluid’s pressure drops below its vapor pressure, leading to the formation of vapor bubbles within the fluid. These bubbles collapse when they reach a region of higher pressure, generating a characteristic knocking sound. Cavitation can erode the surfaces of components, leading to premature failure. Early detection and correction of the system’s pressure settings, along with ensuring the pump is adequately supplied with fluid, can prevent this issue.
Aeration: Aeration happens when air is entrapped in the hydraulic fluid, causing a hissing or banging noise. This air can compress and decompress within the hydraulic system, leading to erratic operation and potential damage. Ensuring tight connections and seals, and regularly checking the fluid levels and condition, can mitigate aeration.
Seal Wear and Failure: Leaks are often indicative of worn or failed seals. These leaks not only lead to fluid loss and environmental concerns but also reduce the system’s efficiency and can cause contamination. Identifying the source of a leak early and replacing faulty seals can prevent further damage.
Component Wear: Decreased system performance can be a sign of wear on critical components such as pumps, valves, or actuators. Wear can result from inadequate lubrication, contamination, or simply the age of the components. Monitoring system performance and conducting regular inspections can help identify wear early, allowing for component repair or replacement before a failure occurs.
Fluid Contamination: Contamination of the hydraulic fluid by water, dust, or other particulates can significantly impair system performance. Contaminants can cause corrosion, increase wear, and reduce the efficiency of hydraulic operations. Implementing strict fluid management practices, including regular sampling and analysis, can help detect and address contamination issues promptly.
System Inefficiencies: An increase in the energy consumption of a hydraulic system can indicate inefficiencies, such as leaks, pressure drops, or the system working harder to overcome internal friction or contamination. Monitoring energy usage and performing regular system audits can identify areas of inefficiency, guiding targeted maintenance efforts to restore optimal performance.
Throughout the testing and troubleshooting process, it’s crucial to keep detailed records of any issues encountered and how they were resolved. This not only aids in current repairs but also provides valuable information for future maintenance and rebuilds. With careful testing and attentive troubleshooting, your rebuilt hydraulic cylinder should be ready to provide reliable service in your machinery.
Ensuring proper greasing practices is critical for the maintenance and longevity of hydraulic cylinders. Avoiding common mistakes like using the wrong grease type, over-greasing, neglecting environmental factors, and ignoring manufacturer’s recommendations can prevent potential system failures and operational inefficiencies. Recognizing and addressing early signs of issues is crucial to avoid turning minor problems into major failures. Following best practices for storage, handling of grease, and regular maintenance schedules can significantly enhance the performance and lifespan of hydraulic systems.
