The process of rebuilding hydraulic cylinders is more than a matter of technical expertise; it requires precision, attention to detail, and a deep understanding of machinery. But even the most skilled technician can encounter common pitfalls that can turn a routine rebuild into a maintenance nightmare. This comprehensive guide is designed to shed light on these common mistakes during hydraulic cylinder rebuilds. By highlighting and addressing these mistakes, we hope to equip you with the knowledge to not only improve the performance of your machine, but also significantly extend its lifespan.
Hydraulic cylinders are fundamental in converting fluid power into mechanical power. They consist of a cylindrical barrel, in which a piston connected to a piston rod moves back and forth. The movement is powered by hydraulic fluid—usually oil—under pressure, entering through one port and exiting through another. This action, governed by the principles of Pascal’s Law, results in a force that can be harnessed to perform a variety of tasks, from lifting heavy loads to controlling machinery operations.
Hydraulic cylinder failure can stem from various issues: the most common being seal leakage, which leads to a loss of pressure and diminished efficiency. Other reasons include cylinder bore wear, which occurs due to constant friction, and piston rod damage, often a result of misalignment or external impact. Corrosion and contamination of the hydraulic fluid also play a significant role in the deterioration of cylinder performance over time.
A rebuild becomes necessary when the performance of a hydraulic cylinder declines or fails, impacting the overall operation of the machinery. Indications for a rebuild include persistent leakage, a noticeable drop in power, or erratic cylinder movement. The purpose of a rebuild is not only to restore the cylinder to its original state of functionality but also to enhance its lifespan and reliability. Through rebuilding, worn-out or damaged components are replaced or repaired, which is often a more cost-effective and sustainable option compared to purchasing a new cylinder.
Before embarking on the journey of rebuilding a hydraulic cylinder, a meticulous inspection is paramount. This initial step is crucial in diagnosing the current state of the cylinder and pinpointing the specific issues that need addressing. A thorough inspection helps in planning the rebuild process accurately, ensuring that all necessary repairs are identified and that no underlying problems are overlooked. This proactive approach not only saves time and resources but also prevents potential future failures.

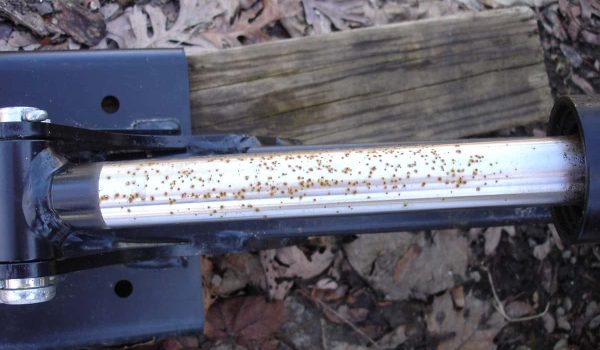

The wear and tear on a hydraulic cylinder can manifest in various forms. Key indicators include scratches or dents on the piston rod, signs of rust or corrosion, and evidence of oil leakage, particularly around the seals. Checking for uneven wear patterns on the cylinder bore is also essential, as this can indicate misalignment issues. It’s important to assess the condition of the seals, bearings, and other components to determine if they need replacement or can be reused.
A successful rebuild requires the right set of tools and materials. Essential tools include a set of wrenches, a seal puller, a piston rod clamp, and a honing tool for smoothing the cylinder bore. Materials needed typically consist of new seals, O-rings, and possibly replacement parts like pistons or rods if they are too worn or damaged. Having the correct lubricants and cleaning solvents is also vital for the assembly process.
The environment in which the rebuild takes place significantly influences the outcome. An ideal workspace is clean, well-lit, and organized, with sufficient space to lay out all parts and tools. A clutter-free and orderly space minimizes the risk of contamination and loss of components. It also allows for a more focused and efficient workflow, which is critical in the precise task of rebuilding a hydraulic cylinder.

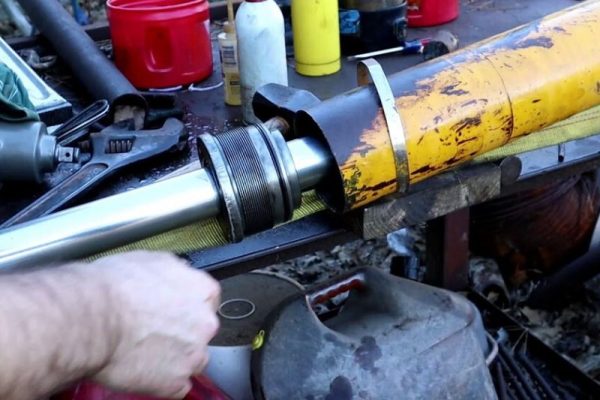

One of the most frequent mistakes in hydraulic cylinder rebuilding is rushing through the disassembly process. This haste often leads to oversight of critical issues and can cause accidental damage to parts that might still be in good condition. It’s crucial to approach disassembly with patience and attention to detail. By taking your time, you can carefully assess each component as it’s removed, which is vital for a thorough rebuild.
A disassembled hydraulic cylinder consists of numerous small parts, and losing track of these components is easy yet problematic. Misplacing even a single small part can lead to significant issues during reassembly. To avoid this, organize and label each part as it’s removed. Use containers or bags to keep similar parts together and consider taking photos or making notes during disassembly for reference during reassembly.
Disassembly requires not just the right tools, but also the skill to use them correctly. Applying excessive force or using inappropriate tools can damage parts, particularly the more delicate ones like seals and bearings. Such damage may not be immediately apparent but can lead to leaks or failures after reassembly. Use proper tools and techniques to gently remove each component, especially when dealing with press-fitted or tightly sealed parts.
To mitigate these common disassembly errors, consider the following tips:
Plan and Pace Yourself: Allocate sufficient time for disassembly, ensuring you’re not rushed.
Document the Process: Take detailed notes or photographs at each step to help in reassembly.
Organize as You Go: Use trays and labels to keep parts organized and prevent loss.
Use Proper Tools: Ensure you have all the necessary tools at hand and use them correctly.
Be Gentle and Observant: Handle each part carefully and inspect it for wear or damage.
One of the most critical components in a hydraulic cylinder rebuild is the selection of appropriate seals. Selecting the wrong type of seal can lead to premature failure and reduced efficiency. Different hydraulic cylinders require specific seal types based on their operating pressure, temperature, and the type of hydraulic fluid used. For instance, a cylinder used in a high-temperature environment may need seals made from materials that can withstand such conditions. Using inappropriate seals not only risks leaks but can also cause damage to the cylinder over time.
Even with the right seals, incorrect installation can lead to significant problems. Common installation errors include twisting or pinching the seal during installation, not lubricating the seals properly, or installing them in the wrong orientation. These mistakes can cause immediate leaks or significantly reduce the life of the seal. Additionally, improper installation can lead to increased friction and wear, impacting the smooth operation of the cylinder.
Improper handling and installation of seals can drastically affect the performance of a hydraulic cylinder. Leaks are the most obvious consequence, leading to a drop in system pressure and inefficiency in operations. Over time, this can lead to increased wear and tear on other components, such as the piston and the cylinder bore, due to contamination and irregular movement. Furthermore, improperly installed seals can cause uneven movement and reduced control precision in the hydraulic system.
To ensure optimal performance and longevity of the hydraulic cylinder, adhere to these best practices:
Accurate Seal Selection: Match the seal material and type to the cylinder’s specific requirements, considering factors like temperature, pressure, and fluid type.
Careful Installation: Follow manufacturer guidelines for seal installation. Use appropriate tools to avoid damaging the seal during installation.
Pre-Installation Inspection: Examine seals for any defects or irregularities before installation.
Lubrication: Properly lubricate the seals with a fluid compatible with the hydraulic system to reduce friction and ease installation.
Clean Environment: Ensure the workspace is clean to avoid contamination of the seals and other hydraulic components.
One of the critical aspects often overlooked during a hydraulic cylinder rebuild is the straightness of the cylinder rod. A bent or misaligned rod can lead to uneven wear on seals and the cylinder bore, resulting in leaks and decreased efficiency. It can also cause binding, which impedes the smooth operation of the piston. Ensuring rod straightness is vital for the overall performance and longevity of the cylinder. It’s recommended to use precision instruments like dial indicators to check the straightness and take corrective measures if necessary.

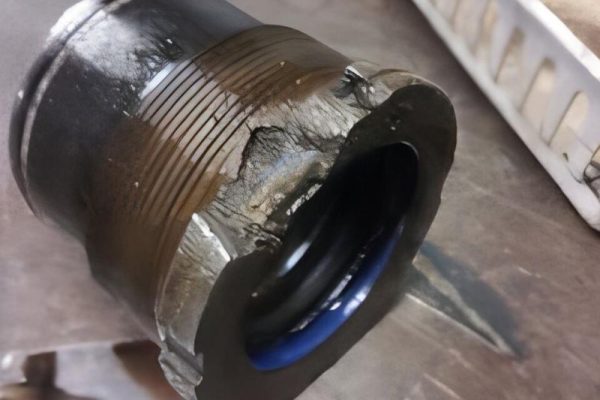

The piston, being central to the operation of a hydraulic cylinder, often undergoes significant wear and tear. Ignoring signs of wear or damage on the piston can be detrimental. Wear can lead to a loss of pressure, while damage can result in uneven movement and potential failure of the cylinder. During the rebuild, it’s essential to inspect the piston thoroughly for any signs of wear, cracking, or distortion. Replacing or repairing the piston as needed is crucial to maintain the cylinder’s efficiency and reliability.
Proper fitting and alignment of the rod and piston are crucial for the smooth operation of a hydraulic cylinder. Errors in this process, such as misalignment or improper fitting, can cause excessive wear, leading to premature failure of the components. Misalignment can also result in uneven hydraulic pressure distribution, which affects the cylinder’s performance and can lead to seal damage. It is important to ensure that the rod is perfectly aligned with the piston and the cylinder bore during reassembly.
Mistakes made in handling the cylinder rod and piston directly impact the quality and success of the rebuild. A bent rod, worn piston, or misalignment can significantly reduce the cylinder’s efficiency, increase the risk of leaks, and potentially lead to system failure. These issues can result in increased operational costs due to frequent maintenance needs and downtime. Ensuring the integrity and proper alignment of these components is key to achieving a high-quality rebuild that enhances the cylinder’s performance and extends its service life.
Reassembling a hydraulic cylinder might seem straightforward, but it’s a phase where many errors occur, often due to oversight. Common mistakes include improper placement of components, forgetting to install certain parts like O-rings or backup rings, and not following the correct torque specifications for bolts and screws. These oversights can lead to leaks, reduced efficiency, and even catastrophic cylinder failure under pressure.
Misalignment during reassembly is a critical error that can have far-reaching consequences. When components like rods, pistons, or seals are not aligned correctly, it leads to uneven wear and tear, increased friction, and stress on parts. This not only shortens the lifespan of the cylinder but also affects its performance, resulting in jerky movements or a lack of fluid control. Moreover, misalignment can cause the cylinder to exert uneven forces, which can be hazardous in applications where precision is paramount.
Proper alignment starts with a clean and organized workspace. Each component should be carefully inspected and cleaned before reassembly. Using alignment tools or jigs can be highly beneficial in ensuring that parts are accurately positioned. Additionally, referring to the manufacturer’s manual or assembly diagrams can provide crucial guidance on the correct placement and orientation of each part. Ensuring that all seals are seated properly and that the piston and rod move smoothly in the cylinder bore is essential before finalizing the assembly.
Follow a Systematic Approach: Reassemble in the reverse order of disassembly, taking care to replace or repair any worn parts.
Use Correct Tools: Employ appropriate tools for each stage of the reassembly to prevent damage to new parts.
Double-Check Work: After reassembly, manually move the piston rod through its full range of motion to check for any binding or misalignment.
Maintain Cleanliness: Keep all components clean throughout the process to prevent contamination.
Torque to Specification: Use a torque wrench to ensure all fasteners are tightened to the manufacturer’s specifications.
Post-rebuild, routine maintenance of a hydraulic cylinder is essential to extend its lifespan and ensure ongoing reliability. This involves regular lubrication of moving parts to reduce friction and wear. Keeping the hydraulic fluid clean is also crucial; it should be free from contaminants to prevent damage to the internal components. Additionally, maintaining the correct fluid level and pressure is vital to prevent stress on the cylinder.
Establishing a schedule for regular inspections is key to early detection and prevention of potential issues. These inspections should include checking for leaks, assessing the condition of seals, and ensuring that all connections are tight. The rod and cylinder should be examined for signs of wear, corrosion, or damage. Setting a routine (e.g., monthly, quarterly, or as per usage intensity) helps in maintaining the cylinder’s optimal performance and identifying repair needs before they escalate into major problems.

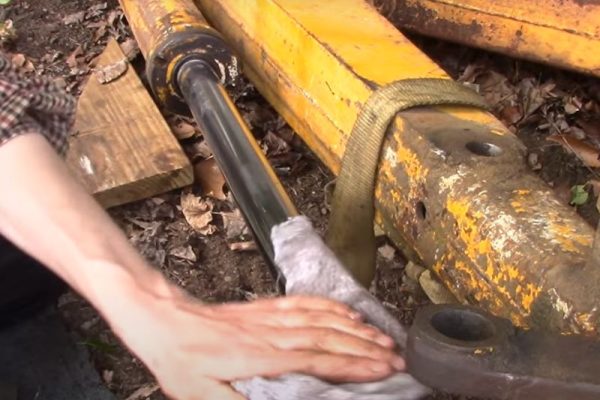

Keep it Clean: Ensure that the cylinder, especially the rod, remains free from dirt and debris. Dirt on the rod can damage the seals as it retracts into the cylinder.
Monitor for Leaks: Regularly check for any signs of hydraulic fluid leakage. Leaks can be indicative of seal wear or damage.
Avoid Overloading: Operate the cylinder within its specified pressure limits to avoid overloading and potential damage.
Use Quality Hydraulic Fluid: Utilize high-grade hydraulic fluid as recommended by the manufacturer, as this can significantly affect the cylinder’s performance.
Storage Precautions: When not in use for extended periods, store the cylinder in a clean, dry place. Ideally, keep the piston rod retracted to protect it from corrosion.
Regular Professional Checks: Consider having a professional inspect the cylinder periodically to ensure it is functioning correctly and to make adjustments as needed.
In conclusion, the process of rebuilding a hydraulic cylinder is intricate and requires meticulous attention at every stage. From initial disassembly to final reassembly and post-rebuild maintenance, each step presents its own challenges and opportunities for error. However, patience, precision and adherence to best practices are key throughout the rebuilding process. Additionally, performing routine inspections, proper cleaning and adhering to operating restrictions play a vital role in extending the life and efficiency of hydraulic cylinders.
