From construction and agricultural machinery to manufacturing and processing equipment, hydraulic cylinders play an important role in the design and function of a range of equipment. The ability of hydraulic cylinders to exert considerable force makes them particularly important in heavy machinery such as excavators, bulldozers and cranes, as they help with complex tasks such as lifting, digging and material handling. The versatility of hydraulic cylinders is not only seen in heavy manual labor, but is also indispensable in applications that require fine precision. This article aims to take an in-depth look at the many applications of hydraulic cylinders in different types of machinery. By exploring the use of hydraulic cylinders in construction, manufacturing, and agriculture, we aim to demonstrate the versatility and efficiency of hydraulic cylinders.
The construction industry, known for its rigorous demands and heavy loads, relies heavily on machinery that can perform under pressure. At the heart of many such machines are hydraulic cylinders, providing the muscle needed for a wide range of construction tasks. From the precise movements of excavators to the lifting power of cranes and the earth-moving capabilities of bulldozers and loaders, hydraulic cylinders are integral to the operation and efficiency of construction machinery.

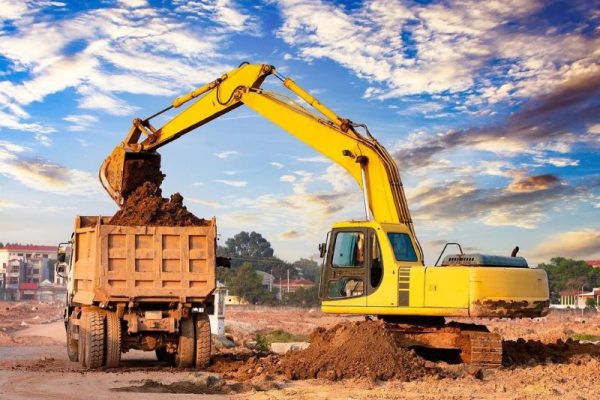

Boom Cylinders: These cylinders control the upward and downward movement of the excavator’s boom, allowing for the digging and dumping of materials.
Arm (Stick) Cylinders: Situated on the excavator arm, these cylinders manage the extension and retraction movement, crucial for the reach and depth of digging operations.
Bucket Cylinders: They operate the bucket’s curling and uncurling actions, enabling the excavator to scoop up material or dig into the ground.
Hydraulic cylinders in excavators and backhoe excavators are pivotal for their functionality. They allow for the precise control and powerful movements needed to dig, lift, and move earth or materials. Their design and robustness ensure that these machines can operate in tough environments, handling tasks from excavation to demolition with precision and efficiency.
Specific Areas of Use and How Hydraulic Cylinders Facilitate Lifting and Material Handling:
Telescopic Cylinders: Used in telescopic cranes for extending and retracting the boom. These cylinders enable the crane to achieve the desired height with stability and control.
Stabilizer Cylinders: These cylinders are used to stabilize and level the crane during operation, ensuring safety and precision when lifting heavy loads.
Hoist Cylinders: Found in hoists, these cylinders facilitate the lifting and lowering of loads. They are designed for durability and smooth operation, critical in preventing sudden drops or jerks that could endanger loads or workers.
Cranes and hoists embody the essence of material handling in construction, lifting heavy materials to significant heights and across distances. Hydraulic cylinders make this possible by providing the necessary force in a controlled manner, enabling precise positioning and secure handling of materials, which is essential for construction efficiency and worker safety.
Specific Areas of Use and the Importance of Hydraulic Cylinders in Earthmoving:
Blade Cylinders: In bulldozers, these cylinders adjust the angle and height of the blade for pushing, leveling, or spreading material.
Lift Cylinders: Found in loaders, they raise and lower the front bucket, allowing for the loading and unloading of materials.
Tilt Cylinders: These cylinders tilt the bucket or blade to control the load or the cut’s angle, enhancing the machine’s versatility in handling different materials and tasks.
Bulldozers and loaders, with their capacity for moving vast amounts of earth and materials, rely on the strength and reliability of hydraulic cylinders. These cylinders provide the precise control and power required for efficient earthmoving, making them indispensable in construction projects ranging from road building to site preparation. Their ability to perform repetitive tasks with precision and without fatigue.

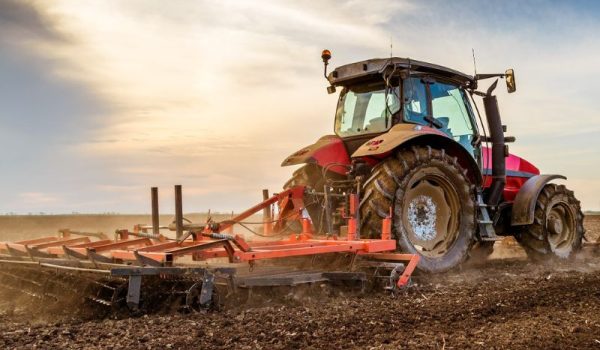

The agricultural sector has benefited greatly from advances in hydraulics, where hydraulic cylinders are central to the operation of essential farm equipment such as tractors, harvesters and irrigation systems. The power provided by hydraulic cylinders enables tractors and harvesters to perform the difficult tasks of plowing, cultivating and harvesting with relative ease. The versatility of these cylinders, which can be adapted to suit a wide range of implements and operations, enables a single tractor to perform a variety of roles on the farm, from soil preparation to crop seeding and harvesting. This adaptability is critical to modern agriculture, as efficiency and versatility are key to managing the various demands of farming operations.
Front Loader Attachments: Hydraulic cylinders in front loader attachments are pivotal for lifting and transporting heavy materials, such as soil, produce, or farming equipment. These cylinders allow for smooth operation, enabling the loader to raise or lower with precision. This precision is crucial for tasks such as loading trucks, building levees, or transferring materials from one location to another, ensuring minimal effort with maximum efficiency.
Three-Point Hitch: The three-point hitch is a standard in modern tractors, allowing for the attachment of a wide range of implements. Hydraulic cylinders here provide the necessary adjustments, enabling the hitch to move up and down or tilt, ensuring that implements like plows, harrows, and seeders are positioned correctly according to the task at hand.
Steering: Steering hydraulic cylinders transform the operator’s inputs into smooth and responsive movements of the tractor. This responsiveness is vital for maneuvering through various terrains, from flat and open fields to uneven and obstacle-laden lands.
Cutting Head Adjustments: Harvesters are equipped with hydraulic cylinders that adjust the cutting head’s height and angle, a feature that is indispensable for effective harvesting. Whether dealing with low-growing soybeans or tall corn stalks, these adjustments ensure that the cutting head is in the optimal position to harvest crops efficiently, minimizing loss and maximizing yield. This adaptability is especially crucial when transitioning between different types of crops or terrains.
Conveyance Systems: Once crops are cut, the conveyance system, powered by hydraulic cylinders, moves the harvested material through the machine for further processing. These cylinders ensure the smooth and continuous flow of crops, from cutting to collection, essential for maintaining the harvester’s efficiency. The reliability of hydraulic cylinders in this process ensures that the harvester operates at peak performance, with minimal downtime for repairs or adjustments.
Movement and Adjustment: Pivot irrigation systems, also known as center pivot irrigation, rely on hydraulic cylinders for both the movement of the entire structure and the adjustment of its angle. These systems can span a significant area, sometimes covering several hundred acres, and the ability to move and adjust them precisely is critical for ensuring even water distribution across the entire field.
Structural Movement: Hydraulic cylinders are used to propel the pivot system around the field. They enable the system to move in a circular pattern, ensuring that all parts of the crop receive uniform irrigation.
Angle Adjustment: The angle of the irrigation pipes can be adjusted using hydraulic cylinders, allowing for the water to be distributed more evenly or targeted to specific areas, depending on the crop’s stage of growth and the field’s topography. This adaptability is essential for preventing water wastage and ensuring that crops are not over or under-watered.
Height and Orientation Adjustments: In both fixed and movable sprinkler systems, hydraulic cylinders play a crucial role in adjusting the height and orientation of sprinkler heads. This precision is key to optimizing water coverage and distribution, tailoring irrigation practices to the specific needs of the crop and the prevailing soil conditions.
Height Adjustments: The ability to adjust the height of sprinkler heads is crucial, especially in fields with crops of varying heights or in situations where the water needs to be dispersed over an obstacle. Hydraulic cylinders facilitate these adjustments, ensuring that water reaches the intended target without wastage.
Orientation Adjustments: Similarly, the orientation of sprinkler heads can be critical, especially in irregularly shaped fields or areas with specific watering needs. Hydraulic cylinders allow for the fine-tuning of sprinkler head orientation, ensuring that water is distributed evenly and efficiently, regardless of field shape or size.
In the manufacturing and industrial sectors, hydraulic cylinders are pivotal components that enhance the functionality, precision, and productivity of various machinery. Their roles in injection molding machines, metal forming presses, and automated production lines are testament to their versatility and efficiency in facilitating complex manufacturing processes.

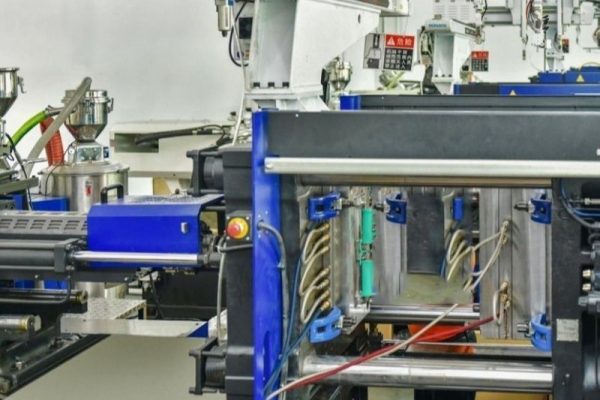

Clamping Unit: Hydraulic cylinders are employed in the clamping unit of injection molding machines to open and close the mold. This action is crucial for the cycle of the molding process, allowing for the injection, cooling, and ejection phases to occur.
Injection Unit: In the injection unit, hydraulic cylinders are used to inject molten plastic into the mold with precise force and speed. This precision is essential for creating high-quality plastic parts that meet strict dimensional tolerances.
Operation and Force Generation: The press ram is the component of the press that moves to shape the metal. Hydraulic cylinders are integral to driving this movement, providing the necessary force to shape metal materials into desired forms. This can include various processes such as stamping, bending, and other forming techniques. The hydraulic cylinders are typically located at either side of the press ram, depending on the press design, and are responsible for the downward and upward movements.
Precision Control: The force exerted by hydraulic cylinders can be precisely controlled, allowing for adjustments to the pressure based on the thickness and type of metal being formed. This precision is crucial for ensuring the integrity of the formed metal parts, as well as for achieving the desired level of detail and complexity in the final product.
Counter Pressure and Detail Accuracy: Die cushions, equipped with hydraulic cylinders, are used to apply counter pressure from underneath the material being pressed. This counter pressure is essential for controlling the flow of the material during the forming process, ensuring that parts are formed accurately and with the correct level of detail.
Location and Function: The die cushions are typically located below the press bed, and the hydraulic cylinders within them push upwards to provide the counter pressure. This setup is critical for complex forming processes where the metal needs to be stretched or formed into intricate shapes. The counter pressure helps prevent wrinkles and ensures that the metal fills all areas of the die, resulting in high-quality parts with precise dimensions.
Adjustability for Various Operations: The pressure applied by the die cushions can be adjusted for different operations, allowing for versatility in the metal forming process. This adjustability is vital for manufacturers who work with a wide range of metal types and thicknesses, providing them with the flexibility to switch between different forming operations with minimal downtime.
Versatility in Operation: In the realm of material handling, hydraulic cylinders are employed in numerous capacities along automated production lines. They are integral to the lifting, rotating, and positioning of components, ensuring that materials flow smoothly from one stage of production to the next without manual intervention.
Specific Use in Machine Positions: Hydraulic cylinders are found in various machine positions, such as in conveyor systems, where they might adjust the height or orientation of conveyors to accommodate different sizes and types of materials. In robotic arms used for picking and placing components, hydraulic cylinders provide the precise movement needed to grip and move items from one location to another, ensuring accurate placement and handling.
Precision and Control: At assembly stations, the role of hydraulic cylinders is pivotal in providing the motion needed for pressing, fitting, or otherwise assembling parts. The precision control offered by hydraulic technology allows for the fine-tuning of force and speed, critical factors in ensuring that components are assembled without damage and with high accuracy.
Ensuring Correct Assembly: The use of hydraulic cylinders in automated assembly stations enables manufacturers to automate tasks that require significant force, such as pressing bearings into housings or fitting components together tightly. This not only speeds up the assembly process but also ensures consistency and quality in the final product, as the exact force and movement can be replicated with high precision for each item produced.
As a basic component of modern mechanical design, hydraulic cylinders have not only enhanced operational efficiency and precision, but also contributed to the development of various industries through their extensive combined use in different machinery and equipment. From heavy construction machinery to precision manufacturing lines, the application of hydraulic cylinders demonstrates its irreplaceable position in modern industry. In the future, with the further development of technology, the role of hydraulic cylinders in improving the level of industrial automation, optimizing the use of energy and enhancing the sustainability of production will be more prominent, providing strong support for the innovation and development of various industries.
