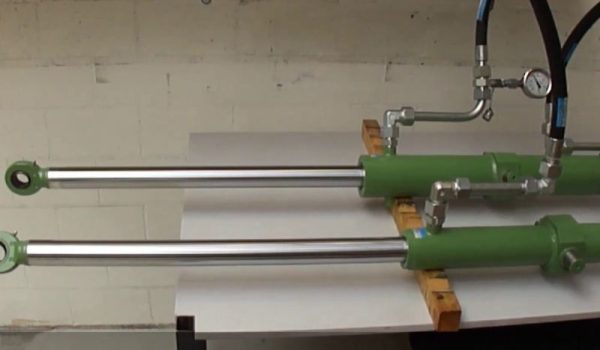

Hydraulic cylinder synchronization is a process that ensures two or more hydraulic cylinders operate in unison, delivering equal force and speed despite potential differences in load and external conditions. This concept is pivotal in systems where balanced, coordinated movement is essential. At its core, synchronization relies on the precise control of fluid flow within the cylinders, ensuring that each cylinder extends and retracts in a harmonized manner. This principle is fundamental in applications ranging from precision lifting to synchronized pushing or pulling in complex machinery.
To appreciate the art of synchronization, one must first understand the workings of a hydraulic cylinder. These cylinders transform hydraulic fluid power into mechanical force. This transformation occurs as pressurized fluid, typically oil, is pumped into the cylinder, causing the piston to move. This movement, in turn, generates force which can be used to lift, push, or pull heavy loads. The power and efficiency of hydraulic cylinders stem from Pascal’s Law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions. This law is the basis for the incredible force that even small hydraulic systems can exert.
Synchronization becomes crucial in systems where uniform movement and force distribution are critical. In applications like synchronized lifting systems, material handling equipment, and automated production lines, the lack of synchronization can lead to uneven forces, misalignment, and potential mechanical failures. For instance, in a lifting platform, unsynchronized cylinders could result in a tilted platform, creating a hazardous situation. Similarly, in production lines, synchronization ensures that each part of the process aligns perfectly with others, maintaining efficiency and product quality. The necessity for synchronization extends beyond just ensuring operational efficiency; it plays a vital role in ensuring safety, precision, and reliability in various industrial applications.
In the world of hydraulic synchronization, different types of cylinders are employed based on the specific requirements of the application. The most common types include single-acting and double-acting cylinders. Single-acting cylinders use hydraulic power for movement in one direction, typically using a spring or load to return to the original position. Double-acting cylinders, on the other hand, allow for controlled movement in both extension and retraction, using hydraulic power for both directions. For synchronization purposes, double-acting cylinders are often preferred due to their precise control in both extending and retracting movements. Additionally, telescopic cylinders are used in applications requiring a long stroke in a compact form. Each type offers unique advantages and is chosen based on factors like required force, stroke length, and the nature of the task.
Hydraulic fluids play a crucial role in the synchronization process. These fluids, typically oil-based, must have the right viscosity to ensure smooth flow and efficient power transfer. The fluid’s properties directly affect the system’s responsiveness and efficiency. Pressure, governed by Pascal’s Law, is the driving force in hydraulic systems. Uniform pressure distribution is essential for synchronized movement. Inconsistencies in pressure can lead to asynchrony, resulting in potential equipment damage or operational hazards. Advanced hydraulic systems incorporate pressure sensors and regulators to maintain consistent pressure levels, ensuring that all cylinders operate synchronously, even under varying loads.
Hydraulic cylinders can be synchronized using series or parallel configurations, each with its distinct advantages and applications. In a series configuration, cylinders are connected in such a way that the same fluid flows through them sequentially. This setup ensures that each cylinder experiences the same pressure changes, thus moving at the same rate. However, the major drawback is that a failure in one cylinder can affect the entire system. Parallel configurations, in contrast, connect each cylinder directly to the pump. This allows for independent operation of each cylinder, providing redundancy and reliability. If one cylinder fails, the others can still function. Parallel systems often include flow dividers and synchronizing valves to ensure even distribution of fluid and consistent movement across all cylinders.
The heart of any hydraulic system, including those designed for synchronization, is the pump. Hydraulic pumps convert mechanical energy into hydraulic energy, creating the flow necessary to move the fluid through the system. The two main types of pumps used are gear pumps and piston pumps. Gear pumps, known for their durability and simplicity, are ideal for high-flow, low-pressure applications. Piston pumps, on the other hand, are suited for high-pressure systems due to their ability to handle varying loads and pressures effectively.
Valves, the controllers of hydraulic systems, regulate the flow and pressure of the hydraulic fluid. Directional control valves, for instance, direct the flow of fluid into the desired paths. Pressure control valves maintain the required pressure levels within the system, preventing overloads and potential damage. Flow control valves are crucial in synchronization, as they regulate the speed of cylinder movement, ensuring that all cylinders operate in harmony.
In modern hydraulic synchronization systems, sensors and controllers play a pivotal role in ensuring precision and efficiency. Position sensors, such as linear variable differential transformers (LVDTs) and Hall effect sensors, provide real-time feedback on the cylinder’s position, allowing for fine-tuned control. Pressure sensors monitor the system’s pressure, ensuring it stays within the desired range.
Controllers, often in the form of Programmable Logic Controllers (PLCs) or microcontrollers, process the data from these sensors and adjust the valves accordingly. This feedback loop is critical for maintaining the precise synchronization of the cylinders, adjusting in real time to any changes in load or environmental conditions.
The unsung heroes of hydraulic systems are the connectors and seals, which maintain the integrity and continuity of the system. Connectors, including hoses and fittings, ensure that the hydraulic fluid is directed appropriately without leaks. These components must be robust enough to withstand the pressures and flow rates of the system, as well as any environmental factors such as temperature and corrosion.
Seals prevent leaks and contamination within the hydraulic system. O-rings, gaskets, and lip seals are commonly used to keep the hydraulic fluid contained and prevent external contaminants from entering the system. Proper selection and maintenance of these seals are crucial for the long-term health and efficiency of the hydraulic synchronization system.
Hydraulic cylinder synchronization finds its utility across a wide range of industries, each benefiting from its precision and power. In the construction industry, it is crucial for equipment such as cranes and excavators, where synchronized movements of cylinders ensure stability and safety. In the manufacturing sector, it aids in assembly lines where precise, coordinated movements are required for efficient production. Agricultural machinery, like harvesters and tractors, also rely on synchronized hydraulic cylinders for smooth operations. Even in the aerospace industry, hydraulic synchronization is essential for the controlled movements of various components. This versatility demonstrates the fundamental role hydraulic cylinder synchronization plays in the backbone of modern industry.
In the construction industry, especially in the operation of large cranes. These cranes must lift heavy loads to considerable heights with extreme precision. Hydraulic cylinder synchronization ensures that the load is lifted evenly and prevents any tilting or imbalance that could lead to a catastrophic accident.
In manufacturing automation, hydraulic cylinder synchronization systems play a pivotal role in ensuring that production lines are streamlined and efficient. For example, on an automotive assembly line, multiple hydraulic cylinders work in coordination to move the body through different stages of assembly.
Even with advanced technology, hydraulic cylinder synchronization systems can encounter several challenges. One common issue is uneven movement due to imbalanced pressure or flow rates in the cylinders, which can arise from leaks, blockages, or wear in the hydraulic components. Another challenge is the misalignment of cylinders, often resulting from mechanical wear or incorrect installation. Over time, environmental factors like temperature changes and contamination can also affect the system’s performance. Recognizing these challenges is the first step in maintaining an efficient and reliable synchronization system.
To ensure the longevity and efficiency of hydraulic cylinder synchronization systems, regular maintenance is crucial. This includes:
Routine Inspection: Regularly inspect all components, including cylinders, valves, pumps, and seals, for signs of wear or damage.
Fluid Management: Keep the hydraulic fluid clean and at the proper level. Regularly check for contamination and change the fluid as recommended by the manufacturer.
Seal and Connector Care: Inspect seals and connectors for leaks or damage. Replace worn seals to prevent leaks and contamination.
Temperature and Environment Monitoring: Monitor the operating environment, as extreme temperatures and corrosive conditions can affect the system’s performance.
Regular Calibration: Periodically calibrate sensors and controllers to ensure they provide accurate readings and responses.
Dealing with common issues in hydraulic cylinder synchronization involves a systematic approach to identify and rectify problems:
The field of hydraulic cylinder synchronization is continually evolving, driven by technological advancements aimed at enhancing precision, efficiency, and adaptability. Recent innovations include the integration of smart sensors and IoT (Internet of Things) technology. These advancements enable real-time monitoring and adjustments, ensuring optimal performance under varying conditions. Another significant development is the use of electro-hydraulic systems, which combine the power of hydraulics with the precision of electronic control. These systems offer improved response times and smoother operation, making them ideal for applications requiring high levels of synchronization accuracy. Additionally, advancements in materials science have led to the development of more durable and efficient hydraulic components, capable of withstanding harsher environments and reducing maintenance requirements.
Looking towards the future, hydraulic cylinder synchronization is set to play a pivotal role in the broader context of automation. As industries move towards more automated and intelligent systems, the demand for sophisticated synchronization solutions will likely increase. Future trends suggest a shift towards fully integrated systems where hydraulic synchronization works in tandem with other automated processes, leading to more cohesive and efficient operations. The potential for AI (Artificial Intelligence) integration stands out, where AI algorithms could predict maintenance needs and optimize system performance based on real-time data. This integration will not only enhance the capabilities of hydraulic systems but also pave the way for more innovative applications, particularly in sectors like robotics and autonomous machinery.
Selecting the right hydraulic cylinder synchronization system requires careful consideration of several key factors:
Application Requirements: Understand the specific needs of your application, including load capacity, precision, speed, and stroke length. Different applications, from heavy-duty construction to delicate manufacturing processes, demand varying levels of synchronization.
System Compatibility: Ensure the synchronization system is compatible with your existing hydraulic setup. This includes checking compatibility with pumps, cylinders, and other hydraulic components.
Environmental Conditions: Consider the operational environment. Systems used outdoors or in harsh conditions may require more robust components and protective measures against elements like dust, moisture, and extreme temperatures.
Safety and Compliance: Safety is paramount. Choose systems that meet industry safety standards and regulations. Look for features like emergency shut-off capabilities and overload protection.
Cost-Efficiency and Budget: Balance the initial investment against long-term operational costs. More sophisticated systems may have a higher upfront cost but can offer greater efficiency and lower maintenance costs over time.
Ease of Maintenance: Consider the ease of maintenance and the availability of spare parts. Systems that are easier to maintain can reduce downtime and operational costs.
Different synchronization systems come with their own set of advantages and challenges:
Series Systems: These are simpler and cost-effective but can be less reliable, as a failure in one cylinder can impact the entire system.
Parallel Systems: Offer greater reliability and independent operation of cylinders but can be more complex and expensive to install and maintain.
Electro-Hydraulic Systems: Provide high precision and control but require more sophisticated maintenance and are generally costlier.
When choosing a synchronization system, it’s advisable to consult with hydraulic system experts. These professionals can provide insights based on your specific requirements and offer tailored recommendations. Additionally, consider working with reputable manufacturers and suppliers known for quality and after-sales support. It’s also beneficial to invest in training for your team to ensure they are well-equipped to operate and maintain the new system effectively.
Hydraulic cylinder synchronization is a technology that is not only an integral part of modern machinery, but is a key factor in the efficiency, safety, and success of a wide variety of industrial operations. Hydraulic cylinder synchronization is the intersection of power, precision and innovation. As technology continues to evolve, so will the capabilities and applications of these systems, promising greater efficiency and adaptability in the face of industrial challenges. With this knowledge, you’ll be better able to make informed decisions and solve complex problems.
