Hydraulic systems are crucial in powering a wide range of machinery, relying heavily on the efficiency and reliability of hydraulic cylinders. Central to the operation of these cylinders is the hydraulic cylinder check valve, a device designed to ensure fluid flows in only one direction, thereby maintaining the desired pressure and position within the system.
A hydraulic cylinder check valve is essentially a one-way gate that allows hydraulic fluid to move in a single direction and prevents it from flowing backward. This unidirectional flow is vital for the stable operation of hydraulic machinery, as it helps to maintain consistent pressure and prevents the loss of load or position. The check valve’s ability to prevent backflow is particularly important in systems where fluid movement in the wrong direction could lead to failures or safety hazards.
There are several types of check valves, each designed with specific features to suit different hydraulic applications:
Ball Check Valves: Utilize a ball that seals against a seat to prevent backflow. When fluid pressure from the correct direction pushes the ball away from the seat, fluid can pass. Once the pressure decreases or reverses, the ball returns to its seat, blocking reverse flow.
Swing Check Valves: Feature a disc or door that swings open when fluid moves in the intended direction and swings closed when the fluid attempts to reverse, effectively blocking the backflow.
Lift Check Valves: Contain a component that lifts to allow fluid flow in the correct direction and settles back into a seat to prevent backflow when fluid pressure decreases or reverses.
Unlike other hydraulic valves that may control flow and pressure in two directions or allow for variable control of the flow rate, check valves are specialized for their role in ensuring unidirectional flow. This specialization makes them a critical component in hydraulic systems, particularly in applications where precise control over movement and pressure is necessary.
By ensuring that hydraulic fluid flows only in the desired direction, check valves play a crucial role in the safety, efficiency, and reliability of hydraulic systems. Their ability to prevent backflow contributes significantly to the system’s overall performance, protecting against potential malfunctions and facilitating smooth operation.
Check valves, integral to the efficient operation of hydraulic systems, play a pivotal role in ensuring the safety, efficiency, and reliability of hydraulic cylinders. Their primary functions—load holding, safety, and efficiency—are essential for the smooth and secure operation of hydraulic machinery.
One of the critical roles of check valves in hydraulic cylinders is load holding. By preventing the reverse flow of hydraulic fluid, check valves maintain the cylinder’s position under load. This function is crucial in applications such as lifting equipment and mobile hydraulics, where maintaining the load’s position is essential for operational safety and precision. Without check valves, the hydraulic fluid could flow back, causing the load to drop unexpectedly and potentially leading to equipment damage or personal injury.
Check valves significantly contribute to the hydraulic system’s overall safety. They act as safeguards against hydraulic shock (also known as water hammer) and system failure, which can occur due to sudden pressure loss. Hydraulic shock is a surge of pressure that can cause severe damage to the system components, leading to costly repairs and downtime. By ensuring that fluid flows in only one direction, check valves mitigate the risk of pressure surges and protect the system and its components from potential damage.
The efficiency of hydraulic systems is markedly improved by the inclusion of check valves. These valves facilitate unidirectional flow, optimizing the performance of the hydraulic system by ensuring that fluid is efficiently directed to where it is needed. This optimization reduces energy waste and improves the system’s response time and overall performance.
The integration of check valves into hydraulic systems brings about significant advantages, enhancing the system’s overall functionality, safety, and durability. These benefits are important for the optimal operation of machinery across various industries, including construction, manufacturing, and agriculture.
One of the primary benefits of incorporating check valves is the enhanced safety they provide to hydraulic systems. By preventing accidental cylinder movement, check valves ensure that machinery remains stable and predictable during operation. This stability is crucial in preventing workplace accidents and ensuring the safety of operators and nearby personnel. For instance, in lifting applications, the accidental lowering of a load could result in serious injuries or fatalities. Check valves act as critical safety components that mitigate such risks by maintaining the desired cylinder position, even in the event of a system failure or pressure loss.
Check valves contribute significantly to the longevity of hydraulic equipment by minimizing wear and tear. They achieve this by maintaining steady pressure within the hydraulic system and preventing the occurrence of pressure spikes and surges that can lead to component fatigue and failure over time. By ensuring that fluid flows only in the intended direction, check valves reduce the likelihood of mechanical components experiencing unnecessary stress, thereby extending the service life of the equipment and reducing maintenance and replacement costs.
The reliability of hydraulic systems is greatly increased with the inclusion of check valves. These valves ensure consistent performance under varying loads, adapting to the demands of different operations without compromising system integrity. This consistency is vital for applications that require precise control and predictable outcomes, such as in manufacturing processes or in the operation of heavy machinery. Check valves ensure that hydraulic systems can reliably perform their intended functions, even under challenging conditions, by preventing backflow and maintaining pressure stability.
Lastly, check valves play a significant role in improving the energy efficiency of hydraulic systems. By reducing the potential for fluid loss and system leakage, these valves ensure that hydraulic energy is utilized efficiently. Leakage and fluid loss not only waste energy but also decrease the system’s performance and increase operational costs. Check valves help to mitigate these issues, contributing to a more sustainable and cost-effective operation by optimizing fluid flow and minimizing energy wastage.
Selecting the appropriate check valve for a hydraulic cylinder is critical to ensure the system’s optimal performance, safety, and longevity. The decision-making process involves several key considerations, each contributing to the effectiveness and compatibility of the check valve within the hydraulic system.
The material of the check valve must be compatible with the hydraulic fluid used in the system. Different hydraulic fluids have varying chemical properties that can affect the durability and functionality of the valve. For instance, synthetic fluids may require valves made from materials resistant to chemical degradation, while petroleum-based fluids might be less corrosive. Common materials for check valves include steel, brass, and various plastics, each offering different levels of resistance to corrosion, temperature, and wear.
The pressure rating of the check valve must match or exceed the maximum operating pressure of the hydraulic system. A valve with a pressure rating too low for the system can lead to failures, causing leaks or bursts under high-pressure conditions. Therefore, it’s essential to understand the system’s pressure requirements and select a valve designed to withstand those pressures reliably.
The flow capacity of the check valve should be sufficient to accommodate the system’s flow rate requirements without causing excessive pressure drop. An undersized valve can restrict flow, leading to inefficiencies and reduced system performance, while an oversized valve may not provide the desired level of control. It’s important to calculate the required flow capacity based on the cylinder’s size and the speed at which it operates to ensure the selected valve meets these demands.
Check valves come in various configurations, each suited to specific applications. Ball check, swing check, and lift check valves offer different mechanisms for allowing flow in one direction and blocking it in the reverse. The choice between these types depends on factors such as the required flow rate, the viscosity of the hydraulic fluid, and the presence of solid particles within the fluid. For example, ball check valves are suitable for high-pressure applications with clean fluids, while swing check valves might be preferred in systems where fluid flow is slower and contains some degree of particulate matter.
Proper installation is crucial for the check valve’s effectiveness. This includes the orientation of the valve, which must align with the fluid’s flow direction, and the location within the system to ensure it provides protection and control where needed. Additionally, ease of access for maintenance and inspection should be considered to facilitate regular checks and repairs without significant system disruption.
Hydraulic cylinder check valves are crucial for the smooth operation of hydraulic systems, but they can encounter several common issues that impact their performance. These challenges include leakage, valve sticking, and improper sealing. Understanding these problems and knowing how to address them can significantly improve the system’s reliability and longevity.

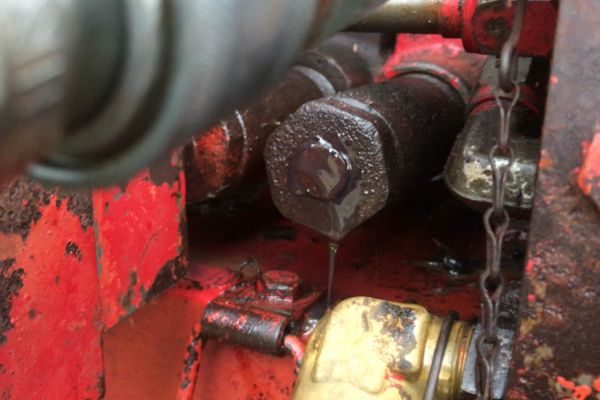

Leakage in check valves often occurs due to wear and tear on the valve seat or sealing surface. Over time, contaminants in the hydraulic fluid can erode or damage these critical surfaces, leading to fluid bypassing the valve. To mitigate leakage, it’s essential to regularly inspect and clean the check valve, ensuring that the sealing surfaces are free from debris and damage. In some cases, replacing the worn components or the entire valve may be necessary to restore proper function.
Valve sticking is another common issue, where the valve fails to open or close fully due to contamination or corrosion. This problem can prevent the hydraulic system from maintaining the correct pressure or direction of fluid flow. Regular maintenance, including cleaning and lubricating the moving parts of the valve, can prevent sticking. Additionally, using hydraulic fluids with appropriate corrosion inhibitors can help reduce the risk of corrosion-related sticking.
Improper sealing can result from incorrect valve installation, damaged seals, or using a valve that’s not suited for the specific hydraulic application. Ensuring that valves are installed according to the manufacturer’s specifications is crucial for preventing sealing issues. It’s also important to select the right type of valve for the application, considering factors such as fluid compatibility, pressure, and flow rate. Regular inspection and replacement of damaged seals can maintain the valve’s sealing integrity.
Assess the Hydraulic System: Understand the flow direction, pressure requirements, and fluid type used in your system.
Select the Appropriate Check Valve: Based on your assessment, choose a check valve with the correct size, material compatibility, pressure rating, and flow capacity.
Gather Necessary Tools and Equipment: Ensure you have all the tools required for the installation, including wrenches, sealant, and cleaning supplies.
System Shutdown: Shut down the hydraulic system and relieve pressure to ensure a safe installation environment.
Identify Installation Location: Determine the optimal location for the check valve, keeping in mind the flow direction and accessibility for future maintenance.
Prepare the Connection Points: Clean all threads or flanges where the valve will be connected to ensure a tight and clean fit.
Install the Valve: Follow the manufacturer’s guidelines for installing the check valve. If thread connections are used, apply appropriate thread sealant to prevent leaks. For flanged connections, ensure gaskets are properly placed and bolts are tightened evenly.
Orientation: Ensure the valve is installed in the correct orientation to match the flow direction indicated by the arrow on the valve body.
Leak Testing: Once installed, gradually re-pressurize the system and check for leaks around the valve connections.
Function Testing: Verify the check valve operates correctly by observing the hydraulic system’s performance. Ensure there is no backflow and that the valve allows fluid to pass in the intended direction.
Inspect the Installation: Double-check all connections and ensure the valve is secure.
Re-activate the Hydraulic System: Slowly start the system, monitoring for any abnormal noises or behaviors indicating installation issues.
Document the Installation: Keep a record of the valve installation, including the valve model, installation date, and any observations during the process.
Hydraulic cylinder check valves play a large role in ensuring optimal performance of hydraulic systems. They ensure the correct direction of fluid flow, thus preventing potential failures. And check valves are key to maintaining safety, improving efficiency, and extending the life of your system. For those involved in the design, operation, or maintenance of hydraulic systems, staying informed about the latest developments in check valve technology is crucial. We encourage you to continuously seek out new information, invest in high-quality components, and consider the specific requirements of your hydraulic systems when selecting check valves.
