Telescopic hydraulic cylinders are a special type of hydraulic cylinder that consists of several interconnected hydraulic cylinders, a design that allows for a greater range of motion and plays a vital role in operations that require a large number of telescoping movements in a limited space. The process of rebuilding these cylinders typically involves several key steps: disassembly, cleaning and inspection of each component, replacement of worn or damaged parts, reassembly, and testing to ensure proper function. Each of these steps requires careful attention to detail to ensure that the cylinder is restored to optimal working condition.
Telescopic hydraulic cylinders are composed of several key components. The most critical parts include the barrel, the base cap, the head, piston rods, and seals. Each cylinder section, or stage, nests inside the larger one, allowing for the extended reach when activated. The seals are vital for maintaining the hydraulic fluid’s pressure and preventing leaks, ensuring efficient operation.
Several signs indicate the need for a rebuild of a telescopic hydraulic cylinder. These include visible leaks of hydraulic fluid, a noticeable decrease in power or efficiency, strange noises during operation, and any physical damage to the cylinder rods or barrel. When these issues arise, it’s crucial to assess whether a rebuild is necessary to prevent further damage and maintain operational safety and efficiency.
Rebuilding a telescopic hydraulic cylinder requires specific tools and materials. Essential tools include wrenches, pliers, a seal puller, and a hydraulic jack. Materials needed typically comprise new seals and seal kits, replacement rods or tubes if the original ones are damaged, and hydraulic fluid. Having the correct tools and materials on hand is critical for a successful rebuild, ensuring that the cylinder returns to its optimal working state.
Safety is paramount when undertaking the rebuild of a telescopic hydraulic cylinder. It is essential to wear appropriate protective gear to safeguard against potential hazards. This gear includes sturdy gloves to protect hands from hydraulic fluid and sharp edges, safety goggles to prevent any debris from entering the eyes, and steel-toed boots for foot protection. Additionally, ear protection is advisable in environments with loud machinery, and a hard hat is crucial if working in an area with risks of falling objects.
A well-organized and clean workspace is crucial for a successful rebuild. The area should be spacious enough to accommodate the disassembled cylinder parts and tools, with a clean surface to lay out all components. Proper lighting is important for visibility, and the workspace should be free from clutter to minimize the risk of accidents. It’s also beneficial to have a method for capturing any leaking hydraulic fluid, such as a drain pan or absorbent mats, to maintain a clean environment.
Before disassembling the telescopic hydraulic cylinder, conducting an initial inspection and diagnosis is important. This step involves examining the cylinder for any visible signs of wear, damage, or leaks. Taking note of any areas that show signs of stress or unusual wear can guide the rebuilding process. It’s also crucial to operate the cylinder, if possible, to observe its performance, identifying any irregularities in movement or function. This initial diagnosis helps in understanding the extent of repair needed and in planning the subsequent steps in the rebuild process.

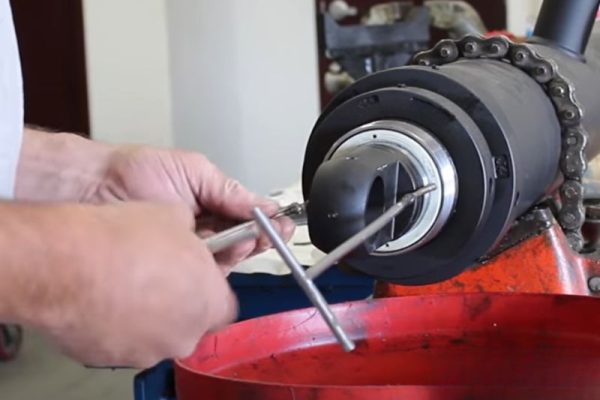

The disassembly of a telescopic hydraulic cylinder should be approached methodically. Begin by carefully removing the cylinder from the machine. Once removed, start by detaching the external components such as the rod and end caps. Progress to carefully extracting each stage of the telescopic cylinder, paying close attention to the order in which each part is removed. As you disassemble, drain any hydraulic fluid into a suitable container. Each joint, seal, and connecting piece should be handled gently to avoid causing any further damage.
As parts are removed, it’s critical to keep them organized. This can be achieved by laying out the parts in the order they were removed and grouping similar components together. Labeling each part and its corresponding position in the cylinder can be immensely helpful, especially when it comes to reassembly. Utilize tags or masking tape for labeling, and consider taking photographs at each stage of the disassembly for reference.
During disassembly, inspect each part for signs of wear, damage, or corrosion. Pay special attention to seals, as they are often the first components to wear out in hydraulic cylinders. Look for any scoring on the cylinder walls and piston rods, as these are indicators of potential problems. If there is any doubt about the condition of a part, it is usually safer to replace it to ensure the longevity and proper functioning of the rebuilt cylinder. Make a list of all the parts that need replacement to streamline the process of acquiring new components.
Once disassembled, each component of the telescopic hydraulic cylinder needs thorough cleaning. Start by removing any dirt, grime, or hydraulic fluid residues using a non-abrasive cloth and a suitable cleaning solvent. For internal components and hard-to-reach areas, use specialized cleaning brushes or compressed air. It’s crucial to ensure that no cleaning residue remains on the parts, as this could contaminate the hydraulic fluid and impact the cylinder’s performance.
After cleaning, each component must be inspected for signs of wear and damage. This includes looking for scratches, dents, or any deformation on the cylinder barrel and rods. Check the seals for cracks or brittleness and inspect the bearings and bushings for any wear or looseness. Use calipers or micrometers for precise measurements to determine if components are still within their functional tolerances.
Based on the inspection, decide whether to repair or replace each component. Any part showing significant wear or damage should be replaced to avoid future failures. Some components, like seals and gaskets, are typically replaced during a rebuild as a matter of course. For less clear-cut cases, consider the cost of repair versus replacement, the availability of replacement parts, and the impact on the cylinder’s overall performance and longevity. The goal is to ensure that the rebuilt cylinder operates as efficiently and safely as possible.

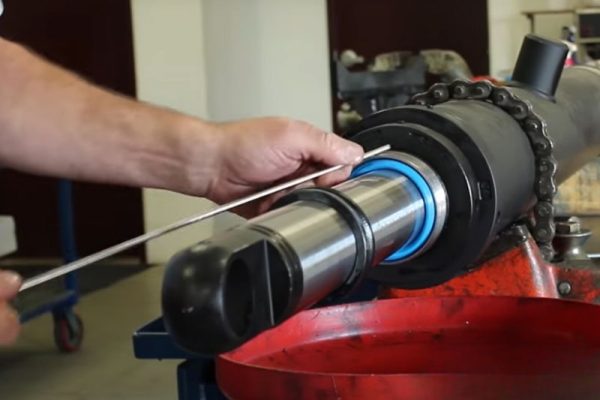

The first step in the rebuilding process is to replace the seals and any other worn-out parts. Seals are critical for preventing leaks and maintaining the hydraulic pressure necessary for the cylinder’s operation. Carefully remove the old seals, and replace them with new ones, ensuring they fit snugly and are correctly positioned. Other wear parts, such as bearings and bushings, should also be inspected and replaced if they show significant wear. This replacement is crucial for the efficient functioning of the cylinder and to prevent future failures.
Reassembling the telescopic hydraulic cylinder requires precision and attention to detail. Begin by installing the internal components, such as the piston and the rods, back into the barrel. Ensure that each stage of the telescopic cylinder is correctly aligned and that all parts move smoothly without any obstruction. Carefully apply hydraulic fluid to the seals as you assemble each stage, as this will help in protecting the seals and ensuring smooth operation. Once all the internal components are in place, reattach the external parts such as the end caps, making sure they are tightened to the correct specifications.
To ensure a smooth rebuild process, it is crucial to keep a few tips in mind. First, always refer to the manufacturer’s manual for specific instructions and torque specifications. Use the right tools for each step of the process to avoid damaging the parts. Take your time to ensure each component is correctly installed and functioning properly before moving to the next step. Before finalizing the assembly, double-check all connections and alignments. A well-executed rebuild not only extends the life of the cylinder but also ensures the safety and efficiency of the machinery it operates in.
After the cylinder has been rebuilt, it’s imperative to conduct thorough testing to ensure it operates as intended. This testing should simulate the operational conditions the cylinder will face in actual use. Begin by checking for leaks under pressure. Apply hydraulic pressure to the cylinder and observe if there are any signs of fluid leakage around the seals and joints. Next, test the full extension and retraction of the cylinder multiple times to ensure smooth operation without any hesitation or jerking movements.
It’s not uncommon to encounter issues after a rebuild. If you notice any leaks, it may indicate that the seals are not properly seated or are defective. Should the cylinder exhibit uneven movement, this could be a sign of misalignment within the internal components or an issue with the hydraulic fluid. If any such issues are identified, it’s crucial to address them immediately. This might involve disassembling the cylinder again, replacing faulty components, or realigning parts as necessary.
The final and most crucial aspect of the testing phase is to ensure that the rebuilt cylinder adheres to all relevant safety standards. This includes checking that all components can withstand the operational pressures and loads they will encounter. Ensuring that all fittings and connections are secure is also vital to prevent any accidents or failures during operation. Compliance with these safety standards is not just about fulfilling legal requirements; it’s about ensuring the safety and well-being of anyone who will be operating or working around the machinery that uses these hydraulic cylinders.
Once the testing phase confirms the cylinder’s functionality, the next step is reinstalling it into the machinery. Begin by ensuring the area where the cylinder will be installed is clean and free of debris. Carefully position the cylinder, aligning it accurately with the mountings. Securely fasten all the bolts and connections, adhering to the torque specifications provided by the manufacturer. Once installed, connect the hydraulic lines, ensuring there are no twists or undue stress on the hoses or fittings.
Maintaining the rebuilt cylinder is crucial for prolonging its lifespan and ensuring optimal performance. Regularly check for leaks or signs of wear, particularly around seals and moving parts. Keep the cylinder and its components clean from dirt and debris, which can cause damage over time. Additionally, ensure that the hydraulic fluid is at the correct level and replace it according to the manufacturer’s guidelines. Using the correct type of hydraulic fluid as recommended by the manufacturer is also critical.
Establishing a regular inspection and maintenance schedule is vital for the ongoing health of the telescopic hydraulic cylinder. This schedule should include routine checks at intervals based on the cylinder’s usage frequency and the operational environment’s severity. During these inspections, look for any signs of wear or damage, ensure that all connections are tight, and check the hydraulic fluid quality and level. Keeping a log of these inspections can be helpful for tracking the cylinder’s condition over time and identifying when maintenance or further rebuilds may be necessary.
After a rebuild, it’s not uncommon to encounter certain issues with a telescopic hydraulic cylinder. One frequent problem is the cylinder failing to achieve full extension or retraction, which could be due to air trapped in the system or incorrect assembly. Another issue might be fluid leaks, often caused by improperly seated or damaged seals. If the cylinder seems to operate with less power or efficiency, this could be due to incorrect fluid levels or types, or an issue with the cylinder’s alignment. These issues generally require revisiting the assembly process, ensuring everything is correctly fitted and functioning as intended.
While many problems can be resolved with careful inspection and adjustments, there are times when professional help is needed. If the cylinder continues to malfunction despite troubleshooting efforts, or if there is significant physical damage to the cylinder components, it’s advisable to seek assistance from a hydraulic cylinder specialist. Also, if the problem relates to the internal hydraulic system of the machinery, which can be complex and sensitive, professional assessment and repair are recommended.
To minimize the likelihood of problems arising with a telescopic hydraulic cylinder, regular maintenance and careful operation are key. Avoid exposing the cylinder to environments or usage conditions that exceed its design specifications. Regularly check and maintain the hydraulic fluid to the correct specifications. It’s also beneficial to periodically review and tighten all connections and fastenings, and keep an eye out for any early signs of wear or damage. By adhering to these practices, the longevity and reliability of the cylinder can be significantly enhanced.
In conclusion, rebuilding telescopic hydraulic cylinders correctly is an important aspect of maintaining their efficiency and safety. This comprehensive guide will walk you through the key stages of the process: from understanding the basic components of these cylinders, through the meticulous steps of dismantling, cleaning, inspecting and rebuilding, to the final stages of testing, quality assurance and maintenance.This task not only ensures optimum performance of your machine, but also prevents potential operational failures. Regular maintenance and the ability to troubleshoot common faults after a rebuild are key skills in ensuring the longevity and reliability of your hydraulic cylinders.
