Pressure testing of hydraulic cylinders is essential, not only as a technical issue, but also as an important check to ensure the reliability and safety of machinery using hydraulic systems. In the world of heavy machinery and industrial equipment, the proper functioning of hydraulic cylinders is not only about efficiency, but also about safety and operational integrity. In this article, we’ll take an in-depth look at how to pressure test hydraulic cylinders, providing you with a comprehensive guide to the knowledge you need to carry out these tests effectively.
Hydraulic cylinders are essential in translating hydraulic energy into mechanical force. These components are quite straightforward in their operation. Essentially, they consist of a cylindrical barrel, in which a piston connected to a piston rod moves back and forth. The movement is generated by hydraulic fluid – usually oil – that is pumped into the cylinder. This action enables the piston to move, thus creating linear motion. This simple yet effective mechanism is what powers everything from industrial machinery to agricultural equipment.
Every hydraulic cylinder is made up of several key components, each playing a vital role. The piston, which moves back and forth inside the cylinder, is crucial for the transformation of hydraulic energy into mechanical force. The piston rod is connected to the piston and extends from the cylinder through a rod-end connection. Seals within the cylinder prevent fluid from leaking and ensure efficient operation. The cylinder’s design and the quality of these components directly impact its efficiency and longevity.
The process of periodic pressure testing of hydraulic cylinders involves applying pressure to the cylinder to verify its integrity and performance under operating conditions. It’s not just about finding leaks or malfunctions; regular testing also helps identify wear and tear, calibration issues, and other potential problems that can lead to equipment failure. By performing these tests, you can prevent downtime and ensure that hydraulic cylinders are always operating at peak performance.
The performance of hydraulic cylinders can be significantly improved through pressure testing. This is because testing not only identifies existing faults, but also provides data on the long-term condition of the hydraulic cylinder. By knowing how hydraulic cylinders are wearing or how their performance is changing, maintenance can be proactively scheduled and components can be replaced before they fail. This proactive approach to maintenance keeps machines running smoothly and extends the life of hydraulic cylinders.
In conclusion, understanding hydraulic cylinders and their components is the first step in ensuring their efficient operation. Regular pressure testing, a critical part of cylinder maintenance, not only assures safety but also enhances the performance and longevity of these vital components.
The primary reason for regular pressure testing of hydraulic cylinders is safety. These cylinders operate under high pressure, and any failure can have serious consequences. Regular testing helps identify any potential weaknesses or failures in the cylinder’s structure or seals before they lead to accidents. This is particularly crucial in industries where hydraulic systems play a critical role, such as in construction, manufacturing, or transportation. Ensuring that these cylinders can withstand their operational pressures is not just about maintaining efficiency; it’s about safeguarding the workplace and protecting lives.
In addition to safety, pressure testing is vital for maintaining the efficiency of hydraulic systems. A well-functioning cylinder ensures smooth operation and helps avoid costly downtime due to equipment failure. Regular testing can detect issues like leaks or pressure drops, which can significantly impact the performance of the machinery. By identifying and addressing these issues early, you can ensure that your equipment operates at optimal efficiency, thereby saving time and resources in the long run.
Neglecting regular pressure testing can lead to several negative outcomes. First and foremost, it increases the risk of equipment failure, which can cause workplace accidents, potentially leading to injuries or even fatalities. Furthermore, equipment breakdowns can result in significant downtime, disrupting operations and leading to financial losses. Additionally, undetected issues can escalate into more significant problems, resulting in costly repairs or replacements. In the long term, neglecting pressure testing can also shorten the lifespan of your hydraulic cylinders, leading to more frequent replacements and higher operational costs.
In summary, regular pressure testing of hydraulic cylinders is a critical practice that ensures safety and maintains efficiency. It’s a proactive measure that helps identify potential issues before they escalate into major problems, thereby safeguarding both people and machinery.
Before diving into the pressure testing process, it’s crucial to have all the necessary tools and materials at hand. This includes a reliable pressure gauge, which is key to measuring the cylinder’s pressure accurately. You’ll also need suitable hydraulic fluid, as it’s essential for the operation of the cylinder during the test. Ensure you have all connections and hoses checked and ready, as they play a vital role in conducting the test effectively. It’s a good idea to have a checklist of all these items to ensure nothing is overlooked in the preparation stage.
Safety should always be your top priority when conducting a pressure test. It’s important to wear the right protective gear, including safety goggles to protect your eyes from potential hydraulic fluid splashes and sturdy gloves to safeguard your hands. Depending on the specifics of the environment and equipment, additional protective equipment like steel-toed boots or hard hats might be necessary. Ensure the testing area is clear of unnecessary personnel and obstacles to minimize the risk of accidents.
It is critical that a thorough visual inspection of the hydraulic cylinders be performed prior to beginning the actual pressure test. This includes checking for any signs of wear, damage or leakage. Carefully inspect the seals of the hydraulic cylinder as they are usually the first to show signs of wear. Make sure that all connections are secure and that there are no loose parts. This initial inspection helps to detect obvious problems that may affect the accuracy or safety of the test.
In conclusion, preparing for a stress test requires careful planning and attention to detail. From gathering the right tools and materials, to prioritizing safety concerns and conducting pre-test inspections, each step is critical to a successful and safe testing process.

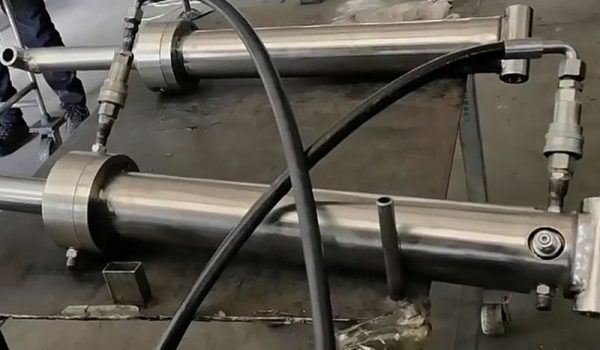

Secure the Cylinder:
Begin by ensuring the hydraulic cylinder is securely mounted or positioned. It’s critical that the cylinder doesn’t shift or move during testing. Use appropriate clamps or brackets designed for this purpose. Stability is key to both accurate testing and safety.
Connect the Test Equipment:
Attach your pressure gauge and any other necessary test equipment to the cylinder. Make sure all connections are tight and secure to prevent leaks or inaccuracies during the test. Double-check that the gauge is compatible with the pressure range you expect to test.
Fill the Cylinder with Hydraulic Fluid:
With the equipment connected, fill the cylinder with the appropriate hydraulic fluid. Ensure the fluid is clean and free from contaminants, as dirty fluid can affect the results of your test. Fill the fluid to the recommended level specified for your particular cylinder.
Incrementally Increase Pressure:
Slowly increase the pressure within the cylinder using your equipment. It’s important to do this gradually to avoid sudden pressure spikes which can damage the cylinder or skew test results. Keep an eye on the pressure gauge to monitor the increase.
Monitor for Leaks and Anomalies:
As the pressure increases, closely inspect the cylinder and connections for any signs of leaks or anomalies. Look for any hydraulic fluid escaping or unusual sounds that might indicate a problem. This step is crucial for identifying issues that could lead to cylinder failure.
Record the Findings:
Throughout the testing process, record the readings from your pressure gauge at regular intervals, as well as any observations you make regarding the cylinder’s performance. These records will be valuable for comparing against future tests and for identifying any long-term changes or degradation in performance.
– When securing the cylinder, consider the environment. Ensure the area is free from hazards and that there is sufficient space to safely conduct the test.
– In connecting the test equipment, use tools that are in good condition. Worn tools can damage the equipment or provide inaccurate results.
– While filling the cylinder, maintain a clean and organized workspace to prevent any contamination of the hydraulic fluid.
– As you incrementally increase pressure, proceed at a steady, controlled pace. Rushing this process can lead to missed observations or errors.
– During the monitoring phase, use a systematic approach to check all parts of the cylinder. Start from one end and work your way to the other, ensuring no area is overlooked.
– Finally, when recording findings, be as detailed as possible. Note down the pressure levels, any fluctuations, and the general state of the cylinder during the test.

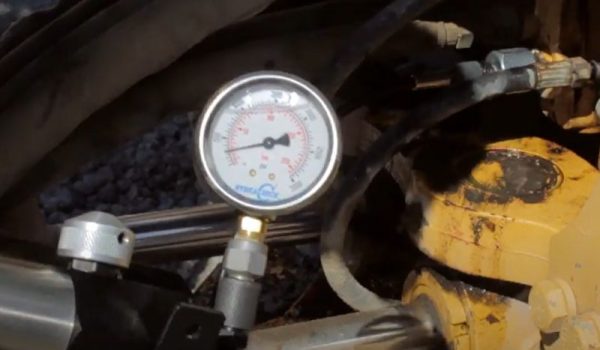

Interpreting the results of a hydraulic cylinder pressure test is a critical skill. After you’ve recorded the findings from your test, it’s time to analyze them. Start by comparing the pressure readings against the manufacturer’s specifications for the cylinder. This will give you a baseline for what is considered normal for that particular model. It’s important to note both the maximum pressure achieved and how the cylinder maintained that pressure over time. Any significant drop in pressure could indicate a leak or a fault in the cylinder.
Every hydraulic cylinder has an acceptable range of operation, which is typically provided by the manufacturer. Staying within this range is crucial for the safe and efficient operation of the cylinder. If your test results show pressure levels outside this range, either too high or too low, it’s a clear sign that something is not right.
Additionally, be on the lookout for red flags such as:
– Rapid fluctuations in pressure readings, which can suggest issues with the fluid or the cylinder’s seals.
– Consistently low pressure readings, indicating potential leaks or a compromised cylinder structure.
– Unusually high pressure readings, which might signify blockages or issues with the cylinder’s control mechanisms.
Interpreting test results accurately requires a careful and methodical approach. It’s about more than just reading numbers on a gauge; it’s about understanding the overall health and functionality of the hydraulic cylinder. If you’re ever in doubt about the meaning of your test results, consulting with a professional or referring back to the manufacturer’s guidelines is a prudent step.
When pressure testing hydraulic cylinders, a number of problems may occur. One of the most common problems is the presence of leaks, which can be detected by a gradual decrease in pressure readings or a noticeable leakage of hydraulic fluid. Another problem to watch out for is inconsistent pressure readings, which may indicate a problem with the cylinder’s seal or an abnormality within the hydraulic system. In addition, difficulty in reaching the desired pressure level may also indicate a clogged or malfunctioning pump or valve.
Once a problem has been identified, the next step is to troubleshoot it. Check all seals, fittings, and connections for leaks. Tighten or replace as necessary. If pressure readings are inconsistent, check the condition of the seals and the hydraulic fluid for contamination. For problems related to achieving pressure, check the pump and valves for any signs of wear or damage. It is also important to ensure that the hydraulic fluid is at the correct level and has the proper viscosity.
While some issues can be resolved with basic troubleshooting, there are situations where it’s advisable to seek professional help. This is particularly true for complex problems like internal valve failures or issues with the cylinder’s piston. If the problem persists after basic troubleshooting, or if there is any uncertainty about the cause of the issue, consulting with a professional is the safest course of action. Professionals can provide a more thorough diagnosis and have the expertise to handle complex repairs, ensuring the longevity and safe operation of your hydraulic cylinders.
Once the pressure testing of a hydraulic cylinder is complete, it’s crucial to safely decompress and disassemble the test setup. Begin by gradually reducing the pressure in the cylinder to avoid any sudden release of energy, which can be hazardous. Carefully close any valves and disconnect the pressure gauge and other testing equipment. It’s important to handle these components gently to avoid any damage. After decompressing, ensure that all hydraulic fluid is properly contained and disposed of, or stored according to safety guidelines. This step is essential to prevent any environmental hazards or workplace accidents.
Proper documentation and record-keeping are vital aspects of the post-testing procedure. Document the test results, including the maximum pressure reached, the duration of the test, and any fluctuations or anomalies observed. These records should be detailed, clear, and stored securely. They are not only useful for future reference but are also essential for compliance with safety regulations and standards. Additionally, keeping a record of each test allows for a better understanding of the cylinder’s performance over time, aiding in predictive maintenance and early identification of potential issues.
Maintaining a systematic approach to post-testing procedures, including careful decompression, disassembly, and meticulous documentation, ensures the safety and integrity of both the testing environment and the hydraulic cylinder. This attention to detail contributes to the overall maintenance and longevity of the equipment.
To ensure the longevity and efficient operation of hydraulic cylinders, routine maintenance is key. This involves regular cleaning and inspection to identify any signs of wear or damage early on. It’s important to keep the cylinders and surrounding area free from debris and dirt, as contaminants can cause damage to the seals and internal components. Regularly checking for leaks and making sure all connections are tight can prevent many common issues. Lubrication of moving parts, in accordance with the manufacturer’s guidelines, is also crucial. This prevents excessive wear and tear and maintains smooth operation.
For long-term maintenance, it is critical to regularly monitor the condition of the hydraulic fluid. Contaminated or deteriorated hydraulic fluid can cause a number of problems. It is recommended that hydraulic fluid and filters be changed according to a schedule based on the manufacturer’s recommendations or usage and environmental conditions. In addition, keep accurate records of all maintenance activities, repairs and replacements. These records are valuable in diagnosing problems and planning future maintenance. Finally, consider having your hydraulic cylinders professionally inspected on a regular basis. This can provide expert insight into the condition of the equipment and help detect problems that may not be immediately noticeable.
Adhering to these maintenance tips and long-term maintenance strategies can greatly reduce the frequency of serious problems with hydraulic cylinders, ensuring reliable operation and prolonging their life.
Pressure testing of hydraulic cylinders is vital, not only as a routine task but also as a key practice that can have a significant impact on the safety, efficiency and reliability of your hydraulic system. Regular pressure testing helps to identify potential problems before they escalate into serious issues, ensuring the smooth operation of machinery and equipment. Remember, proactive maintenance is always more economical and safer than reactive repairs.
