When hydraulic cylinders function optimally, they provide the force and control needed to perform precise tasks. However, when internal leaks occur, they can lead to a host of problems that can significantly reduce the efficiency and safety of operations. Internal leaks in hydraulic cylinders can lead to a loss of power, erratic motion, and an overall decrease in system performance. Over time, these leaks can lead to increased wear and tear, resulting in premature component failure and potentially dangerous situations. This article is a comprehensive guide designed to provide you with the knowledge and techniques you need to diagnose and respond to internal leaks in hydraulic cylinders.
Hydraulic cylinders are a fundamental component in various mechanical systems, functioning as linear actuators to provide force in a single direction. They consist of a cylindrical barrel, within which a piston connected to a piston rod moves back and forth. The movement is powered by hydraulic fluid—usually oil—under pressure. When the fluid enters the cylinder, it pushes the piston, which, in turn, moves the rod, translating hydraulic energy into mechanical force. This force can be used for a myriad of applications, from lifting heavy loads in construction equipment to precise control in manufacturing machinery.
Internal leakage in a hydraulic cylinder refers to the unwanted passage of fluid from one side of the piston to the other. This can occur due to worn or damaged seals, cracks in the cylinder, or an issue with the piston itself. In a healthy system, the hydraulic fluid is confined to its designated area, maintaining pressure and ensuring efficient operation. However, when a leak occurs, this fluid escapes its intended path, leading to a drop in pressure and a disruption in the system’s intended function.
The consequences of internal leakage can be both subtle and substantial, affecting the performance and safety of the hydraulic system. Performance-wise, internal leaks lead to a loss of efficiency. The cylinder may not extend or retract with the required force or speed, leading to sluggish operation and an inability to perform tasks effectively. Over time, this inefficiency can lead to increased wear and tear on the system, escalating maintenance costs, and downtime.
From a safety perspective, the unpredictability introduced by internal leaks can be dangerous. Machinery may not stop or start as expected, or it might move erratically, posing risks to operators and nearby personnel. In critical systems, such as those used in heavy machinery or aviation, the failure to maintain precise control due to internal leakage can have catastrophic consequences.

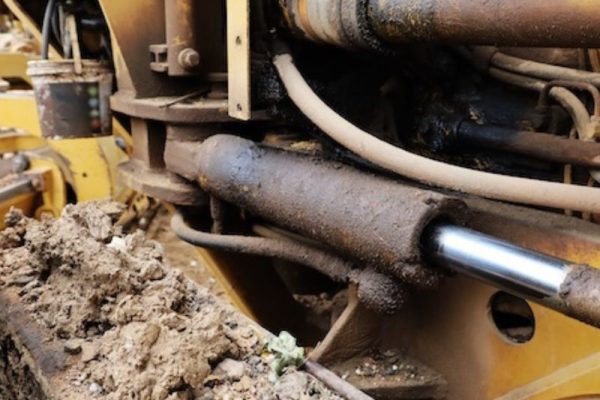

Internal leakage in hydraulic cylinders can manifest through various physical signs that are often easy to spot if one knows where to look. The most common indicator is the presence of oil spots beneath the machinery. These spots suggest that fluid is escaping from the system, potentially through internal passageways. Another telltale sign is the sound of hissing or gurgling, which can indicate that fluid is moving through gaps it shouldn’t be. Additionally, visible wear on the cylinder, piston rod, or seals can suggest ongoing internal leakage. This wear might include scoring, pitting, or an overall appearance of degradation. Regular visual inspections can help identify these physical indicators early, allowing for timely intervention.
The performance of your machinery can also indicate potential internal leakage. One of the first signs is slow operation. If the hydraulic cylinder isn’t extending or retracting as quickly as it should, it might be due to a loss of pressure from internal leaks. Erratic movements are another symptom; if the machinery jerks or stalls instead of moving smoothly, it could be a sign that fluid isn’t being distributed evenly due to leaks. Lastly, a noticeable decrease in the system’s overall efficiency, such as requiring more power to perform the same tasks, can also point to internal leakage as the hydraulic fluid isn’t being utilized effectively.
Regular inspections and maintenance are critical in identifying and addressing internal leakage early. By conducting routine checks, operators can spot the early signs of wear and tear, which might precede a leak, or catch a minor leak before it becomes a significant problem. Maintenance routines should include checking for physical and performance indicators, testing the system’s pressure, and replacing worn parts before they fail. Not only does this proactive approach help in maintaining the system’s efficiency and safety, but it also extends the lifespan of the hydraulic cylinder and the machinery it powers. Furthermore, regular maintenance records can provide valuable insights into the cylinder’s performance over time, helping predict potential issues before they arise.
Sight, Sound, and Touch: Utilizing your senses is the first line of defense in detecting internal leakage. Visually inspect for oil spots, unusual moisture around seals, and any signs of wear on the cylinder. Listening can also be effective; a hissing sound might indicate escaping fluid. Touch is useful for feeling excessive heat or vibrations, which can be symptoms of internal leakage disrupting normal operations. Always ensure the system is off and safe to touch before making physical contact.
Step-by-Step Guide: Pressure testing is a more precise method for detecting internal leaks. First, ensure the system is off and depressurized. Connect a hydraulic pressure gauge to the system near the cylinder. Gradually increase the pressure and monitor the gauge. If the pressure drops without any external signs of leakage, it suggests an internal leak.
Interpreting the Results: A stable pressure reading indicates a healthy system. However, if you notice a steady decline in pressure without a corresponding external leak, it’s a strong indicator of internal leakage. The rate of pressure drop can also give you an idea of the severity of the leak.
Gear Flowmeter Method: This method involves integrating a gear flowmeter into the hydraulic system to measure flow rate. With the system in a neutral position where no flow should occur, the flowmeter can detect even minor leaks. The presence of any flow indicated on the meter when the system is static is a clear sign of internal leakage.
Determining Acceptable Leakage Levels: Some systems have a tolerance for minimal leakage, often detailed in their operational specifications. It’s crucial to know these acceptable levels to differentiate between normal system behavior and a leakage issue.
Procedure for Checking Oil Discharge and Unloading: This method involves observing the fluid while the system operates under a specific set of conditions. Disconnect the main return line and direct it into a container. Operate the cylinder and monitor the fluid in the container. An increase in fluid level when the cylinder is not moving can indicate internal leakage.
Interpreting the Results: A clear understanding of normal operational parameters is essential for this method. Any fluid collected that exceeds expected amounts during non-operation phases indicates internal leakage. Note the rate and volume to assess the severity.
In the realm of hydraulic systems, advanced diagnostic tools and techniques have revolutionized the way internal leakages are detected and managed. These sophisticated methods provide more precise, efficient, and comprehensive data compared to traditional methods. Technologies such as ultrasonic detectors, thermal imaging cameras, and laser technology are being increasingly adopted in industrial settings. Ultrasonic detectors can pick up high-frequency sounds produced by leaks, which are inaudible to the human ear. Thermal imaging cameras detect changes in temperature caused by fluid leaking from the system, while laser technology can measure minute changes in component dimensions, indicating wear or deformation that could lead to leaks.
Real-time detection systems offer significant advantages over periodic manual checks. They continuously monitor the system and provide immediate alerts when a potential issue is detected, allowing for prompt action. This immediacy reduces the risk of damage and downtime, as leaks can be addressed before they escalate into more significant problems. Real-time systems often come with data logging capabilities, providing a valuable record of system performance over time. This data can be used to predict potential failures and schedule preventive maintenance, further enhancing system reliability and efficiency.
Industry practices and standards play a crucial role in ensuring the safety and efficiency of hydraulic systems. Organizations such as the International Organization for Standardization (ISO) and the National Fluid Power Association (NFPA) provide guidelines and standards for the design, testing, and maintenance of hydraulic systems. Adhering to these standards ensures a baseline of safety and performance. Common practices include regular calibration of diagnostic tools, certification and training for personnel conducting the tests, and the implementation of a systematic maintenance schedule. These practices ensure that the advanced diagnostic tools and techniques are used effectively and that the data they provide is accurate and reliable.
Once you’ve confirmed the presence of internal leakage, immediate action is necessary to prevent further damage and ensure safety. First, shut down the system to avoid any operational hazards and to stop the leakage from worsening. Identify the source of the leak as precisely as possible, using the diagnostic methods mentioned earlier. Document the symptoms and conditions leading up to the detection of the leak, as this information can be crucial for both troubleshooting and future prevention. If possible, isolate the affected cylinder to prevent contamination of the entire system. Begin draining the hydraulic fluid if it’s contaminated or if it’s necessary for repairs. Finally, consult the system’s maintenance manual for specific guidance related to the machinery in question.
While some internal leaks can be addressed with basic mechanical skills, many situations require the expertise of a professional. Complex systems, warranty considerations, or simply the lack of proper tools and knowledge are all valid reasons to call in an expert. If the leak is within a critical system, or if the machinery operates under high pressure or in hazardous conditions, the risk of improper repair can far outweigh the cost of professional service. Understanding the complexity of your hydraulic system and recognizing when a problem is beyond your capacity is crucial for the safety and longevity of your equipment.

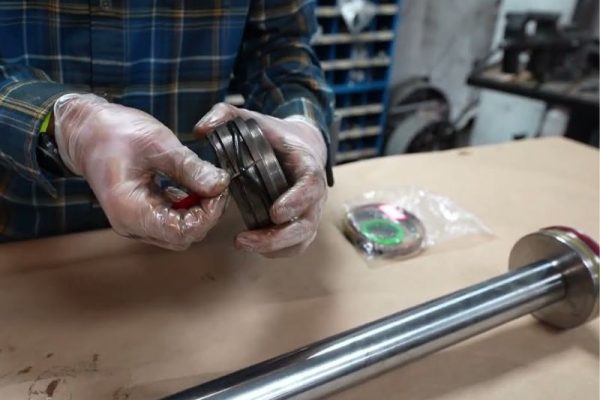

Seal Replacement: Often, internal leaks are due to worn or damaged seals. Replacing these seals can often resolve the issue. This method is generally effective for straightforward leaks but may not address the underlying causes of seal wear, such as misalignment or contamination.
Cylinder Honing or Replacement: If the cylinder bore has become worn or scored, honing can sometimes restore a smooth surface. In more severe cases, replacing the cylinder may be necessary. This method is effective for leaks caused by physical damage to the cylinder but can be more costly and time-consuming.
Piston Rod Repair or Replacement: Damage to the piston rod, such as bending, scoring, or surface degradation, can cause leaks. Repairing or replacing the rod can resolve these issues, but like cylinder replacement, this can be a more extensive repair.
Flushing and Fluid Replacement: If contamination is causing or contributing to the leak, flushing the system and replacing the hydraulic fluid can help. This is often one of the first steps taken, as contamination can cause a range of issues beyond just leaks.
In all cases, the effectiveness of the repair method depends on the accurate diagnosis of the leak’s cause. Once the repair is completed, testing the system to ensure the leak has been fully addressed is crucial. Additionally, consider implementing changes to maintenance routines or operational practices to prevent similar leaks in the future.
Implementing a regular maintenance schedule is crucial in preventing internal leakage in hydraulic cylinders. Scheduled maintenance should include routine inspections of all hydraulic components, especially cylinders, for any signs of wear, damage, or potential leakage. Utilizing a comprehensive checklist during these inspections ensures that nothing is overlooked. This checklist should cover the inspection of seals, the condition of the hydraulic fluid, the integrity of the cylinder bore and piston rod, and the functionality of valves and hoses.

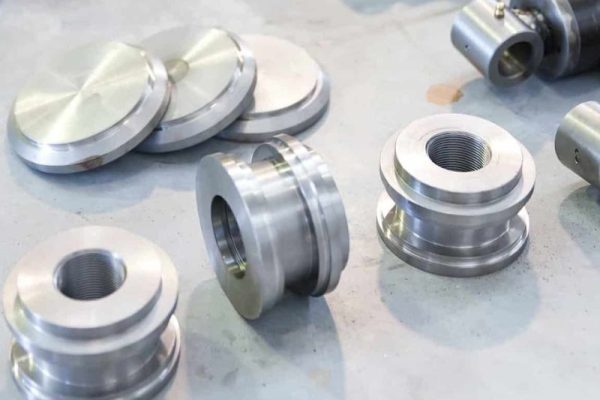

The quality of replacement parts and hydraulic fluids plays a significant role in the performance and longevity of hydraulic cylinders. Using high-quality seals, gaskets, and rods can significantly reduce the likelihood of internal leakage. These components are designed to withstand the rigorous demands of hydraulic operations and offer better resistance to wear and tear. Similarly, using the correct type and grade of hydraulic fluid as specified by the equipment manufacturer is vital. High-quality hydraulic fluids offer better lubrication, temperature stability, and contamination resistance, all of which contribute to the overall health of the hydraulic system.
Educating operators and maintenance personnel about the importance of hydraulic system health and the early signs of internal leakage is essential. Training should include how to properly operate machinery to minimize stress on hydraulic components, how to perform basic inspections and maintenance, and how to recognize the early signs of wear or failure. Increased awareness among staff leads to a more proactive approach to maintenance and problem-solving. Additionally, ensuring that personnel are up-to-date with the latest diagnostic methods and repair techniques can significantly enhance the ability to maintain and repair hydraulic systems effectively.
Understanding the signs of internal leaks, employing effective diagnostic methods, and implementing a robust repair strategy can significantly reduce these risks. By taking the guidance provided, you can ensure that your hydraulic cylinders continue to operate efficiently and reliably, thereby maintaining operational continuity and productivity. Remember, a well-maintained hydraulic system is not only an operational necessity, but a testament to any industry’s commitment to quality and safety.
