The main function of hydraulic cylinders is to convert hydraulic energy into machinery and drive mechanical equipment to work. However, their efficiency and longevity depend on the frequency of regular maintenance. If you don’t know how to maintain hydraulic cylinders, then they will fail. Bleeding hydraulic cylinders ensures that air is removed from the system, maintaining smooth operation and preventing premature wear. This article takes an in-depth look at the why and how of this critical maintenance step, providing insight and guidance for keeping hydraulic systems in top condition.
In short, to bleed a hydraulic cylinder, first, extend it fully to move any trapped air to the top. Then, partially close the cylinder and open the bleed valve to allow the air to escape. Keep the valve open until hydraulic fluid flows without air bubbles, indicating that all the air has been released. Finally, if the fluid appears foamy, it may need to be filtered or replaced to ensure the system’s optimal performance.
Hydraulic cylinders consist of a cylinder barrel containing a piston connected to a piston rod. The principle is straightforward yet powerful: when hydraulic fluid is pumped into the cylinder barrel, it pushes against the piston, creating force. This force then extends the piston rod, translating into mechanical movement.
This simple mechanism of converting hydraulic energy into mechanical force is widely used due to its efficiency and strength. In construction, hydraulic cylinders enable the lifting and moving of heavy materials by excavators and bulldozers. In the agricultural sector, they are essential in tractors and harvesters, allowing precise control over complex tasks like plowing and harvesting. The manufacturing industry relies on them for assembly lines and robotic arms, where precision and reliability are key. In the automotive sector, they play a crucial role in suspension systems and hydraulic brakes, contributing to vehicle safety and performance.
However, the efficiency of hydraulic cylinders is heavily dependent on the integrity of the hydraulic fluid. Any contamination, particularly air, can significantly affect their performance. Air pockets within the fluid can lead to inconsistent force application, reduce the cylinder’s lifting capacity, and even cause internal damage over time. This is where the importance of bleeding, the process of removing air from the cylinder, becomes evident. Proper bleeding ensures the smooth operation of hydraulic cylinders, maintaining the high level of performance required in various industrial applications.
The need for bleeding hydraulic cylinders stems from the detrimental effects air can have on hydraulic systems. Air, unlike hydraulic fluid, is compressible. When it becomes entrapped in a hydraulic system, it can lead to a range of operational issues. For instance, the presence of air can cause a spongy or inconsistent response from the hydraulic cylinder. This inconsistency can result in a lack of precision and control, which is critical in applications such as construction machinery or precision manufacturing equipment.
Another significant issue is the phenomenon of cavitation. Cavitation occurs when air bubbles in the hydraulic fluid collapse, creating shock waves within the system. These shock waves can lead to the erosion of metal components within the cylinder, causing premature wear and potential system failure. For example, in agricultural machinery, cavitation can lead to a breakdown in critical harvesting or plowing equipment, resulting in costly downtime and repairs.
Moreover, air in the hydraulic system can cause overheating and increased wear and tear on the pump and seals. This is because the pump has to work harder to maintain the required pressure in the presence of air. In industrial settings, such as in factory machinery, this can lead to significant maintenance costs and reduced equipment lifespan. Neglecting to bleed hydraulic cylinders can also lead to erratic machinery behavior, posing safety risks.
Identifying when a hydraulic cylinder needs bleeding is key to maintaining its performance and longevity.
Irregular Movements: If the cylinder moves erratically or jerkily, it’s a clear indication that air is disrupting the hydraulic fluid’s smooth flow.
Spongy Response: A cylinder that feels spongy or less responsive when pressure is applied often points to air within the system.
Unusual Noises: Sounds like banging or knocking during the cylinder’s operation can signal air pockets impacting the system’s performance.
These symptoms suggest that air has intruded into the hydraulic system, necessitating bleeding to restore efficient and safe operation.
For diagnostic purposes, a visual inspection can be revealing. Look for signs of air bubbles in the hydraulic fluid or foaming at the reservoir, which are clear indicators of air contamination. Additionally, pressure tests using gauges can help detect fluctuations in the system’s pressure, another sign of air presence.
In terms of tools, pressure gauges are essential for accurate diagnosis. They can measure the system’s response to load and identify inconsistencies. Another useful tool is a fluid sampler, which can analyze the hydraulic fluid for air content, contamination, and quality. Regular use of these diagnostic tools can preemptively identify the need for bleeding, ensuring the hydraulic system operates efficiently and safely.

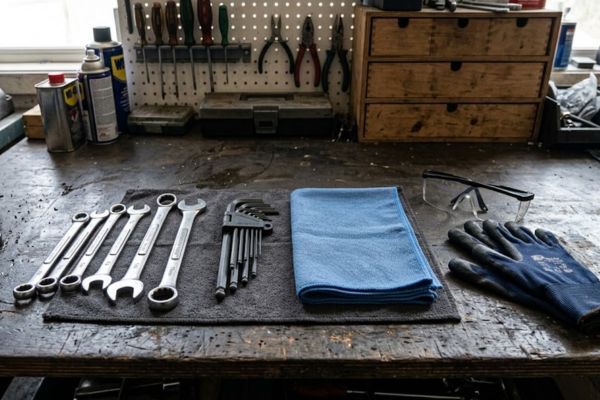

Preparing for the bleeding process of a hydraulic cylinder requires careful attention to tools, equipment, and safety measures. Essential tools include:
Wrenches and Spanners: For opening and closing valves and fittings.
Hydraulic Fluid: Fresh fluid is needed to refill the system post-bleeding.
Bleed Valve or Screw: Critical for releasing trapped air.
Tubing or Hoses: To direct fluid away during bleeding.
Collection Container: For capturing expelled fluid and air.
Safety measures are paramount. Always wear protective gear like gloves and goggles. Ensure the machinery is powered off and pressure is fully released before starting.
Work in a well-ventilated area to avoid inhalation of any fumes. Keep a clean workspace to prevent contamination of the hydraulic fluid, which could lead to further system issues. Finally, consult the machinery’s manual for any specific instructions related to its hydraulic system. Proper preparation ensures a safe and effective bleeding process.
Extending the instructions for bleeding single-acting hydraulic cylinders, we delve deeper into each step:
Stabilize the Hydraulic Cylinder: Safety is paramount. Before beginning, ensure the hydraulic cylinder is securely anchored. This prevents any unintended movement that could cause injury or damage during the bleeding process.
Locate the Bleed Valve: Carefully identify the bleed valve, usually situated at the cylinder’s end. It’s crucial to correctly identify this component to avoid mistakenly adjusting other parts.
Operate Carefully: Gradually open the bleed valve. This should be done gently to control the flow of air and fluid. Rapid opening can result in splashing or sudden ejection of fluid, creating a mess and wasting fluid. Use a container to catch expelled fluid, avoiding environmental contamination and waste.
Check for Complete Air Removal: Observe the expelled fluid closely. Initially, you may notice air bubbles or a spongy flow, indicating the presence of air. Continue the process until the fluid exits in a consistent, bubble-free stream. This is the indicator that most, if not all, air has been expelled from the cylinder.
Close the Valve: After ensuring all air is removed, carefully close the bleed valve. Ensure it is tightly sealed to prevent any leakage of hydraulic fluid.
Test Cylinder Functionality: After bleeding, conduct a functionality test.
Extend and retract the cylinder to ensure smooth operation. Any signs of jerky movements or inconsistency might suggest the presence of residual air, indicating the need for another round of bleeding.
Inspect and Clean: Once bleeding is completed, inspect the area for any spills and clean up as necessary. Also, check the cylinder and connections for any signs of leaks or damage incurred during the process.
Record Maintenance: Document the bleeding process in your maintenance records. This helps in tracking the health of your hydraulic system and scheduling regular maintenance.
By following these extended and detailed steps, you ensure a thorough and safe bleeding process for single-acting hydraulic cylinders, enhancing their efficiency and lifespan.
For double-acting hydraulic cylinders, the bleeding process is slightly more complex due to their dual-chamber design. Here’s an expanded guide:
Prepare Both Sides: Begin by ensuring access to both sides of the cylinder as you’ll need to bleed from each end. This may involve repositioning the cylinder or machinery for better access.
Extend and Retract: Operate the cylinder to its full extension, then retract it. This movement helps push air bubbles towards the bleed valves at each end, making them easier to remove.
Bleed Each Side: Start with one side of the cylinder. Locate the bleed valve, usually near the end of the cylinder. Slowly open the valve to release air. You might hear a hissing sound as air escapes. Wait until hydraulic fluid flows out without air bubbles, indicating that the air has been expelled from this side. Close the valve securely before moving to the other side. Repeat the same process on the opposite end.
Monitor Fluid Levels: During the bleeding process, keep an eye on the hydraulic fluid levels. If too much fluid is lost, you’ll need to replenish it to maintain proper system function.
Check for Consistency: After bleeding both sides, operate the cylinder again to check for smooth, consistent movement. Any lingering irregularities might indicate that some air is still trapped and additional bleeding is needed.
Safety and Cleanliness: Throughout the process, prioritize safety by wearing protective gear and ensuring the work area is clean and free of hazards.
By following these detailed steps, you can effectively bleed double-acting hydraulic cylinders, ensuring their efficient and reliable operation.
Practical tips for the bleeding process include:
Bleed in Fully Extended Position: Always extend the cylinder fully before bleeding. This position ensures any trapped air moves towards the bleed valve for easier removal.
Repeat for Double-Acting Cylinders: In double-acting cylinders, repeat the bleeding process on both sides to ensure all air is removed from each chamber.
Patience is Key: Rushing the bleeding process may lead to incomplete air removal or even reintroducing air. Take your time for effective results.
Check Fluid Quality: If the hydraulic fluid appears foamy, it’s often a sign of air contamination. Consider replacing the fluid to maintain the system’s integrity and performance.
Troubleshooting during the bleeding of hydraulic cylinders involves addressing common challenges like persistent air pockets and frothy fluid. Here are solutions to typical issues:
Persistent Air Pockets: If air pockets continue to exist after initial bleeding, it’s crucial to recheck the process. Ensure the cylinder is fully extended and the bleed valve is opened correctly. Sometimes, repeatedly extending and retracting the cylinder helps move trapped air towards the bleed valve.
Frothy Fluid: Frothy fluid indicates severe air contamination. In such cases, it’s advisable to drain and replace the hydraulic fluid. Ensure the new fluid is properly filtered and free from contamination before use.
Incomplete Bleeding: This can occur if the bleed valve is not fully opened or if the cylinder isn’t extended completely. Double-check these aspects and repeat the bleeding process.
Leakages Around Valves: If you notice leaks around bleed valves, it may indicate worn or damaged seals. Replace these seals to ensure airtight operation.
System Not Responding After Bleeding: If the cylinder doesn’t operate smoothly post-bleeding, check the hydraulic fluid level. Low levels can occur after bleeding and may need refilling.
By systematically addressing these common issues, the bleeding process can be more effective, ensuring the longevity and optimal performance of your hydraulic cylinders.
After bleeding a hydraulic cylinder, it’s essential to conduct post-bleeding checks and adopt maintenance strategies to ensure all air has been removed and prevent future air entrapment:
Verify Air Removal: Operate the cylinder through its full range of motion. Watch for smooth, consistent movement without jerky or spongy responses, which can indicate successful air removal. Also, listen for any unusual noises that might suggest remaining air pockets.
Fluid Level and Quality Check: Inspect the hydraulic fluid level; bleeding can cause fluid loss. Refill if necessary. Also, check for any signs of contamination or foamy appearance in the fluid, which might require replacement.
Regular Inspections: Regularly inspect the cylinder and the hydraulic system for leaks or damage that can introduce air.
Proper Fluid Handling: Use clean, filtered hydraulic fluid to prevent air contamination.
System Care During Repairs: When performing maintenance or repairs, be cautious to prevent air from entering the system.
Adhering to these checks and maintenance practices will help maintain the efficiency and longevity of your hydraulic cylinders.
In conclusion, properly bleeding hydraulic cylinders is a vital maintenance task crucial for the optimal performance and longevity of hydraulic systems. By understanding the signs of air entrapment, carefully preparing for the bleeding process, and methodically following the steps for both single-acting and double-acting cylinders, operators can ensure efficient system operation. Addressing common challenges during bleeding and performing thorough post-bleeding checks further enhances system reliability. Regularly implementing these practices and preventive strategies significantly minimizes the risk of air contamination, ultimately ensuring the smooth and safe operation of hydraulic-powered machinery across various industries.
