Bleeding is an important step in removing trapped air from the system. Neglecting this can lead to poor performance, increased wear and even pose a significant safety risk. This comprehensive guide is designed to introduce the fundamentals of the single-acting hydraulic cylinder bleed process. Our step-by-step instructions and basic tips will equip you with the knowledge to perform this critical task with confidence and accuracy!
At the heart of many mechanical systems lies the single acting hydraulic cylinder, a type of cylinder where hydraulic power is applied in just one direction. Unlike their double-acting counterparts, these cylinders exert force in one direction, usually through a retracting motion, and rely on other forces like gravity or a load to return to the original position. This is achieved through a simple yet effective design: a piston within a cylindrical barrel, with fluid entering through a single port. This influx of hydraulic fluid pushes the piston to extend the rod, thereby creating linear motion and force.
The simplicity and efficiency of single acting cylinders make them invaluable in a wide array of applications. You’ll find these workhorses in areas like:
Construction Equipment: Think of the lifting mechanism in dump trucks or the arms of certain types of excavators.
Automotive Tools: They are often used in car jacks and hoists, providing the necessary force to lift heavy vehicles with ease.
Agricultural Machinery: Implements like plows and harrows rely on these cylinders for controlled, forceful movements.
Their usage spans across many industries due to their reliability and effectiveness in tasks requiring powerful, unidirectional force.
The maintenance of single acting hydraulic cylinders is paramount, especially in bleeding, the process of removing air from the hydraulic fluid. Air in the system can lead to inefficiencies such as:
Spongy or Inconsistent Operations: Air bubbles can cause the cylinder to respond unpredictably, reducing precision.
Increased Wear and Tear: Unwanted air leads to more rapid deterioration of the system’s components.
Safety Risks: In extreme cases, the presence of air can pose significant safety risks due to erratic movements or loss of control.
Regular bleeding ensures that your hydraulic system operates at peak efficiency, prolongs its lifespan, and maintains safety standards. It’s not just a maintenance task; it’s a crucial routine that safeguards both the machinery and its operators.
Air contamination in hydraulic systems occurs when air enters the cylinder or the hydraulic fluid. This can happen through various means such as during fluid replacement, through leaks in the seals, or even during regular operations. Air contamination is more than just a minor inconvenience; it fundamentally disrupts the hydraulic system’s functioning. Unlike hydraulic fluid, air is compressible. When air gets trapped in the system, it leads to a range of operational inefficiencies. The hydraulic fluid, designed to transmit force seamlessly and uniformly, ends up compressing this air instead, leading to a loss in the system’s overall efficacy.
The repercussions of not bleeding your hydraulic cylinders can range from minor annoyances to severe operational hazards:
Performance Issues: The most immediate consequence is a decline in performance. The machinery may react sluggishly, exhibit reduced force, or operate inconsistently.
Damage to Components: Over time, the presence of air can lead to accelerated wear and tear on various components. This is due to uneven pressure distribution and the potential for air to carry contaminants.
Safety Risks: Perhaps the most critical concern is safety. Trapped air can cause sudden and unpredictable movements, posing risks to operators and bystanders.
Recognizing when your hydraulic cylinder needs bleeding is key to timely maintenance. Some tell-tale signs include:
Erratic Movements: If the cylinder moves in a jerky or inconsistent manner, it’s often a sign of air in the system.
Unusual Noises: Listen for knocking or banging sounds, which are indicative of air bubbles moving through the system.
Reduced Lifting Capacity: If the cylinder seems to struggle with loads it previously handled with ease, it might be time to check for air contamination.
Spongy Feel in Control Mechanisms: Operators might notice a spongy or soft feel when using the controls, a direct result of air compressibility.
Before beginning the bleeding process, it’s crucial to gather all necessary tools and safety equipment. Proper preparation not only facilitates a smooth operation but also ensures your safety. Here’s what you’ll need:
Bleeding Kit: Often includes a hose, fittings, and a container for the expelled fluid.
Wrenches and Spanners: To open and close valves or fittings.
Hydraulic Fluid: Compatible with your specific system for refilling purposes.
Sealant Tape or Compound: For securing connections and preventing leaks.
Gloves and Safety Glasses: Essential for personal protection against hydraulic fluid and debris.
Clean Cloths: To wipe away any spills and keep the area tidy.
Catch Pan or Container: For collecting any fluid that may be expelled during the proces
A well-prepared workspace is key to a successful bleeding process. Follow these steps to set up your area:
Clean Workspace: Ensure the area around the cylinder is free of debris and clutter. This minimizes the risk of contamination and accidents.
Position the Cylinder: If possible, adjust the cylinder so that the bleed valve is at the highest point. This helps air escape more easily during the bleeding process.
Secure the Equipment: Ensure that the cylinder and any connected machinery are stable and won’t move unexpectedly.
Drain Existing Fluid: If necessary, drain the existing fluid from the cylinder into a catch pan, especially if it’s contaminated.
Safety is paramount when working with hydraulic systems. Keep these best practices in mind:
Wear Protective Gear: Always wear gloves and safety glasses to protect against accidental splashes of hydraulic fluid.
Check Connections: Before starting, double-check all connections for tightness to prevent leaks.
Avoid Overfilling: Be cautious not to overfill the cylinder with hydraulic fluid, as this can lead to pressure build-up.
Ventilate the Area: Work in a well-ventilated space to avoid the buildup of fumes from hydraulic fluid.
Dispose of Fluid Properly: Follow environmental regulations for disposing of old hydraulic fluid.
Never Rush: Take your time to ensure each step is done correctly and safely.

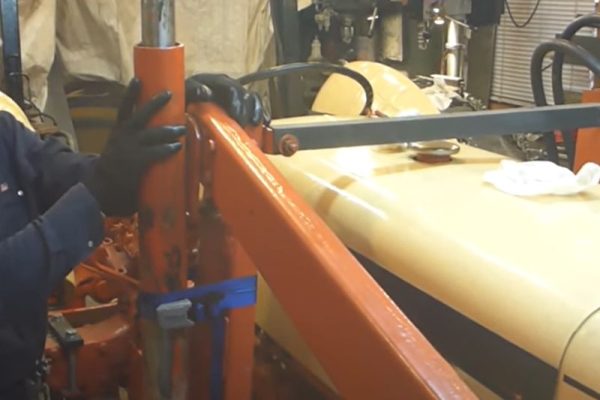

Secure the Cylinder: Ensure the hydraulic cylinder is firmly anchored. If it’s part of larger machinery, ensure the machinery is stable and turned off.
Position for Bleeding: Adjust the cylinder so the bleed valve is at the highest point. This position allows air to rise and escape more easily.
Clean the Bleed Valve: Before opening, clean around the bleed valve to prevent contamination from entering the system.
To begin the bleeding process, locate the bleed valve on your single acting hydraulic cylinder. Using the correct size wrench, gently loosen the valve. It’s important to proceed with caution to avoid damaging the valve. As you open it, be prepared for hydraulic fluid to escape – this is normal and part of the process. Keep a catch pan or container handy to collect any expelled fluid, maintaining a clean work environment.
Once the bleed valve is open, it’s time to activate the cylinder. This step is crucial as it helps in pushing the trapped air towards the bleed valve. Extend and retract the cylinder multiple times. If the cylinder is integrated into a machine, you will need to operate the machine, guiding the cylinder through its full range of motion. This repeated action is effective in moving the air bubbles towards the bleed valve, facilitating their expulsion.
As you operate the cylinder, closely monitor the fluid being expelled through the bleed valve. Initially, you may notice bubbles in the fluid – a clear indication of air being purged from the system. Continue the activation process until you observe a steady stream of bubble-free fluid. This is a sign that most, if not all, the air has been removed from the cylinder.
During the bleeding process, the hydraulic fluid level in the reservoir may drop. It’s essential to pause periodically and refill the hydraulic fluid to the appropriate level. Be careful not to overfill the system, as this can lead to excessive pressure and potential leaks. Use only the recommended type of hydraulic fluid for your specific cylinder to ensure optimal performance and longevity.
After the air has been sufficiently purged, and you see clear fluid exiting, it’s time to close the bleed valve. Tighten the valve securely but avoid over-tightening, which can damage the valve or its thread.
With the bleed valve closed, conduct a thorough inspection around the valve and the entire cylinder for potential leaks. Pay special attention to the areas where fittings connect to the valve and the cylinder. Any signs of leaking fluid need immediate attention to prevent future operational issues.
Next, test the cylinder by operating it through its entire range of motion. This test helps ensure that the bleeding process was successful and the cylinder is functioning smoothly. Observe for any irregularities in movement or response.
Finally, after testing the cylinder, recheck the hydraulic fluid level in the reservoir. If needed, top up the fluid to reach the optimal level. This final check ensures that your hydraulic system is ready for operation with the cylinder in its best condition.
Bleeding a single acting hydraulic cylinder effectively is as much about skill as it is about knowledge. Here are expert tips to ensure a successful bleeding process, avoid common pitfalls, and maintain system integrity:
Consistent Pressure: Apply steady, consistent pressure when activating the cylinder during bleeding. This helps in uniformly pushing the air out.
Gradual Valve Operation: Open and close the bleed valve gradually to avoid sudden pressure drops, which can draw more air into the system.
Regular Fluid Checks: Continuously monitor the hydraulic fluid level during the process. Low fluid levels can introduce more air.
Temperature Considerations: Perform bleeding at a moderate temperature. Extreme temperatures can affect the viscosity of the hydraulic fluid and the behavior of air bubbles.
Avoid Over-tightening: Be cautious not to over-tighten the bleed valve as it can damage the valve or seals, leading to leaks.
Proper Cylinder Positioning: Always ensure the cylinder is positioned with the bleed valve at the highest point. Incorrect positioning is a common mistake that hinders effective bleeding.
Ignoring Manufacturer’s Guidelines: Always refer to the manufacturer’s manual for specific instructions related to your hydraulic cylinder model.
Clean Work Environment: Start with a clean work area and clean tools to prevent contamination of the system.
Cap and Cover: When not actively bleeding or refilling, keep the hydraulic fluid container and cylinder ports capped or covered.
Regular System Checks: Incorporate regular checks for leaks and wear in the system. Even small leaks can allow air to enter over time.
Use Quality Hydraulic Fluid: Use the recommended grade and type of hydraulic fluid, as it’s less prone to foaming and air entrapment.
After successfully bleeding your single acting hydraulic cylinder, it’s vital to follow specific maintenance tips to ensure prolonged efficiency and functionality.
Check for Leaks Regularly: Even after bleeding, consistently monitor the system for any signs of leaks. Catching and addressing leaks early can prevent major repairs down the line.

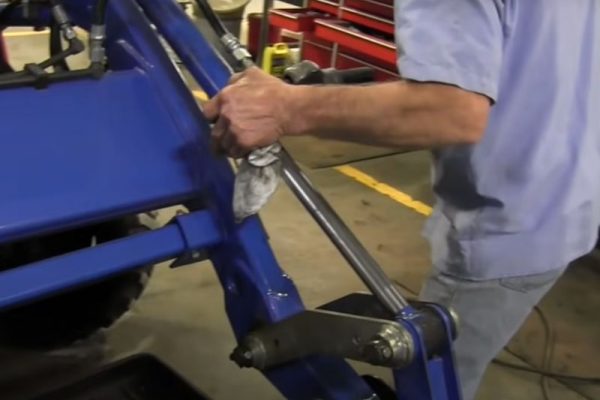

Clean the Cylinder: Ensure that the cylinder, especially around the rod and seals, is kept clean from dirt and debris. Accumulated dirt can damage the seals and lead to air ingress.
Lubricate Moving Parts: Regular lubrication of the cylinder’s moving parts, like the piston rod, can reduce wear and tear.
Establishing a routine maintenance schedule is key to the long-term health of your hydraulic cylinder. Here’s a basic timeline to consider:
Daily or After Each Use: Conduct a quick visual inspection for leaks or damage, especially if the cylinder is used in harsh environments.
Monthly: Perform a more thorough check of the hydraulic fluid level and quality. Look for signs of contamination or degradation.
Bi-Annually: Replace hydraulic fluid as needed, and inspect all seals and fittings. Tighten connections and replace any worn parts.
To maximize the lifespan of your single acting hydraulic cylinder, consider the following long-term care tips:
Avoid Overloading: Consistently operating the cylinder beyond its rated capacity can lead to premature failure.
Use Quality Hydraulic Fluid: Invest in high-quality hydraulic fluid as it’s less prone to foaming and air entrapment, and maintains optimal viscosity.
Store Properly: When not in use for extended periods, store the cylinder in a clean, dry environment. If possible, retract the piston rod fully to protect the seals from exposure.
Regular Professional Inspections: Schedule professional inspections periodically, especially for cylinders used in critical applications. This can help identify potential issues before they escalate.
From understanding the basic mechanics of single-acting hydraulic cylinders to mastering the bleed process to adhering to rigorous post-maintenance. Each step plays an important role in maintaining the efficiency of these vital components. Remember, regular bleeding not only improves performance, it also significantly reduces the risk of costly repairs and downtime. It’s a proactive approach to maintenance that not only protects the machine, but also safeguards the operator. By following the guidelines, tips and best practices outlined in this guide, you will be able to handle the bleeding process with confidence and accuracy.
