How to Tell if a Hydraulic Steering Cylinder Leaks Inside?

To tell if a hydraulic steering cylinder leaks inside, you must perform a bypass test or monitor for “drifting” where the steering wheel moves without turning the wheels. Handling a heavy machine only to find the steering feels spongy or unresponsive is a nightmare for any operator. You expect precision, but instead, you get a sluggish lag that puts your equipment and safety at risk.

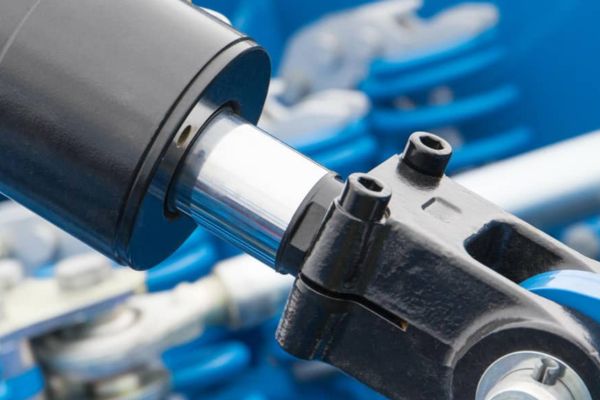

Why Does a Hydraulic Steering Cylinder Leak Internally?

A hydraulic steering cylinder leaks internally when fluid slips past the piston seals from the high-pressure side to the low-pressure side. Unlike external leaks that leave a puddle, these “invisible” failures happen deep inside the metal housing where you cannot see them.

• Worn or brittle piston seals.
• Scored or scratched internal cylinder walls.
• Contaminated hydraulic fluid acting as an abrasive.

You might be wondering how such a heavy-duty component fails without any visible signs on the ground. Over time, heat and friction degrade the polymer rings that are supposed to keep the oil contained. When these seals fail, the oil simply takes the path of least resistance, flowing right over the piston instead of pushing it. This results in a loss of steering torque that makes your job much harder than it needs to be.

Is Heat the Main Culprit for Internal Seal Failure?

Heat is often the primary reason your seals lose their ability to hold pressure over long shifts. When hydraulic oil exceeds its normal operating temperature, the seals become hard and lose their elasticity.

A hardened seal cannot expand to fill the gap between the piston and the barrel, which creates a shortcut for the fluid.

• Check your oil coolers regularly.
• Monitor fluid viscosity levels.
• Inspect for aeration in the reservoir.

Seal Material	Temperature Limit	Common Application
Nitrile (Buna-N)	100°C	Standard Industrial
Viton (FKM)	200°C	High-Heat Environments
Polyurethane	80°C	High-Pressure Mobile

What Are the Visual Symptoms of Internal Steering Leaks?

While you won’t see oil on the floor, you will see the “drift” or “creep” in your steering wheel’s behavior. If you set your wheels straight and find they have turned slightly after a few minutes of idling, your hydraulic steering cylinder leaks oil across the piston.

• The steering wheel rotates without moving the tires.
• Visible “chatter” or jerky movements when turning.
• The cylinder rod slowly retracts or extends under a constant load.

A machine that “wanders” on a straight road is often trying to tell you that its internal seals are compromised. If you find yourself constantly correcting the steering wheel just to stay in a straight line, the pressure is likely bypassing the piston. This symptom is not just annoying; it is a clear indicator of a failing hydraulic steering cylinder leaks.

Can a Spongy Steering Wheel Indicate Internal Leaks?

A spongy feel in the steering wheel usually points to air or fluid bypassing the internal piston seals. When the fluid doesn’t meet the expected resistance, the steering feels disconnected and “soft” to the touch.

Testing this is simple: turn the wheel to full lock and see if it continues to rotate slowly under pressure.

• Listen for a high-pitched hissing sound.
• Feel for vibrations in the steering column.
• Watch for inconsistent response times.

How Can You Perform a Manual Bypass Test Safely?

The manual bypass test is the gold standard for confirming that a hydraulic steering cylinder leaks internally. This involves extending the cylinder to its full stroke and checking if fluid continues to flow out of the return port.

• Secure the machine and relieve all hydraulic pressure first.
• Disconnect the return line at the end of the stroke.
• Apply pressure and watch for oil exiting the open port.

If any oil comes out of that open port while the piston is bottomed out, your seals are officially dead. In a healthy cylinder, the piston should act as a total block, allowing zero fluid to pass through. Performing this test accurately requires patience and the right safety gear to prevent high-pressure injection injuries.

What Safety Gear Is Required for Pressure Testing?

Safety is paramount when working with high-pressure systems that can reach thousands of PSI. You must protect yourself from fluid injection, which can be fatal if not treated immediately.

• Wear heavy-duty safety goggles.
• Use hydraulic-rated pressure gauges.
• Always use a piece of cardboard to check for leaks, never your hands.

Test Step	Action	Safety Note
Isolation	Block the wheels	Prevent machine movement
Depressurize	Cycle the valves	Avoid trapped pressure
Inspection	Use cardboard	Prevent skin injection

Does Excessive Heat on the Cylinder Barrel Mean a Leak?

Yes, localized heat is a major “smoking gun” when a hydraulic steering cylinder leaks internally. When high-pressure oil is forced through a tiny gap in a damaged seal, it generates friction, which converts into intense heat.

• Use an infrared thermometer to scan the length of the cylinder.
• Look for “hot spots” near the piston location.
• Compare the temperature of the cylinder to the main hydraulic reservoir.

Under normal conditions, the cylinder should be roughly the same temperature as the rest of the hydraulic system. If you find a section of the barrel that is significantly hotter than the rest, fluid is likely “jetting” through a seal failure. This heat further damages the metal and the oil, creating a vicious cycle of degradation for your hydraulic steering cylinder leaks.

How Hot Is Too Hot for a Steering Cylinder?

Most standard hydraulic systems operate efficiently between 40°C and 60°C. If your infrared scan shows a localized spot exceeding 80°C, you have a serious internal bypass issue.

• Scan the cylinder while under load.
• Check the ends of the stroke specifically.
• Note any sudden temperature spikes.

Temperature Range	Condition	Action
40°C – 55°C	Normal	Continue Operation
60°C – 75°C	Warning	Check Oil Viscosity
Above 80°C	Critical	Inspect for Internal Leaks

Can Contaminated Fluid Cause Internal Seal Damage?

Contamination is the silent enemy that ensures a hydraulic steering cylinder leaks eventually. Small particles of metal, dirt, or rubber act like sandpaper, grinding away at the precision-machined surfaces of the piston and barrel.

• Microscopic debris tears the soft seal lips.
• Water contamination leads to internal corrosion and pitting.
• Silt build-up prevents the seals from seating properly.

Even a brand-new seal won’t last a week if your oil is dirty. When particles get trapped between the moving piston and the cylinder wall, they create deep “tracks” or scores. Once these scratches are deep enough, oil flows through them regardless of how good your seals are, leading to permanent hydraulic steering cylinder leaks.

How Do You Identify Fluid Contamination Early?

Taking a fluid sample is the most effective way to see what is happening inside your steering system. Clear, amber-colored oil is healthy; dark, milky, or gritty oil is a disaster waiting to happen.

You might be wondering if you can just filter the oil and keep going. Unfortunately, once the damage to the internal bore is done, filtering the oil won’t fix the leak.

• Perform regular oil analysis.
• Replace filters every 500 hours.
• Check for a “burnt” smell in the oil.

Contaminant Type	Effect on Cylinder	Prevention
Particulates	Scoring and Abrasive Wear	High-Efficiency Filters
Water	Rust and Seal Hydrolysis	Desiccant Breathers
Air	Cavitation and Pitting	Proper Bleeding

Is Your Steering Wheel Drifting When Neutral?

If you find that your steering wheel slowly rotates while the machine is stationary, your hydraulic steering cylinder leaks internally. This “drift” is caused by pressure imbalances that allow oil to migrate past the piston seals even when the control valve is centered.

• The wheels slowly turn to one side on their own.
• You must hold the wheel firmly to prevent creeping.
• The drift increases as the oil gets hotter and thinner.

Drift is often mistaken for a bad steering valve (orbitrol), but the cylinder is just as likely to be the culprit. To distinguish between the two, you can cap the cylinder ports; if it still drifts, the hydraulic steering cylinder leaks internally. This simple isolation test saves you from buying expensive parts you don’t actually need.

How Do You Measure Cylinder Drift Accurately?

To measure drift, extend the cylinder halfway, shut off the engine, and mark the rod’s position with a piece of tape. After ten minutes, measure how far the rod has moved from the mark.

• Ensure the machine is on level ground.
• Ensure the load is consistent.
• Repeat the test at different temperatures.

Drift Distance	Assessment	Recommendation
0mm – 2mm	Healthy	No Action Needed
3mm – 10mm	Minor Leak	Monitor Closely
10mm+	Major Leak	Immediate Reseal

What Is the Cylinder Port Bypass Test?

The port bypass test is a professional-grade diagnostic used to pinpoint exactly where a hydraulic steering cylinder leaks. It involves applying pressure to one side of the cylinder while leaving the opposite port open to atmosphere.

• Extend the rod completely to the end of its stroke.
• Remove the hose from the “retract” port.
• Keep the “extend” port pressurized and check for flow.

If oil pours out of the open retract port, it can only come from one place: past the piston seals. This test is definitive because it removes the steering valve from the equation entirely. If you see oil, you know for a fact your hydraulic steering cylinder leaks and needs a rebuild kit immediately.

Why Should You Use a Flow Meter for This Test?

While watching for drips works, a flow meter provides a precise measurement of the bypass rate in gallons per minute (GPM). This allows you to quantify exactly how much efficiency you are losing.

• Install the meter in the return line.
• Test at full operating pressure.
• Compare results to OEM specifications.

Flow Meter Reading	Condition	Priority
0 GPM	Perfect Seal	None
0.1 – 0.5 GPM	Moderate Bypass	Schedule Maintenance
1.0+ GPM	Critical Failure	Stop Operation

How Do You Choose the Right Rebuild Kit?

Once you’ve confirmed your hydraulic steering cylinder leaks internally, choosing the right seal kit is the final step toward a permanent repair. Not all seals are created equal, and using the wrong material will lead to a premature failure.

• Match the kit to the cylinder’s serial number.
• Choose high-temp seals for heavy-duty cycles.
• Ensure the kit includes the piston wear rings.

Many people only replace the rubber seals but leave the plastic wear rings. These rings are what keep the piston centered; if they are worn, the piston will “cock” in the bore, causing the new seals to fail immediately. A complete kit is your best defense against recurring hydraulic steering cylinder leaks.

What Is the Difference Between OEM and Aftermarket Kits?

OEM kits are guaranteed to fit but are often more expensive. High-quality aftermarket kits can offer upgraded materials like Viton for better heat resistance.

• Verify dimensions with a micrometer.
• Look for reinforced backup rings.
• Check for compatibility with your specific hydraulic oil.

Seal Component	Function	Why It Fails
Piston Seal	Holds Pressure	Friction/Heat
Wear Ring	Guides Piston	Side Loading
O-Rings	Static Sealing	Compression Set

Identifying an internal leak requires a mix of observation and precision testing. By monitoring heat, checking for drift, and performing bypass tests, you can accurately diagnose failures that hidden from plain sight. We provide the professional-grade hydraulic components and expert advice needed to keep your steering systems responsive and your machines in the field. Contact us today to find the perfect solution for your hydraulic needs and ensure your equipment never loses its edge. We are committed to powering your industry with fluid precision and unmatched durability.

Frequently Asked Questions

Q1: Can I still operate my machine if the hydraulic steering cylinder leaks internally?

No, it is not recommended. While the machine might still move, an internal leak causes unpredictable steering response and generates excessive heat that can damage the pump and other expensive hydraulic components.

Q2: How much does it typically cost to fix internal steering cylinder leaks?

It depends on the damage. A simple seal kit might cost $50 to $150, but if the internal barrel or rod is scored, professional machining or a total cylinder replacement could cost $500 to $1,500.

Q3: What is the most common cause of sudden internal seal failure?

Pressure spikes. If the steering system hits a hard mechanical stop or an obstacle at high speed, the resulting pressure surge can “blow out” or tear the piston seals instantly.

Q4: How do I know if the leak is in the steering valve or the cylinder?

Perform an isolation test. Cap the hoses leading to the cylinder; if the steering wheel still turns easily with the hoses capped, the leak is in the steering valve.

Q5: What’s the best way to prevent future internal leaks?

Maintain clean oil. Over 80% of hydraulic failures are caused by contamination; using high-quality filters and changing your hydraulic fluid at recommended intervals is the best insurance for your seals.
