Although hydraulic cylinder systems are extremely robust and durable, they are not without their problems, especially when it comes to hydraulic cylinder seal failures. Such failures can lead to serious downtime, costly repairs and, crucially, safety hazards. This comprehensive guide delves into the complex world of hydraulic cylinder seal failure analysis. By the end of this guide, you will not only be familiar with the common causes and symptoms of seal failures, but you will also be able to skillfully implement preventive strategies and remedies to ensure the longevity and efficient operation of your hydraulic system.
Hydraulic cylinder seals are designed to contain the hydraulic fluid within the cylinder, a fundamental requirement for generating the force needed to drive machinery. They are tasked with withstanding high pressures, extreme temperatures, and the aggressive chemicals often found in hydraulic fluids. The efficiency of these seals directly impacts the performance, longevity, and safety of the hydraulic system.

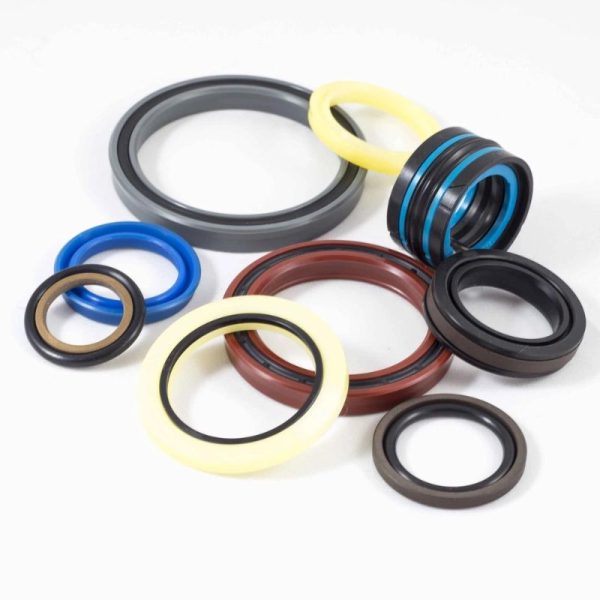

There are several types of seals used in hydraulic cylinders, each serving a specific purpose. The most common types include piston seals, rod seals, wiper seals, and buffer seals. Piston seals are located on the piston and help in maintaining the pressure exerted by the hydraulic fluid on the piston. Rod seals are found in the cylinder head and prevent external leakage of hydraulic fluid. Wiper seals, positioned at the external end of the cylinder, prevent contaminants from entering the cylinder. Lastly, buffer seals, often used in tandem with rod seals, provide an additional layer of protection against pressure spikes and fluid contamination.
Each type of seal is crafted from materials selected for their durability, resistance to wear, and compatibility with hydraulic fluids. Common materials include polyurethane, nitrile rubber, and PTFE (polytetrafluoroethylene). The choice of material depends on the specific requirements of the hydraulic system, such as the operating temperature range, fluid type, and pressure conditions.
The proper functioning of these seals is crucial for maintaining the overall efficiency of the hydraulic cylinder. A failing seal can lead to fluid leaks, resulting in reduced efficiency and potential damage to the system. Moreover, seal failure poses significant safety risks, especially in high-pressure environments where sudden loss of hydraulic power can lead to uncontrolled movements of machinery.
Regular usage of hydraulic cylinders inevitably leads to wear and tear of the seals. This natural degradation process is exacerbated in environments where the cylinder undergoes frequent or heavy-duty cycles. Wear and tear can manifest as abrasions, loss of sealing lip effectiveness, or general erosion of seal material. It’s a gradual process but can significantly reduce the seal’s ability to maintain hydraulic fluid pressure and prevent leaks.
The proper installation and maintenance of hydraulic cylinder seals are crucial for their longevity and effectiveness. Incorrect installation can lead to misalignment, improper seal compression, or even damage to the seal itself. Additionally, inadequate maintenance routines can overlook minor issues that, if unaddressed, can escalate into major seal failures. This includes regular inspections, timely replacement of worn seals, and ensuring that the hydraulic system is kept clean and well-lubricated.
External contaminants such as dirt, dust, and debris can severely impact the integrity of hydraulic cylinder seals. When these contaminants enter the system, they can cause abrasion and physical damage to the seal surfaces. Moreover, environmental factors like temperature extremes, humidity, and exposure to corrosive substances can also deteriorate seal materials, leading to failures.
Over time, the materials used in seal construction can degrade, particularly under extreme or fluctuating temperature conditions. Thermal degradation can result in hardening, cracking, or softening of the seal, depending on the material and the temperature exposure. This degradation compromises the seal’s ability to contain the hydraulic fluid effectively and maintain the necessary pressure within the cylinder.
Mechanical damage to seals can occur from overloading the hydraulic system or due to mishandling during maintenance. Overloading the system can exceed the design specifications of the seals, leading to extrusion, deformation, or even rupture. Similarly, careless handling during maintenance activities can introduce nicks, cuts, or other forms of physical damage to the seals, compromising their integrity and functionality.
Seal materials can react adversely to certain chemicals in hydraulic fluids. This chemical incompatibility can lead to swelling, shrinkage, or complete disintegration of the seal. It’s crucial to choose seal materials that are compatible with the type of hydraulic fluid used, taking into account any additives or contaminants that may be present.
Dynamic stress from rapid or irregular movements of the cylinder can impose significant strain on seals. Oscillation or vibration within the hydraulic system can lead to the seal becoming dislodged or experiencing irregular wear patterns. This is particularly common in machinery that operates under high-speed or variable load conditions.
Using a seal that is not specifically designed for the application or is incorrectly sized can lead to premature failure. An undersized seal may not withstand the system pressure, while an oversized seal can cause improper fitting, leading to leaks and reduced efficiency. The design and size of the seal should match the specific requirements of the hydraulic cylinder.
Like any other component, hydraulic seals have a finite shelf life. Over time, even unused seals can deteriorate due to aging, especially if stored under suboptimal conditions. Exposure to sunlight, ozone, and extreme temperatures during storage can degrade the material properties of seals, making them less effective when eventually put into use.
The surface finish and hardness of the cylinder bore and rod can significantly affect seal life. Rough surfaces can abrade the seal, while too smooth surfaces may not allow for adequate lubrication film. Additionally, if the cylinder material is too soft, it can wear down, creating grooves that damage the seal.
Begin with a visual inspection of the hydraulic cylinder. Look for signs of external damage, leaks, or any irregularities.
Check for any visible wear or damage on the seal itself.
Examine the usage history of the cylinder. High usage or overloading instances can provide insights into potential failure causes.
Consider any recent changes in operation, such as increased load or frequency.
Evaluate the operating environment. Factors like temperature extremes, exposure to corrosive substances, or presence of contaminants can influence seal deterioration.
Inspect the seal material for signs of degradation, such as cracking, hardening, or erosion.
Consider whether the material is appropriate for the hydraulic fluid and operating conditions.
Test the hydraulic system’s pressure levels to ensure they align with the seal’s specifications.
Check for misalignment in the hydraulic cylinder, as it can lead to uneven wear on the seal.
Inspect the cylinder bore and rod for any signs of wear, scoring, or improper surface finish that could affect the seal.
Review installation and maintenance records. Improper installation or inadequate maintenance can be crucial factors in seal failure.
Avoid jumping to complex conclusions without first checking basic issues like improper installation, wear due to regular usage, or simple mechanical damage.
Failing to adhere to the manufacturer’s guidelines for installation, maintenance, and operating conditions can lead to incorrect assessments.
Not considering the impact of the operating environment can lead to a misdiagnosis of the failure cause.
Overlooking historical maintenance and operational data can miss patterns or recurring issues leading to seal failure.
Hasty analysis might miss subtle but critical details. A thorough and methodical approach is essential for accurate diagnosis.
In complex scenarios, seeking expert opinion or additional technical support ensures a more accurate and comprehensive analysis
It’s important to use high-quality materials and tools to ensure the longevity and efficiency of your rebuild. Investing in the right equipment upfront can save time and money by preventing future failures and ensuring a smoother, more reliable operation of your hydraulic cylinder. With these tools and materials at hand, you’re well-equipped to tackle a hydraulic cylinder rebuild, ensuring your machinery continues to operate at its best.
Schedule routine inspections of hydraulic cylinders to identify early signs of wear or damage.
Implement a maintenance routine that includes checking and replacing seals as necessary.
Ensure seals are installed correctly, following manufacturer guidelines to avoid damage during installation.
Use appropriate tools and techniques to ensure seals are neither too tight nor too loose.
Keep the hydraulic system, especially the cylinder rods, clean to prevent contaminants from damaging the seals.
Implement proper filtration systems to keep the hydraulic fluid free from particulates.
Monitor and control the operating temperatures and pressure levels within the system’s recommended range to prevent seal degradation.
Choose seal materials that are compatible with the hydraulic fluid and the operating environment. Materials like polyurethane, nitrile rubber, or PTFE offer different advantages.
Consider seals designed for high wear resistance in harsh conditions.
Opt for advanced seal designs that offer better performance, such as double-acting seals for dynamic applications or pressure-activated seals for high-pressure environments.
Retrofitting and Upgrading Options for Hydraulic Systems
Retrofit older systems with modern seals and components that offer better performance and longevity.
Consider upgrading the entire hydraulic system for compatibility with advanced seals.
Integrate modern technologies like smart sensors for predictive maintenance, helping to anticipate seal wear and prevent failures.

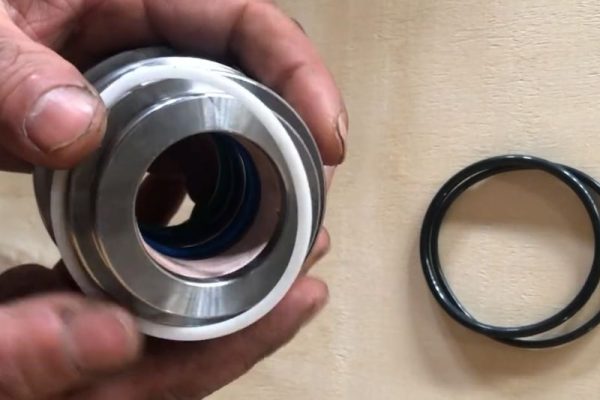

Manufacturer’s Guidelines: Adherence to the manufacturer’s installation instructions ensures that the seal is fitted as intended. This might include specific techniques or tools required for installation.
Avoiding Seal Damage: Care must be taken to avoid twisting or stretching the seals during installation. This can be achieved by using the correct tools and applying even pressure during the fitting process.
Leak Tests: Conduct thorough testing for leaks after installation. This can involve pressurizing the system and visually inspecting the seal area.
Operational Testing: Run the hydraulic system through its typical operational range to ensure smooth operation. Pay attention to any unusual noises or movements, which might indicate a problem with the seal installation.
In this comprehensive guide, we have navigated the intricacies of hydraulic cylinder seal failure analysis, exploring the various causes, diagnostic methods, prevention strategies, and effective recovery and replacement methods. Remember, the key to effectively managing hydraulic cylinders is a proactive approach to maintaining hydraulic seals. With these strategies, you can improve the performance of your hydraulic system, reduce maintenance costs, and extend its life.
