Three-Point Hitch won’t lift or lower
Slow response, drifting under load, or weak lifting force often points to a worn lift cylinder or incorrect cylinder sizing.
Premium Tractor Hydraulic Cylinders
for Agricultural Excellence
Factory-direct supplier of high-performance hydraulic cylinders for tractors and agricultural machinery. Custom solutions, competitive pricing, and reliable delivery to farms worldwide.
Are You Looking for These Tractor Cylinders?
If any of these situations sound familiar, you’re in the right place. Tell us your tractor model, mounting style, stroke, and working pressure — we’ll match the right cylinder or build one to fit.
Attachment angle control is unstable
Uneven grading, inconsistent pitch, or poor levelling usually means the top link / side link cylinder needs replacement or an upgraded seal package.
OEM cylinder is damaged — need a direct replacement
Send photos, key dimensions, and port/thread details. We’ll produce a drop-in replacement to restore your tractor quickly.
New tractor or implement project — need custom cylinders
We support custom bore/stroke, mounting style, pin size, ports, and coatings — based on drawings or samples, with engineering review before production.
Fast quoting tip: share bore, stroke, closed length, mounting type, pin size, working pressure, and port thread.
What Tractor Hydraulic Cylinders Actually Do
Even if you’re not an engineer, it’s easy to judge a cylinder by one thing: does it keep your tractor stable, responsive, and safe under real field loads?
Field-Ready Performance
4 Core Functions Buyers Care About
On a tractor, cylinders are not just “parts.” They are the force and control that make implements work properly and keep the machine steady during daily operation.
-
Lifting & downforce power — raises, lowers, and supports implements under changing loads.
-
Angle & height control — keeps grading depth, pitch, and levelling consistent for better results.
-
Stability in field operation — reduces drifting, shaking, and side movement when working on rough ground.
-
Shock & harsh-duty endurance — designed to handle frequent impacts, dust, mud, and long working hours.
Tractor Hydraulic Cylinder Types We Supply
Choose the cylinder type based on where it installs on the tractor. Topa supports OEM replacement and custom builds — confirmed by drawings before production.
Three-Point Hitch
Hydraulic Lift Cylinder
Provides the lifting and holding force for rear implements.
Function
Raises/lowers the three-point hitch and keeps implements stable under load.
Installed On
Rear hitch lift system (linkage / lift arms area), depending on tractor design.
Three-Point Hitch
Top Link Hydraulic Cylinder
Controls implement pitch to keep grading depth and angle consistent.
Function
Adjusts the top link length to set implement angle and working depth.
Installed On
Between tractor rear top link bracket and the implement top mast.
Three-Point Hitch
Stabilizer / Side Link Cylinder
Limits side sway and keeps rear implements centered.
Function
Stabilizes the implement left/right and helps with fine leveling adjustments.
Installed On
Rear hitch side link / stabilizer linkage between lift arms and tractor frame.
Front Loader
Loader Lift Hydraulic Cylinder
Main lifting power for raising and lowering loader arms.
Function
Raises/lowers the loader boom and supports frequent high-cycle operation.
Installed On
Front loader arms (boom) between loader frame and lifting linkage.
Front Loader
Bucket Tilt Hydraulic Cylinder
Controls bucket dumping/curling and attachment angle.
Function
Tilts the bucket to dump or curl materials smoothly and safely.
Installed On
Between bucket linkage and loader arms (tilt linkage area).
Steering
Hydraulic Steering Cylinder
Improves steering response and stability under load.
Function
Assists steering to deliver smooth control on rough ground and under heavy front loads.
Installed On
Steering linkage / axle steering system (tie rod or steering arm connection points).
Topa Service: OEM replacement and custom tractor cylinders — share your tractor model, photos, or drawings. We confirm mounting, stroke, pressure, and port threads, then provide drawing approval before production.
Agricultural Tractor Types by Application
Different tractors face different loads, terrain, and operating cycles. That’s why hydraulic cylinders must match the working environment — not just the dimensions.

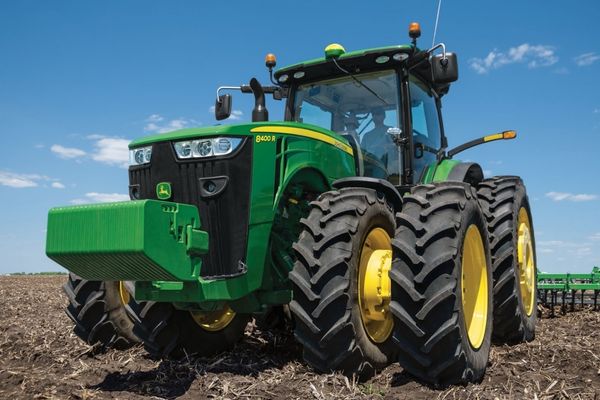

Wheel Tractor
Wheel Tractor
The most common all-purpose tractor type for plowing, hauling, and general field work.
- Typical cylinders: three-point hitch lift, top link, stabilizer/side link.
- Frequent lift/lower cycles with impact from uneven ground.
- Needs strong sealing against dust, mud, and moisture.

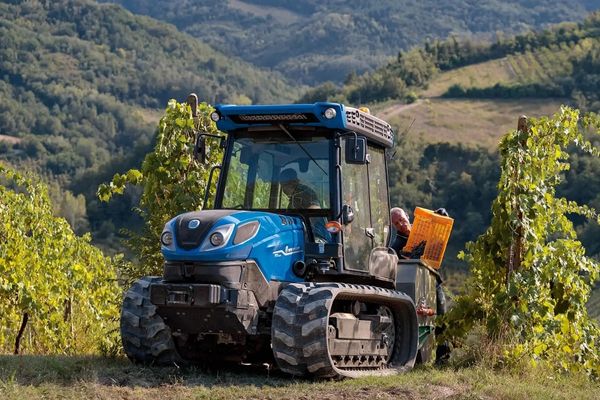

Crawler / Track Tractor
Crawler Tractor / Track Tractor
Designed for high traction and stability on soft ground, slopes, and heavier pulling tasks.
- Typical cylinders: hitch lift, blade/attachment control, steering cylinders (depending on design).
- Higher continuous load and vibration over long operating hours.
- Requires reinforced tube/rod and durable joints.

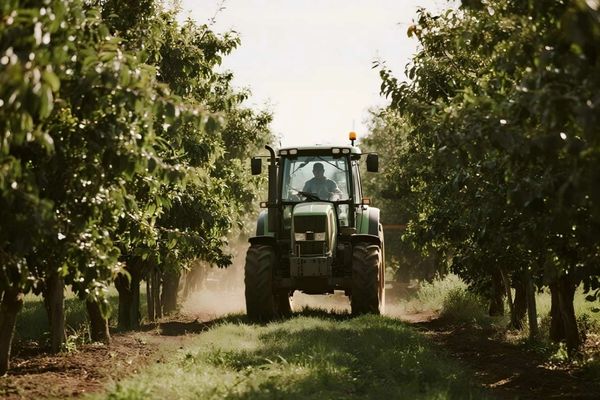

Orchard Tractor
Orchard Tractor
Compact machines built for narrow rows, low branches, and tight turning in orchards.
- Typical cylinders: compact hitch cylinders, steering cylinders, auxiliary/remote cylinders.
- Needs compact dimensions and smooth control for precision work.
- Outdoor exposure + fertilizer spray means higher corrosion risk.

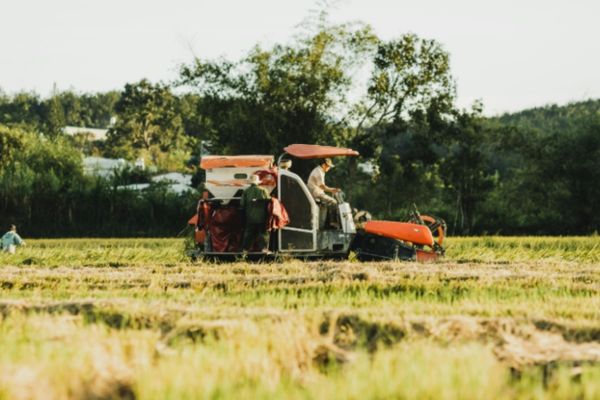

Paddy Field Tractor
Paddy Field Tractor
Built for wet, muddy environments where sealing and corrosion protection matter most.
- Typical cylinders: hitch lift, top link, auxiliary cylinders for implements.
- High mud/water exposure increases abrasion and rust risk.
- Needs stronger wipers + corrosion-resistant rod coating.

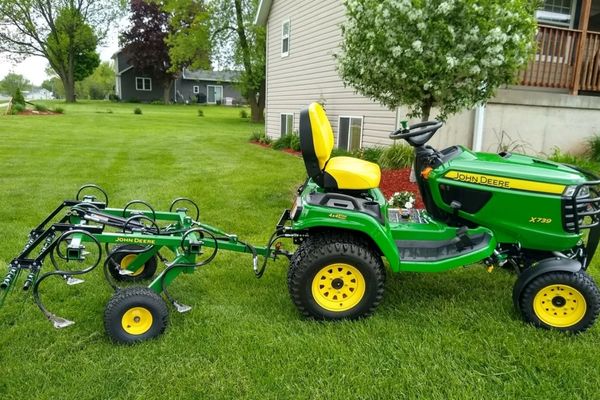

Garden Tractor
Garden Tractor
Smaller tractors for landscaping, light hauling, mowing attachments, and compact loader work.
- Typical cylinders: compact lift cylinders, small loader/tilt cylinders, steering cylinders.
- Often needs short-stroke designs with easy mounting.
- Good fit for OEM replacement and small-batch custom orders.
Utility / Compact Tractor
Utility / Compact Tractor
A versatile tractor type used for mixed tasks: loading, towing, landscaping, and maintenance work.
- Typical cylinders: loader lift, bucket tilt, three-point hitch lift, steering cylinders.
- High daily cycles demand stable seals and repeatable performance.
- Often needs compact mounting + customized port threads.
Tractor Rear Hitch Cylinders
Top Link & Side Link Hydraulic Cylinders
Position on tractor: the top link cylinder replaces the mechanical top link between the tractor and rear implement, while one or two side link cylinders mount on the lower arms of the three-point hitch to control left–right levelling.
Top Link Cylinders
- Mounted as the upper link between tractor and rear implement.
- Adjusts implement pitch angle from the tractor cab.
- Improves penetration control for ploughs and subsoilers.
- Helps set working depth for graders, blades and seeders.
Side Link / Levelling Cylinders
- Installed on one or both lower lift arms of the three-point hitch.
- Controls side–to–side levelling of rear implements on uneven fields.
- Keeps rotary mowers, graders and box blades cutting level.
- Speeds up implement setup when switching between tools.
Typical compatible machines: ploughs, subsoilers, rotary tillers, box blades, rear graders, seeders, sprayers, mounted mowers and many other three-point hitch implements.
Loader Lift Cylinders for Heavy Front-End Work
Topa loader lift cylinders are built to handle repeated lifting, crowding, and leveling of heavy buckets and attachments. Each cylinder is matched to real front-end loader duty with strong welds, thick-walled barrels, and hard-chromed rods.
From compact utility tractors to larger farm and construction loaders, we can size the bore, stroke, ports, and mounts to fit your original design or existing machines.
- • Heavy-wall barrel and rod for repeated bucket lifting and crowding.
- • High-strength mounting clevis or ball ends for smooth loader motion.
- • Seal packages tuned for dusty, muddy, and abrasive field conditions.
- • Custom port positions to suit your hose routing and valve layout.
Mounting & Porting Options for Tractor Cylinders
Tractor hydraulic cylinders can be equipped with different mounting ends and porting styles to match loader arms, three-point hitch components and auxiliary hydraulic systems.
Clevis Mount
Common on tractor loaders and rear attachments. Allows pivoting movement and easy installation.
Ball Eye / Spherical Bearing
Used on top link cylinders and loader lift arms for smooth angle compensation and reduced side loading.
Threaded Rod End
Adjustable and versatile. Ideal for fine-tuning length in agricultural linkages and steering systems.
Flange Mount
Fixed mounting style used in compact spaces or rigid structures on tractors and implements.
Detailed Specs for Double Acting Tractor Cylinders
Example technical configuration based on our Tractor Two Way Hydraulic Piston Cylinder.
Typical Technical Parameters
Bore Diameter
40–100 mm
Rod Diameter
20–60 mm
Stroke Length
100–1200 mm
Working Pressure
up to 250 bar
Mounting Types
Clevis, trunnion, flange, custom
Surface Treatment
Chrome plated rod / painting
Designed for Real Tractor Working Conditions
Our tractor two way hydraulic piston cylinders deliver stable power in both directions, making them ideal for steering, loader arms, and other applications that require precise bidirectional movement.
Reinforced barrel and rod materials, advanced sealing technology and careful surface treatment minimize leakage and wear, helping your tractors run longer between maintenance intervals.
Protection for Harsh Tractor Operating Conditions
Farm tractors work in environments full of dust, mud, gravel, and vibration. Loader, steering, and lift cylinders must resist these factors to keep the machine stable and leak-free during daily field operations.
- Thick chrome-plated rod that resists pitting and abrasive wear.
- Heavy-duty seals and wipers to keep dirt, sand, and slurry out of the cylinder.
- Precision-machined guide bushings for smoother operation under shock loads.
- Dual-layer industrial paint that protects the barrel from corrosion and stones.
- Optional protective boots and guards to reduce impact damage.
Topa as Your Tractor Hydraulic Cylinder Supplier
Topa provides durable tractor hydraulic cylinders designed for loaders, steering systems, 3-point hitches, and agricultural attachments. Our factory ensures strong structure, precise machining, and reliable seal performance for long working life in the field.
- Custom bore, stroke, and mounting for all tractor brands
- Heavy-duty seals for dusty and muddy agricultural conditions
- CNC-precision machining for stable performance and long service life
- Fast delivery and full technical support for OEMs and repair shops
How Topa Manufactures Hydraulic Cylinders
From raw material preparation to final testing, every cylinder follows a strict production flow to ensure quality and reliability.
Step 1
Raw Material Cutting
Cylinder tubes and piston rods are cut to precise lengths using automated cutting equipment to ensure dimensional accuracy.
Step 2
CNC Machining
Precision machining of cylinder tubes, rods, end caps and ports ensures perfect fitment and smooth hydraulic performance.
Step 3
Robotic Welding
Automated or manual welding secures cylinder bases and mounts, ensuring strong structural integrity under heavy tractor loads.
Step 4
Honing & Surface Finishing
The inner tube is honed to achieve perfect smoothness, improving seal life and reducing friction for long-term durability.
Step 5
Assembly & Seal Installation
Piston, rod, seals and end caps are assembled with strict tolerance control to ensure smooth and reliable hydraulic performance.
Step 6
Pressure & Leakage Testing
Each cylinder undergoes high-pressure testing to ensure no leakage, correct movement, and stable performance before shipment.
Why Choose Topa?
A reliable partner for tractor hydraulic cylinders with strong production, engineering and export capabilities.
Factory-Backed Production
Hydraulic cylinder machining, welding, honing and testing performed through dedicated factory lines for agricultural cylinders.
Custom Engineering
Bore, stroke, mounting, ports and colors tailored to match tractor loader, steering, hitch and implement requirements.
Durable Structure & Sealing
Chrome-plated rods, reinforced barrels, guiding sleeves and heavy-duty seals for mud, dust and vibration.
Fast Lead Times
Efficient scheduling supports mixed samples, small batches and repeat high-volume orders.
Responsive Support
Quick drawing checks, application advice and after-sales assistance from a team familiar with tractor systems.
Export to Global Markets
Experience shipping cylinders to the U.S., Europe, Australia, Asia and Africa with stable packaging and documentation.
OEM Replacement Capability (1:1 Fit, No Guesswork)
If your tractor is down, you don’t want “close enough.” Topa supplies cylinders that match OEM geometry and interfaces so you can install fast and get back to work.
Replace the OEM Cylinder Without Modifying Your Machine
We focus on the parts that decide whether replacement is easy: mounting geometry, pin size, closed/open length, ports, and thread standards. Your goal is simple — bolt it on and run.
1:1 OEM Dimensions
Match bore, stroke, closed length, pin centers, and mounting width to keep movement and limits identical.
No Bracket Modification
Same mounting style and pin size, so your original brackets, clevis, and linkages stay untouched.
Match Existing Ports & Threads
Keep your hydraulic plumbing the same by matching port type, position, and thread (BSP/NPT/Metric).
Reverse Engineering from Old Part
Send a sample cylinder or worn part. We measure and create a confirmed drawing for production.
Drop-In OEM Replacement
Topa Makes the Replacement Simple
We confirm mounting geometry and port interfaces, then send a drawing for approval before production — reducing installation risk and downtime.
Simple and Clear Cooperation Process
From your first inquiry to final delivery, Topa keeps each step clear and traceable, so you always know the status of your tractor hydraulic cylinder order.
1
Send Your Inquiry
Share cylinder type, bore, stroke, pressure, quantity, and tractor model with our team.
2
Confirm Technical Details
We review your needs, provide drawings or suggestions, and finalize all specifications.
3
Get Quote & Place Order
You receive a clear quotation with lead time, then confirm sample or bulk order.
4
Production & Quality Check
Cylinders are produced, tested for pressure and leakage, and inspected before packing.
5
Shipping & Support
We arrange shipping, share tracking, and support you with any after-sales questions.
Common Purchasing Pitfalls for Tractor Hydraulic Cylinders
Many buyers focus only on price or basic dimensions. These oversights often lead to leakage, poor fit, and repeated downtime. Here’s what to watch out for — and how Topa avoids these risks.
Ignoring Mounting Geometry
Risk: Wrong pin spacing or mounting width causes binding,
uneven wear, or forced bracket modification.
Topa Solution: We match pin-to-pin length, clevis width,
and mounting style exactly to OEM drawings or your old cylinder.
Only Matching Bore & Stroke
Risk: Same force but wrong closed length or port position
limits movement or damages hoses.
Topa Solution: Full geometry check including closed length,
port location, thread type, and hose clearance.
Poor Sealing for Farm Conditions
Risk: Cheap seals fail early under mud, dust,
fertilizer spray, and pressure spikes.
Topa Solution: Seal systems selected for agriculture —
reinforced wipers, pressure-rated seals, and long-cycle testing.
Unverified Welding or Tube Quality
Risk: Thin tubes or poor welds crack under shock loads
during field operation.
Topa Solution: Thick-wall honed tubes, qualified welders,
and pressure testing before shipment.
No Drawing Confirmation
Risk: Verbal confirmation only leads to misunderstandings
and costly rework.
Topa Solution: Technical drawings provided and approved
before production begins.
Choosing Price Over Lifecycle Cost
Risk: Low upfront price but frequent replacement,
downtime, and higher total cost.
Topa Solution: Balanced design for durability, stable
supply, and predictable long-term performance.
Frequently Asked Questions
What types of tractor hydraulic cylinders do you supply?
We supply steering cylinders, loader lift cylinders, bucket cylinders, 3-point hitch cylinders, rear remotes, and custom cylinders for different tractor models and implements.
Can you match cylinders for John Deere, Kubota, or other tractors?
Yes. We can manufacture cylinders that fit major tractor brands. Provide dimensions, photos, or an old sample, and we will create a matching or upgraded replacement.
What is the typical working pressure for tractor hydraulic cylinders?
Most tractor cylinders operate between 16–25 MPa (2300–3600 PSI), depending on the model. We can build cylinders for higher pressure if your application requires it.
How do I know the correct size of replacement cylinder?
Measure the bore size, rod diameter, stroke length, mounting style, port size, and working pressure. If unsure, send photos, and our team will confirm the correct model for your tractor.
Do you offer cylinders with special coatings for muddy or corrosive environments?
Yes. We offer chrome-plated rods, nickel plating, epoxy paint, and custom anti-corrosion coatings to handle mud, moisture, and fertilizer exposure in agriculture.
What seal types are used in your tractor hydraulic cylinders?
We use high-quality seals suitable for dusty, hot, and muddy farm conditions. Options include PU, NBR, PTFE, and upgraded seal kits for high-pressure or long-duty applications.
Can you customize cylinders for tractors with loaders or attachments?
Absolutely. We tailor bore, stroke, rod, ports, and mounts for loaders, front-end attachments, tillers, grapples, and other farm equipment.
Do you provide replacement cylinders for old or discontinued tractor models?
Yes. With photos and basic dimensions, we can reproduce cylinders for older tractors where original parts are no longer available.
Partner with a Reliable Tractor Hydraulic Cylinder Supplier
Get tractor hydraulic cylinders built for real field conditions — loaders, steering systems, and 3-point hitches. Topa supports both OEM replacement and custom cylinder manufacturing.
- OEM 1:1 replacement — same mounting, pin size, and port position (no bracket modification)
- Custom designs for your tractor and attachments — bore/stroke, mounting style, ports, coatings, and seal options
- Quotation within 24 hours — fast support for urgent replacement and downtime cases
- Stable quality control: ISO system, controlled tolerances, and 100% pressure/leak testing before shipment
- Export-ready packaging and global delivery experience — supporting tractor cylinder buyers worldwide
