Dump Truck Telescopic Hydraulic Cylinder
Multi-stage cylinders matched to different dump body sizes, lifting angles and working pressures, with clean welds and 100% pressure testing before shipment.
Telescopic Hydraulic Cylinders Manufacturer in China
Telescopic Hydraulic Cylinders Factory in China
for Your Dump Trucks & Trailers
As a telescopic hydraulic cylinders factory in China, Topa manufactures multi-stage cylinders for front-end, underbody and tipping applications. You receive stable lifting performance, clean welds, and batch production with flexible packing for your local brand or OEM line.
✓ OEM / ODM telescopic cylinder batches
✓ 250 bar working pressure options
✓ Bore, stroke and mounting customized
✓ Serving distributors in 30+ countries
Telescopic Cylinder Product Range
Topa manufactures different types of telescopic hydraulic cylinders for dump trucks, trailers, loaders and lifting equipment. You can start with small mixed orders and grow to batch production for your OEM brand.
Under Body Telescopic Piston Hydraulic Cylinder
Compact underbody telescopic cylinders for tipping trailers and light-duty dump bodies, ideal where space is limited but long stroke is required.
Loader Telescopic Hydraulic Cylinder
Telescopic cylinders for wheel loaders and underground loaders, offering strong lifting capacity and stable control in mining and heavy-duty applications.
Trailer Telescopic Hydraulic Cylinder
Custom telescopic cylinders for agricultural and industrial trailers, with optional mounting styles, ports and surface treatments to match your trailer design.
Front End Hydraulic Telescopic Cylinder
Front-mounted cylinders for tipper trucks and semi-trailers, providing long stroke, compact retracted length and reliable performance in fleet operations.
Are These Challenges Holding Back Your Projects?
Many equipment manufacturers and fleet operators face recurring issues that lead to costly downtime, failed installations, and premature cylinder failure.
Does your lifting height fall short after installation?
Incorrect stroke or closed-length calculation prevents the dump body from reaching the required tipping angle, leading to costly rework or full cylinder replacement.
Are you experiencing premature oil leaks in multi-stage cylinders?
Uneven force distribution across stages accelerates seal wear, causing leakage that contaminates the hydraulic system and shortens service life.
Is your cylinder retraction unstable or unpredictable?
Poor gravity-return design or flow imbalance results in jerky retraction, creating safety risks and mechanical stress.
Did the cylinder fail to fit despite matching dimensions?
Ignoring mounting geometry, pin diameters, or chassis clearance leads to installation conflicts and project delays.
These problems cost time, money, and reputation. Let’s eliminate them at the design stage.
Practical Solutions
Most telescopic cylinder failures are not “random quality issues”. They usually come from selection mistakes, incorrect calculations, or mismatched mounting and flow design. Here’s how we fix the risk at the design stage.
Why Problems Keep Happening (Root Causes)
-
Stage count chosen without load & tipping-angle validation
More stages do not automatically mean better performance. If you skip load, pressure, and tipping geometry checks, you may get unstable extension and insufficient lifting at critical angles.
-
Stroke vs closed length mixed up
Many cylinders “match the drawing” but fail on-site because the closed length interferes with chassis clearance or mounting swing, causing rework and installation delays.
-
Mounting geometry ignored (pins, brackets, misalignment)
Small differences in pin diameter, bracket thickness, and side-load allowance can trigger early bushing wear, bent stages, and seal damage under real tipping cycles.
-
Flow & gravity return design not considered
Jerky retraction often comes from unstable return paths, poor flow matching, or insufficient control of descent speed—creating safety risks and mechanical shock.
How We Help (Service-Based Solution)
Application-based selection
Match stage count, stroke, and closed length to tipping geometry and real operating conditions.
Load & pressure check
Verify working pressure, lifting force, and stage stability—reduce leakage and premature wear.
Drawing confirmation before machining
Confirm mounting, pins, ports, and clearances with drawings to avoid installation rework.
Flow & retraction stability support
Help you define return behavior and descent stability for safer, smoother cycles.
OEM / replacement compatibility
Support OEM builds and replacement projects with stable specs and repeatable production.
What Is a Telescopic Hydraulic Cylinder?
A telescopic hydraulic cylinder is a multi-stage cylinder that uses several nested tubes to achieve a very long stroke with a compact retracted length. It is widely used on dump trucks, tipping trailers and lifting equipment where installation space is limited but a large lifting height is required.
Multi-Stage Structure (3-stage / 4-stage / 5-stage)
- 3-stage cylinders – common for medium dump trucks and farm trailers, offering a balance of stroke and cost.
- 4-stage cylinders – used when you need longer lifting height but still want a short closed length.
- 5-stage cylinders – suitable for high-volume dump bodies and semi-trailers that require maximum tipping angle.
Each stage has a different diameter and wall thickness. The largest external tube is fixed to the truck or trailer frame, while the inner stages extend one by one under hydraulic pressure.
How the Telescopic Cylinder Extends and Retracts
- The hydraulic pump sends oil into the base port of the cylinder.
- Oil pressure first pushes the largest stage to extend, providing maximum lifting force.
- When the first stage is fully extended, internal oil passages and sequence valves direct flow to the next stage.
- Stages extend in order until the full stroke is reached; when oil is released, gravity and load weight retract the stages back into the outer tube.
This staged extension principle allows the cylinder to deliver strong lifting force at the beginning of the stroke and reach high tipping angles with a compact installation length.

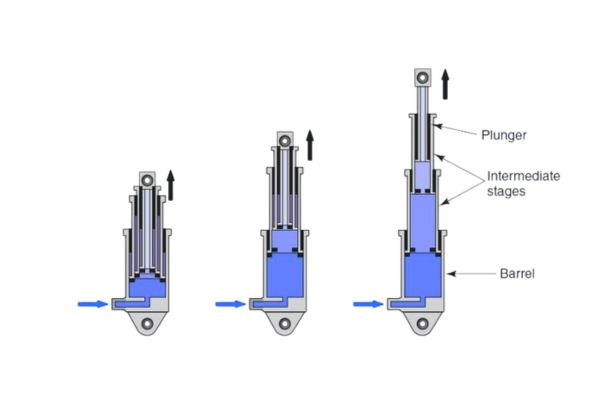

Multi-stage telescopic hydraulic cylinders with nested tubes. The stages extend in sequence to
provide long stroke and compact retracted length for dump trucks and trailers.
Single-acting vs Double-acting Telescopic Cylinders
Telescopic hydraulic cylinders can be built as single-acting or double-acting designs. Both use multiple stages to reach long stroke, but they behave differently when extending, retracting and holding loads. Choosing the right type depends on your truck, trailer or lifting equipment.
Single-acting Telescopic Cylinders
Single-acting telescopic cylinders use hydraulic pressure only for extension. Retraction is completed by gravity or the weight of the body, so the cylinder is simple, robust and cost-effective.
- Hydraulic pressure extends the stages; gravity retracts them.
- Ideal for dump trucks, tipping trailers and gravity-return equipment.
- Fewer ports and seals, lower cost and easier maintenance.
- Very common in front-end and underbody dump applications.
Typical use: raising dump bodies to unload sand, gravel and construction materials, where the load itself helps the cylinder retract.
Double-acting Telescopic Cylinders

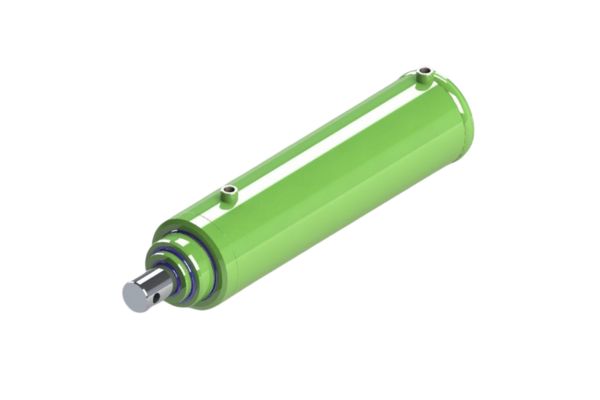

Double-acting telescopic cylinders use hydraulic pressure for both extension and retraction. They offer better control when there is not enough load or gravity to pull the stages back.
- Oil pressure extends and retracts the stages through separate ports.
- Suitable for platforms, industrial lifts and special machinery.
- Provides positive retraction even under low or changing loads.
- More complex internal construction and higher sealing requirements.
Typical use: lifting platforms, industrial equipment and machines that need precise control during both up and down movement.
Industries We Serve with Telescopic Cylinders
From construction and mining to waste management and agriculture, Topa supplies cylinders that match different working conditions and climate.
Construction Dump Trucks
Telescopic cylinders for city and mining construction dump trucks with frequent lifting cycles, dust and stone impact. We focus on sealing, chrome and welding strength.
Waste Management Vehicles
Telescopic cylinders mounted on garbage compactors and refuse trucks with high duty and long service hours. We design for stable operation and easy maintenance.
Trailers & Material Handling
Telescopic cylinders for semi-trailers, farm tipping trailers and bulk material bodies. You decide stroke, working speed and mounting structure to suit your region.
Telescopic Cylinder Advantages
Telescopic hydraulic cylinders combine long stroke with compact closed length, giving your dump trucks, trailers and lifting equipment strong lifting force, stable motion and flexible installation in tight spaces.
1
Long Stroke in Limited Space
Multi-stage design provides long stroke while keeping the retracted length short. This is ideal for dump trucks, tipping trailers and machinery with limited installation space between frame and body.
2
High Lifting Force at Start
The largest stage extends first, delivering high lifting force at the beginning of the stroke when the load is heaviest. This improves tipping performance and reduces stress on the vehicle frame.
3
Smooth and Controlled Extension
Internal passages and sequence control make the stages extend in order. This keeps your dump body or platform stable during lifting, even under uneven or shifting loads.
4
Flexible Mounting Options
Front-end, underbody, inverted and single-ear mounting options let you adapt the same telescopic cylinder concept to different truck chassis, trailers and special equipment designs.
5
Reliable Sealing and Surface Protection
Quality seal brands, chrome plated stages and careful welding protect the cylinder from leakage, corrosion and wear in dusty, muddy and low temperature working environments.
6
Optimized for Your Working Conditions
Bore, stroke, number of stages and working pressure are customized to your local road conditions, loading habits and climate, helping reduce downtime and improve service life for your fleet.
How to Select the Right Telescopic Cylinder
To match your dump truck, trailer or lifting equipment, you need more than just stroke length. Load, geometry, pressure and working environment all decide how a telescopic hydraulic cylinder should be designed.
1
Load Capacity
Define the maximum load your truck body or platform will lift, including material and body weight. This determines cylinder bore size, number of stages and safety margin.
2
Stroke & Retracted Length
Required tipping height and available frame space decide the stroke and closed length. Telescopic cylinders are selected so they fully extend at your target tipping angle.
3
Mounting Style
Choose front-end, underbody, inverted or single-ear mounting according to chassis design. Mounting pins, brackets and trunnions must match your frame dimensions.
4
Tipping / Inclination Angle
The higher the tipping angle, the longer the stroke required. Cylinder stroke and mounting position are calculated based on your desired dump angle and body pivot location.
5
Working Pressure
Pump pressure and hydraulic system settings determine wall thickness, tube material and seal selection. Typical telescopic cylinders run at 180–250 bar with proper safety factor.
6
Working Environment
Temperature, humidity, road conditions and material type (sand, stone, waste, grain) influence chrome thickness, paint system, seal type and dust protection of the cylinder.
Telescopic Cylinder Customization Options
You do not need to accept only catalogue sizes. Topa supports real customization based on your vehicle and working environment.
Stroke & Stages
Multi-stage design to reach your required tipping height.
- Different stroke combinations
- Stage number adjustment
- Special long-stroke models
Mounting & Connection
Mounting styles that match local trailer and truck structures.
- Eyes, flanges, clevis or trunnion
- Custom brackets and pins
- Port position optimization
Surface & Sealing
Surface treatment and sealing adapted to your climate.
- Painting color under your brand
- Options for cold or dusty conditions
- Seal brands for different budgets
About Topa Factory
We may not be the largest factory in China, but we focus on real communication, stable quality and long-term cooperation for telescopic hydraulic cylinders.
Topa started cylinder manufacturing many years ago, growing from small orders into stable partnerships with distributors and body builders worldwide.
We cover turning, honing, grinding, welding, painting and testing, so we can control key steps and respond quickly when you have project feedback.
Many of our customers are not giant corporations. They are medium-sized dealers and workshops who need clear communication, reliable quality and flexible order quantities. We build long-term cooperation by helping them win local markets.
20+
Years Manufacturing
30+
Countries Served
5K+
Telescopic Cylinders / Year
Inside Our Telescopic Hydraulic Cylinders Factory
A quick view of machining, welding, grinding, painting and inspection in our factory, so you can confidently present the supply chain to your customers.
CNC Machining & Turning
Tubes, pistons and glands are machined on CNC equipment to keep tolerances and surface finish stable for each batch of telescopic hydraulic cylinders.
Cylinder Welding Stations
Skilled welders and dedicated jigs keep critical joints strong and aligned, reducing the risk of cracks or leakage in heavy-duty dump truck applications.
Painting & Corrosion Protection
Cylinders are cleaned, primed and painted in controlled conditions. Color and label design can follow your brand and local market requirements.
Inspection & Pressure Testing
Each telescopic hydraulic cylinder is checked for dimensions, stroke and leakage. Pressure tests are recorded by batch to support your after-sales service.
Why Choose Toap for Telescopic Cylinders
Toap focuses on real working conditions of dump trucks, trailers and lifting equipment. From engineering design to welding, testing and packaging, our factory works like your behind-the-scenes partner.
1
Experience in Cylinder Manufacturing
Years of hydraulic cylinder engineering and production experience, focused on dump trucks, trailers and industrial equipment. We understand how telescopic cylinders behave in real fleets, not just on drawings.
2
Multiple Lines, CNCs & Welding Stations
Several production lines, CNC machining centers and dedicated welding stations for telescopic cylinders help you secure stable capacity for batch orders and long-term projects.
3
100% Pressure & Leakage Testing
Every telescopic cylinder is pressure-tested and checked for leakage before packing. We record test data by batch so you can trace performance and handle after-sales confidently.
4
Fast Quotation & Engineering Support
Send us your truck size, tipping angle and pressure settings, and our engineers respond with selection advice, drawings and quotations in a short time to support your local customers.
Before You Buy a Telescopic Cylinder, Avoid These Mistakes
Telescopic cylinders are highly application-dependent. Most failures and installation rework come from a few repeat mistakes. Use this checklist to prevent wrong selection and reduce total project risk.
The 3 Mistakes That Cause Most Problems
-
Mistake 1
Stage count ≠ lifting capability
More stages can increase extension length, but lifting performance depends on pressure, effective area, tipping geometry, and load distribution. Always validate the tipping angle and force at critical positions.
-
Mistake 2
“Longer stroke is better” thinking
Excess stroke increases closed length risk, clearance interference, and side-load sensitivity. You need the correct stroke based on the dump body hinge points and mounting travel—not the maximum possible stroke.
-
Mistake 3
Mounting type ignored → broken lugs & misalignment
Small errors in pin diameter, bracket thickness, or mounting offset can create side load. This leads to bent stages, worn bushings, and cracked mounting lugs during repeated tipping cycles.
Want the correct telescopic design on the first try?
Send the key info below. We can confirm the correct stage count, stroke, closed length, mounting, ports, and seal system before production.
What to Share for a Fast Quote
- Application type (dump truck / tipper trailer / compactor, etc.)
- Required lifting height or target tipping angle
- Working pressure (or pump / system info)
- Mounting style + pin diameter (photos or drawing)
- Oil type + temperature range (for seal selection)
Factory & Capacity You Can Rely On
Stable supply matters as much as cylinder performance. Our production system is built for repeatable OEM specifications, consistent quality, and long-term delivery reliability.
Own + Partner Factory Network (Flexible & Stable)
We operate with a stable in-house capability and fixed partner factories for capacity balancing. This structure supports both prototype work and continuous OEM supply without delivery disruptions.
Production Setup (Own + Fixed Partners)
-
In-house control on key processes
Critical steps are controlled to keep core tolerances and sealing reliability stable across batches—especially for multi-stage telescopic assemblies.
-
Fixed partner factories for capacity scaling
Partner capacity is not “temporary outsourcing”. It’s a long-term, audited cooperation model for stable output during peak seasons and OEM repeat orders.
-
Repeatability for long-term supply
OEM supply is built on consistent drawings, traceable QC checkpoints, and stable process parameters—so your cylinders remain compatible across future batches.
CNC Machining / Tolerance Control
Assembly + Pressure / Leakage Testing
Capacity Range + OEM Experience
Production Mode
Prototype → OEM Batch
Support sampling, small runs, and repeat orders.
Supply Stability
Long-Term Programs
Stable drawings, stable process, stable delivery.
Customization Scope
Multi-Stage / Mounting / Ports
Built for real dump & tipping applications.
Quality Control
Process + Final Testing
Pressure, leakage, and dimensional checks.
OEM drawings controlled & repeatable
We manage OEM programs with drawing confirmation, controlled revisions, and stable QC checkpoints—keeping future batches compatible with your original installation.
Supply built for fleets and manufacturers
From replacement cylinders to ongoing OEM supply, our system supports consistent delivery schedules and stable quality for long-term operations.
Service Process with TOPA
1. Inquiry & Data
You share truck or trailer details, cylinder sizes, working pressure, photos or drawings. We confirm the basic information and list any missing data.
2. Engineering Review
Topa engineers check load, stroke, mounting and tipping angle. If needed, we propose adjustments to bore, stages or mounting points to match your real working conditions.
3. Quotation & Confirmation
Topa provides quotation, lead time and packing method. After you confirm price, drawing and terms, the order is formally released to production.
4. Production & Testing
Turning, honing, welding, assembly and painting are carried out according to your specification. Every telescopic cylinder is pressure-tested and checked for leakage before packing.
5. Packing & Shipping
Cylinders are packed with labels, protection caps and pallets that suit your market. We share photos, packing lists and shipping documents so you can arrange local customs and delivery easily.
6. Feedback & Next Batches
After your customers install the cylinders, you send feedback about performance. We use this to optimize future batches, trace issues by batch number and support your long-term business.
Frequently Asked Questions
Common questions about telescopic hydraulic cylinder design, performance and real-world use.
What makes a telescopic hydraulic cylinder different from a standard cylinder?
+
Unlike a single-stage cylinder, a telescopic hydraulic cylinder contains multiple nested stages.
This structure allows a very long stroke with a short retracted length, making it suitable for
dump trucks and trailers where space is limited but a high lifting angle is required.
How many stages should I choose for my dump truck or trailer?
+
3-stage cylinders are common for medium trucks, 4-stage models suit higher lifting heights, and
5-stage cylinders are used for long tipping bodies or semi-trailers. The choice depends on your
target tipping angle, available mounting space and required closed length.
What is the typical working pressure of telescopic hydraulic cylinders?
+
Most telescopic cylinders operate at 180–250 bar. Higher pressure allows more lifting force but
requires thicker tube walls, stronger welds and higher-grade seals. Your hydraulic pump pressure
determines the safe working range.
Why do some telescopic cylinders retract slowly or unevenly?
+
Uneven retraction is usually caused by low load during the return stroke, contaminated oil,
improper installation angle, or internal leakage across seals. Ensuring clean hydraulic oil,
correct mounting geometry and proper load weight helps the stages retract smoothly.
How can I extend the service life of a telescopic hydraulic cylinder?
+
Use clean hydraulic oil, avoid side loading, check mounting pins regularly, and prevent abrasion
from sand or stones on the chrome rod. Regular inspection of seals and chrome condition greatly
increases cylinder lifespan, especially in construction environments.
What installation factors affect the performance of a telescopic cylinder?
+
Key factors include mounting angle, hinge position, available closed length, stroke requirement,
oil return speed, and the load distribution on the truck body. Correct geometry ensures smooth
stage extension and prevents bending stress on the cylinder.
Talk to a Telescopic Hydraulic Cylinder Specialist
Share your dump truck, trailer or special equipment details, and our team will help you match the right telescopic hydraulic cylinder. We focus on real working conditions – load, pressure, tipping angle and environment – so your cylinders work reliably in the field, not just on paper.
- Telescopic cylinder sizing based on load, stroke, mounting and tipping angle
- Drawings and quotations for telescopic cylinders typically within 24 hours
- 100% pressure-tested telescopic cylinders with batch traceability
- Flexible order quantities for testing new telescopic cylinder models
- Support for custom painting, logos and packing under your own brand
