Unstable steering & vehicle drifting
Steering feels inconsistent, the machine pulls to one side, and operators need constant correction. This often points to internal leakage, uneven chamber performance, or geometry mismatch.
Hydraulic Steering Cylinder Manufacturer in China
OEM Hydraulic Steering Cylinders
for Reliable Vehicle Control
Topa manufactures custom and standard hydraulic steering cylinders in China for tractors, loaders, forklifts, marine steering and industrial equipment. You receive stable steering performance, long service life and fast support from a focused factory partner.
- 18+ years cylinder machining and assembly experience
- Tractor, wheel loader, mining, marine and AG steering solutions
- Factory-direct pricing, flexible MOQ and mixed models in one shipment
ISO-Based Production
100% Pressure Tested
OEM / ODM Steering Cylinders
Hydraulic Steering Cylinders Product List
Steering cylinders for tractors, loaders, forklifts, lifters and harvesters. Choose the right model for your machine, or send your drawing for a custom steering solution.
Hydraulic Steering Cylinder for MTZ Tractor
Steering cylinder matched to MTZ front axle geometry for stable, light steering in field and road work.
Hydraulic Steering Cylinders for Tractor
Standard tractor steering cylinders with bore, stroke and ports customized for different tractor brands.
DA Double Rod Steering Cylinder
Double-acting, double-rod design for symmetric steering response and accurate wheel alignment.
Double Effect Tractor Steering Cylinders
Double effect steering units providing strong push and pull force for heavy-duty farm tractors.
Wheel Loader Left Steering Cylinder
Steering cylinder for articulated wheel loaders with reinforced rod and seals for shock loads.
Forklift Hydraulic Steering Cylinder
Compact steering cylinders for forklifts, designed for tight spaces and frequent steering cycles.
Arm Boom Lift Steering Cylinder
Steering cylinders for boom lifts and access platforms, offering smooth turning at low speeds.
Scissor-Type Lifter Steering Cylinder
Steering solutions for scissor lifts, built for frequent start–stop operation and narrow aisles.
Vertical Steering Hydraulic Cylinders
Vertical-mounted steering cylinders for special vehicles and compact steering layouts.
Rice Harvest Steering Hydraulic Cylinder
Steering cylinders designed for rice harvesters working in wet and muddy paddy field conditions.
Customer Pain Points
Steering Issues That Cost You Time & Parts
Steering cylinders work under frequent reversing, impact loads, and side-load forces. If the cylinder design or sealing system is not matched to real working conditions, failures happen fast.
We design to reduce these failure modes
Early wear caused by long-term side load
Continuous side load accelerates rod/bushing wear and can lead to scoring or bending. Without proper guide length and structural balance, service life drops sharply.
Frequent seal leakage
External leaks create downtime and mess; internal leaks reduce steering force. Typical causes include wrong seal profile, temperature mismatch, or damaged rod surface finish.
Replacement cylinder fits, but life is short
Dimensions may match, but internal design may not. If guide length, cushioning, and seal system are not designed for steering duty, failures repeat.
Not Just a Cylinder — A Steering Solution
A steering cylinder has to match your real working conditions: side load, impact, oil temperature, mounting geometry, and duty cycle. We help you confirm the right structure and supply plan before production.
Working Condition Evaluation
Confirm the real factors that decide service life before we lock the design.
- Side load & impact level
- Oil temperature & duty cycle
- Mounting geometry checks
Structure & Selection Advice
Recommend a structure that fits steering duty, not just matching dimensions.
- Single-rod vs double-rod
- Guide length & rod sizing
- Seal system matching
OEM & Replacement Support
Build from drawings, samples, or replacement requirements with a clear confirmation process.
- Manufacture by drawings/spec
- Reverse engineering by sample
- Fit + performance verification
Stable Supply for Batch Orders
Support repeat orders with consistent specs, QC checkpoints, and clear lead time management.
- Spec locking for repeat orders
- QC reports & inspection records
- Packaging & shipping coordination
Goal: help you get a steering cylinder that runs stable under real side-load and impact —
with clear design confirmation and predictable delivery for repeat orders.

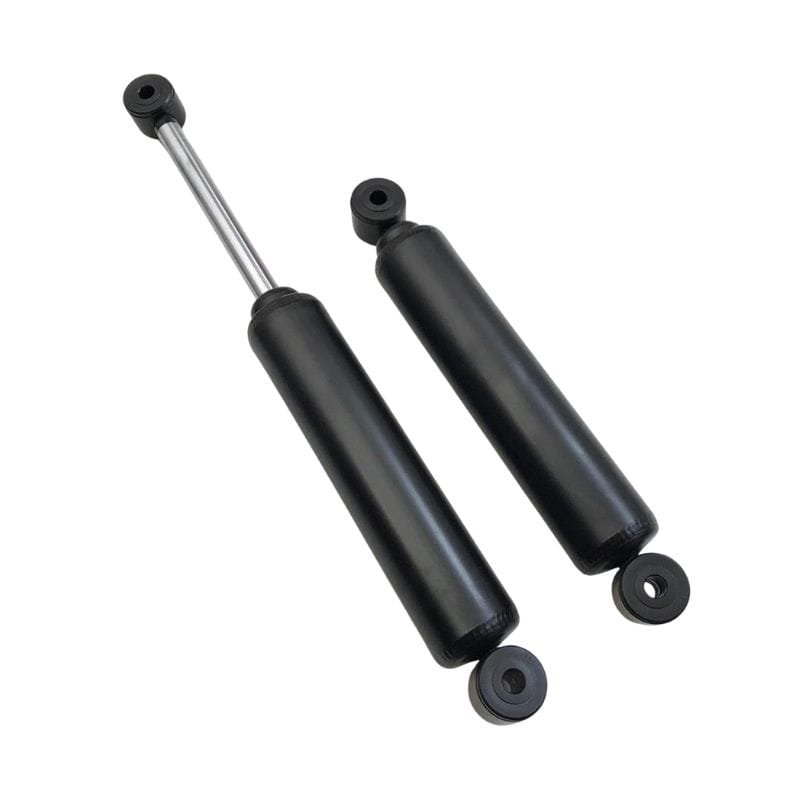

Steering Cylinder Structure Breakdown
Key components of a steering hydraulic cylinder and how they work together to deliver precise steering control.
A steering hydraulic cylinder combines multiple precision-machined parts into one compact assembly, converting hydraulic pressure into smooth and accurate steering movement.
Main structure elements:
- Rod: Chrome-plated piston rod that transmits force to the steering linkage.
- Barrel (Cylinder Tube): High-strength tube that holds the hydraulic oil and guides the piston.
- Rod End Clevis / Eye: Mounting point that connects the rod side to the steering arm or linkage.
- Base End Eye / Bracket: Fixed mounting point that anchors the cylinder to the chassis or axle.
- Ball Joint / Spherical Bearing: Allows angular misalignment and smooth steering movement.
- Ports & Port Layout: Inlet and outlet ports that define the oil flow path for left and right steering.
- Piston: Separates the pressure chambers and transfers hydraulic force to the rod.
- Seal Group: Rod seals, piston seals, and wipers that prevent leakage and keep contaminants out.
Hydraulic Steering Cylinder Highlights
Topa hydraulic steering cylinders are designed for smooth steering, high reliability and easy installation. You can select standard bore and stroke or fully customized steering cylinders according to your equipment layout.
Smooth and Stable Steering
Precision honed barrel, quality seals and well-controlled clearance give consistent steering force with low internal leakage. Your machine operator feels stable steering feedback even in heavy-duty working conditions.
- Bore 25–100 mm or custom design
- Operating pressure up to 250 bar
Customized Mounting and Ports
We can match your existing steering system: clevis, trunnion, flange, spherical bearing or eye mounting. Port type, thread and angle can be adjusted, which makes replacement and new project installation easier.
- Custom stroke and retracted length
- Metric or inch port connections
Protective Coating and Durability
Cylinder tube and rod can be painted, powder coated, nickel plated or chrome plated according to your working environment. Corrosion resistance and long life reduce maintenance cost for your fleet and rental equipment.
- Salt spray and pressure testing available
- Options for outdoor and marine conditions

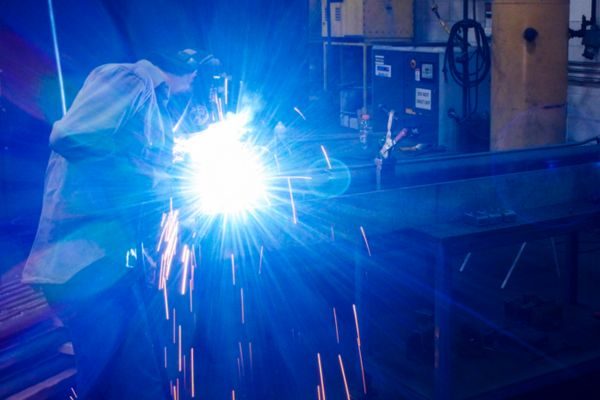

Welding and grinding process for steering cylinders.

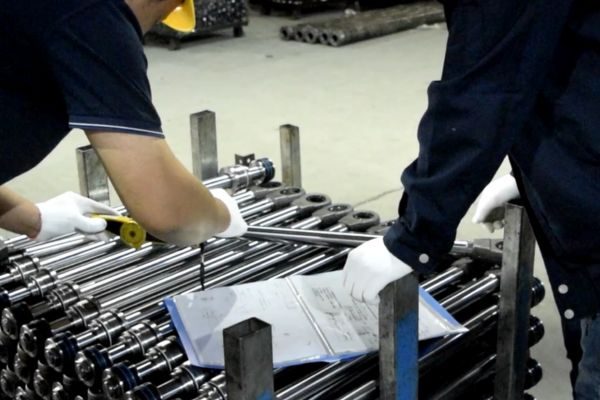

Each steering cylinder is pressure tested before shipment.
Coating and painting stage to improve corrosion resistance.
Steering Cylinder Mounting Options
Common mounting styles for steering hydraulic cylinders and how they fit different vehicle frames and steering linkages.
Steering cylinders can be mounted in different ways depending on axle design, steering geometry, and available space on the machine frame. Choosing the right mounting style keeps the cylinder aligned, reduces side load, and improves steering response.
Typical mounting combinations:
- Rod eye + ball joint: One end with a clevis or eye, the other with a spherical ball joint to absorb misalignment between the axle and steering linkage.
- Double eye (eye–eye): Eyes on both rod and base ends for compact, rigid mounting on tractors, forklifts, and loaders.
- Ball joint + threaded end: Ball joint for the steering arm and a threaded base or rod for direct installation into brackets or tie rods.
- Flange mounting: Cylinder fixed by a front or rear flange bolted to the frame, ideal for tight spaces and heavy-duty steering applications.
Steering Cylinder vs Standard Cylinder
Steering cylinders are engineered specifically for vehicle steering control. Compared with standard cylinders, they focus more on stability, response speed, side load handling and sealing performance in steering systems.
Key Performance Aspects
Steering Cylinder
Standard Cylinder
Steering Stability
How well the vehicle holds direction
Steering Cylinder
Internal design optimized for smooth steering torque and predictable feedback. Small clearance and low internal leakage help the vehicle track straight and hold direction under load.
Standard Cylinder
Designed mainly for linear motion and force output. Steering feel can be less consistent, and minor play may be more noticeable at the steering wheel.
Response Speed
How fast steering input becomes wheel angle
Steering Cylinder
Flow passages, port layout and piston area are tuned for quick reaction to steering input. Small steering wheel movement translates rapidly into wheel angle change.
Standard Cylinder
General-purpose port layout may cause slower reaction and more lag, especially at low oil temperature or with longer hose runs.
Side Load Resistance
How well it handles side forces
Steering Cylinder
Rod diameter, bearing area and seal support are strengthened to handle side loads from uneven ground, front axle movement and steering link geometry.
Standard Cylinder
Usually sized for axial force only. Continuous side loading may cause premature rod wear, seal damage or bending risk in steering applications.
Sealing Requirements
Leak control and steering safety
Steering Cylinder
Uses tighter seal stack and wipers to prevent micro-leaks and air ingress that would affect steering feel. Often combined with better surface finish on rod and bore.
Standard Cylinder
Sealing focuses on holding pressure for lifting or pushing. Small leaks may be acceptable in some tasks, but can be noticeable and unsafe in steering systems.
Steering cylinders designed to keep the vehicle stable and controllable on rough ground.
Each steering cylinder is tested to verify response, sealing and side-load performance.
Steering Cylinder Manufacturing Standards
Every steering cylinder follows strict machining, welding and surface treatment standards to guarantee long life, precision steering feedback, and stable performance in demanding environments.
Concentricity Control
Each cylinder tube and rod is processed to maintain precise alignment, ensuring smooth stroke movement and reduced internal wear.
Surface Hardness
Piston rods undergo controlled hard-chroming or advanced plating to improve abrasion resistance, corrosion protection, and working life.
CNC Accuracy ±0.01 mm
All critical dimensions are machined using high-precision CNC equipment, ensuring consistent sealing, thread accuracy, and installation fit.
Weld Strength Testing
Welded ears, brackets and end caps are tested for structural integrity to handle side loads and real-world steering stress.
Industries Using Topa Hydraulic Steering Cylinders
Our hydraulic steering cylinders are installed on specific machines across agriculture, construction, mining and marine fields. You can use Topa hydraulic cylinders for OEM builds, aftermarket replacement and fleet refurbishment.
Tractor Front Axle Steering
Steering cylinders mounted on the front axle of 2WD and 4WD tractors. Designed to handle muddy fields, road transport and front loader side loads with stable steering feedback.
Wheel Loader & Construction Steering
Articulated steering cylinders for wheel loaders, dump trucks and site dumpers. High-pressure rating and heavy-duty bearings support frequent direction changes on rough construction sites.
Marine & Special Vehicle Steering
Cylinders used in marine rudder steering, airport equipment and special vehicles. Options include stainless steel rods and enhanced coatings for corrosion and humidity control.
Global Markets We Serve
Topa hydraulic steering cylinders are shipped from China to South America, North America, Europe, Southeast Asia and many other regions. We understand different market expectations for quality and price.
30+
Countries Served
20+
Years Cylinder Experience
25-30
Days Typical Lead Time
24h
Technical Response
Your customers care about stable steering, quick delivery and safe packing. We can help with white-label packaging, customized labels and mixed containers so you can serve your market efficiently.
Why Choose Topa for Steering Cylinders
Topa supplies steering cylinders designed for harsh agricultural, construction, and industrial conditions. From small mixed orders to large OEM batches, we support your business with stable quality and fast response.
- Factory-level control: Fixed partner factories, CNC machining, honing, and 100% pressure testing for every steering cylinder.
- Custom mounting & ports: Eye, ball joint, flange, and threaded ends with flexible port layouts to match your steering geometry.
- Durable sealing system: Quality seal kits and chrome-plated rods reduce leakage and extend service life in muddy, dusty environments.
- Fast lead times: Stable production capacity and coordinated logistics to keep your machines and customers running.
- One-stop hydraulic supply: Steering cylinders, lift cylinders, hoses, and fittings from one supplier to simplify your purchasing.
Hydraulic Steering Cylinder Factory Tour
Walk through the key steps in our steering cylinder production. From raw material cutting to final packing, each stage is controlled to support stable steering performance and consistent quality.
Raw Material Cutting & Storage
Cylinder tubes and chrome bars are cut to length and stored in dedicated racks. This keeps material traceable and ready for steering cylinder production orders.
CNC Machining of Tube and Rod
High-precision CNC machines process threads, grooves and critical diameters. This accuracy supports tight sealing and smooth steering movement.
Welding of Mounts and Ports
Eye mounts, flanges and port blocks are welded to the cylinder body. Weld strength and alignment are key for safe steering under side loads.
Surface Treatment & Painting
Cylinder tubes and rods receive coating and paint according to the working environment, including outdoor, marine or high-humidity applications.
Assembly & Pressure Testing
Each steering cylinder is assembled with specified seal kits and then pressure tested to confirm tight sealing and stable steering performance.
Final Inspection, Packing & Loading
Cylinders are visually inspected, labeled and packed in export-safe cartons or crates, with options for white-label and customized branding for your market.
Inside Topa Steering Cylinder Production
This video presents a clear overview of how Topa produces steering hydraulic cylinders for a wide range of machines. From raw material cutting to precision CNC machining, every step is carried out with consistency and strict quality control. You can see how each rod is chrome-plated, how the cylinder tube is honed for smooth performance, and how the sealing system is installed to reduce leakage in demanding environments.
You will also see our pressure testing procedures, where every steering cylinder is checked under working pressure to validate its smooth motion and internal sealing performance. This ensures that the cylinders you receive are reliable, durable, and ready to install on tractors, forklifts, wheel loaders, and off-road vehicles.
The video gives you a quick look at our production environment and how our team works to support OEM projects, distributors and maintenance companies with stable, long-term supply.
Simple Service Process with Topa
Our team designed a straightforward process so you can purchase steering cylinders smoothly without slowing down your daily work.
1
Send Requirements
Provide drawings, photos, dimensions, working pressure and quantity plan. A simple message or email starts the process.
2
Engineering & Quotation
Our engineer reviews your details and suggests adjustments if needed. You receive a clear quotation and lead time.
3
Sample & Mass Production
After approval, we produce samples or first batch cylinders and keep parameters on file for future repeat orders.
4
Delivery & After-Sales
Orders ship in your preferred packing style. Our team remains available for installation support and future reorders.
Ready to start with a trial order? We can guide you through each step to help you evaluate our steering cylinders.
Common Buying Mistakes
Avoid Costly Mistakes When Buying Steering Cylinders
Steering cylinders operate under side load, impact, and frequent reversing. Many early failures are not caused by poor manufacturing — but by incorrect selection.
Longer Stroke ≠ Larger Steering Angle
Steering angle is determined by linkage geometry, not stroke alone. Oversizing the stroke can cause mechanical interference, seal damage, and wasted cost.
Only Checking Pressure, Ignoring Side Load
Pressure rating alone does not reflect real stress. Side load and impact are the main causes of rod wear, bending, and premature failure.
Ignoring Mounting Axis Alignment
Misaligned mounting points introduce continuous side force. Even a well-built cylinder will fail early if the mounting axis is incorrect.
Seal Selection Without Temperature Consideration
Seal materials behave very differently at high or low temperatures. A mismatch leads to hardening, leakage, or rapid wear.
Not sure if your current steering cylinder is properly selected?
Share your working conditions, drawings, or photos — our engineers will review them before you order.
Share your working conditions, drawings, or photos — our engineers will review them before you order.
Case Studies – Real Steering Cylinder Projects
Practical examples of steering cylinders engineered for OEMs, rental fleets and equipment rebuilders around the world.
Agricultural Machinery OEM
Custom steering cylinders for tractors and harvesters requiring stable steering in muddy and dusty environments. Features include reinforced rod design and adjustable mounting geometry.
Articulated Loader Project
Steering cylinders designed to handle high side loads and constant oscillation from articulated frame movement, ensuring precise response for heavy-duty construction equipment.
Forklift Steering Cylinder Program
Compact steering cylinders engineered for tight turning radius and high durability, including optimized seals for long-term operation in logistics and warehouse environments.
Steering Cylinder FAQ
Answers to common questions about Topa steering cylinders, including features, pressure rating, mounting, seals and customization.
Our steering cylinders are commonly used on tractors, forklifts, wheel loaders, telehandlers, harvesters,
small construction machines and custom off-road vehicles. We can adjust bore, stroke, ports and mounting
to match your specific steering system.
Standard steering cylinders usually range from 25–80 mm bore with strokes from 100–800 mm.
For OEM projects we can design outside this range based on the steering angle, axle layout and available
installation space on your machine.
We provide rod eye + base eye, double eye (eye–eye), eye + ball joint, ball joint + threaded end, and
front or rear flange mounting. Our engineers can recommend a mounting style that reduces side load and
fits your existing brackets.
Most steering cylinders are designed for 160–250 bar working pressure, with appropriate safety
margins. For heavy-duty loaders or special vehicles we can design up to higher pressure ratings after
studying your system requirements.
Cylinder tubes are usually made from precision honed carbon steel, while rods are made from high-strength
steel with hard chrome plating for corrosion resistance and smooth sliding. For marine or corrosive
environments we can offer special coatings or stainless options.
We use well-known seal brands with rod seals, piston seals, wipers and guide rings suitable for steering
applications. Seal materials are selected for mineral hydraulic oil, temperature range and duty cycle. We
can match your preferred seal brand for OEM projects.
Yes. We can supply steering cylinders with BSP, NPT, ORFS or metric ports, straight or rotated to suit your
hose routing. Port size and layout can be customized so that your hoses are easy to install and protected
from damage.
Every steering cylinder is pressure tested on a dedicated test bench. We check for external leakage,
internal bypass across the piston, smooth stroke and correct end-cushion operation if required. Only
cylinders that pass the full test are packed and shipped.
Yes. You can send us a sample cylinder, a detailed drawing, or key dimensions (bore, stroke, closed length,
port type, mounting style). Our engineering team will create a matching or improved design and provide a
drawing for your confirmation before production.
For standard steering cylinders, lead time is usually 20–30 days depending on quantity. Custom designs
require drawing confirmation first, then similar production time. For urgent projects, please tell us your
deadline and we will check the fastest schedule for you.
Partner with a Reliable Hydraulic Steering Cylinder Manufacturer
Topa supplies hydraulic steering cylinders built for tractors, loaders, forklifts and off-road machines. Each unit is designed to deliver smooth steering response, stable load control and long service life, even in muddy, dusty and high-impact environments. Our engineering team reviews your mounting style, stroke, bore, port layout and working pressure to provide a configuration that fits directly into your steering system without modification.
- Factory pricing for steering cylinders with consistent production capacity
- Custom steering cylinders based on bore, stroke, ports and mounting style
- Fast 24-hour response for steering cylinder drawings and quotations
- Experienced engineering team supporting steering systems for 30+ countries
