Hydraulic Lift Cylinders
for Stable & Reliable Lifting
Built for scissor lifts, material handling, platforms, and industrial lifting systems. Durable structure, smooth motion, and consistent performance for your equipment.
Product Lists
High-performance hydraulic lift cylinders designed for rigorous applications.
Welded Lift Cylinders
Robust welded construction for excavators, loaders, and mining machines.
Tailgate Cylinders
Stable lifting for garbage truck tailgates, compactors, and rear doors.
Boom Lift Cylinders
Accurate control for boom lifts, telehandlers, and aerial work platforms.
Scissor Lift Cylinders
Compact, smooth-acting cylinders for small and medium scissor lift tables.
Single-Acting Lift Cylinders
Simple up-force design for platforms and jacks where gravity handles return.
Double-Acting Lift Cylinders
Controlled lifting and lowering for scissor lifts, docks, and vehicle lifts.
High-Pressure Lifting Cylinders
Designed for high load, high pressure lifting in industrial and heavy-duty systems.
Flange-End Lift Cylinders
Flange-mounted design for easy installation on frames, bases, and lift structures.
Problems We Help You Solve
These are the issues we hear most from buyers and engineers. We fix them with the right cylinder design, stable production control, and fast technical response.
Wrong cylinder selection causes early failure
The cylinder may “look correct” but fails fast when the application details are missed.
- Side load not considered
- Wrong mounting for real motion path
- Seal choice not matched to temperature & media
Long lead time delays your project
Slow quoting, unclear production schedules, or export packaging mistakes can hold up deliveries.
- Fast quote with clear specs checklist
- Production plan aligned to shipment date
- Export-grade packing to reduce damage
Unstable quality between batches
Batch-to-batch variation creates leaks, uneven performance, and rework for your maintenance team.
- Critical dimensions controlled by process checks
- Sealing & surface finish consistency
- Inspection records per order / batch
No engineering support for drawings
Without drawing review and feedback, small details cause big issues during assembly and use.
- Review of bore, stroke, pressure, mounts
- Seal system & port thread confirmation
- Revision notes before production
Want to confirm your cylinder spec before you place an order?
Send your drawing or application details. We’ll reply with a clear spec checklist and recommendations.
Our Solutions & Services
We don’t just supply cylinders. We help you select the right configuration, control risk in real working conditions, and support stable repeat orders.
Application Evaluation
Share your equipment type, load direction, working pressure, cycle frequency, and environment. We help identify key risk points before ordering.
Cylinder Selection & Sizing
We confirm bore, rod, stroke, mounting, and port choices based on your force, speed, and installation space—reducing rework and leakage risk.
Seal System Matching
We match seals to pressure, temperature, fluid type, and contamination level. This helps prevent early failures and reduces maintenance downtime.
OEM / Replacement Support
Send drawings, photos, or sample references. We support OEM builds and replacement for common brands with compatible mounting and port standards.
Batch & Repeat Order Support
We standardize specs, confirm key dimensions, and keep order notes consistent—so repeat orders are faster, cleaner, and more stable.
Lead Time & Delivery Planning
For project schedules, we help set a realistic production plan and packaging method to reduce delays in shipping and site installation.
Want a faster quote? Send your drawing/specs and your target quantity.

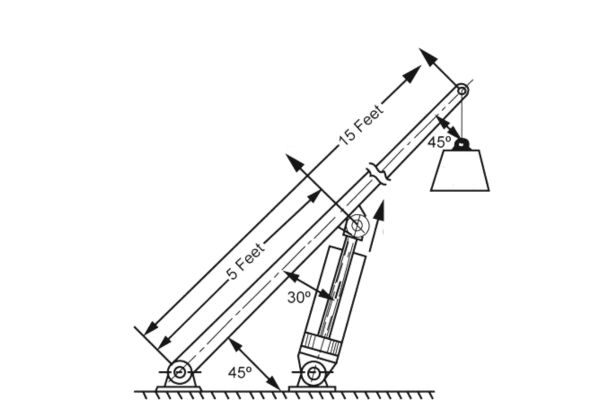

Lift Cylinder Working Principle
How hydraulic lift cylinders push, stabilize, control speed, and protect platforms from sudden dropping in real scissor lift applications.
In a scissor lift or material handling platform, the hydraulic lift cylinder converts oil pressure into linear force. This force pushes the scissor arms open, raises the platform, and keeps the load stable at different working heights while valves and seals maintain smooth and controlled motion.
-
Pushing & Lifting Force
Pressurized oil enters the cylinder chamber, pushing the piston and rod outward. The cylinder force is transmitted to the scissor arms, converting linear motion into vertical lifting of the platform.
-
Stability Under Load
Proper bore size, rod diameter, and mounting design reduce bending and side loading. This keeps the platform level, minimizes sway, and protects the seals and rod during full-stroke lifting.
-
Speed Control
Flow control valves and internal damping features regulate how fast oil enters and leaves the cylinder. This provides smooth acceleration and deceleration so the platform does not jerk when starting or stopping.
Mounting Options for Lift Cylinders
Common mounting configurations for hydraulic lift cylinders to match different frames, linkages, and lifting mechanisms.
Clevis Mount
Pin-connected clevis ends for easy pivoting in scissor lifts, platforms, and linkage systems.
Trunnion Mount
Mid-body trunnions support cylinders in tight spaces and allow smooth angular movement.
Threaded Rod End
Threaded rod ends connect to yokes or machine parts, simplifying stroke adjustment and alignment.
Flange Mount
Front or rear flanges bolt directly to frames or plates for rigid and compact mounting.
Spherical Bearing
Spherical bearings absorb misalignment and side loads, protecting the rod and seals in lift systems.

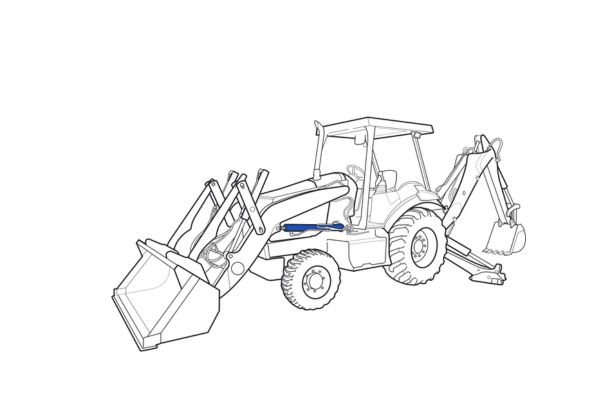

Lift Cylinder Safety Features
Safety-critical design elements built into hydraulic lift cylinders to protect operators, platforms, and equipment during lifting, holding, and lowering.
-
Overload Protection
Pressure relief and overload valves protect the cylinder and structure when the platform is accidentally overloaded, reducing risk of frame deformation or component failure.
-
Slow-Down Damper
End-of-stroke cushioning and damping reduce impact at the top or bottom positions, giving smoother stopping and better comfort and safety for people and goods on the platform.
-
Anti-Drop Valve
Counterbalance or hose-burst valves lock the cylinder if a hose breaks or pressure is lost, helping prevent sudden dropping of the lift and protecting operators underneath.
-
Rod Strength & Chrome Layer
Strong alloy steel rods with thick, uniform chrome plating resist bending, corrosion, and pitting, helping the cylinder stay safe under side loads and outdoor conditions.
Lift cylinders equipped with safety valves and tested under pressure help protect operators and equipment in real warehouse, workshop, and vehicle lift applications.
Key Performance Advantages
Lift cylinders engineered for demanding platforms and material handling equipment, delivering stable motion, long service life, and dependable lifting power.
High Side-Load Resistance
Optimized rod diameter, guide bushings, and mounting layout reduce bending and side loading, keeping the cylinder running true even when the platform is off-center.
Long Cycle Life
Wear-resistant seals, precision honed tubes, and high-quality materials extend service life in high-frequency lift applications such as warehouses and factories.
Smooth Lift Speed Control
Internal cushioning and matched flow control valves give steady acceleration and deceleration, reducing platform shake and improving operator comfort.
Low Leakage Rate
Tight machining tolerances and multi-stage sealing keep internal and external leakage low, helping the platform hold height for long periods without drifting.
Precise Stroke Accuracy
Controlled stroke length and repeatable end positions support synchronized lifting systems and applications that require consistent working height every cycle.
Balanced Performance for Real Jobsites
By balancing force, speed, sealing, and durability, the lift cylinder keeps your equipment productive, safe, and predictable across its full working range.
Industry Applications for Lift Cylinders
Hydraulic lift cylinders working in real equipment, from warehouse handling and mobile platforms to vehicle lifts and accessibility systems.

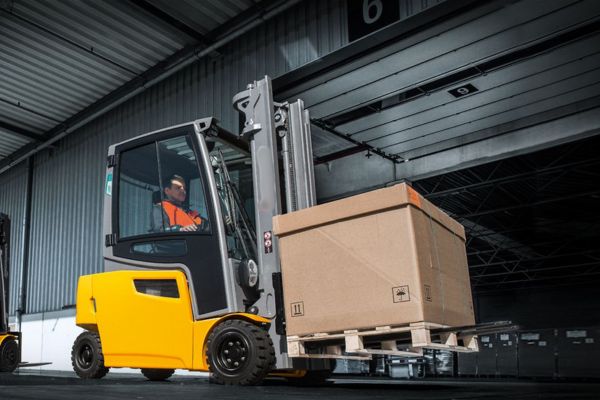

Warehouse Lift
Lift cylinders power pallet lifts, dock levelers, and warehouse platforms, moving goods safely between different floor levels and loading areas.
Scissor Lift Table
Compact scissor lift tables use one or more cylinders to raise workpieces and pallets, improving ergonomics and reducing manual handling.

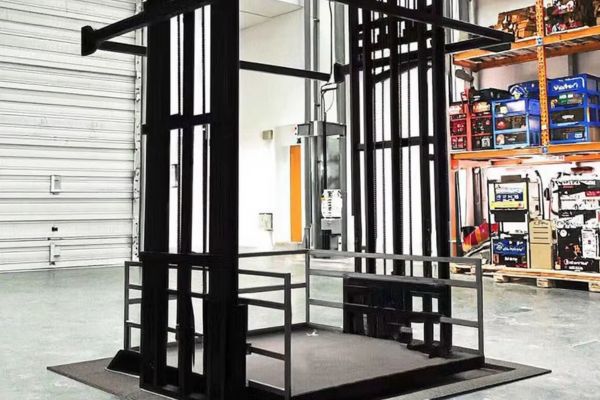

Disabled Lift Platform
Quiet and stable lift cylinders provide smooth lifting for wheelchair and accessibility platforms in buildings, buses, and public facilities.
Vehicle Lift
Automotive lifts and service platforms rely on robust cylinders to raise cars, trucks, and special vehicles for inspection and maintenance.
Custom Lift Cylinder Options
Configure hydraulic lift cylinders to match your exact platform, frame, and working conditions with flexible customization on size, finishes, valves, and mounting.
Custom Bore & Stroke
Adjust bore, rod diameter, and stroke length to match required lifting force, platform height, and installation space for your equipment.
Surface Treatment
Choose paint, powder coating, or different chrome and nickel layers to protect cylinders in outdoor, corrosive, or wash-down environments.
Valve Integration
Integrate counterbalance, check, or flow control valves directly on the cylinder to simplify piping and improve safety and response.
Mount Customization
Design clevis, trunnion, flange, or spherical-bearing mounts to fit your frame, scissor arms, and existing machine structure.
Double-Speed Cylinder
Configure double-speed or telescopic lift cylinders to shorten no-load travel time while keeping controlled speed under full load.
Synchronization System
Design synchronized multi-cylinder systems so platforms lift evenly on both sides, preventing tilting and reducing structural stress.
Topa Factory Strength Overview
Hydraulic lift cylinders produced in a dedicated factory with advanced machining, stable production lines, full pressure testing, and global export experience.
Topa focuses on hydraulic cylinder manufacturing with dedicated machining centers, organized production lines, and strict testing procedures. This provides stable quality and reliable delivery for lift cylinder projects in different industries.
100+ CNC Machines
Multiple CNC turning and machining centers handle cylinder tubes, rods, and parts with tight tolerances.
5 Cylinder Lines
Dedicated lines for welded, tie rod, and custom lift cylinders keep projects moving from sample to mass orders.
100% Pressure Test
Every cylinder is pressure and leakage tested before packing to secure safety in real lift applications.
Export to 30+ Countries
Lift cylinder projects delivered to customers in Europe, America, Asia, and other regions for many years.
Why Work With Topa for Lift Cylinders
Partner with a hydraulic cylinder factory that understands lifting equipment, from scissor platforms and warehouse lifts to vehicle and access systems.
Faster Delivery
Organized production lines, stock of key materials, and efficient planning help shorten lead times for both standard and custom lift cylinders.
Stable Quality
Controlled machining, welding, and testing processes keep cylinder dimensions, sealing performance, and lifting force consistent from batch to batch.
Cost Control
Factory-direct pricing, optimized designs, and flexible order quantities help you balance performance and budget for different lift projects.
Custom Engineering
Engineering support for bore and stroke selection, mounting design, speed control, and safety valves tailored to your lifting equipment.
After-Sales Support
Technical feedback, replacement solutions, and quick response on any cylinder issues keep your platforms and lifts working with less downtime.
One-Stop Parts Supply
Combine lift cylinders with hoses, fittings, and other hydraulic parts in one shipment to simplify purchasing and logistics for your projects.
Factory Video
See how TOPA manufactures hydraulic lift cylinders on the workshop floor, and meet the engineering team that designs, reviews, and supports your lifting projects.
What You’ll See in This Factory Video
This video takes you through TOPA’s hydraulic cylinder workshop, showing how lift cylinders are produced from raw tubes to finished, pressure-tested products. You can clearly see each key step and how the team controls quality on the line.
Main Scenes in the Video:
- Raw material storage and tube cutting for hydraulic lift cylinders.
- CNC machining of cylinder tubes, end caps, and piston rods.
- Automatic welding of cylinder ends and attachment parts.
- Inside honing process for smooth, accurate cylinder bores.
- Assembly of seals, pistons, rods, and final cylinder components.
- Pressure and leakage testing before packing and shipment.
Lift Cylinder Manufacturing Process
From raw material to fully tested lift cylinders, each step is controlled to deliver stable performance for platforms, scissor lifts, and material handling equipment.
Cutting
Cylinder tubes and piston rods are cut to precise lengths, preparing the base material for lift cylinder machining and assembly.
Machining
CNC machining completes critical dimensions on tubes, rods, end caps, and mounts to ensure smooth sealing surfaces and accurate fits.
Welding
Skilled welding joins cylinder barrels, bases, and mounting parts, building strong welded structures for demanding lift applications.
Honing
Internal honing of the cylinder bore achieves low roughness and correct geometry, improving seal life and smooth movement of the piston.
Assembly
Pistons, rods, seals, and end caps are assembled in a clean area, building complete lift cylinders ready for pressure testing.
Testing
Each lift cylinder is pressure and leakage tested, confirming safe operation and stable performance before packing and shipment.
Service Workflow
A clear and efficient workflow ensures every lift cylinder order is delivered with stable quality, accurate specifications, and reliable support.
Requirement Review
Collect working parameters, mounting details, and special requirements for your lift cylinder project.
Drawing Confirmation
Engineering team prepares or checks drawings to ensure dimensions, ports, and mounts match your equipment.
Production
Cutting, CNC machining, welding, honing, and assembling the lift cylinders according to approved drawings.
QC Test
100% pressure and leakage testing before packing, ensuring every cylinder performs correctly on-site.
Shipment
Safe packing and global shipping to warehouses, OEM factories, distributors, and equipment builders.
After-Sales
Technical assistance, replacement support, and follow-up to ensure long-term reliability of your lift cylinders.
Procurement Guide / Avoid Mistakes
Use this checklist before ordering. These are the most common selection errors that cause weak performance, early leakage, or short cylinder life.
Bore size ≠ lifting force
Force depends on pressure and effective area. The same bore can output very different force under different system pressure.
- Confirm working pressure (not only max).
- Check rod side force for retract direction.
- Consider friction and load angle for real lifting.
Stroke length ≠ better performance
Longer stroke increases side load sensitivity and can reduce stability if mounting and guidance are not designed for it.
- Check required closed length and install space.
- Evaluate buckling risk for long extensions.
- Add cushioning if end impact is frequent.
Mounting choice affects cylinder life
The wrong mounting creates side load, misalignment, and uneven seal wear. This is a top cause of early leakage.
- Choose pivot mounts if motion arc exists.
- Confirm pin size, bracket thickness, and welding strength.
- Check rod end connection type to avoid binding.
Seal selection must match temperature
Temperature and fluid type decide seal material. Wrong seals harden, swell, or crack, causing leakage and downtime.
- Confirm min/max ambient and oil temperature.
- Match seal material to hydraulic fluid and additives.
- Decide if dust, mud, salt, or chemicals require extra wipers.
Want a fast selection check? Send your bore, stroke, working pressure, mounting type, oil temperature, and application photo/drawing. We can review and recommend a safer spec before you place the order.
FAQ
Focused questions about the design, performance, and safety features of hydraulic lift cylinders, including side-load resistance, synchronization, seals, and speed control.
Lift cylinders are designed to work mostly in vertical or semi-vertical positions and hold loads at height. They often include stronger rods, better guide bushings, safety valves, and sealing systems that reduce drift and improve stability on platforms and scissor mechanisms.
We combine a suitable rod diameter, long guide bushings, optimized mounting points, and proper alignment to limit side loading. For heavy side-load conditions, we adjust rod size and bearing length or recommend extra mechanical supports to protect the cylinder.
Typical safety features include anti-drop (hose-burst) valves, counterbalance valves, overload protection, and slow-down dampers at end stroke. These elements work together to prevent sudden platform drop and give controlled motion in both lifting and lowering.
Synchronization can be achieved by matched cylinder sizes, flow-dividing valves, or mechanical linkages. When we design multi-cylinder systems, we consider flow balance, pressure loss, and mounting geometry to keep both sides of the platform lifting evenly.
Lift speed depends on cylinder area and oil flow. We match cylinder size with the pump flow and can integrate or recommend flow-control valves, orifice plates, and internal cushions. These help avoid jerks at start/stop and keep the platform moving with constant speed.
We typically use a combination of high-pressure rod seals, wear rings, and low-leakage piston seals designed for holding loads. Honed tubes with tight tolerances and correct surface finish help the seal system maintain pressure and minimize platform drift over time.
Rods are normally made from alloy steel with hard chrome plating of controlled thickness. For harsh outdoor or coastal environments we can offer improved coatings, thicker chrome, or special surface treatments that resist rust and pitting and extend seal life.
Yes. By adjusting the bore–stroke ratio, end-cap structure, and mounting style, we can shorten the closed length while keeping the required stroke. For some applications, telescopic or double-speed cylinders are also considered to save space.
High or low temperatures change oil viscosity and seal behavior, which can influence speed and leakage. We select seal materials and clearances according to the expected temperature range and always recommend proper filtration to reduce wear and extend cylinder life.
Sudden flow changes, improper cushioning, and unstable mounts can create vibration or noise. We use internal damping, correct port sizes, and rigid mounting structures so the cylinder works smoothly with pumps and valves in the lift system.
Work Directly with a Hydraulic Lift Cylinder Manufacturer
Topa provides engineered lift cylinders for scissor lifts, warehouse platforms, vehicle lifts, and material-handling systems. Our team reviews your working conditions, selects the right bore–stroke configuration, analyzes mounting and side-load forces, and prepares accurate drawings before production. Every cylinder is manufactured on dedicated lines, pressure-tested, and delivered with full technical support.
- Lift-cylinder specialists with deep understanding of platform mechanics
- Custom bore, stroke, speed control, and mounting options
- Enhanced safety features: anti-drop valves, overload control, damping
- Precision manufacturing: 100+ CNC machines, 5 cylinder lines
- 100% pressure testing and long-term after-sales support
