Agricultural Sprayer Hydraulic Cylinders
Custom and Replacement Hydraulic Cylinders for Agricultural Sprayers
Source sprayer hydraulic cylinders for boom lifting, boom folding, steering, suspension, tank lifting, and other machine movements from one reliable supplier. You get fit-focused production, application-based review, and stable supply for replacement and OEM projects.
Quick Category Navigation
Use this section to quickly move to the sprayer cylinder category that matches your machine structure, working position, and replacement or custom sourcing needs.
Boom Lift Cylinder
This cylinder is used to raise and lower the spray boom. It helps the sprayer keep the correct spraying height, supports more even application, and improves boom movement control in different field conditions.
Boom Fold Cylinder
This cylinder is used to fold and unfold the spray boom. It helps reduce transport width, supports easier storage, and allows the sprayer to switch more smoothly between working position and transport position.

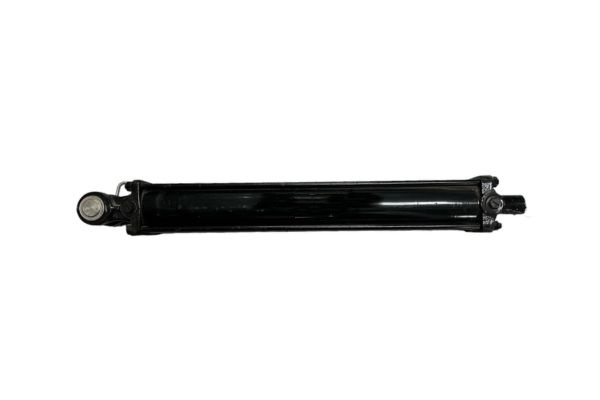

Boom Tilt / Leveling Cylinder
This cylinder is used to adjust boom angle and leveling position. It helps the boom stay more balanced on uneven ground, improves spray consistency, and reduces the risk of poor application caused by boom instability.
Steering Cylinder
This cylinder is used to control wheel steering on self-propelled sprayers or related chassis systems. It helps improve turning response, field maneuverability, and overall driving stability during operation.

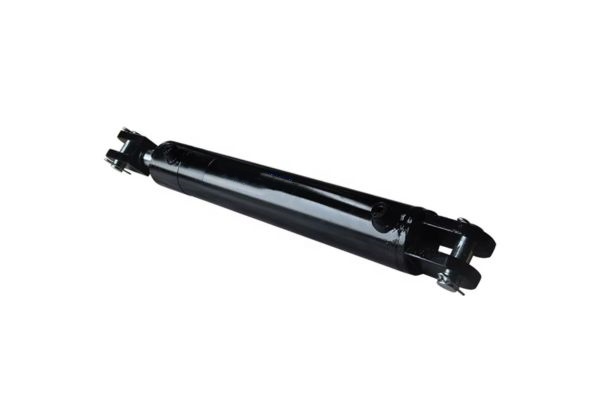

Track Width / Height Adjustment Cylinder
This cylinder is used to adjust wheel track width or machine height, depending on sprayer structure. It helps the machine match different crop rows, improves field adaptability, and reduces crop damage during spraying.
Auxiliary Function Cylinder
This cylinder is used for other supporting movements such as ladder operation, cover opening, tank support, or special mechanisms. It helps you handle non-standard structures and match custom sprayer requirements more easily.
What We Can Supply
We support agricultural sprayer cylinder sourcing with flexible supply options. This helps you manage replacement demand, custom projects, trial orders, and export delivery with one supplier.
OEM Replacement Cylinders
We help match replacement cylinders for agricultural sprayers. This makes spare part sourcing easier when you need a practical option for maintenance and after-sales support.
Custom Cylinders Based on Drawing
We produce cylinders according to your drawing, sample, or key dimensions. This helps you get a better fit for special sprayer structures and custom machine projects.
Sample-Based Production
We support trial samples before bulk production. This gives you a clearer way to confirm fit, movement, and installation before placing larger orders.
Standard and Non-Standard Sizes
We offer both common and custom cylinder sizes. This helps you cover regular replacement needs while also supporting machines with special structure requirements.
Different Mounting and Port Options
We can adjust mounting styles and port connections for different sprayer applications. This helps reduce installation problems and makes cylinder matching more practical.
Export Packing for International Orders
We prepare cylinders for overseas shipment with practical export packing. This helps you lower transport risk and manage cross-border delivery more smoothly.
Main Sprayer Movements That Depend on Hydraulic Cylinders
This section shows the main sprayer movements that rely on hydraulic cylinders, helping you understand where each cylinder works and what kind of motion it controls.
Boom Lifting
Raises and lowers the boom so spray height stays closer to crop demand and field conditions.
Boom Folding
Opens and closes the boom for transport and storage, helping the machine meet road width limits.
Boom Leveling
Adjusts angle and balance so spraying stays more even across rough ground and changing terrain.
Steering Control
Supports turning response and machine handling, which is useful in field edges and narrow passages.
Track Width Adjustment
Changes wheel spacing for different crops, helping operators reduce crop damage across row layouts.
Tank and Auxiliary Movements
Handles lifting, tilting, and other custom actions that support service work and special machine structures.
Applications for Different Types of Agricultural Sprayers
Different sprayer structures require different hydraulic cylinder layouts. We can produce hydraulic cylinders for a wide range of agricultural sprayer machines, helping you match replacement parts or develop custom cylinder solutions for different field applications.

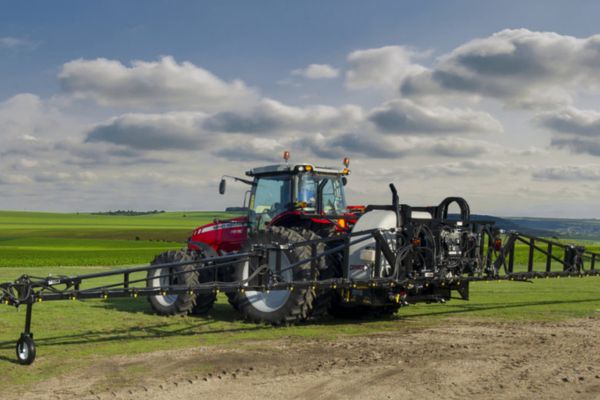

Mounted Sprayers
Mounted sprayers are usually attached directly to tractors and are common on small and medium farms. We can produce hydraulic cylinders for boom lifting, boom folding, and other supporting movements used on mounted sprayer structures.

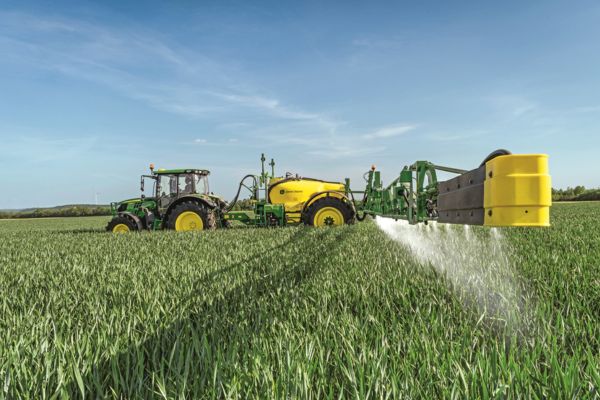

Trailed Sprayers
Trailed sprayers are pulled behind tractors and are often used for larger tank capacity and wider boom width. We can supply hydraulic cylinders for boom control, transport folding, and auxiliary movements on trailed sprayer machines.
Self-Propelled Sprayers
Self-propelled sprayers are designed for higher efficiency, larger coverage, and more complex chassis systems. We can produce hydraulic cylinders for steering, track width adjustment, height control, boom movement, and other working functions on self-propelled sprayers.

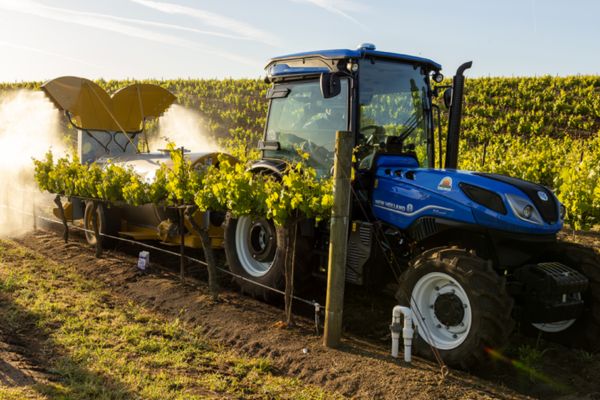

Orchard and Specialty Sprayers
Orchard sprayers and other specialty sprayers often use more compact or custom hydraulic layouts. We can make hydraulic cylinders for special boom systems, cover mechanisms, support structures, and other non-standard movements used on these machines.
We can produce hydraulic cylinders for different agricultural sprayer machines, including standard replacement cylinders and custom cylinders based on your drawing, sample, or size requirements.
Mounting Types & Size Guide
Good sourcing starts with the right dimensions. This guide helps you prepare the information needed for quotation, reducing repeated emails and lowering the risk of ordering the wrong cylinder.
Key Size Details for Quotation
- Bore Diameter: affects output force and lifting capacity.
- Rod Diameter: influences rod strength and bending resistance.
- Stroke: determines how far the cylinder can move.
- Retracted Length: checks whether the cylinder fits the closed installation space.
- Extended Length: confirms whether the machine can reach the required position.
Mounting and Connection Details

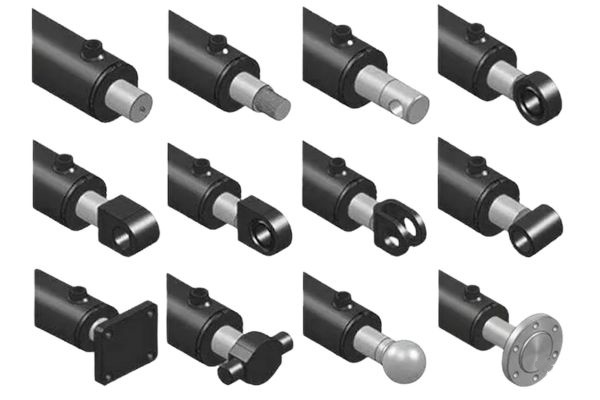

- Mounting Type: clevis, eye, cross tube, trunnion, or other custom styles.
- Pin Diameter / Mount Width: small size errors may stop installation.
- Port Thread: helps match hose connections and reduces extra adapter changes.
Working Conditions & Material Options
Agricultural sprayers work in mud, moisture, fertilizer, pesticide exposure, and repeated vibration. You need cylinder details that connect material and sealing choices to field durability, not just to catalog dimensions.
Mud & Dust Protection
Wiper and seal arrangement matter in dirty field conditions. Better protection helps reduce contamination entry and lowers the risk of early leakage.
Corrosion Exposure
Rod finish and surface treatment affect performance under pesticide, fertilizer, and outdoor moisture exposure, helping extend service life.
Vibration & Shock Load
Repeated field shock influences cylinder stability. Suitable structure and rod strength help lower bending risk and support long-cycle work.
Material & Seal Matching
Carbon steel structure, rod treatment, and seal choice should match working pressure and environment so the cylinder performs better in the target application.
Common Pain Points for Sprayer Hydraulic Cylinders
You usually care about more than price. They want cylinders that fit correctly, arrive on time, and keep working in muddy, corrosive, and high-frequency agricultural conditions. This section highlights the problems you often face when sourcing sprayer cylinders.
Wrong Size and Installation Mismatch
You often worry that the cylinder may not fit the machine after arrival. Small errors in stroke, retracted length, mounting width, or pin size can stop installation and delay maintenance or production plans.
Poor Durability in Muddy and Corrosive Fields
Sprayer cylinders work around mud, water, fertilizer, and chemical spray. You are concerned that low-quality seals or weak rod protection may lead to leakage, corrosion, or early failure in the field.
Frequent Boom Movement Creates Higher Failure Risk
Boom lift, fold, and leveling cylinders move repeatedly during spraying and transport. You want cylinders that can handle frequent action without unstable movement, seal wear, or structural fatigue.
Delayed Delivery Disrupts Spare Parts Planning
You often face pressure from urgent maintenance schedules or seasonal demand. When delivery is unstable, machine downtime becomes longer and spare parts inventory planning becomes much harder.
Incomplete Drawings Make Quotation Difficult
You do not have a full technical drawing. Sometimes they only have an old sample, partial sizes, or machine photos. This creates difficulty when trying to get a fast and accurate quotation.
Unstable Quality Across Repeat Orders
You want the same cylinder quality from the first batch to the next. When machining, sealing, or assembly quality changes from order to order, it increases complaint risk and after-sales cost.
OEM Replacement & Custom Process
You want a process that is easy to follow. A clear review and production path helps reduce communication gaps, shortens confirmation time, and makes repeat purchasing easier.
Send Drawing or Sample
Share a drawing, old cylinder, or machine photos. This gives the review a clear starting point and helps reduce wrong assumptions.
Confirm Size & Working Conditions
We review bore, stroke, mount, pressure, and environment. That helps build a more practical cylinder proposal.
Quotation & Technical Check
The quotation covers matched details, helping you compare cost and fitment before moving ahead.
Production & Assembly
Controlled production supports repeatability, which matters for you managing batch orders or multiple machine models.
Inspection, Packing & Shipment
Final checking and practical export packing help reduce delivery risk and support stable receipt planning.
Hydraulic Cylinder Manufacturing Process
A clear processing flow helps you understand how sprayer cylinders are produced from raw material to final shipment. This also shows how each step supports dimensional accuracy, stable performance, and more reliable field use.
Raw Material Preparation
Cylinder tubes, rods, end caps, and other parts are prepared according to production requirements. This creates a better base for machining quality and helps keep the later process more stable.
Cutting and Rough Machining
Raw materials are cut and machined into basic part shapes. This step helps control the initial size range and prepares the parts for more precise CNC processing.
CNC Precision Machining
Key cylinder parts are machined to the required dimensions and structure details. This improves dimensional consistency and helps the cylinder fit the target mounting and sealing arrangement.
Welding and Structural Processing
Cylinder bodies and related structural parts are welded or connected based on the design. This step helps form the main cylinder structure and supports overall strength during operation.
Grinding and Surface Finishing
Welded and machined parts go through grinding and surface finishing to improve surface quality and prepare the cylinder for the next production stage. This helps create a cleaner appearance and supports more consistent assembly.

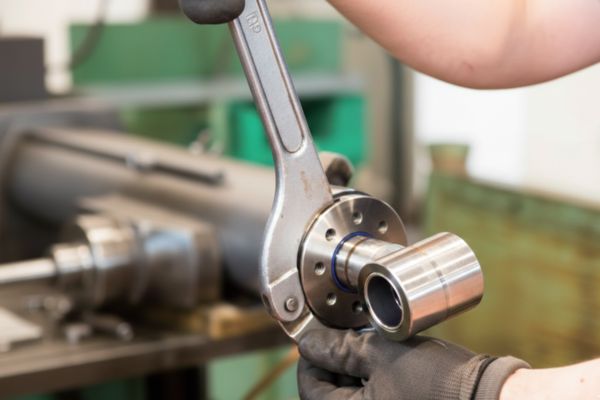

Installation and Assembly
Seals, rods, pistons, and other components are installed and assembled into the finished cylinder structure. This helps confirm movement coordination and prepares the cylinder for delivery or further inspection.
Hydraulic Cylinder Quality Control Process
A clear quality control process helps you understand how sprayer cylinders are checked before delivery. This supports more stable product quality, reduces installation problems, and lowers the risk of leakage or performance issues in field use.

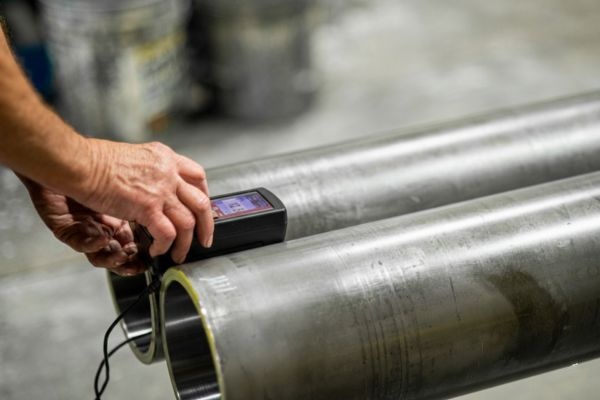

Surface Roughness Inspection
Surface roughness is checked on hydraulic cylinder surface roughness.
Dimensional Inspection
Bore, rod diameter, stroke, mounting width, pin size, and other key dimensions are checked against requirements.
Appearance Inspection
The cylinder surface, welding area, coating, and overall finish are visually checked before shipment.

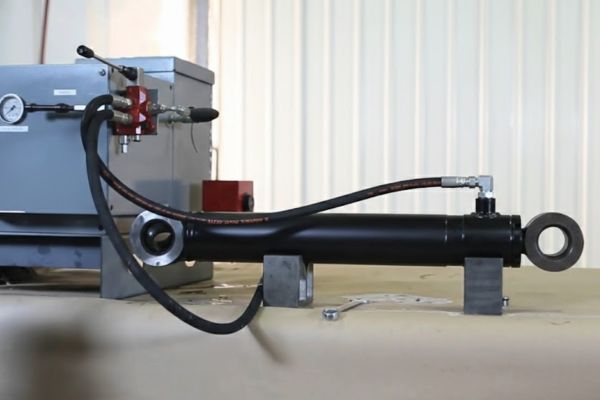

Pressure Testing
Finished cylinders are tested under pressure to check sealing and structural performance.
