Hydraulic cylinders are key components that convert hydraulic energy into mechanical energy to provide the necessary power for a variety of applications. Air in a hydraulic system can lead to performance issues and even equipment failure. Bleeding hydraulic cylinders is an important maintenance task that is vital to ensure their efficient operation. The purpose of this article is to provide a comprehensive overview of how to bleed a bi-directional hydraulic cylinder. It covers everything from preparation and step-by-step instructions to post-bleed checks to ensure optimum performance of the hydraulic system.
Two-way hydraulic cylinders, fundamental in a myriad of mechanical and industrial applications, are designed to generate force in two opposite directions, namely extension and retraction. This is achieved through a well-engineered mechanism where hydraulic fluid is alternately directed into separate chambers on either side of a central piston. This design allows the piston to move back and forth, enabling the cylinder to perform both pushing and pulling operations with great efficiency. The versatility of these cylinders lies in their ability to provide controlled, precise movements in both directions, which is essential for a range of tasks that require exactitude and balanced force application.
The utility of two-way hydraulic cylinders spans across numerous industrial sectors, underlining their significance in modern machinery. In the realm of heavy construction, these cylinders are integral components of equipment like excavators and bulldozers, where they facilitate critical lifting and digging operations. In the manufacturing sector, they play a vital role in assembly lines and mechanical presses, contributing to the streamlined production of goods. Furthermore, in the agricultural industry, these cylinders are key to the functioning of machinery used in plowing, harvesting, and other farm-related activities. Their ability to deliver high power and precision makes them indispensable in various industrial environments where strength and accuracy are paramount.
Knowing when a hydraulic cylinder needs to be bled is critical to maintaining its operating efficiency and service life. The need to bleed is usually signaled by a noticeable decrease in the power or speed of the hydraulic cylinder action. This is due to the entrapment of air in the hydraulic fluid, which reduces the system’s ability to effectively transmit force. Another warning sign is that the cylinder tends to deviate from its intended position, indicating inconsistent hydraulic pressure. In addition, the presence of air bubbles in the hydraulic fluid is a telltale sign; these can usually be detected through inspection ports or sight glasses in the system. Abnormal noises during operation, such as whirring or knocking, are also symptoms of the presence of air in the hydraulic system. These problems must be addressed by bleeding the cylinders to restore them to optimum functionality and prevent potential damage or failure.
Before embarking on the bleeding process, it’s imperative to prioritize safety. Start by ensuring the machinery is turned off and the hydraulic system is depressurized, to mitigate the risk of accidental movements or fluid discharge. Protective gear is a must; wear gloves to protect your hands from hydraulic fluid and safety glasses to shield your eyes from potential splashes. It’s also advisable to work in a well-ventilated area to avoid inhaling any fumes from the hydraulic fluid.
The success of the bleeding process hinges on having the right tools and materials. Essential items include a set of wrenches for opening and closing valves, a clean container or several containers for collecting old hydraulic fluid, and high-quality replacement hydraulic fluid. Additionally, keep rags or absorbent cloths on hand for any spills, and a funnel can be helpful for refilling fluid without spillage. Ensure you have the specific manual for your machinery on hand, as it will provide critical information about the bleeding process specific to your equipment.

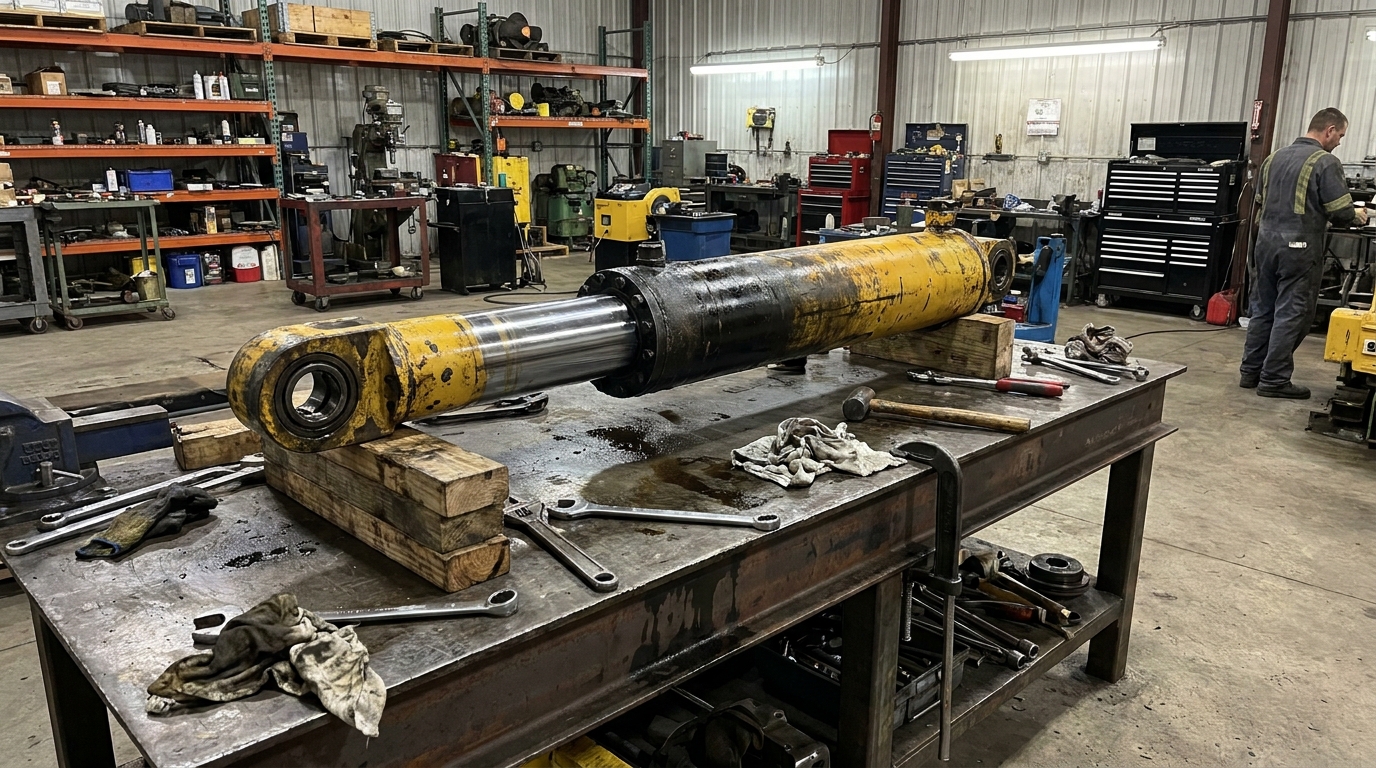

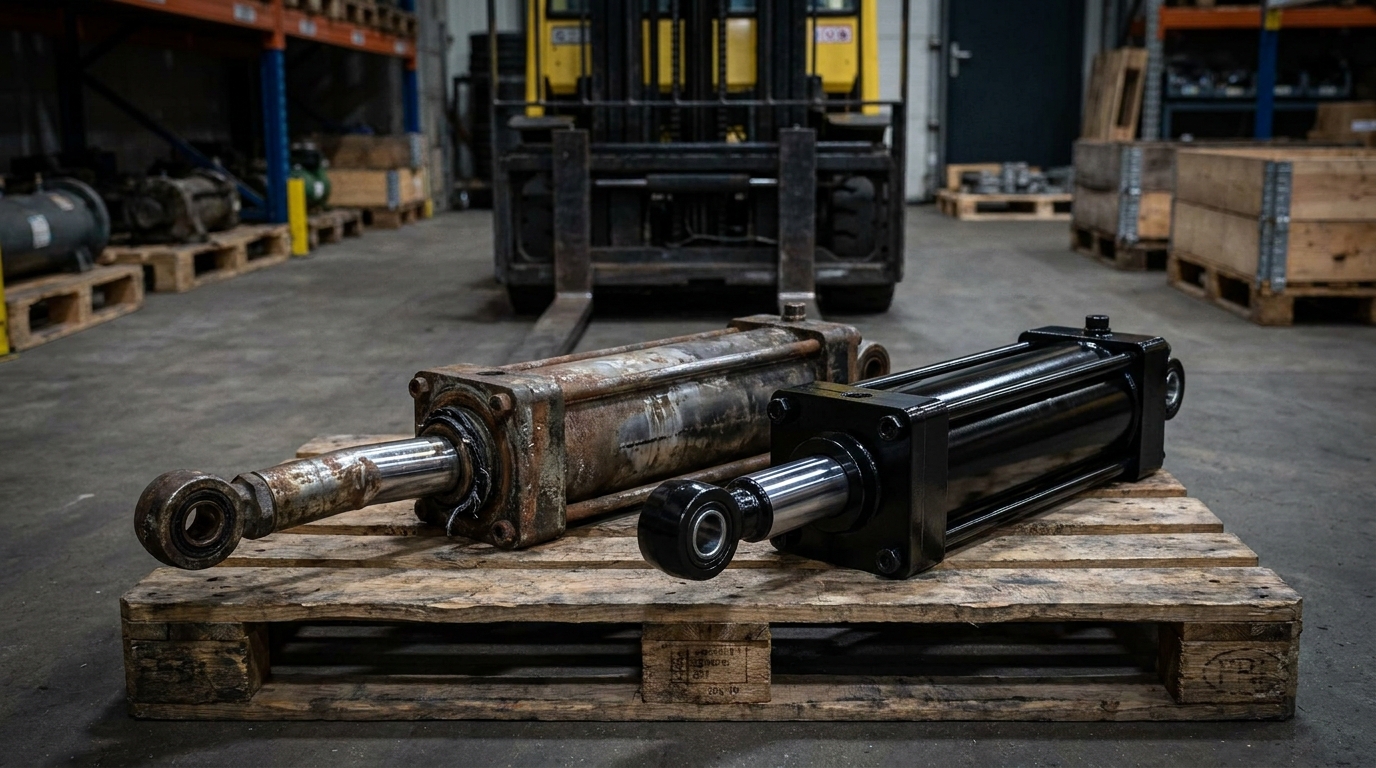

Begin with a thorough inspection of the hydraulic cylinder. Check for any signs of wear and tear, such as cracks, leaks, or damage to the cylinder itself, the hoses, or the connections. Confirm that the area around the cylinder is clear of debris and tools, providing you with unimpeded access to the bleed valve and other essential components. It’s crucial to position the cylinder in a way that allows comfortable and safe access to all necessary parts. If your cylinder is part of a larger machine, secure any moving parts to prevent accidental movement during the bleeding process.
The first step in the bleeding process is to locate the bleed valve on the hydraulic cylinder. This valve is typically situated at the cylinder’s highest point, as air naturally rises to the top. The bleed valve often appears as a small, distinct nozzle or screw, designed to allow air to be released from the system effectively. In some cases, the valve may be covered or not immediately visible. If you are unsure of its exact location, it’s advisable to refer to the machinery’s manual. The manual usually provides a detailed diagram of the cylinder, highlighting the position of the bleed valve and providing guidance on how to access it safely.

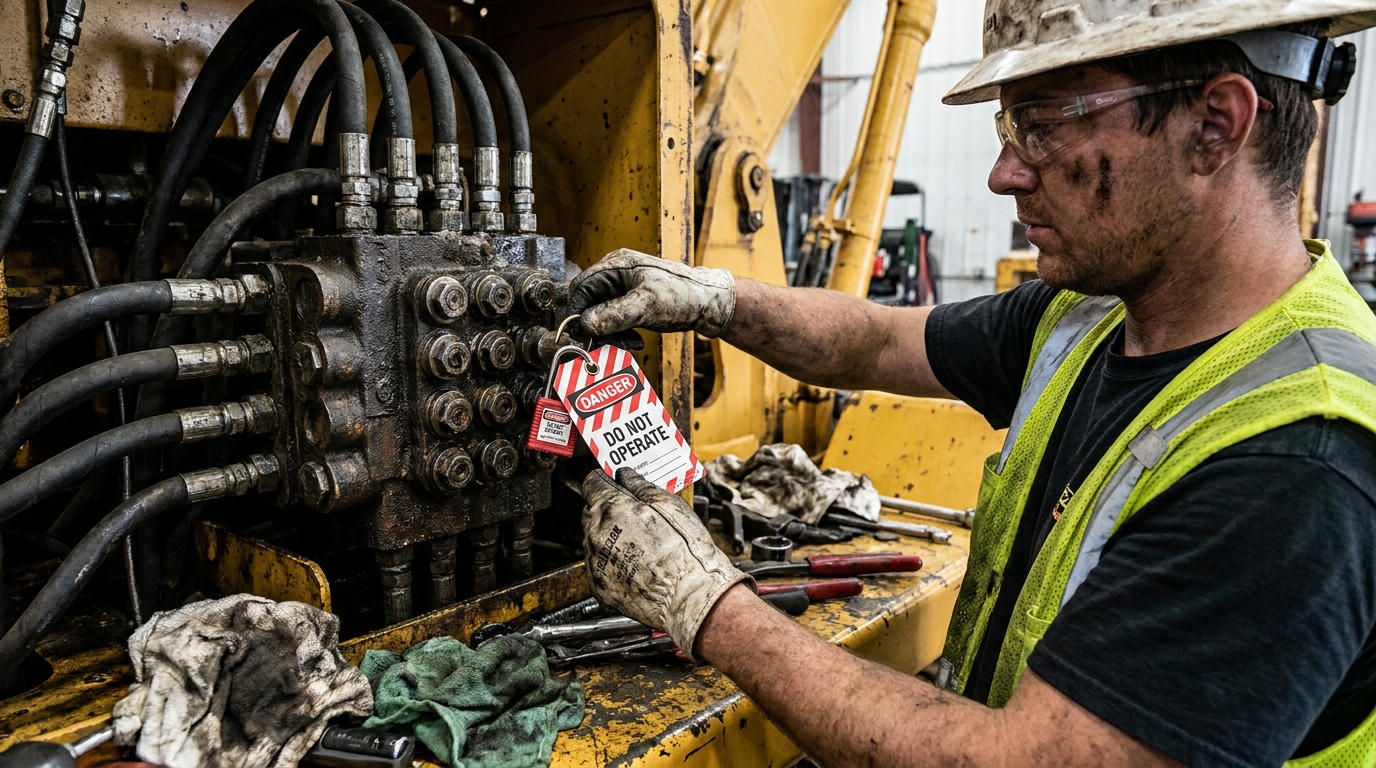

Before proceeding with the bleeding process, it’s essential to ensure the safety of the operation by depressurizing the hydraulic system. This involves turning off the machinery and carefully releasing any built-up pressure within the system. This step is critical to prevent any unexpected movements or spills of hydraulic fluid when the bleed valve is opened. It’s advisable to wait a few moments after shutting down the system to allow any residual pressure to dissipate fully. This precaution minimizes the risk of accidents and ensures a safer working environment during the bleeding process.

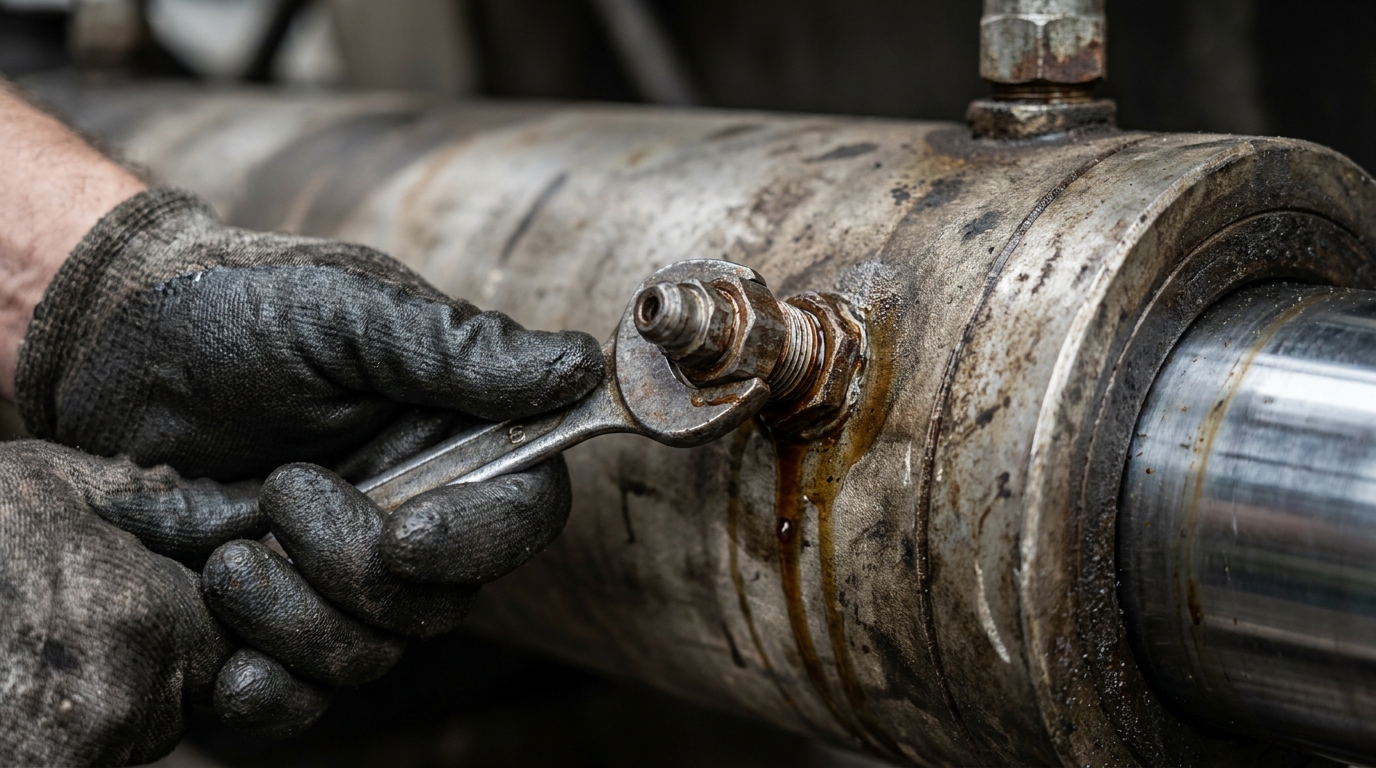

Once the safety measures have been taken, the bleeding process can begin. Using a suitable wrench, gently open the bleeder valve. It is important to perform this operation gradually; opening the valve too quickly will cause the hydraulic fluid to overflow too quickly, making the process difficult to control. If the hydraulic system is operated by a hand pump, start the pump slowly and steadily. This controlled approach helps to release trapped air without causing excessive spillage of hydraulic fluid.
As you continue to bleed the cylinder, pay close attention to the emergence of air bubbles from the bleed valve. The appearance of these bubbles is a clear sign that air is being expelled from the system. Watch the stream of fluid and bubbles carefully, and continue this process until the bubbles no longer appear. The cessation of bubbles is a good indicator that most, if not all, of the trapped air has been removed from the system. It’s crucial to be thorough during this stage to ensure the complete removal of air, as any remaining air can compromise the efficiency of the hydraulic cylinder.
Upon completion of the bleeding process, it’s vital to close the bleed valve securely. The next step is to replenish the hydraulic system with the appropriate type of hydraulic fluid. This should be done according to the manufacturer’s specifications and filled to the recommended level. When adding new fluid, it’s important to check for any signs of contamination, such as particles or discoloration, in the fluid. This ensures that the hydraulic system remains clean and efficient. Proper refilling and maintenance of the hydraulic fluid are crucial for the optimal performance and longevity of the hydraulic system. Regular checks and maintenance of the fluid can prevent future issues and ensure the smooth operation of your machinery.
After completing the bleeding process, it’s essential to conduct a comprehensive inspection of the entire hydraulic system. This includes a meticulous examination of all hoses, connectors, and particularly the bleed valve, for potential leaks. Any detected leaks should be addressed immediately. Loose fittings must be securely tightened to ensure they can withstand the system’s pressure. Checking the integrity of the seals is equally important, as compromised seals can lead to fluid loss and reduced system efficiency. This step is fundamental in preserving the hydraulic system’s integrity, preventing fluid leakage, and ensuring the long-term reliability of the machinery.
With the bleeding process complete and the system integrity verified, the next crucial step is to restart the machinery for testing and observation. During this phase, closely monitor the hydraulic cylinder’s operation. The aim is to observe smooth and consistent movements of the cylinder, indicating that air has been successfully removed from the system. Additionally, ensure the cylinder maintains its position when under load. This is a key indicator of a properly functioning hydraulic system. Vigilantly listen for any abnormal sounds or watch for unusual movements, as these could be signs of residual air in the system or other underlying issues that might have been overlooked.
Concluding the procedure involves a thorough clean-up. Use appropriate rags or absorbent materials to clean any spills of hydraulic fluid. It’s important to handle and dispose of used hydraulic fluid responsibly, adhering to environmental safety guidelines. Documenting the maintenance process is a valuable practice. Record the date of the bleeding, observations made during the process, and any other relevant details. This documentation serves as a valuable record for future maintenance activities and helps in tracking the system’s performance over time. To ensure the longevity and optimal performance of the hydraulic system, establish a schedule for regular inspections and maintenance. Preventative maintenance is key to avoiding issues related to air entrapment and other common hydraulic problems, ultimately saving time and resources in the long run.
In scenarios where air pockets persistently plague the hydraulic system, it’s crucial to reassess the bleeding procedure to confirm its accuracy and thoroughness. Air pockets can be stubborn and may require several bleeding cycles to be entirely removed from the system. During these cycles, it’s important to ensure that the hydraulic cylinder is fully extended and retracted through its entire range of motion. This movement helps in dislodging and guiding any trapped air pockets towards the bleed valve, thereby facilitating their removal. Patience and meticulous attention to the bleeding process are key in resolving this issue effectively.
When faced with stubborn seals that hinder the bleeding process, a detailed inspection is necessary. Examine the seals closely for any signs of wear, damage, or incorrect fitting, which can compromise the seal’s effectiveness. If the seals are found to be damaged or excessively worn, replacing them is often the most reliable solution. Additionally, applying a suitable lubricant to the seals can enhance their sealing capability, ensuring a more efficient and leak-free bleeding process. Proper maintenance of seals is crucial for the overall health of the hydraulic system, as it directly impacts the system’s ability to maintain pressure and function optimally.
In cases where the hydraulic cylinder remains dysfunctional even after a thorough bleeding process, it could be indicative of more complex issues within the hydraulic system. Begin by conducting a comprehensive inspection of the cylinder for any visible physical damage, which could be affecting its operation. Additionally, assess the quality and levels of the hydraulic fluid, as contaminated or insufficient fluid can lead to operational failures. Ensuring that all connections and fittings in the hydraulic system are secure and intact is also vital. If these measures do not yield a solution, it might be time to seek the expertise of a hydraulic systems specialist or consider professional servicing. Sometimes, complex hydraulic problems require advanced diagnostics and repair techniques that go beyond routine maintenance and troubleshooting.
Improving the efficiency of the bleeding process can significantly reduce maintenance time and enhance the overall performance of the hydraulic system. One effective method is utilizing a vacuum bleeder tool, which can expedite the process by actively drawing out air and fluid from the system. This tool is particularly useful in systems where air pockets are stubborn or difficult to remove through standard bleeding methods. Additionally, managing the temperature of the hydraulic system can also play a crucial role. Warmer hydraulic fluids have a lower viscosity, allowing trapped air to escape more readily. Hence, operating the system at a slightly elevated temperature during the bleeding process can facilitate the release of air, making the procedure quicker and more effective.
Engaging in preventive maintenance is key to reducing the frequency of bleeding requirements. Regular inspections of the hydraulic fluid can help identify and rectify any contamination early on. Contaminants in the fluid can lead to air entrapment, so keeping the fluid clean is essential. Additionally, periodic replacement of hydraulic fluid ensures that it maintains its properties and effectiveness. Scheduling routine check-ups of the entire hydraulic system allows for the early detection and resolution of minor issues, preventing them from escalating into major problems that require extensive bleeding or more complex maintenance procedures.

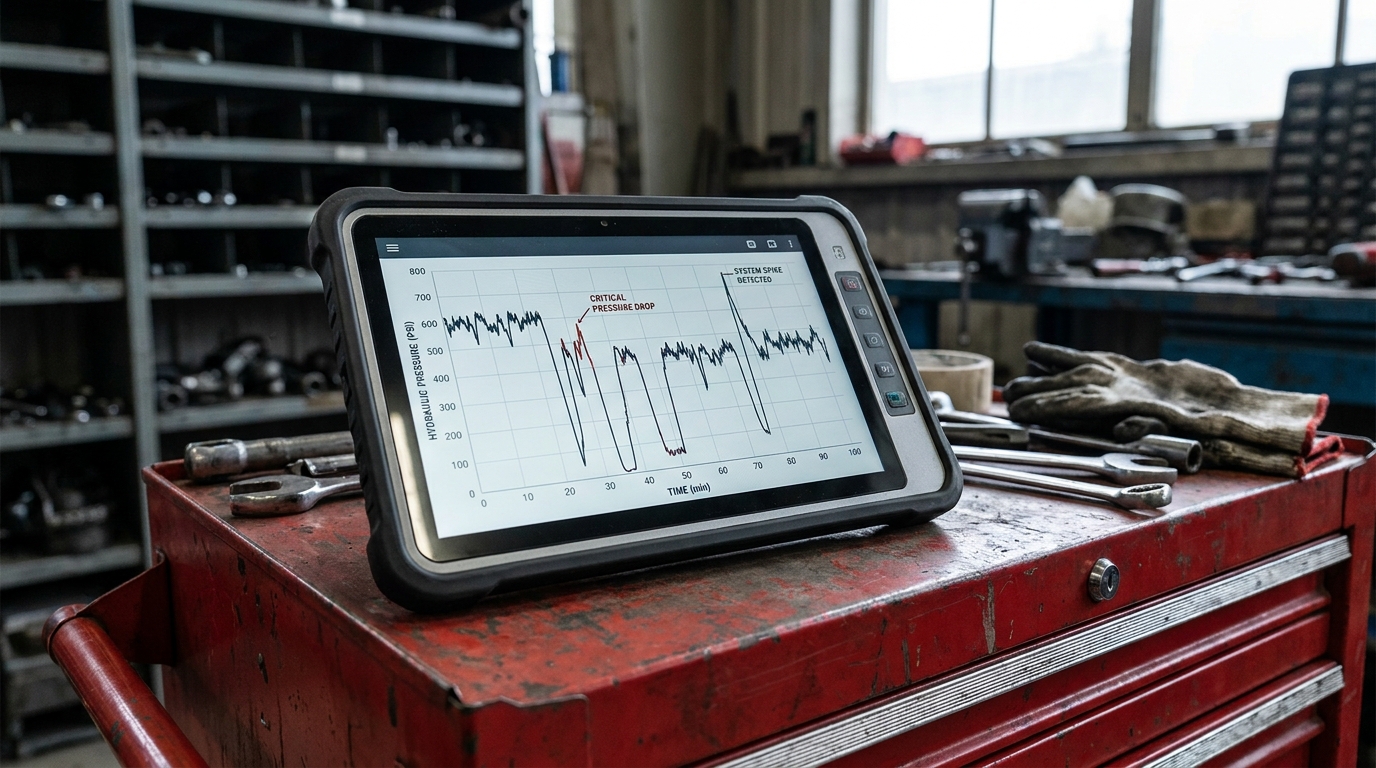

In dealing with complex hydraulic systems, tapping into the expertise of a hydraulic engineer can be invaluable. These professionals can provide tailored advice and insights specific to your system, helping to identify unique adjustments or improvements that can enhance efficiency and reliability. They can also recommend strategies to reduce the frequency of maintenance needs. Additionally, investing in advanced diagnostic tools can be a wise decision. These tools continuously monitor the hydraulic pressure and fluid quality, providing real-time data that can help in early problem detection and maintenance planning. By integrating these advanced tools into your maintenance routine, you can achieve a more proactive approach to system management, ensuring that your hydraulic system operates at its peak performance with minimal downtime.
Proper bleeding of hydraulic cylinders is critical to maintaining the efficiency and longevity of your hydraulic system. It ensures smooth operation and prevents potential failure or damage. If you found this guide helpful, please share it with others. For more information and advanced guidance, check out the other resources and services available on our website.
