Lift Cylinders
Lift cylinders are installed on both sides of the loader arm structure. Their main job is to raise and lower the loader arms during loading and transport work.
Front End Loaders Hydraulic Cylinder Manufacturer
Get lift cylinders and bucket tilt cylinders built for front end loaders that work in dirt, gravel, farms, and construction sites. Topa helps buyers match the right size faster, reduce fitment risk, and secure stable supply for replacement and custom orders.
Types
Main Front End Loader Hydraulic Cylinder Types and Their Positions
Front end loaders usually use different hydraulic cylinders for different movements. Knowing the cylinder type and where it is installed helps buyers confirm function, replacement position, and matching direction faster.

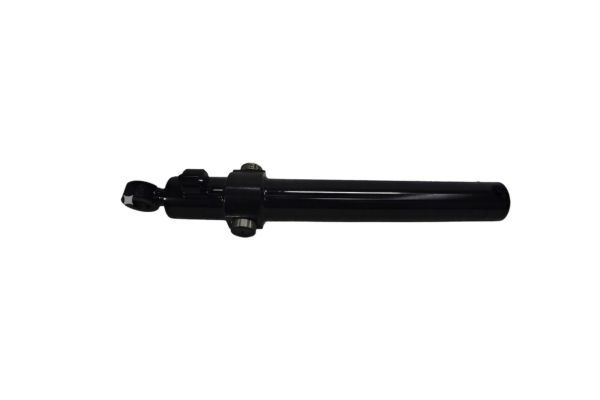

Bucket Tilt Cylinders
Bucket tilt cylinders are mounted between the loader linkage and the bucket. They control bucket rollback and dumping action during material loading.
Quick Attach Cylinders
Quick attach cylinders are used on the coupler locking system at the front attachment connection point. Their function is to lock and release tools such as buckets, forks, or other attachments.

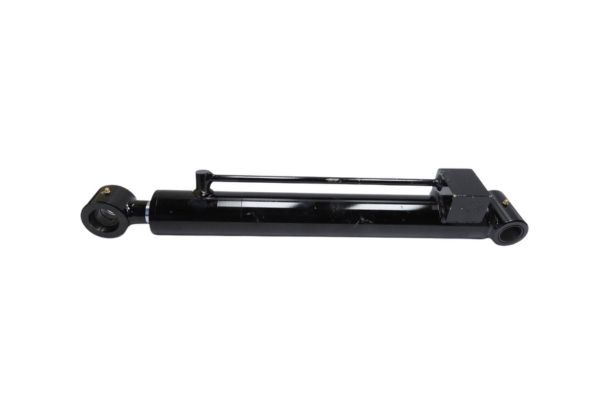

Grapple Cylinders
Grapple cylinders are installed on grapple or grab attachments mounted at the front of the loader. They are used to open and close the clamp for handling hay, wood, scrap, brush, or irregular materials.
Benefits
Why Buyers Choose Topa for Front End Loaders Hydraulic Cylinders
Front end loader cylinders work under dust, mud, impact, and repeated lifting cycles. Topa focuses on the points buyers check first—fit, sealing, strength, and delivery control—so sourcing becomes more reliable and after-sales risk becomes easier to manage.
Accurate Fitment Control
Precise machining helps keep bore, rod, pin, and mounting sizes within the required range.
Better Rod and Seal Protection
Stable rod finish and matched seal design help reduce leakage, contamination entry, and early wear.
Pressure Tested Before Shipment
Each tested cylinder gives buyers stronger confidence before delivery.
Stable Supply and Export Packing
Organized production scheduling and export packing help you receive cylinders in better condition.
Cylinder Motion
How Hydraulic Cylinders Move Key Loader Components
Front loader hydraulic cylinders are installed at different working positions, and each one drives a specific component movement. Buyers need to understand where the cylinder is mounted and what motion it creates, because lift, tilt, and clamping functions all depend on different cylinder structures and strokes.
Motion 01
Loader Arm Up and Down Movement
Controlled by the lift cylinders mounted on both sides of the loader arms.
Lift cylinders are connected between the loader frame and the loader arms. When the cylinder rod extends, it pushes the arms upward to raise the bucket and load. When the rod retracts, it brings the arms back down in a controlled way for lowering and unloading operations.
Motion 02

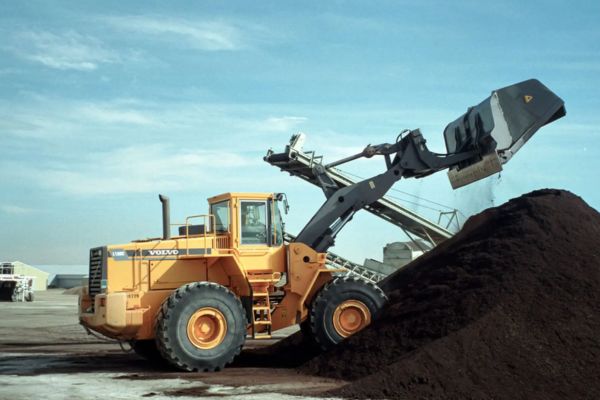

Bucket Rollback and Dumping Movement
Controlled by the bucket tilt cylinders installed between the linkage and the bucket.
Bucket tilt cylinders move the bucket through the loader linkage. During extension or retraction, they rotate the bucket backward for material holding or forward for dumping. This motion directly affects bucket angle, unloading speed, and working control during each loading cycle.
Motion 03

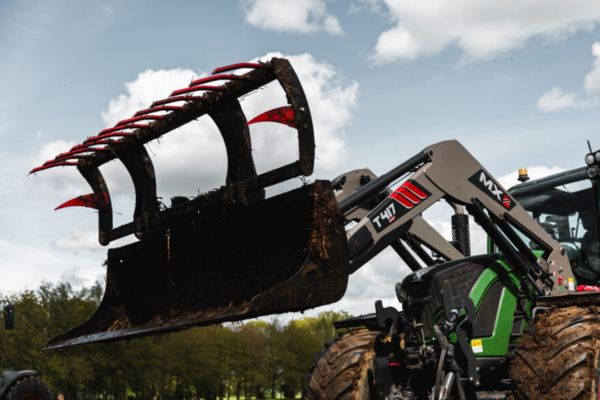

Clamp Opening and Closing Movement
Controlled by grapple cylinders installed on grapple or grab attachments.
Grapple cylinders move the upper clamp or grab arm on the attachment. When the rod extends or retracts, the clamp opens or closes to grip hay, wood, brush, scrap, or irregular material. This motion lets the loader handle materials that cannot be managed well by a standard bucket alone.
Working Conditions
Built for Demanding Front End Loader Working Conditions
Front end loader hydraulic cylinders are often used in rough outdoor environments where heavy material handling, repeated lifting, and dirt exposure happen every day. Topa loader cylinders are designed to support stable operation in common field, farm, and construction working conditions, helping buyers reduce maintenance pressure and improve service life.
Suitable for Dirt, Sand, Farm, and Construction Use
These cylinders are made for loader applications that work in soil, sand, gravel, feed yards, and building sites. This helps buyers choose a product that fits real outdoor machine use instead of light-duty indoor conditions.
Handles Repeated Lifting and Lowering Cycles
Front end loaders often perform constant up-and-down movement during loading work. A cylinder built for repeated motion helps keep operation smoother, reduces early wear, and supports more stable performance over time.
Supports Heavy Loads and Shock Impact
Loader cylinders often face bucket load changes, impact from rough ground, and force from material shifting. A stronger structure helps buyers handle these demanding conditions with more confidence in daily use.
Suitable for Long Working Hours
Many front end loaders run for long periods during harvest, site clearing, and material transport. A cylinder suited for continuous operation helps reduce stoppage risk and supports more dependable machine uptime.
Works Better in Dust, Moisture, and Muddy Conditions
Outdoor loaders are exposed to dust, wet ground, rain, and muddy splash. Better sealing and rod surface protection help reduce contamination entry and support longer service life in dirty environments.
Corrosion-Resistant Surface Treatment Available
For buyers working in humid, coastal, or high-exposure areas, corrosion-resistant treatment can be added based on project needs. This helps protect the cylinder surface better and keeps the product looking and performing better during service.
Application Equipment
Common Machines Using Front End Loader Hydraulic Cylinders
Front end loader hydraulic cylinders are used on many types of agricultural and material handling equipment. Different machines have different lifting structures, working loads, and motion requirements, so understanding the application equipment helps buyers match the right cylinder more quickly.
Tractor Front Loaders
This is the most common application. Mounted on the front of agricultural tractors, these loaders are used for handling hay bales, feed, fertilizer, soil, timber, and bulk materials. Many farms rely on this type of machine for daily loading and unloading work.

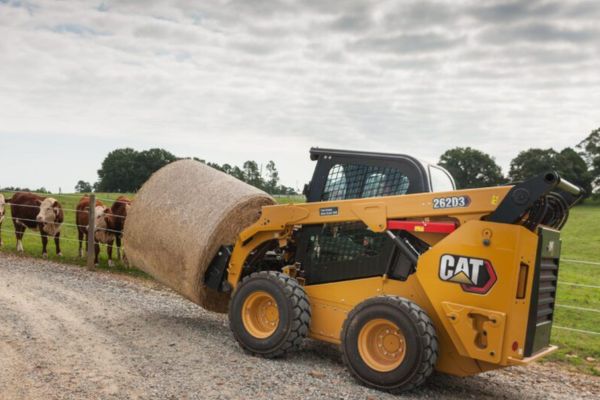

Skid Steer Loaders
Skid steer loaders are compact and highly flexible, making them suitable for ranches, warehouses, orchards, greenhouses, and narrow working areas. With different attachments, they can handle loading, cleaning, pushing, and fork work beyond simple material transport.
Wheel Loaders
Wheel loaders are heavier-duty machines with higher loading capacity than standard tractor front loaders. They are commonly used on large farms, feed yards, grain storage areas, compost sites, and earthmoving jobs where repeated heavy loading is required.

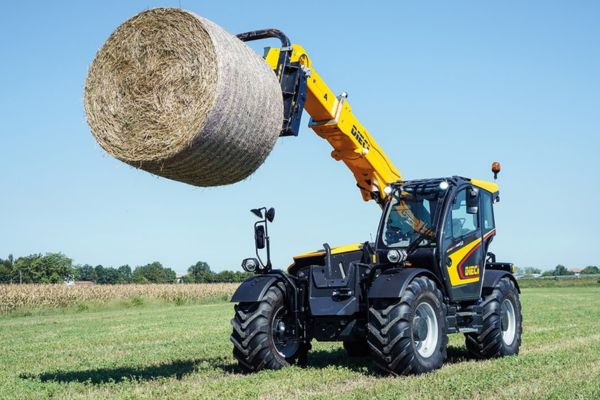

Telehandlers
Telehandlers, also called telescopic handlers, can lift materials higher and reach farther than standard front loaders. They are widely used for stacking hay bales, truck loading, warehouse work, and material handling on large farms and industrial yards.
Backhoe Loaders
Backhoe loaders combine a front loader bucket with a rear digging arm. In agricultural and site maintenance work, they are often used for trench cleaning, foundation digging, material loading, and general yard maintenance where one machine needs to do more than one job.
Compact Tractor Loaders
Compact tractor loaders are suitable for small farms, orchards, landscaping, and household agricultural work. Their smaller size and simple operation make them practical for light-duty loading, transport, and routine maintenance tasks.
Factory
Real Factory Photos for Loader Cylinder Buyers
Real workshop photos help buyers verify whether the supplier truly handles cylinder production. This adds trust before inquiry and gives stronger support for bulk purchasing decisions.
CNC workshop for cylinder component machining
Production line for welded hydraulic cylinders
Pressure and leakage testing before packing
Finished cylinders prepared for export shipment
CNC Machining Capacity
The machining workshop shows how cylinder tubes, rods, and connection parts are processed with controlled dimensions. This helps buyers judge whether the supplier can support consistent replacement and custom production.
Production Line for Cylinder Assembly
A visible production line gives buyers a clearer view of actual manufacturing capability. It also helps confirm that the supplier can handle repeated orders and bulk production more reliably.
Testing Before Shipment
Pressure and leakage testing photos give stronger proof that cylinders are checked before delivery. This matters to buyers who want to reduce installation risk and avoid quality problems after arrival.
Packing and Export Readiness
The finished goods and packing area helps buyers understand that the supplier is prepared for organized shipment and export handling. This is especially useful for importers, distributors, and OEM replacement projects.
Production Line
How Front End Loader Hydraulic Cylinders Are Made
A clear manufacturing process helps buyers judge product consistency, machining control, and delivery reliability. Topa follows a step-by-step production flow from raw material preparation to final testing, making front end loader hydraulic cylinders easier to match, easier to trust, and easier to reorder.
01
Raw Material Preparation
Cylinder tube, piston rod, end caps, and mounting parts are prepared based on the required size and structure. Stable raw material control helps create a better starting point for later machining and assembly.
02
Tube and Rod Cutting
The tube and rod are cut to the required length according to the cylinder design. Accurate cutting helps control stroke, installation size, and later machining efficiency for front loader cylinder production.
03
CNC Machining of Key Parts
Important parts such as the rod end, piston, gland, ports, and mounting connections are machined with controlled tolerance. Better machining accuracy helps buyers reduce fitting problems during installation.
04
Welding and Structural Processing
Welded cylinder parts and mounting components are joined according to the product design. Good welding control helps the cylinder body maintain strength and stability under repeated lifting and bucket movement.
05
Seal Installation and Cylinder Assembly
Seals, piston components, gland parts, and rods are assembled into the finished cylinder body. Careful assembly helps improve sealing performance, movement stability, and overall service life in field use.
06
Pressure Testing and Final Inspection
Each finished cylinder goes through inspection and pressure testing before shipment. This helps check leakage, stroke performance, and assembly quality, giving buyers more confidence before installation.
Quality Check
Topa Quality Inspection Process for Front End Loader Hydraulic Cylinders
A clear inspection process helps buyers reduce quality risk before shipment. Topa checks key product details before delivery so buyers can confirm size accuracy, surface condition, pressure performance, and sealing reliability more confidently.
Dimension Inspection
Coating Inspection
Pressure Testing
Leakage Testing
Dimension Inspection
Topa checks key dimensions such as bore size, rod diameter, stroke, mounting width, pin hole size, and port details during production. This helps reduce installation mismatch and improves replacement accuracy for front end loader hydraulic cylinders.
Coating Inspection
The coating and plated surface are checked for coverage, finish, and consistency. This helps improve corrosion resistance and gives the cylinder a cleaner and more stable surface condition for outdoor working environments.
Pressure Testing
Pressure testing is arranged before shipment to verify that the hydraulic cylinder can work under the required operating pressure. This helps buyers confirm product stability before installation and field use.
Leakage Testing
Leakage testing is used to check the sealing performance of the finished cylinder before packing. This helps reduce the risk of oil leakage after delivery and supports more dependable loader operation.
Shipping
Packing and Shipping That Protect Loader Cylinders Better
Buyers do not only need a good cylinder. They also need it to arrive clean, straight, and ready for installation. Proper packing helps reduce transport damage and makes receiving easier at the destination.
Clean Surface Protection
Wrapped cylinders help protect rod and paint surfaces during inland and sea transport. Buyers receive products in better condition and with less cleaning work.
Organized Pallet Packing
Structured pallet layout helps reduce collision during movement. This gives buyers better unloading efficiency and better stock handling after arrival.
Export Delivery Support
Export handling support helps buyers move from production to shipment faster. This is useful for replacement orders and scheduled machine maintenance projects.
Clear Label and Batch Control
Better shipment identification helps buyers sort models and quantities faster. This improves receiving accuracy and supports repeat procurement.
FAQ
FAQ
These common product questions help buyers understand front end loader hydraulic cylinders before matching dimensions, confirming structure, or moving to sample and bulk orders.
What is a front end loader hydraulic cylinder used for?
A front end loader hydraulic cylinder is used to create lifting and tilting movement on the loader. It helps raise the loader arms, control bucket dumping, and support material handling during farm, construction, and utility work.
What is the difference between a lift cylinder and a bucket tilt cylinder?
A lift cylinder moves the loader arms up and down, while a bucket tilt cylinder controls the bucket angle for loading, dumping, and leveling. Both are used on the same machine, but their size and stroke are usually different.
What are the main parts of a front end loader hydraulic cylinder?
The main parts usually include the cylinder tube, piston rod, piston, gland, seals, end cap, mounting ends, and hydraulic ports. Each part affects sealing, movement stability, strength, and service life.
How do I identify the correct bore and rod size?
The bore is measured from the inside diameter of the cylinder tube, and the rod size is measured from the outside diameter of the piston rod. These two dimensions are key for matching load capacity and cylinder structure.
Why is stroke length important for loader cylinders?
Stroke length determines how far the cylinder can extend and retract. If the stroke is wrong, the loader may not lift to the correct height or the bucket may not rotate through the required working angle.
What mounting types are common for front end loader hydraulic cylinders?
Common mounting types include cross tube, clevis, eye end, and other custom connection styles. The correct mounting type is necessary to match the loader frame and keep the cylinder working in the proper motion path.
Why does port size and thread type matter?
Port size and thread type affect how the cylinder connects to the hydraulic hose or fitting. If the port does not match the hydraulic system, installation becomes difficult and the risk of leakage or rework becomes higher.
What seal materials are used in loader hydraulic cylinders?
Seal materials can vary depending on pressure, temperature, oil type, and working conditions. The right seal material helps improve leakage control, wear resistance, and service life during repeated loader movement.
How does rod surface quality affect cylinder performance?
The rod surface affects seal wear and movement smoothness. A well-finished rod surface helps reduce friction, protect sealing parts, and lower the chance of early leakage during long-term loader use.
How can I tell if a loader hydraulic cylinder is suitable for heavy-duty use?
You need to check the bore size, rod diameter, working pressure, mounting structure, welding quality, and material strength. These details help determine whether the cylinder can handle repeated loading cycles and demanding field conditions.
Send Your Front Loader Hydraulic Cylinder Request Today
- ✓ Send your old cylinder photo, drawing, or key dimensions to get a faster quote for front loader hydraulic cylinders.
- ✓ Support OEM replacement, custom front loader cylinders, lift cylinders, bucket tilt cylinders, and other attachment cylinder projects.
- ✓ Reduce mismatch risk on bore size, rod diameter, stroke, mounting type, pin size, and port thread before production starts.
- ✓ From quotation to production and shipment, one team helps you move faster on sample orders, trial orders, and bulk purchasing.
