Custom Hydraulic Cylinders Built for Your Equipment
Topa supplies custom hydraulic cylinders for agriculture, construction, material handling, and industrial equipment with fit-focused design and tested production support.
Application Challenges Mapped to the Right Cylinder Solution
Different industries put hydraulic cylinders under very different working conditions. Topa matches each application with structure, sealing, mounting, and dimensional support that help buyers reduce fitting problems, shorten sourcing time, and improve service performance.
Agriculture Equipment
Farm machines work in mud, rain, dust, and long outdoor cycles. Replacement cylinders also need to match existing brackets and stroke limits without wasting time on repeated adjustments.
Topa supports custom bore, stroke, pin size, and mounting dimensions, with sealing and rod surface options that are more suitable for outdoor and dirty operating conditions.

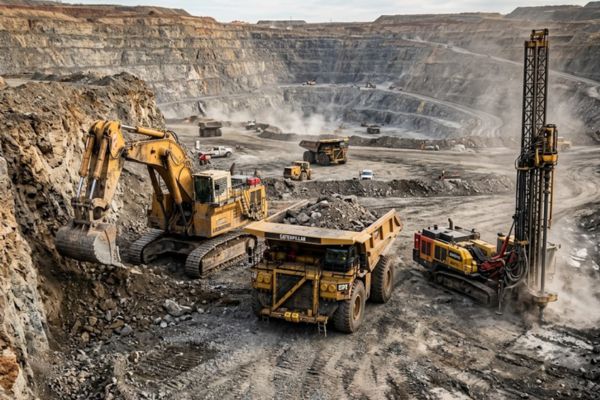

Mining Equipment
Mining equipment works under dust, vibration, heavy load, and continuous operating pressure. Buyers need hydraulic cylinders that can handle harsh site conditions and fit demanding machine structures.
Topa supports custom welded cylinder design, reinforced structure planning, and sealing options for mining machines that require stronger durability and more stable operation in severe environments.

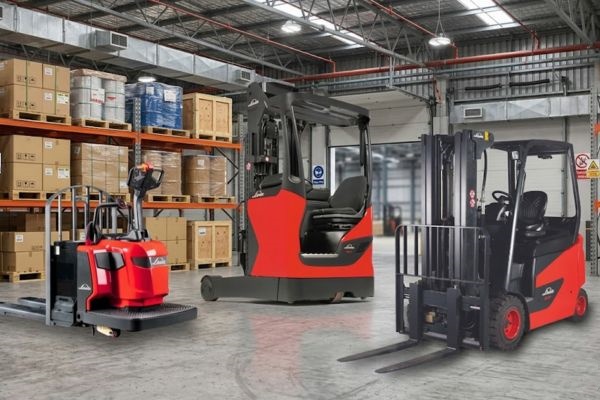

Material Handling Systems
Forklifts, stackers, lift tables, and warehouse machines often have limited installation space, strict stroke requirements, and close tolerance demands for repeat movement.
Topa supports compact design planning, custom closed length, port location adjustment, and accurate mount sizing to help the cylinder match tighter layouts.

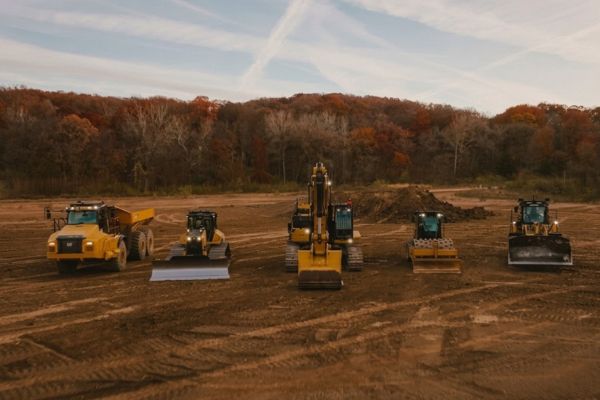

Construction Machinery
Excavators, loaders, compact machines, and lifting platforms face high pressure, vibration, impact, and frequent load changes. Standard cylinders may not always match the application properly.
Topa develops custom cylinder dimensions, welded structures, and pressure-based configuration options for machines that need stronger support under harsh operating conditions.

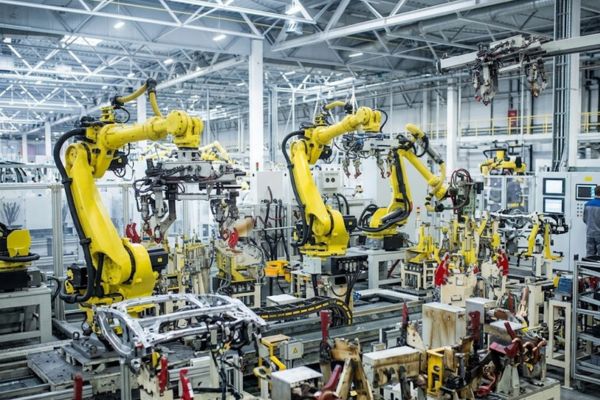

Industrial Machinery
Presses, hydraulic power units, automation lines, and special machines often require repeatable dimensions, stable operation, and easier integration with existing production layouts.
Topa provides dimensional customization, port position adjustment, mounting selection, and batch-oriented production support for industrial equipment projects.

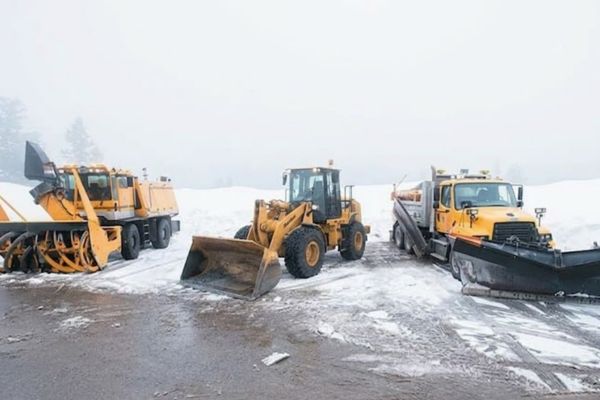

Transportation and Special Vehicles
Vehicle-mounted systems such as dump bodies, lifting devices, access platforms, and service equipment need cylinders that balance compact mounting, load handling, and dependable motion.
Topa supports custom stroke length, structural layout, and mounting confirmation for mobile hydraulic systems that need better fit within vehicle space limitations.
Custom Hydraulic Cylinders for Agricultural Equipment
Topa supplies custom hydraulic cylinders for tractors, harvesters, agricultural trailers, field sprayers, seeders, and balers.
Tractor
3-point hitch lift system, front loader arms, and steering section.
Harvester
Header lift mechanism, unloading auger system, and feed adjustment area.
Agricultural Trailer
Dump bed lifting system and tipping section.
Field Sprayer
Boom lift section and boom folding mechanism.
Seeder / Planter
Frame lift section, folding wings, and row unit adjustment system.
Baler
Tailgate opening section, bale chamber mechanism, and pickup lift system.
Custom Hydraulic Cylinders for Mining Equipment
Topa supplies custom hydraulic cylinders for mining excavators, underground loaders, dump trucks, drilling rigs, crushers, and roof support equipment.
Mining Excavator
Boom, arm, and bucket linkage.
Underground Loader
Lift arm, bucket tilt section, and steering articulation.
Mining Dump Truck
Dump body lifting system and tailgate section.

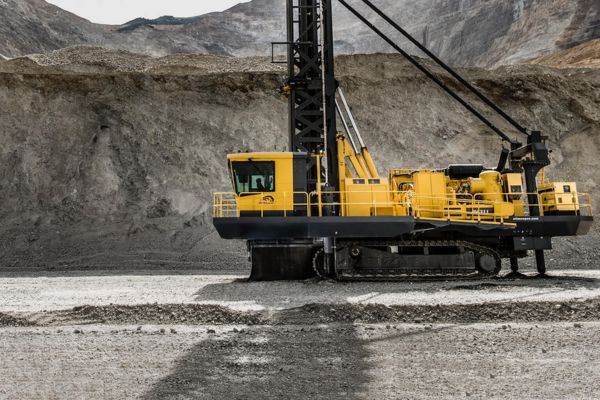

Drilling Rig
Mast lifting section, feed system, and stabilizer legs.

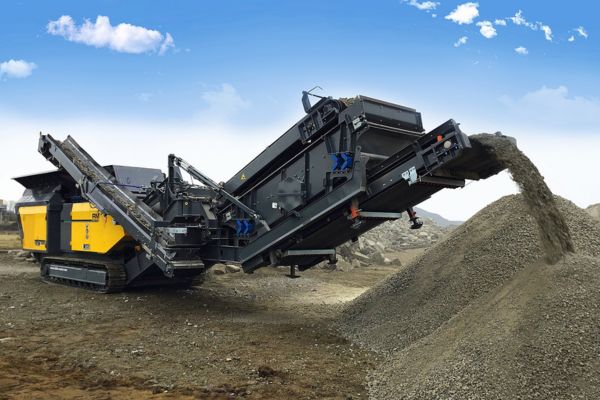

Crusher
Jaw adjustment section, opening control system, and lifting frame.

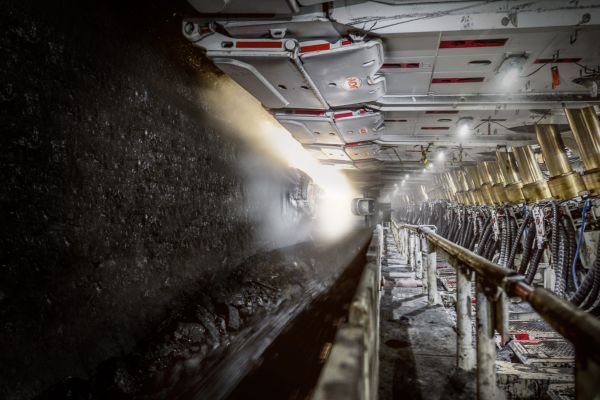

Roof Support Equipment
Support lifting section, advance mechanism, and stabilizing unit.
Common Industrial Machines That Use Hydraulic Cylinders
Topa custom hydraulic cylinders are widely used in common industrial machines such as presses, lift tables, clamping systems, transfer equipment, injection molding machines, and balers. These applications need stable force, repeated movement, and reliable performance during long operating cycles.
Hydraulic Press
Used for the main pressing ram, upper platen movement, and auxiliary pushing action where high force output and stable stroke control are required.
Lift Table
Used in the scissor lifting structure and platform raising system to support smooth vertical lifting, lowering, and position holding during loading operations.
Clamping Machine
Used for the clamping arm, fixture locking section, and workpiece positioning movement to keep parts fixed during machining or assembly.
Conveyor and Transfer Equipment
Used in the pushing unit, stopper mechanism, and lifting transfer section to move, separate, or position materials between workstations.
Injection Molding Machine
Used for mold clamping, ejector movement, and core pulling actions where repeated cycling, controlled force, and accurate machine response are needed.
Baler or Compactor
Used for the compression ram, chamber door movement, and material pushing section in waste handling, recycling, and compacting systems.
Custom Hydraulic Cylinders for Construction Equipment
Topa supplies custom hydraulic cylinders for excavators, loaders, cranes, bulldozers, aerial work platforms, and road construction machinery working under heavy loads, impact, dust, and continuous outdoor use.
Excavator
Boom cylinder, arm cylinder, and bucket cylinder.
Wheel Loader
Lift arm cylinder and bucket tilt cylinder.

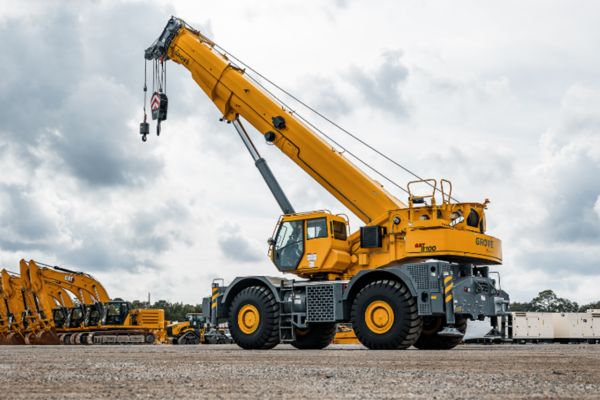

Crane
Outrigger cylinder, boom luffing cylinder, and stabilizer section.
Bulldozer
Blade lift cylinder, blade tilt cylinder, and ripper cylinder.

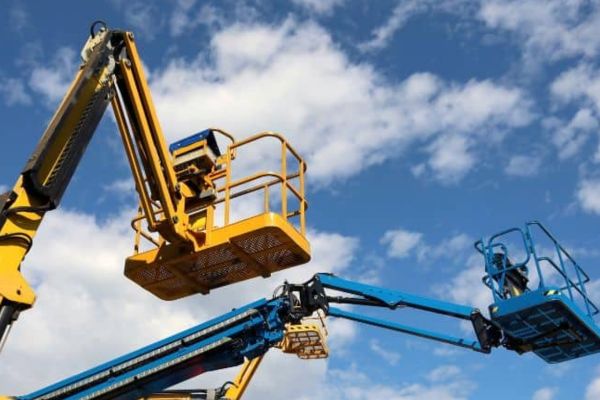

Aerial Work Platform
Lift cylinder, leveling cylinder, and platform extension mechanism.

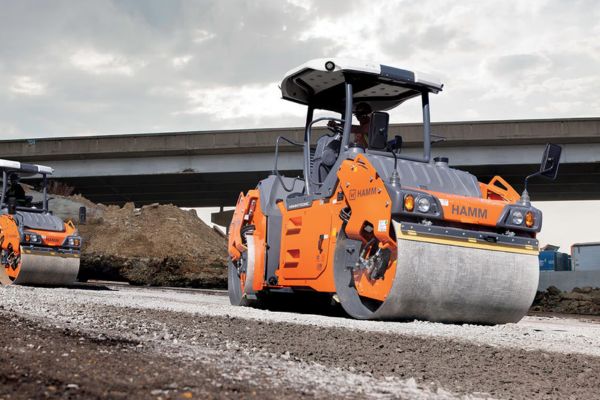

Road Construction Machinery
Leveling system, steering or lifting section, and attachment control mechanism.
Custom Hydraulic Cylinders for Material Handling Equipment
Topa supplies custom hydraulic cylinders for forklifts, scissor lifts, stackers, dock levelers, reach trucks, and warehouse lifting equipment that need stable motion, repeated cycling, and reliable load control.
Forklift
Mast lift cylinder, tilt cylinder, and side shift attachment section.

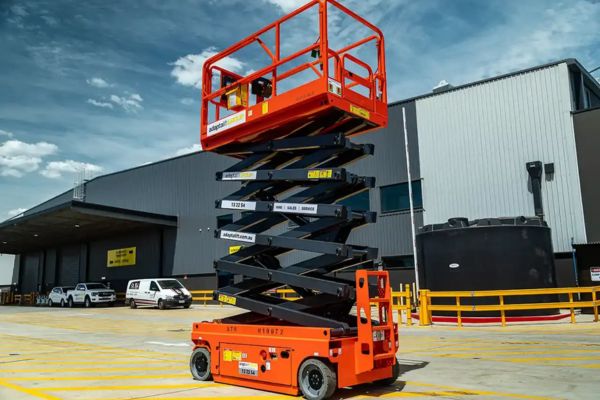

Scissor Lift
Main lifting cylinder and platform raising mechanism.
Stacker
Lifting mast section, fork adjustment system, and load handling unit.

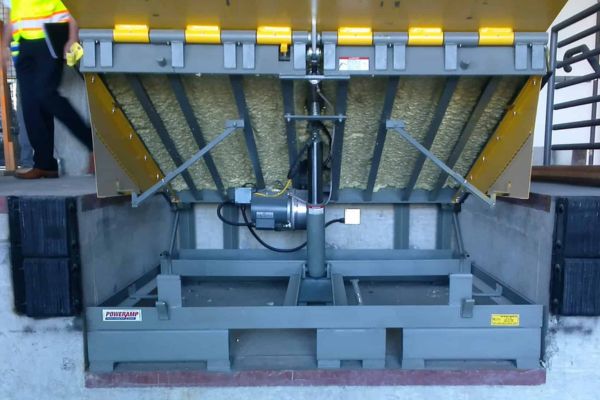

Dock Leveler
Deck lifting cylinder and lip extension mechanism.
Reach Truck
Reach mechanism cylinder, mast tilt section, and fork positioning unit.

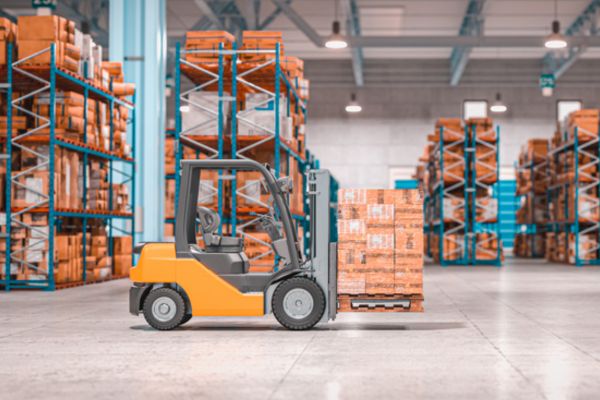

Warehouse Lifting Equipment
Lifting frame, table elevation section, and load positioning mechanism.
Custom Hydraulic Cylinders for Transportation and Special Vehicles
Topa supplies custom hydraulic cylinders for dump trucks, garbage trucks, fire fighting vehicles, tow trucks, aerial platform vehicles, and municipal service vehicles that need stable lifting, compact installation, and dependable motion control.
Dump Truck
Front end hoist cylinder, underbody lifting section, and dump body tipping system.
Garbage Truck
Compactor section, rear tailgate lifting system, and bin tipping mechanism.

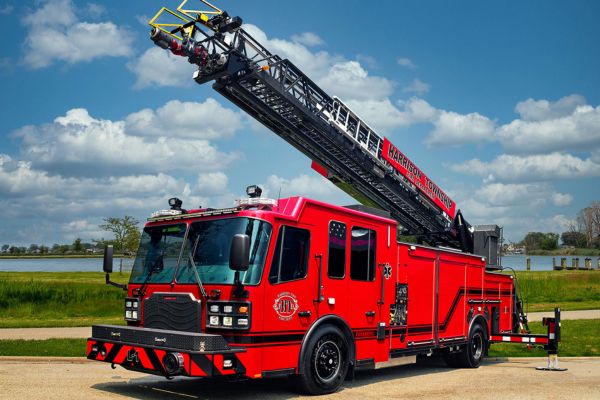

Fire Fighting Vehicle
Stabilizer cylinder, ladder or platform leveling section, and equipment access mechanism.

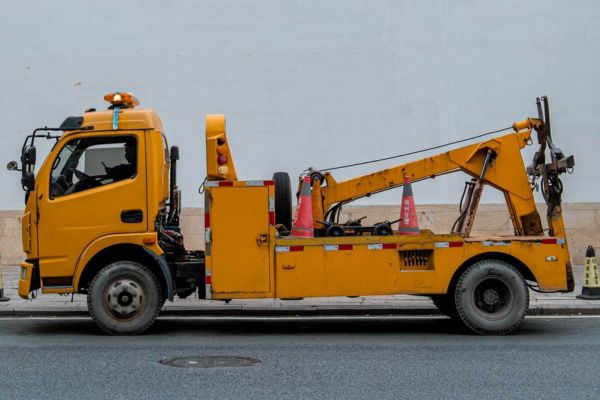

Tow Truck
Wheel lift section, boom lifting cylinder, and underlift mechanism.

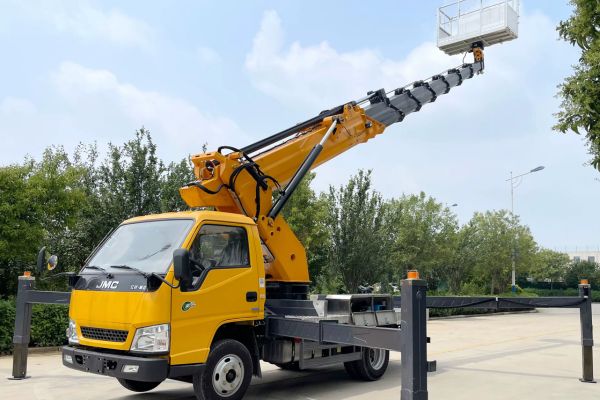

Aerial Platform Vehicle
Lift arm cylinder, outrigger stabilizing section, and platform leveling mechanism.
Municipal Service Vehicle
Rear loading section, side arm lifting unit, and attachment actuation mechanism.
Mounting Options That Make Matching Faster and Installation More Reliable
Mounting style is one of the first details buyers need to confirm before placing an order. If the mount does not match the machine structure, installation becomes slower and rework risk goes up. Topa supports common hydraulic cylinder mounting types so you can check fit earlier and order with more confidence.
Clevis Mount
Best for: Equipment with pivoting motion and linkage-driven movement.
The pin connection makes it easier to match moving assemblies that need angular travel.
Eye End Mount
Best for: Compact installations with limited mounting space.
It keeps the connection simple while helping control overall installation size.
Flange Mount
Best for: Fixed-position equipment with straight-line force transfer.
The rigid mounting structure helps keep the cylinder aligned with the machine frame.
Trunnion / Cross Tube
Best for: Heavy-duty applications with repeated movement and higher side load concerns.
It provides strong pivot support and better load distribution in demanding working conditions.

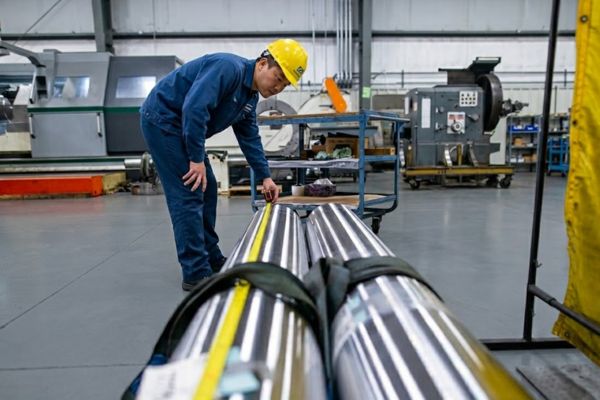

What You Need to Confirm Before Ordering
A custom cylinder project moves faster when you know which measurements matter most. The feature here is a clear confirmation list. The advantage is faster engineering review. The benefit is a more accurate quote and fewer back-and-forth changes.
- Bore Size
- Rod Diameter
- Stroke Length
- Closed Length
- Extended Length
- Mount Width
- Pin Diameter
- Port Size / Position
No full drawing? Topa can also review sample cylinders, application photos, OEM numbers, or key field measurements.
How to Start a Custom Cylinder Project with Less Risk
A simple buying process helps you move from idea to order faster. The feature is step-by-step support. The advantage is clearer confirmation. The benefit is smoother communication from inquiry to shipment.
Send Requirement
Share drawing, sample, OEM number, or application details so the project starts from real equipment data.
Confirm Parameters
Bore, rod, stroke, mount type, and pressure target are checked to improve matching accuracy.
Engineering Review
Structure and fit points are reviewed before production so changes are found earlier.
Sample or Mass Order
Trial production can be arranged when needed, then batch production follows approved details.
Material and Seal Options That Match Real Working Conditions
Cylinder performance is not decided by size alone. Rod material, tube strength, seal selection, and surface protection all affect service life, leakage risk, corrosion resistance, and long-term stability. Topa helps buyers match these details to actual pressure, environment, cycle frequency, and working conditions.
Rod Material and Finish
Rod material and surface finish should match the actual service environment. In outdoor, muddy, wet, or high-contact applications, the right rod treatment helps improve wear resistance, corrosion resistance, and long-term operating stability.
Tube and Structure Material
Tube material and cylinder structure need to match the pressure target, load level, and machine duty. A better material choice gives buyers more confidence when the cylinder will work under higher pressure, repeated cycles, or demanding field conditions.
Seal Material Selection
Seal choice should be based on dust, moisture, temperature, and cycle frequency. When the sealing package is matched more closely to real working conditions, buyers can reduce leakage risk and improve service stability over a longer operating period.
Surface Protection
Surface coating and protective treatment matter during transport, storage, and field use. For outdoor projects, humid regions, or rough handling conditions, proper protection helps the cylinder maintain a better appearance and stronger resistance to corrosion.
How Custom Hydraulic Cylinders Move From Material to Finished Assembly
A clear production flow helps buyers understand how the cylinder is processed before delivery. From cutting to assembly, each step supports more stable quality and better fit.
Raw Material Cutting
Steel materials are cut to the required size before the main machining process begins.
Cylinder Tube Machining
The tube is processed for length, inner structure, port position, and connection details.
Rod Machining
The rod is machined to match the required diameter, end connection, and surface condition.
Welding
Mounts, bases, and structural parts are welded to form the cylinder body and connection points.

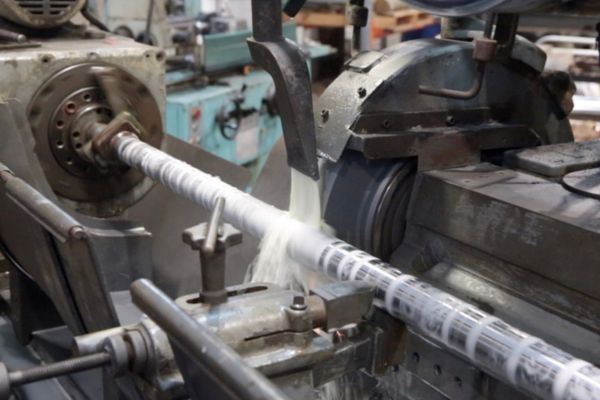

Grinding and Finishing
Surface grinding and finishing help improve appearance, smoothness, and dimensional consistency.
Assembly
Seals, rod, piston, tube, and mounting parts are assembled into the finished hydraulic cylinder.
Inspection Steps That Help Buyers Confirm Cylinder Quality Before Shipment
Quality control is not only about checking the finished product at the end. Buyers also want to know whether the cylinder has been reviewed from coating, dimensions, pressure performance, and final appearance. Topa supports this with inspection steps that help reduce delivery risk and improve order confidence.
Coating Inspection
Coating inspection helps confirm whether the plated or protected surface meets the expected finish condition. This step is useful for checking surface consistency, protective coverage, and overall preparation for storage, transport, and field use.
Dimension Inspection
Dimension inspection focuses on the key sizes that affect installation and matching, such as bore, rod diameter, stroke, mounting width, pin size, and port position. This helps buyers reduce fit problems and confirm that production follows the approved specification.
Pressure Testing
Pressure testing is used to check sealing condition and basic working performance before shipment. This step helps identify leakage or abnormal pressure-related issues earlier, so the finished cylinder is better prepared for delivery and field operation.
Appearance Inspection
Appearance inspection reviews the finished cylinder after production and assembly. It helps confirm surface condition, weld finish, coating appearance, marking clarity, and overall visual quality before packing and shipment.
Get the Right Hydraulic Cylinder for Your Machine Faster
- ✓ Send your drawing, sample, or key dimensions to get a faster and more accurate quotation.
- ✓ Support for standard cylinders, custom cylinders, replacement cylinders, and OEM production.
- ✓ Reduce mismatch risk on mounting size, port type, stroke, and installation space.
- ✓ One team to help with drawing confirmation, quotation, production follow-up, and shipment.
FAQ
These are common questions buyers ask when sourcing a custom hydraulic cylinder for replacement, OEM matching, or a new equipment project.
What information do you need for a custom hydraulic cylinder quote?
We usually need bore size, rod diameter, stroke, mounting type, working pressure, port details, and quantity to review a custom hydraulic cylinder project.
Can you produce a custom hydraulic cylinder based on a sample?
Yes, a sample cylinder can help us confirm structure, mounting style, and key dimensions when a full drawing is not available.
Can you match OEM hydraulic cylinder dimensions?
Yes, we can review OEM references, old samples, or field measurements to help match the required hydraulic cylinder dimensions.
What if I do not have a hydraulic cylinder drawing?
You can send machine model, photos, basic measurements, or the old cylinder, and we can start the custom review from that information.
Can you support small trial orders for custom hydraulic cylinders?
Yes, small trial orders are available for many custom hydraulic cylinder projects so buyers can confirm fit and performance first.
How do I choose the right hydraulic cylinder mounting type?
The mounting type should match the machine structure, movement direction, and installation space to avoid fit problems during assembly.
Can you customize hydraulic cylinder seals for different working conditions?
Yes, seal selection can be adjusted based on dust, moisture, temperature, pressure, and cycle frequency.
Can you customize rod material and surface treatment?
Yes, rod material and surface finish can be matched to the required wear resistance, corrosion resistance, and service environment.
Do you test each hydraulic cylinder before shipment?
We can carry out dimension checks, pressure testing, and appearance inspection before shipment based on the project requirement.
Can you help with replacement hydraulic cylinder projects?
Yes, we support replacement hydraulic cylinder projects by reviewing OEM numbers, sample cylinders, and installation dimensions.
